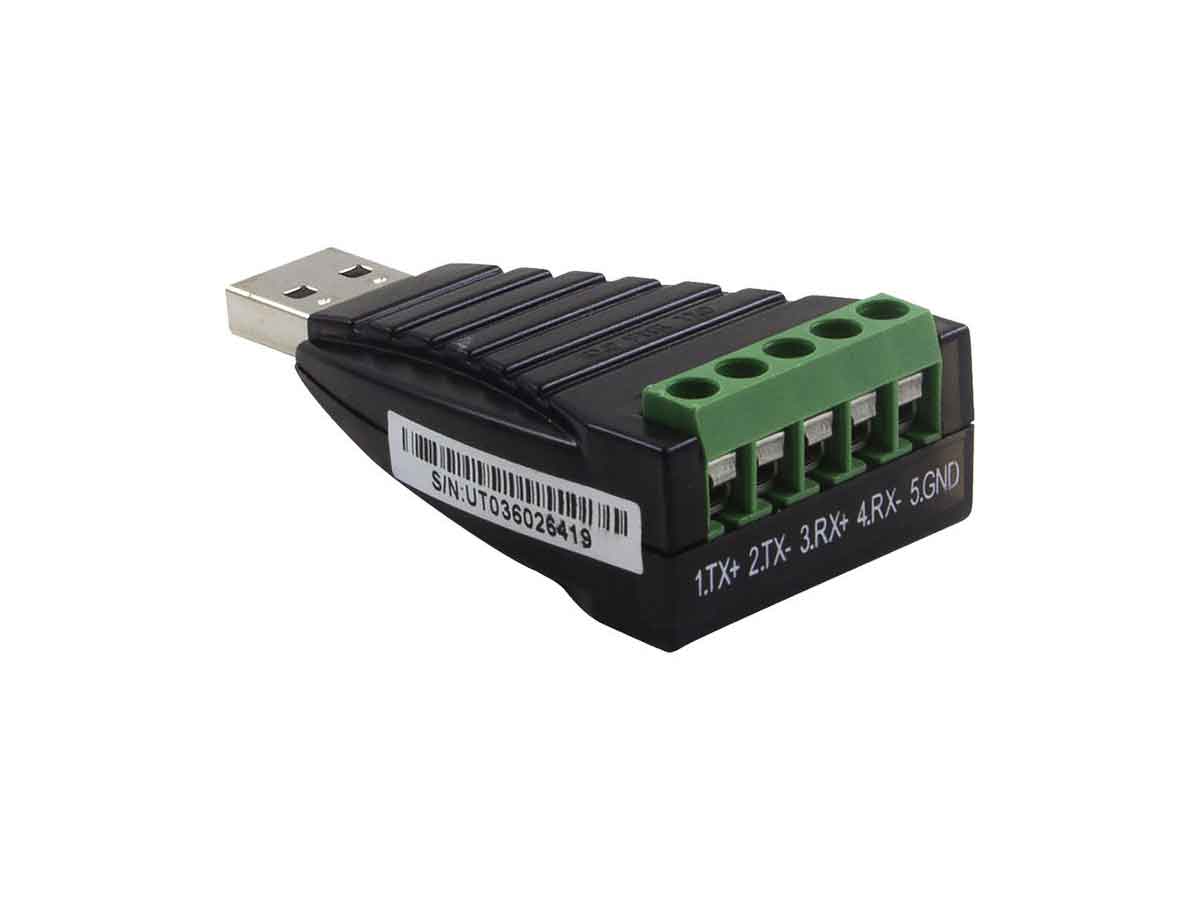

Marshall Electronics USB to RS-485/RS-422 Converter

Marshall Electronics USB to RS-485/RS-422 Converter

SKU: ME-CV-USB-RS485
£30.00 GBP ex VAT
£36.00 GBP inc VAT
ex VAT £30.00 GBP ex VAT
£36.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

The CV-USB-RS485 is a USB to RS-485/RS-422 converter for select cameras from Marshall Electronics.

  • Compatible with CV502, CV505, CV565, CV343, CV345, CV365, CV350, and CV225 cameras
  • USB Type-A for data output and terminal pin assignment
  • 5 x DB9 male connectors
  • Compatible with Select Marshall Cameras
Compatible Cameras Marshall Electronics CV502, CV505, CV565, CV343, CV345, CV365, CV350, and CV225 cameras
USB Type USB Type-A for data output and terminal pin assignment
Connectors 5 x DB9 male
Output Signal DB9 Connector 1: T/R+
DB9 Connector 2: T/R-
DB9 Connector 3: RXD+
DB9 Connector 4: RXD-
DB9 Connector 5: Ground
RS-422 RS-422 full-duplex

DB9 Connector 1: Send(A+)
DB9 Connector 2: Send(B-)
DB9 Connector 3: Receive(A+)
DB9 Connector 4: Receive(B-)
DB9 Connector 5: Ground Wire
RS-485 RS-485 half-duplex

DB9 Connector 1: RS-485(A+)
DB9 Connector 2: RS-485(B-)
DB9 Connector 3: Empty
DB9 Connector 4: Empty
DB9 Connector 5: Ground Wire
  • 1x Marshall Electronics USB to RS-485/RS-422 Converter
