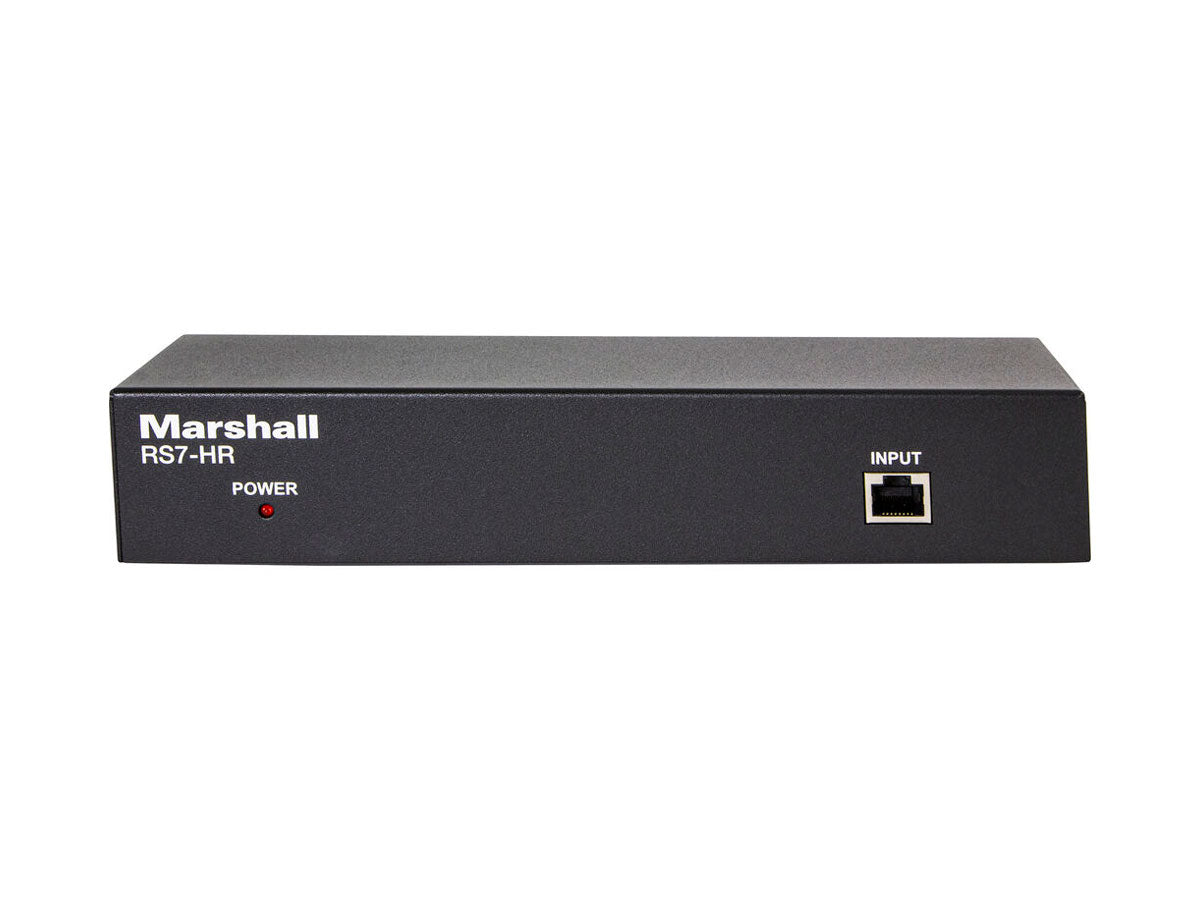

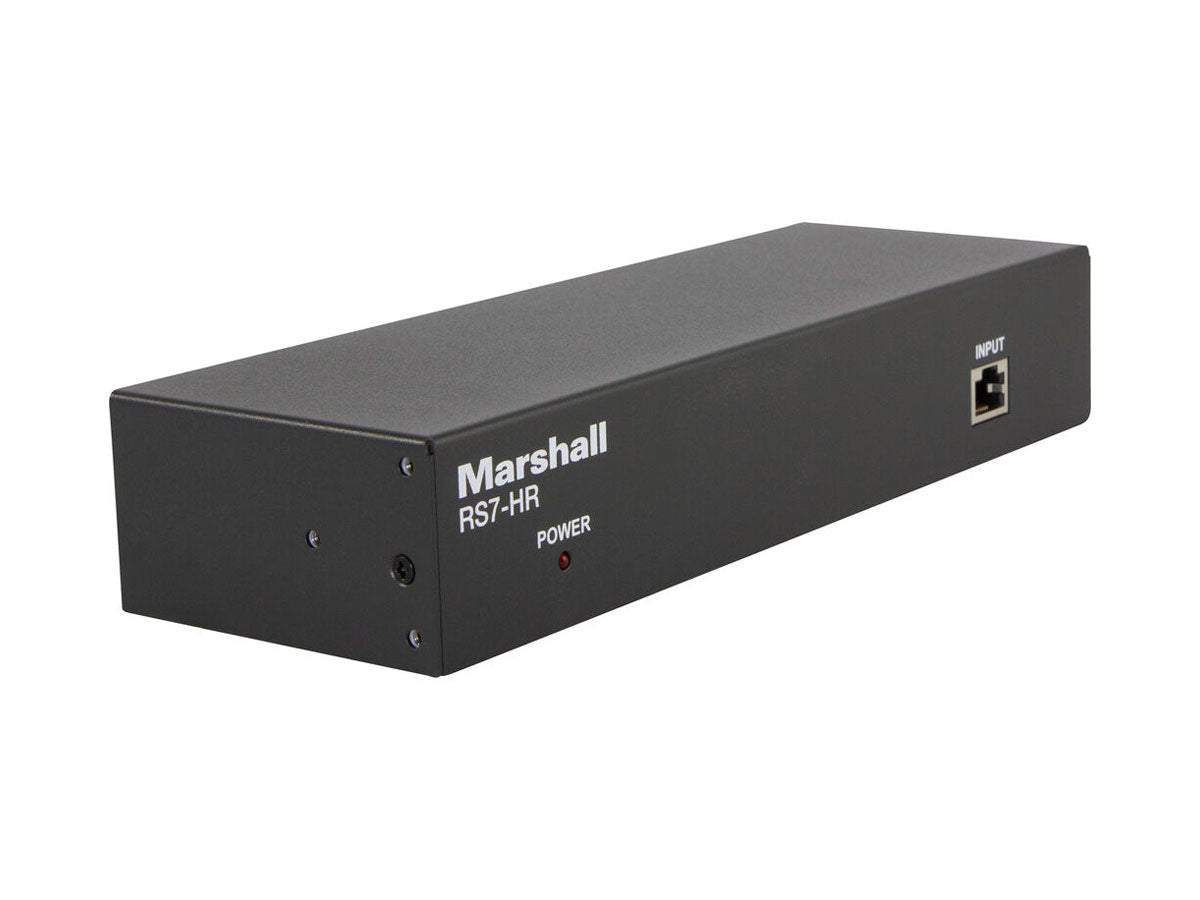

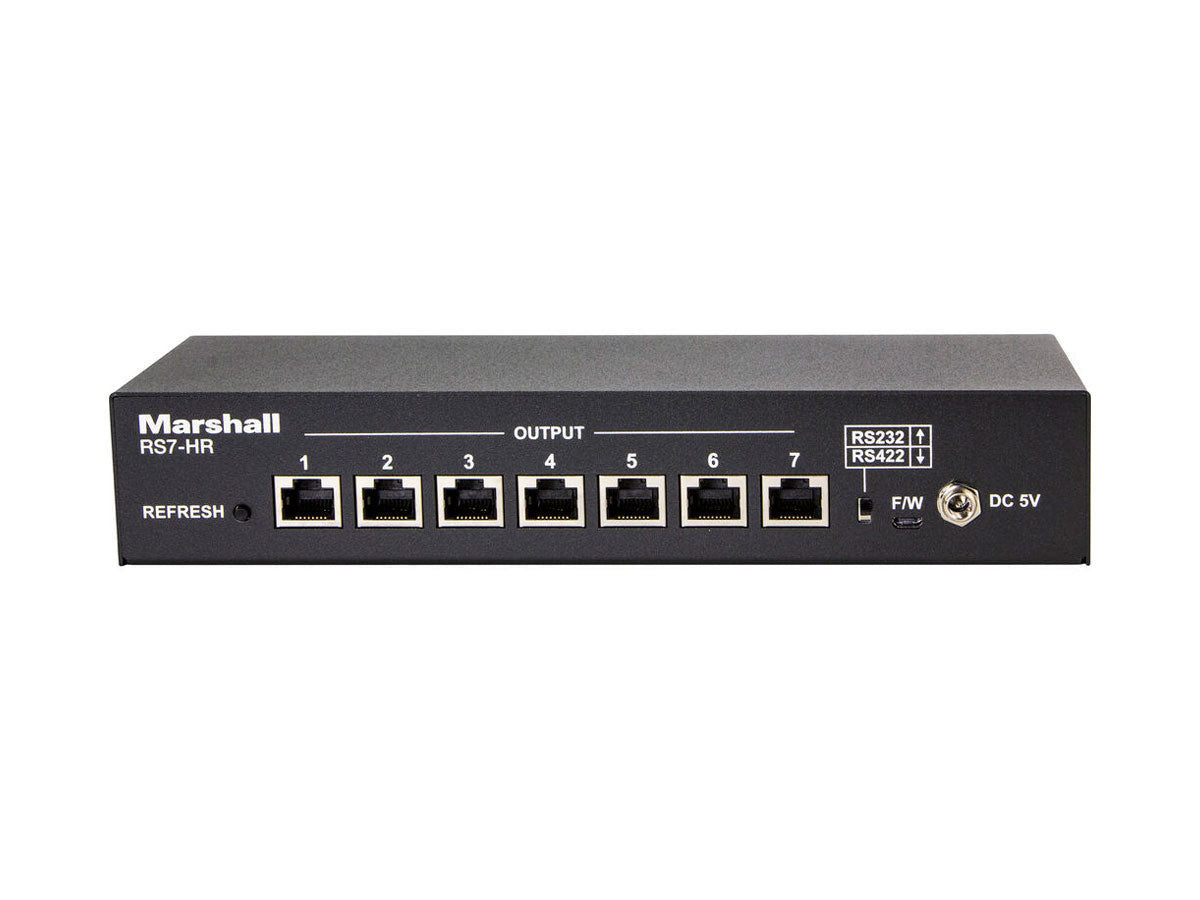

Control up to seven PTZ cameras from a single controller using this RS7-HR 1x7 RS-232/RS-485 Home-Run Splitter/Amplifier from Marshall Electronics. The RS7-HR features one RJ45 input and seven RJ45 outputs that support RS-232 or RS-422 serial control communication. A switch on the back of the unit changes the communication protocol between RS-232 and RS-422. The unit is compatible with a variety of RS-232 and RS-422 serial PTZ controllers such as the Marshall VS-PTC-IP and the VS-PTC-200.
You can run a Cat 5/6 cable, as well as any optional adapters, between your controller and the unit and one to a PTZ camera for a total run of up to 656' using RS-232 communication and up to 1969' using RS-422 communication. The unit is powered using the included 5V power adapter and it includes 1 RU rack ears for mounting.
Compatibility:
- RS-232 and RS-422 serial PTZ controllers such as the VS-PTC-IP and VS-PTC-200
- PTZ cameras that support RS-232 and RS-422 serial control signaling
- Cat 5/6 cable
- 1 RU rack
- 1x7 RS-232/422 Splitter
- Use 1 x Controller for 7 x PTZ Cameras
- Up to 656' RS-232 Away from Controller
- Up to 1969' RS-422 Away from Controller
- VS-PTC-IP & VS-PTC-200 Compatible
- Cat 5/6 Cable Support

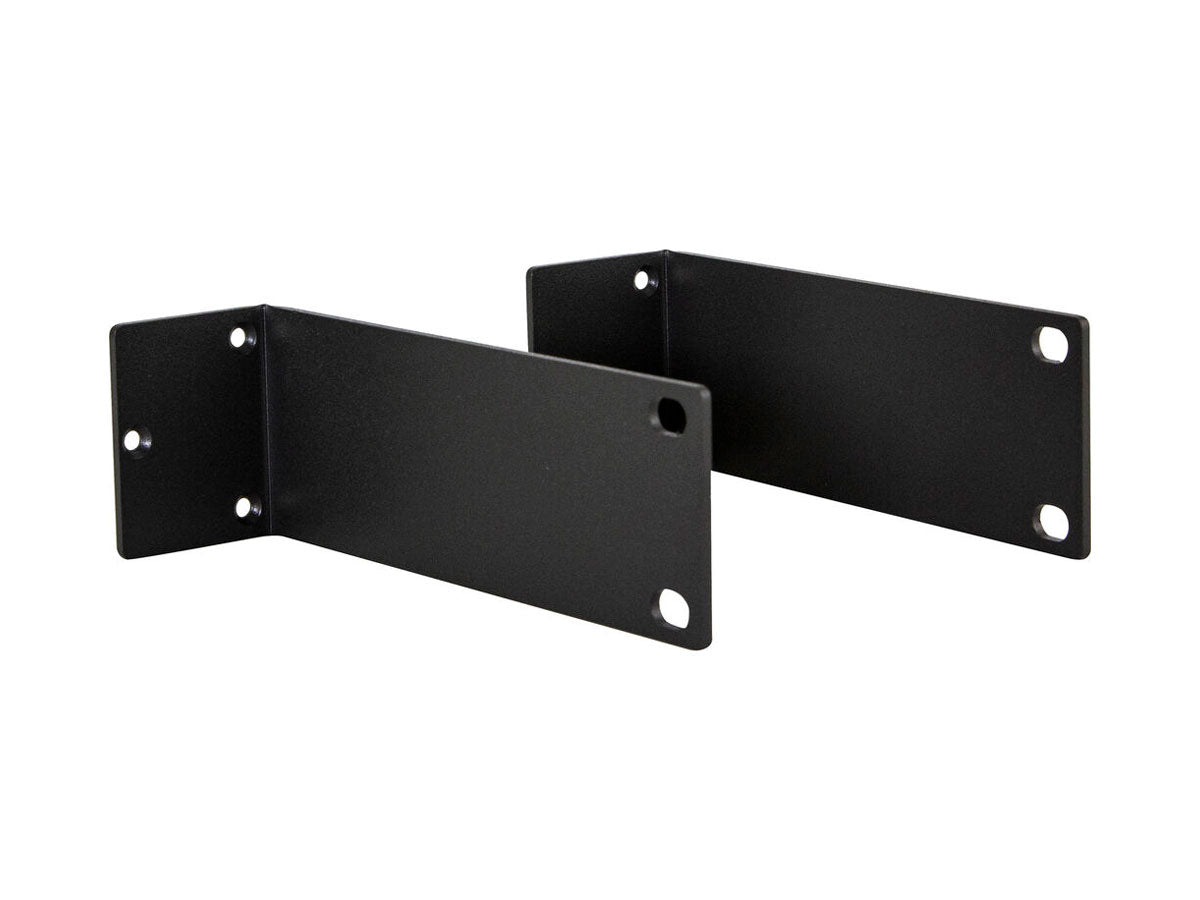

- 1 RU Rackmount Ear Kit Included
| Input Connector | 1 x RJ45 |
| Output Connectors | 7 x RJ45 |
| Serial Communication | RS-232 and RS-422 (via Switch) |
| Rack Mount | 1 RU |
| Cable Distance Supported | RS-232: Up to 656' / 200 m, over 2 x Cables RS-422: Up to 1969'/ 600 m, over 2 x Cables |
| Power Connector | 1 x 5 VDC Barrel |
- Marshall Electronics RS7-HR 1x7 RS-232/RS-485 Home-Run Splitter/Amplifier
- Power Adapter
- 1 RU Rackmount Kit
- Limited 2-Year Warranty
