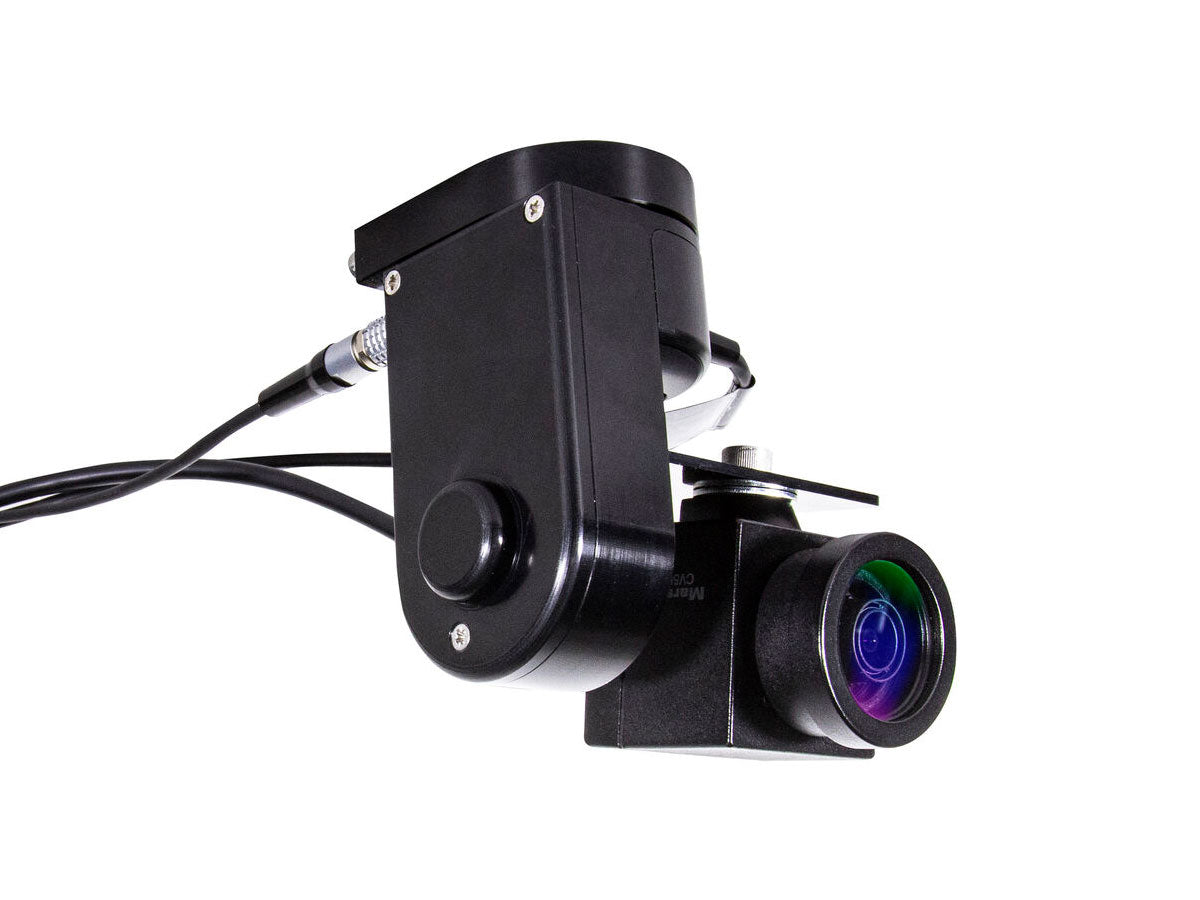

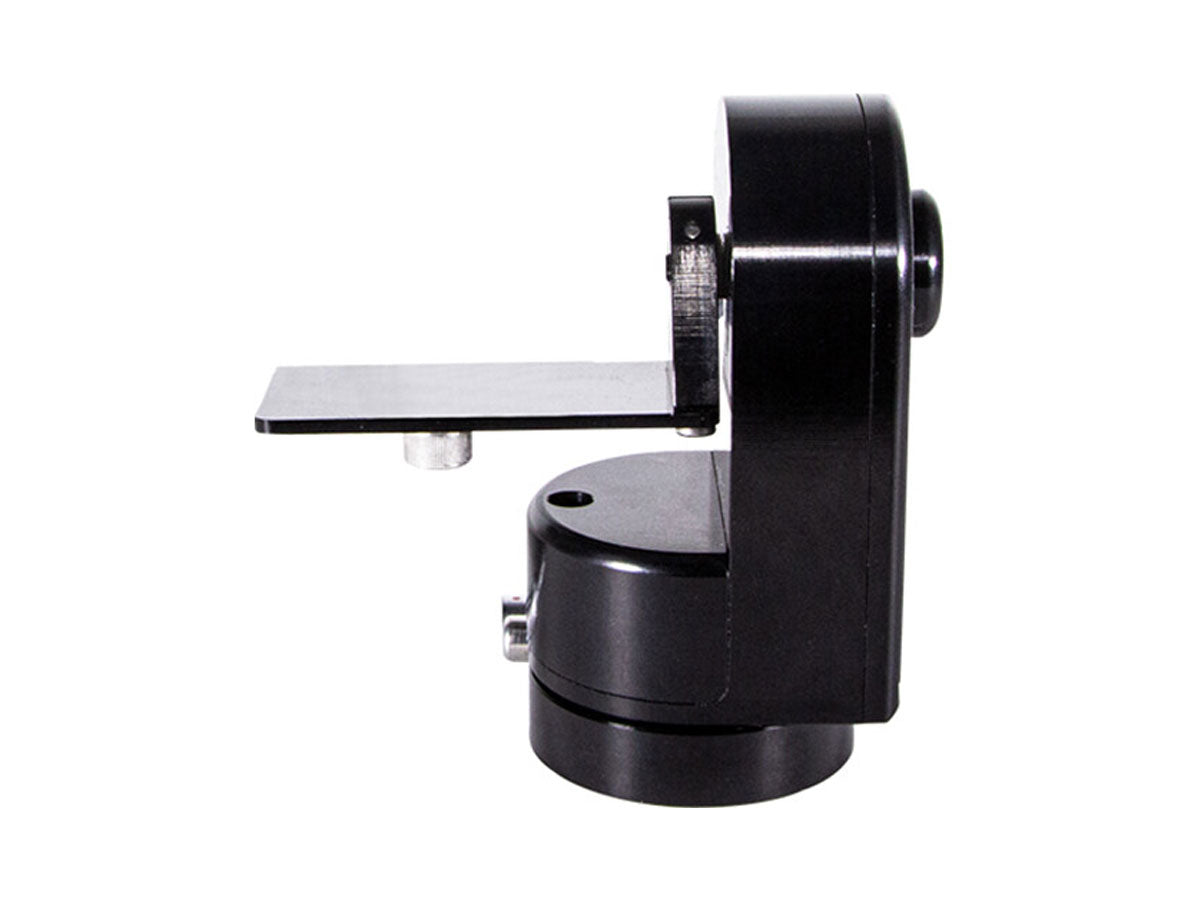

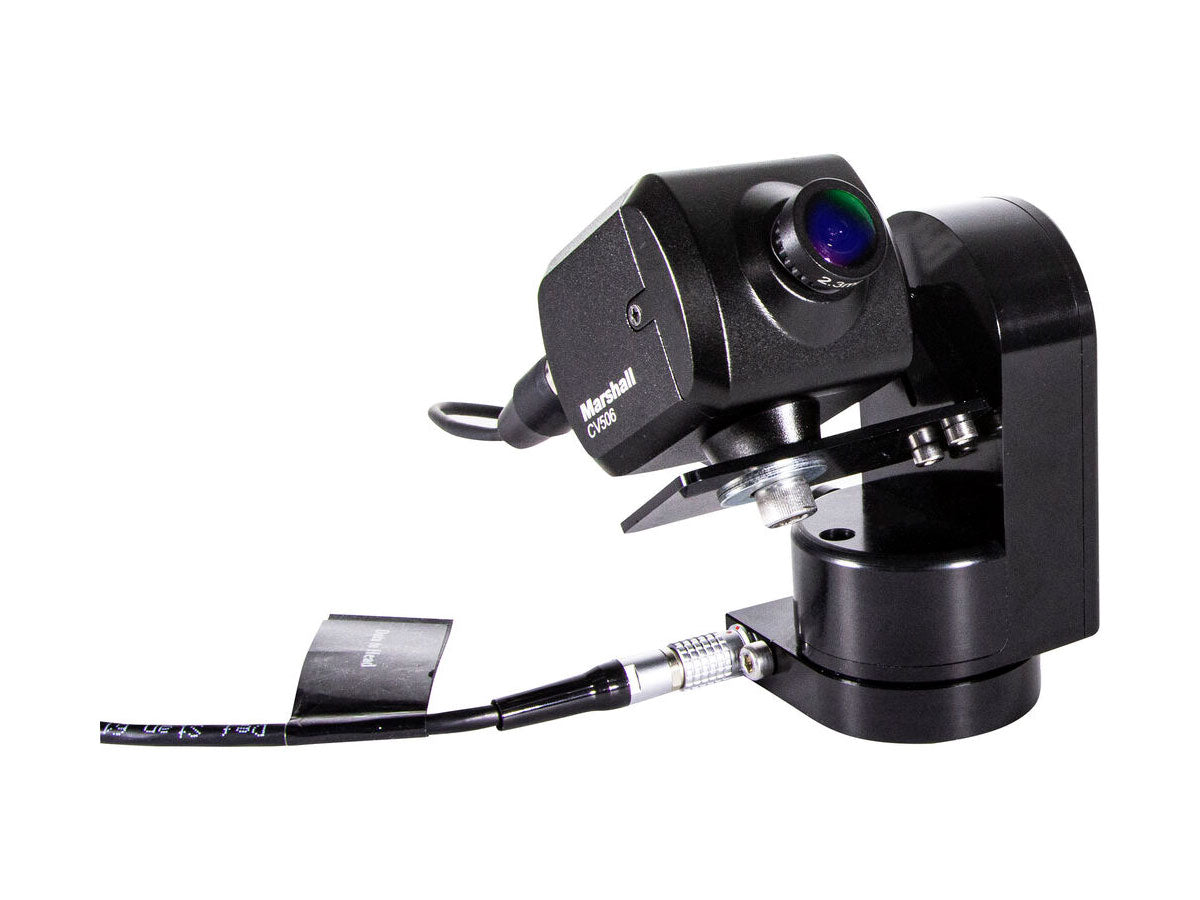

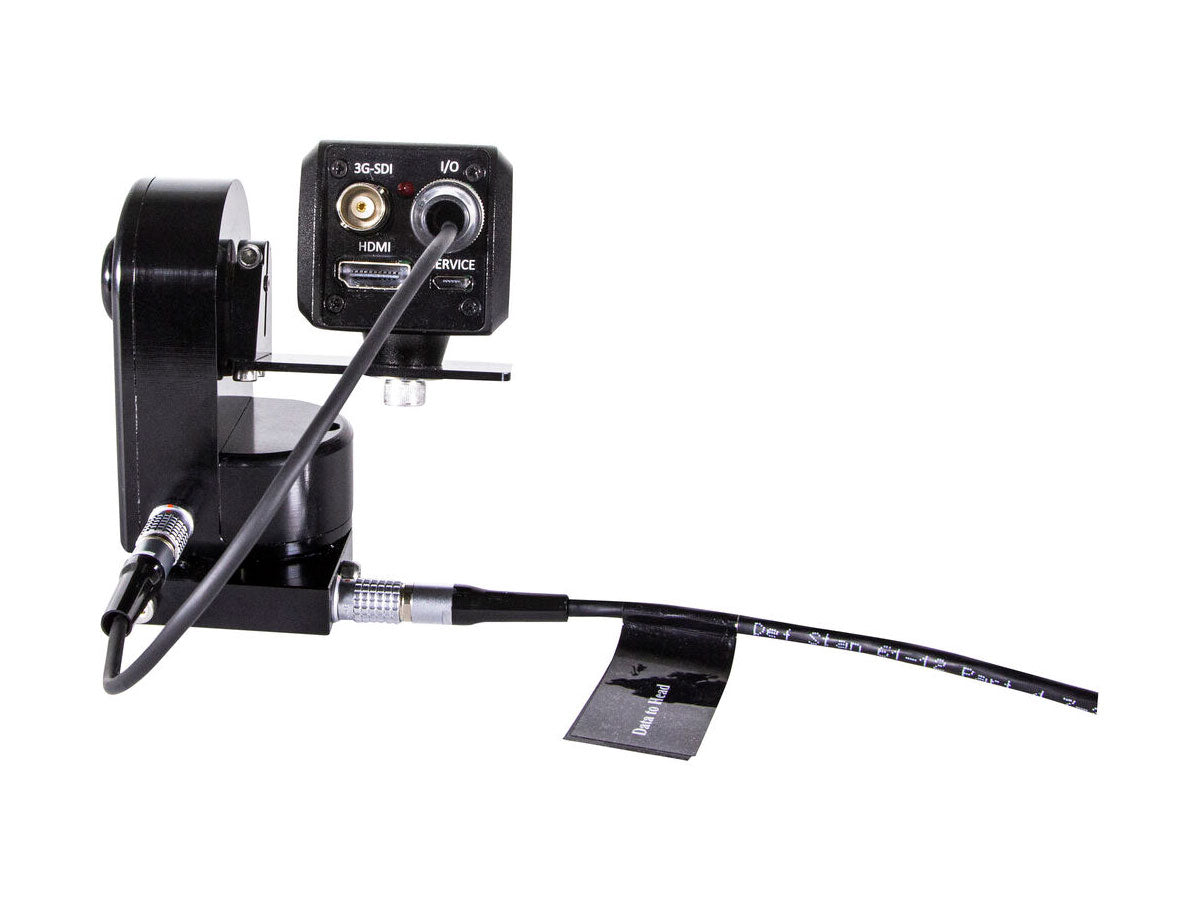

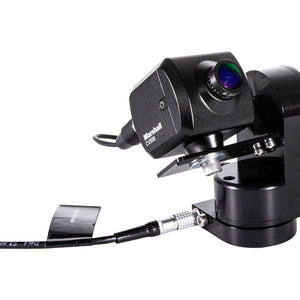

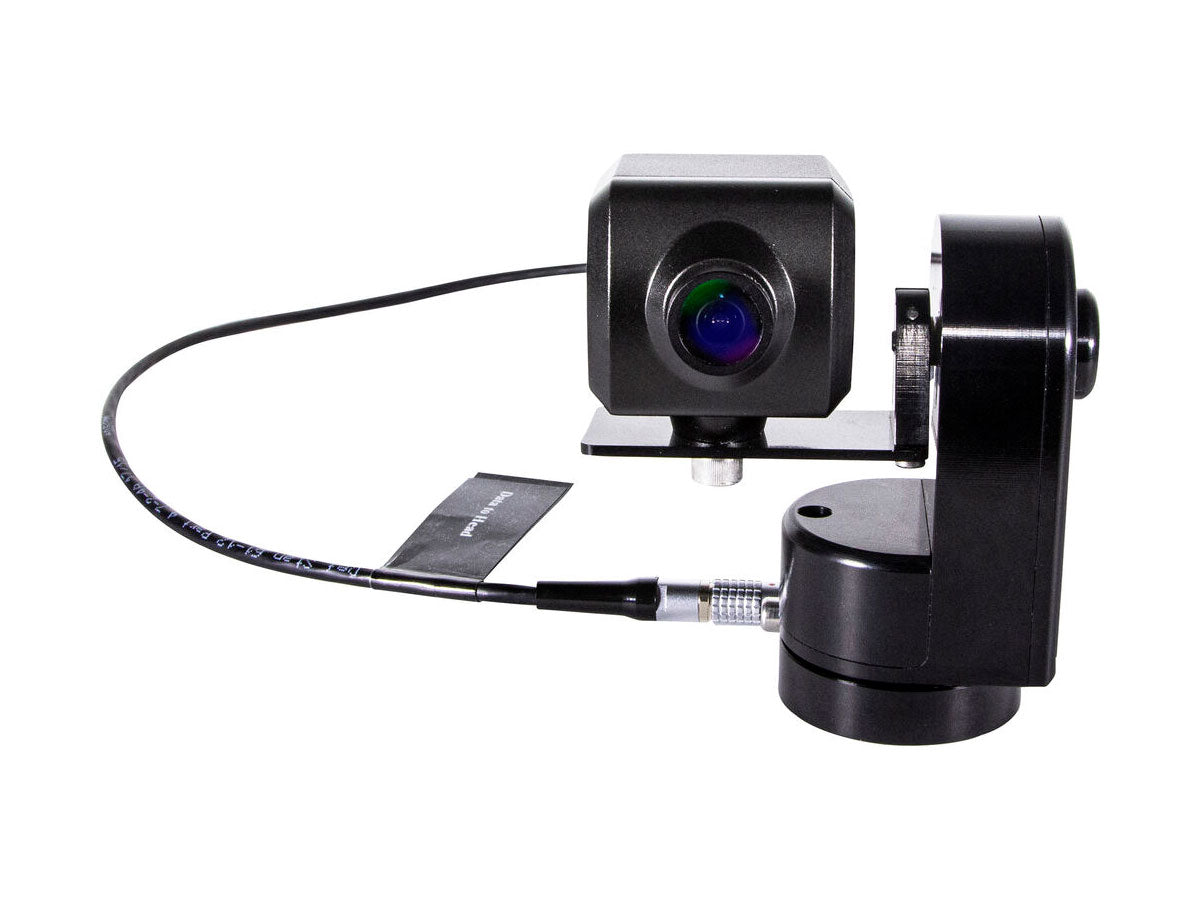

Marshall Electronics Motorized Micro PT Pan/Tilt Head for Select CV Series Cameras
Marshall Electronics Motorized Micro PT Pan/Tilt Head for Select CV Series Cameras
£1,510.80 GBP inc VAT
£1,510.80 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Mount and control the pan and tilt movements of your CV503 (all models), CV506 (all models), CV344, CV346, CV355-10X, or CV380-CS series camera remotely with the Motorized Micro PT Pan/Tilt Head from Marshall Electronics. It can be mounted onto a tripod, wall, or ceiling using its 1/4"-20 and M3 threads, allowing you to maneuver your camera in different positions using its 10 gears. The pan/tilt mount is made with a durable aluminum housing, and it is IP65 weatherproof.
The head pans up to 350° and tilts 360°, and it can be controlled using a remote such as the separately available Marshall CV Micro joystick remote or another serial controller. It features up to 64 presets that can be performed with an external controller. The included 7- to 4-pin patch cable supplies control and power to the attached camera via a 12 VDC, 1A input, and it can be operated via the included remote control. A camera plate and drop spacer for larger cameras are also included.
- Compatible with CV503 (all models), CV506 (all models), CV344, CV346, CV355-10X, and CV380-CS cameras
- Sturdy aluminum housing with IP65 weatherproof rating
- Camera pan, tilt, and zoom control
- 350° pan and 360° tilt
- Supports serial control using the VISCA protocol and a separately available controller
- Includes 4- to 7-pin power and control cable
- Can be mounted on a wall, table, or ceiling using its 1/4"-20 and M3 threads
| Material of Construction | Aluminum |
| Presets | 64 |
| Power and Connectivity | 1 x 4-Pin Connector |
| Mounting | 3 x M4 Threads 1 x 1/4"-20 Thread 2 x M4 Safety Bolts |
| Image Flip | Yes |
| Power | 12 to 35 VDC at 0.5 A |
| Gears | 10 |
| Serial Protocol | VISCA |
| Pan Range | 350° |
| Tilt Range | 360° |
| IP Rating | IP65 |
| Payload | 14.1 oz / 400 g 0.8 to 2.4" / 20 to 60 mm Width |
| Dimensions | 3.52 x 2.2 x 1.77" / 89.51 x 55.5 x 45 mm |
| Weight | 8.8 oz / 250 g |
- Marshall Electronics Motorized Micro PT Pan/Tilt Head for Select CV Series Cameras
- 4-Pin to 7-Pin Patch Cable
- Camera Plate
- Drop Spacer
- Limited 2-Year Warranty
