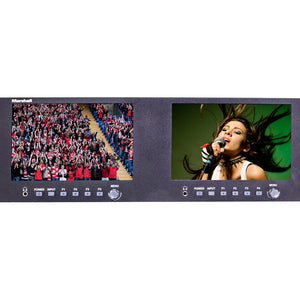

Marshall Electronics ML-702 Dual 7" 3RU Rack Mount Monitor with 3G-SDI, HDMI and Composite Inputs
Marshall Electronics ML-702 Dual 7" 3RU Rack Mount Monitor with 3G-SDI, HDMI and Composite Inputs
£1,014.00 GBP inc VAT
£1,014.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications

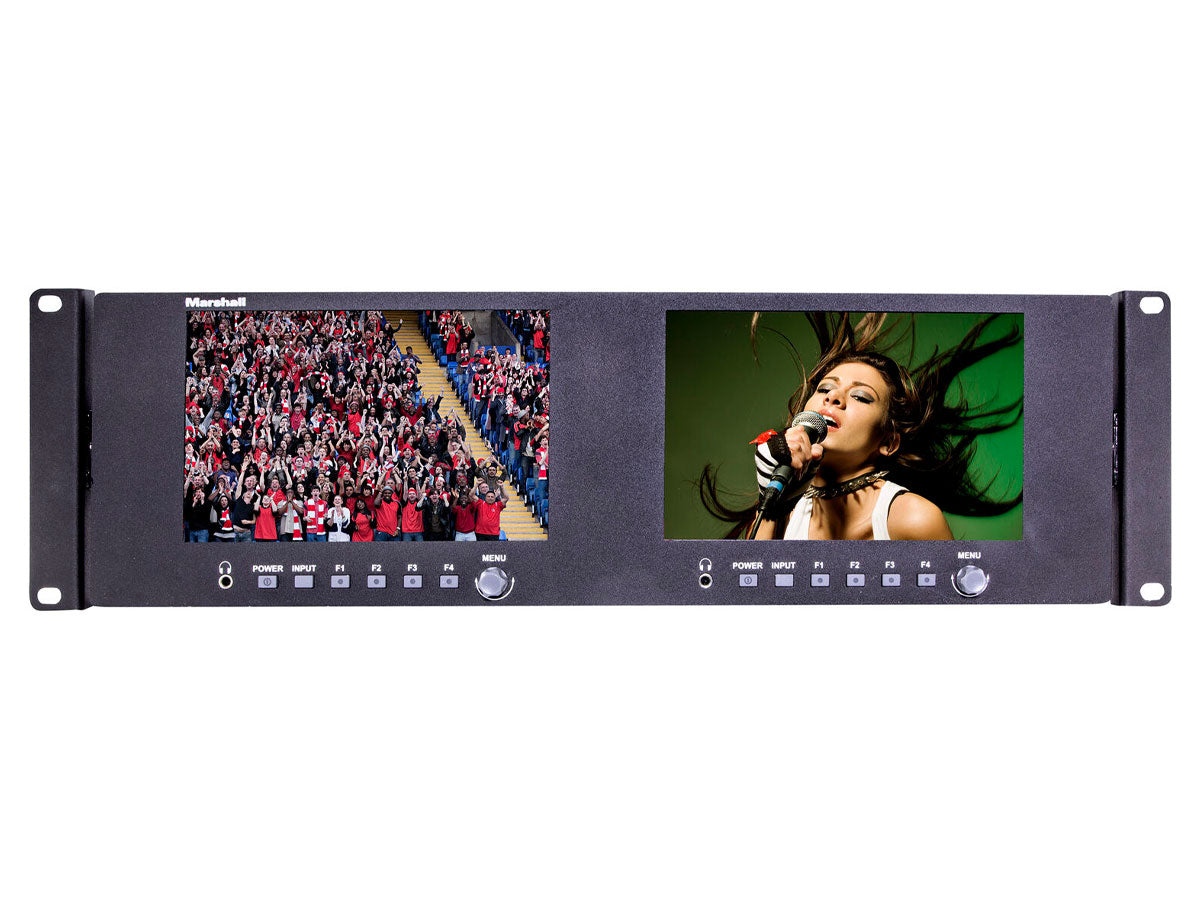

The ML-702 is a Dual 7" LCD professional broadcast monitor with a feature-packed, economical solution perfect for fly-packs, control rooms, routing rooms, and countless other video system applications. Looping video inputs set this product apart from similar-looking products. Standard power and tally connections and a logical menu structure make this display an easy choice for flexible system designs.
Dual Full HD Screens
Two High-Definition screens with excellent color rendition and stability. Adjustable back light compensates for different viewing environments.
Split-Screen Comparison
Compare HDR, Gamma and S-Log scene corrections side-by-side. See "before and after" effect in real-time.
Great Off-Axis Performance
Excellent angle of viewing allows the user to position the rack in any number of physical locations.
- Dual 7" with 1920 x 1200 resolution, typical brightness 450 cd/m² and contrast 1100:1
- Each screen supports SDI, HDMI, CVBS (with analog audio) Inputs, all with looping outputs
- SDI supports up to 3G-Level A, HDMI supports up to 3840 x 2160p30 and 4096 x 2160p30.
- Two bar audio overlay
- Main features include:
- Compact size
- Tilting rack mount
- Dual power inputs
- Front panel control plus Ethernet control
- Bright displays with very good viewing angle
- Four User-defined function buttons
- Front panel headphone jacks
- On-screen Tally borders
- Histogram, marker, focus peaking and more
| Number of Panels: | 2 | |
| Panel Size: | Dual 7-inch Diagonal, 3RU high | |
| Resolution (Pixels): | 1920 x 1200 | |
| Aspect Ratio: | 16:10 | |
| Viewing Angle: | 160° / 160° (H/V) | |
| Brightness (in cd/m2): | 450 | |
| Contrast Ratio: | 1100:1 | |

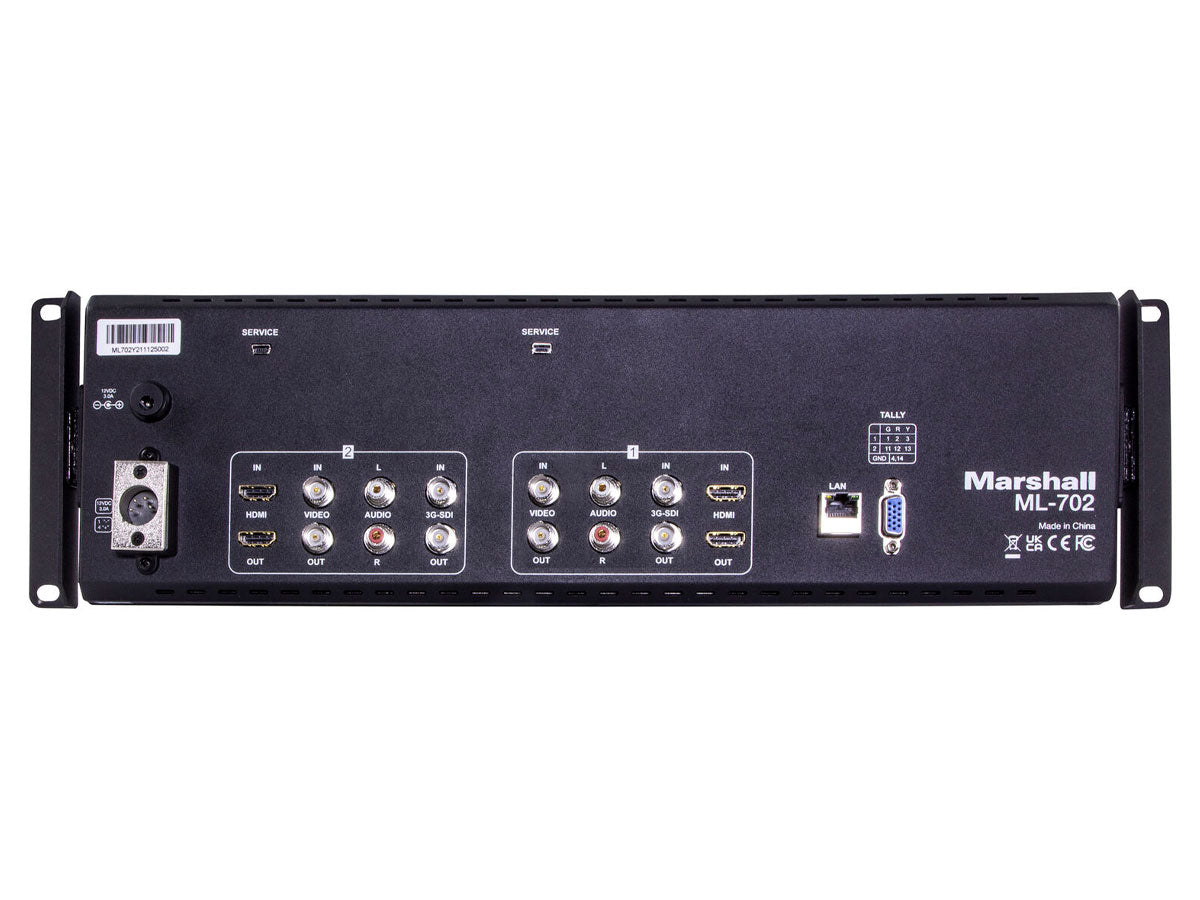

| Digital Video Inputs: | 3G-SDI with loop out (conforms to SMPTE-292M, 259M, 424M), HDMI 2.0 with loop out | |
| Analog Video Inputs: | CVBS (Composite) with loop out (RCA-type), Analog Stereo Audio (RCA-type) | |
| Compatible Input Formats: | SDI / HDSI / 3G SDI: | 525i 59.94 / 625i 50 720p 24, 25, 29.97, 30, 50, 59.94, 60 1080p 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30, 50, 59.94, 60 1080i 50, 59.94, 60 |
| HDMI: | 480i, 480p 59.94 / 576i, 576p 50 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i 50, 59.94, 60 1080p 23.98, 23.98sF, 24, 24sF, 25, 29.97, 30, 50, 59.94, 60 3840/4096 23.98, 24, 25, 29.97, 30p | |
| CVBS: | 480i 59.94 / 576i 50 | |
| Control Inputs: | RJ-45 for Ethernet Control, 9-pin D-Sub for GPI Tally Control, Mini USB Service Port | |
| Power: | 12 Volts DC @ 1.5 Amps (10.8 – 24V range) via XLR 4-pin or 5.5mm x 2.1mm push-in coaxial jack | |
| Dimensions: | 19" W x 5.125" H x 1.75" D (482.6 mm x 130.175 mm x 44.45 mm) | |
| Weight: | 5.3 lbs (2.4 Kg) | |
