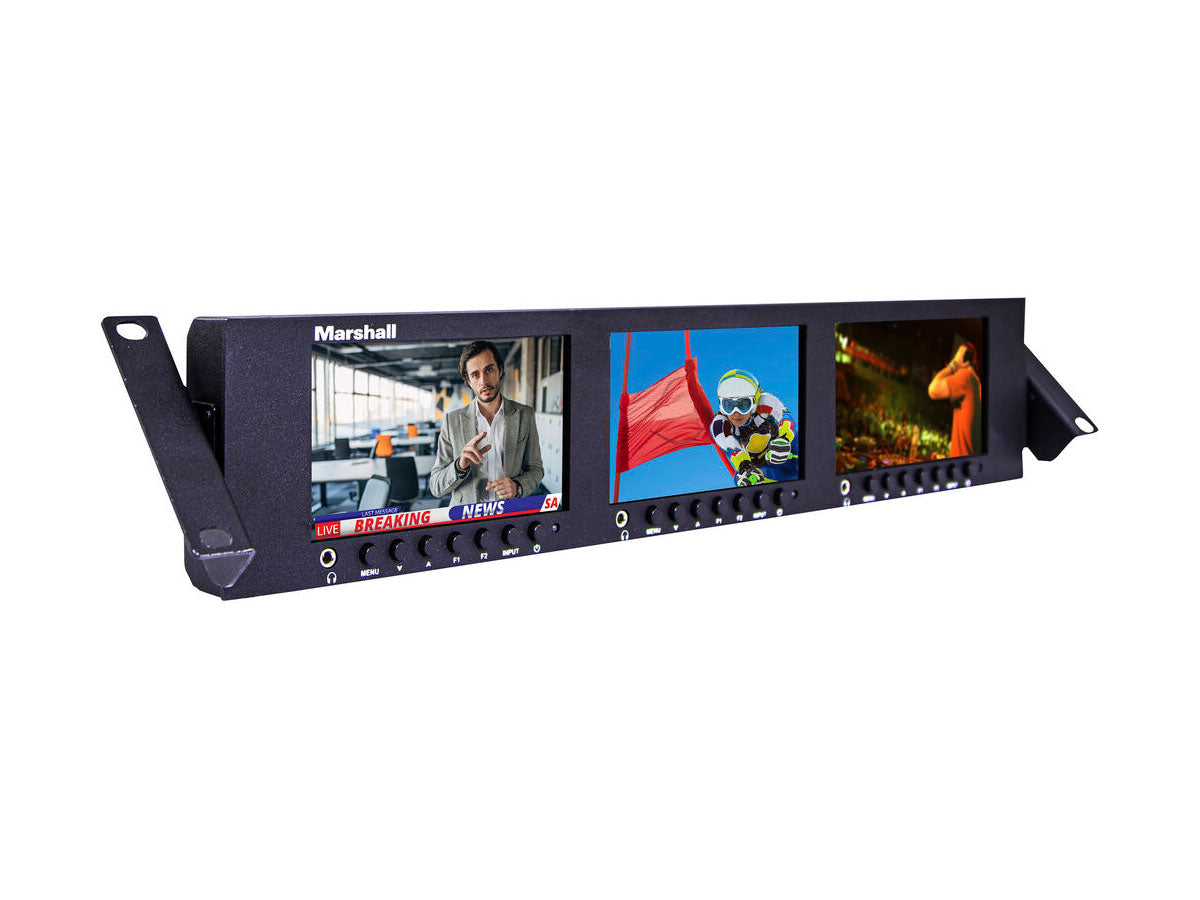

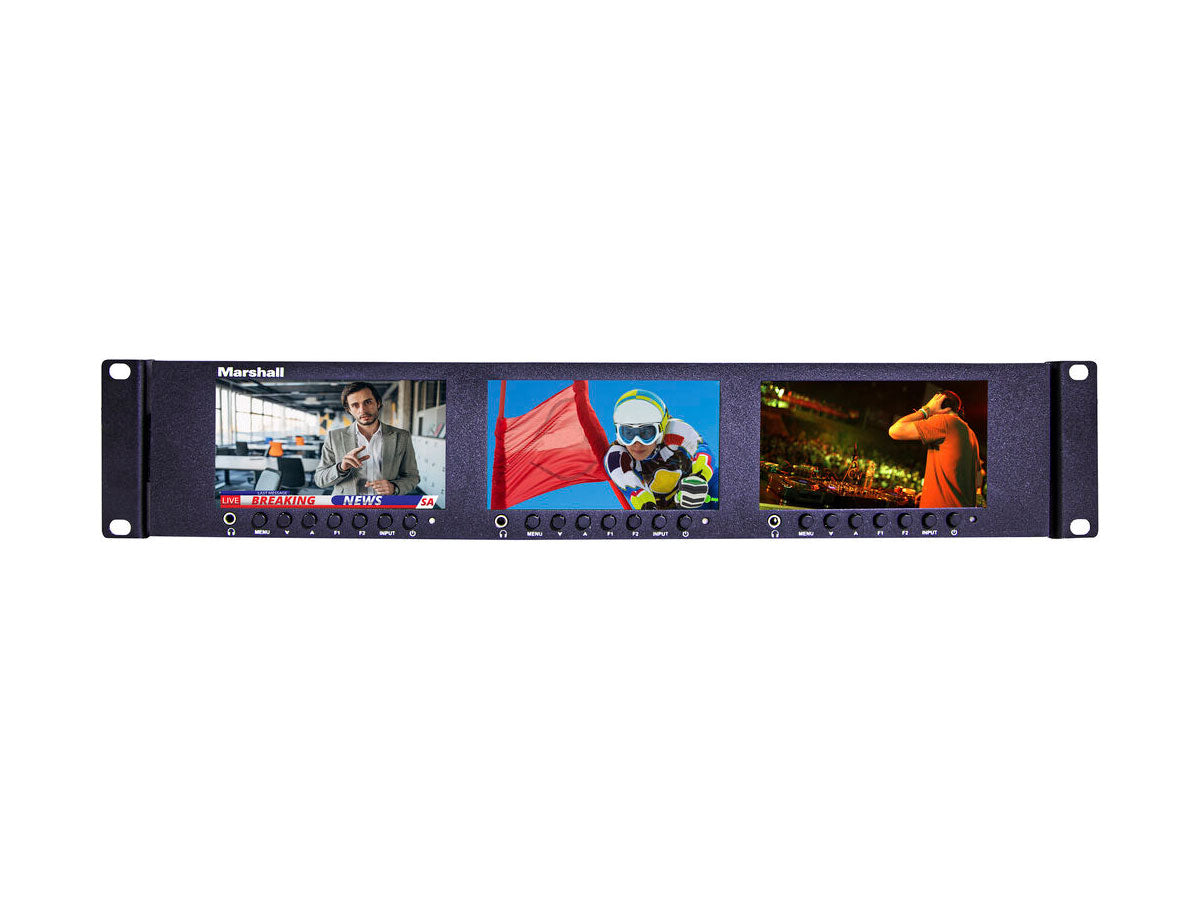

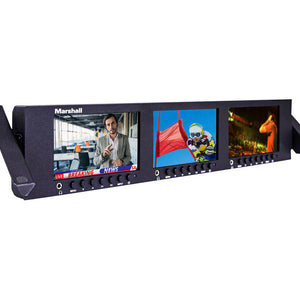

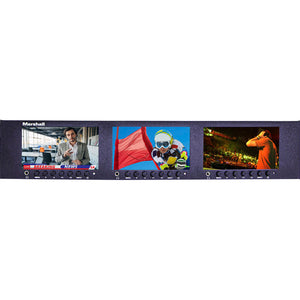

Marshall Electronics ML-503 Triple 5" 2RU LCD Rack Mount Monitor
Marshall Electronics ML-503 Triple 5" 2RU LCD Rack Mount Monitor
SKU:
ME-ML-503
Regular price
£1,379.00 GBP ex VAT
£1,654.80 GBP inc VAT
£1,654.80 GBP inc VAT
Regular price
ex VAT
Sale price
£1,379.00 GBP ex VAT
£1,654.80 GBP inc VAT
Unit price
per
£1,654.80 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
Triple Full HD Screens
Three High-Definition screens with excellent color rendition and stability. Adjustable back light compensates for different viewing environments.
On-Screen 3 Color Tallies
Easily visible border tallies provide instantaneous process control feedback to the operator.
Great Off-Axis Performance
Excellent angle of viewing allows the user to position the rack in any number of physical locations.
- Three screens, great picture, great price
- Wide aspect, 5-inch diagonal x 3
- Perfect for flypacks, control rooms, news vans
- Front panel controls give access to all functions
- Three color on-screen tally lights (Red, Green, Yellow)
- Multiple inputs, all with loop-through connections: 3GSDI (HDSDI, SDI), HDMI
- Safe area and center markers
- Two user short-cut function buttons

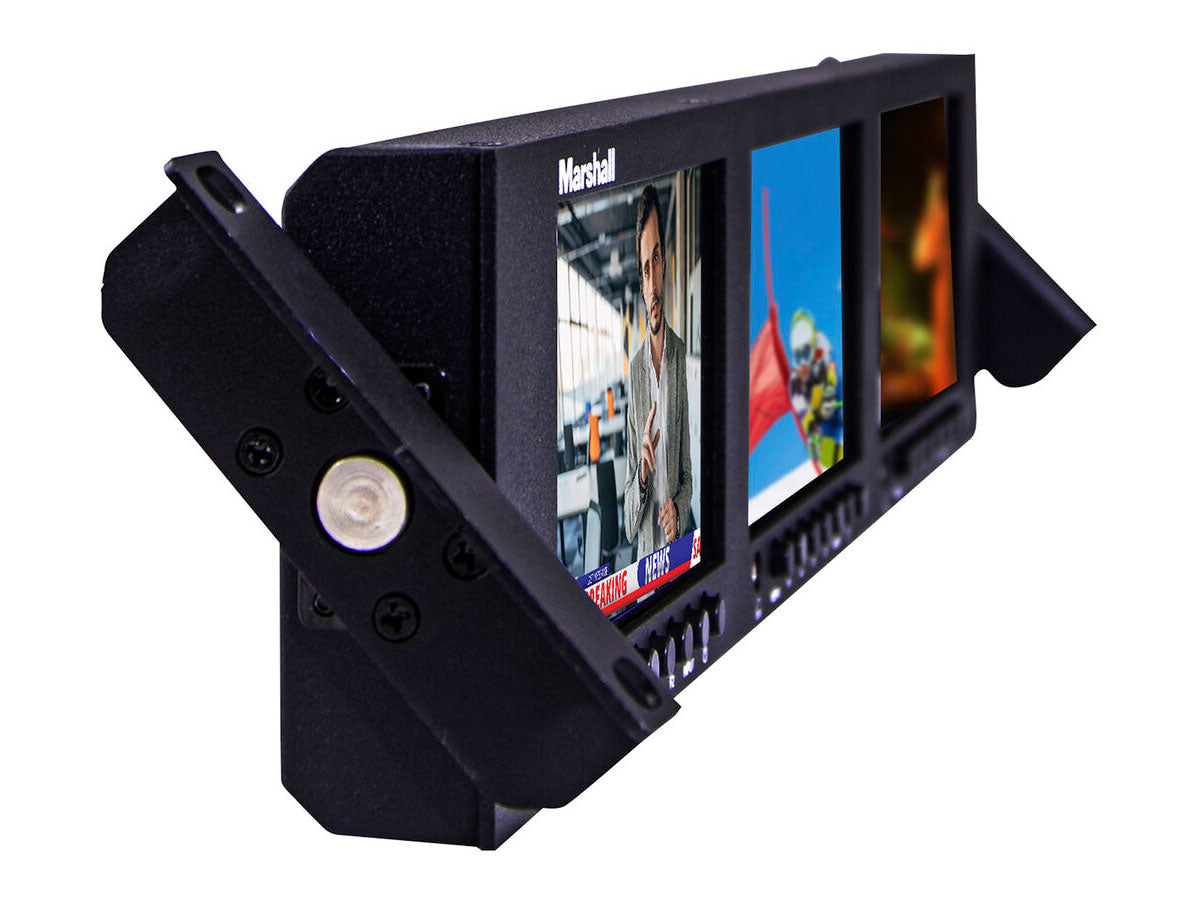

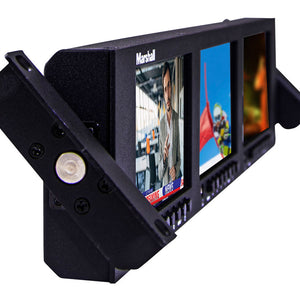

- Tilting mount. Adjust for optimum viewing and back panel access
- Headphone jack to monitor embedded stereo audio
- Firmware update via USB port and thumb drive
| Number of Panels: | 3 | |
| Panel Size: | Dual 5-inch Diagonal, 2RU high | |
| Resolution (Pixels): | 1920 x 1080 | |
| Aspect Ratio: | 16:9 | |
| Viewing Angle: | 170° / 170° (H/V) | |
| Brightness (in cd/m2): | 460 | |
| Contrast Ratio: | 1100:1 | |
| Compatible Input Formats: | SDI / HDSI / 3G SDI: | 1080p 50/59.94/60 1080p 29.97/25/24/23.98 1080PsF 24/23.98 1080i/ 50/59.94/60 720p 50/59.94/60 576i 50, 480i 59.94 |
| HDMI: | 1080p 50/59.94/60 1080p 29.97/25/24/23.98 1080i 50/59.94/60 720p 50/59.94 576i 50, 480i 59.94 | |
| Video Inputs: | 3GSDI with non-reclocking loop-through & HDMI with loop-through (Per Panel) | |
| Audio Outputs: | De-Embedded from SDI, HDMI X3 | |
| Power Input: | 12 Volts DC less than 1.5 Amp typical Dual Type: 5.5mm coaxial and 3-pin XLR | |
| Dimensions: | 19" W x 3.5" H x 1.2" D 482.6mm W x 88.9mm H x 30.48mm D | |
| Weight: | 5.2 lbs (2.32 Kg) | |
| Rack Ears: | Included, Adjustable Tilt | |
