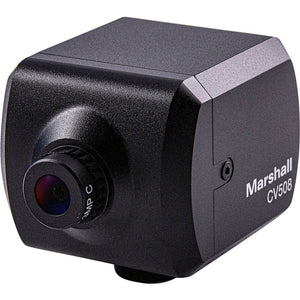

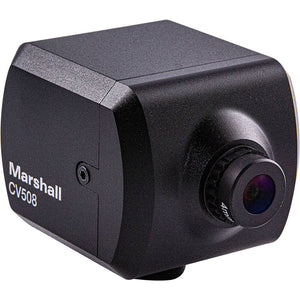

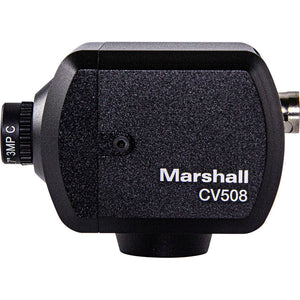

Marshall Electronics Mini Broadcast Camera with 4.0mm Interchangeable Lens - 3G-SDI & HDMI Outputs
Marshall Electronics Mini Broadcast Camera with 4.0mm Interchangeable Lens - 3G-SDI & HDMI Outputs
£534.00 GBP inc VAT
£534.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

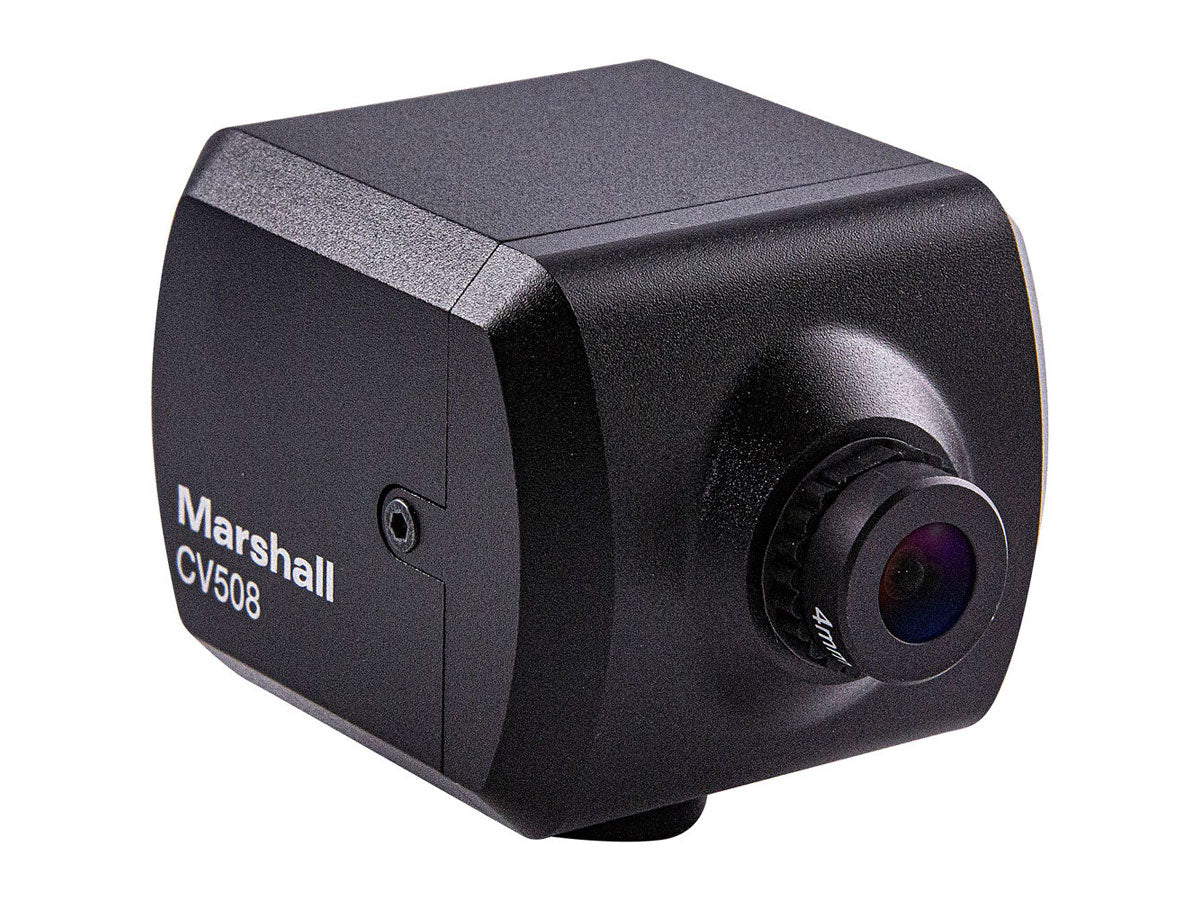

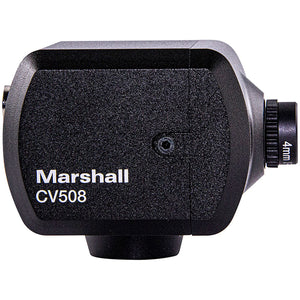

The Marshall CV508 Full-HD Miniature Camera with HDMI offers performance, flexibility, and value in a tiny form factor. Built around a next generation 2.2-Megapixel, 1/2.8-inch sensor, the CV508 delivers ultra-crisp, clear, Full-HD video in both interlaced and progressive modes at up to 60/59/50fps.

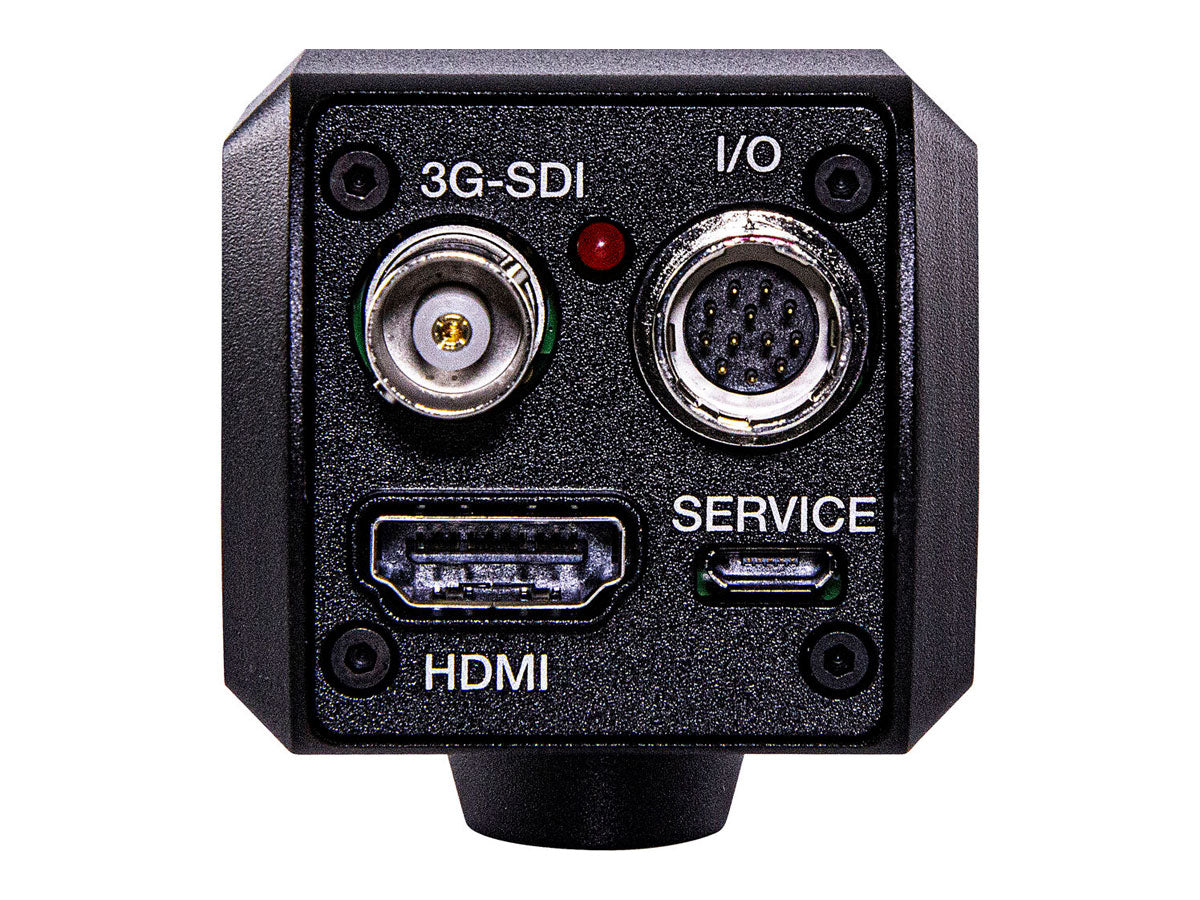

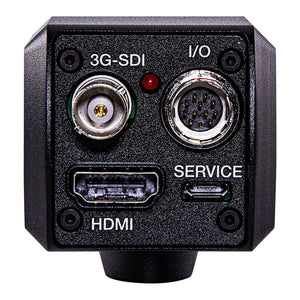

The CV508 utilises full-sized BNC (3G/HDSDI) and HDMI outputs on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on 3G-SDI output). The CV508’s threaded M12 lens mount offers a wide range of prime and varifocal lens options.
The CV508 can capture detailed shots while maintaining an ultra-discreet miniature point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.
- Ultra-compact camera measuring just 40mm x 44mm x 45mm

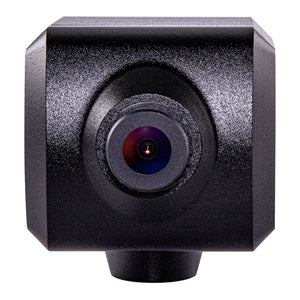

- M12 interchangeable lens mount
- 4.0mm M12 lens included
- 3G-SDI & HDMI video output connectors
- 1/2.8″ 2.2 megapixel sensor
- 1920×1080 up-to 60P
- I/O breakout cable with control joystick
- 3.5mm audio input
| SENSOR | |
| Sensor Type: | 1/2.8″ 2.2 Megapixel |
| Pixel Size: | 2.9μm x 2.9μm |
| RESOLUTION & FRAME RATES | |
| HD 1920x1080p: | 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 |
| HD 1920x1080i: | 50, 59.94 & 60 |
| HD 1280x720p: | 50, 59.94 & 60 |
| INPUT & OUTPUT CONNECTORS | |
| Video Output: | 1x 3G-SDI & 1x HDMI |
| I/O Breakout Cable: | 1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input |
| Firmware & Service: | 1x Micro-USB |
| LENS | |
| Mount Type: | M12 |
| Focal Length (Included Lens): | 4.0mm |
| Max. Aperture: | f/2.0 |
| Focus: | Manual |
| IMAGE CONTROL SETTINGS | |
| White Balance: | Auto / Auto Ext / Preset / Manual (Red-Gain, Blue Gain) |
| CONTROL PROTOCOL | |
| Control Protocol: | RS-485 |
| GENERAL | |
| Power Input: | 12V DC |
| Dimensions: | 40mm x 44mm x 45mm |
- 1x Marshall CV508 Camera Body
- 1x Camera Breakout Cable
- 1x 4.0mm M12 Lens
- 1x Power Supply Unit (PSU)
