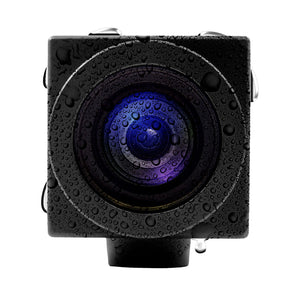

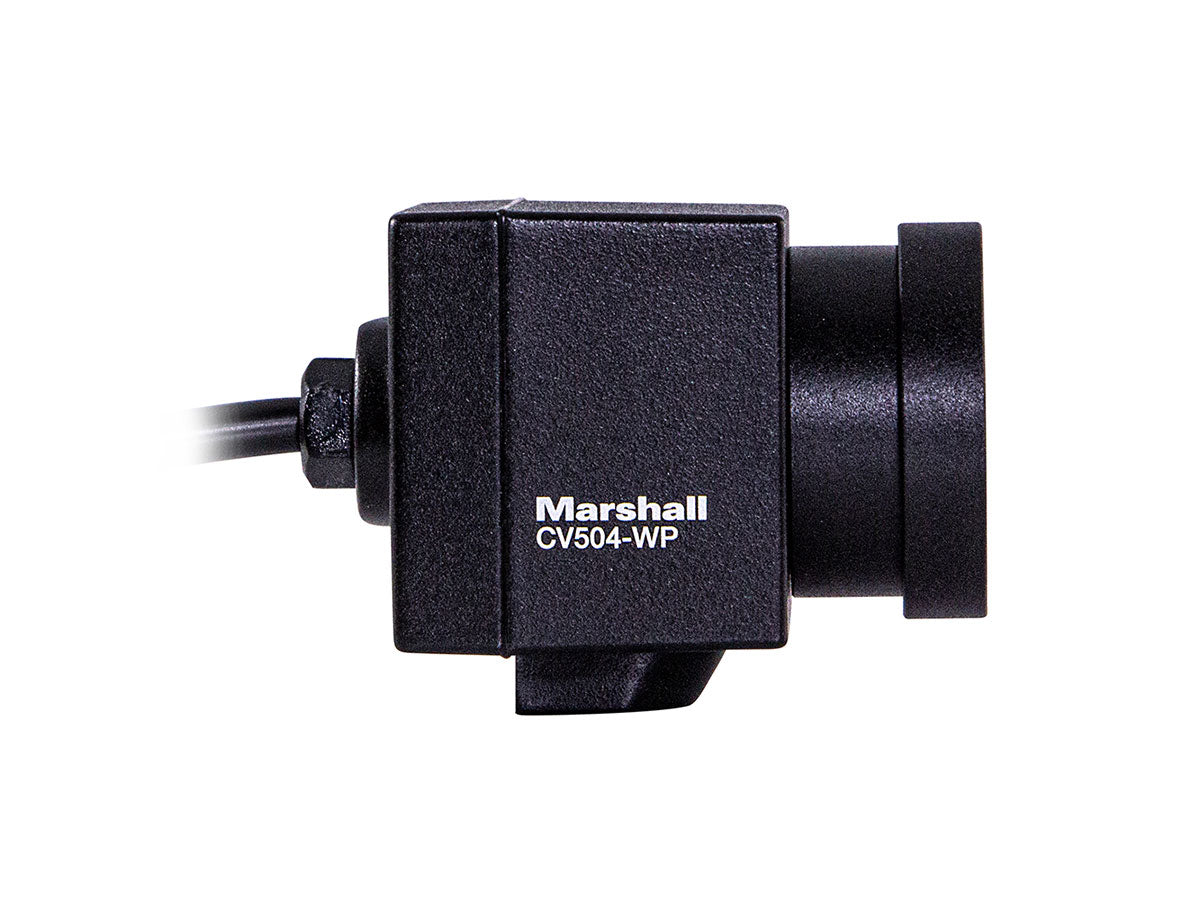

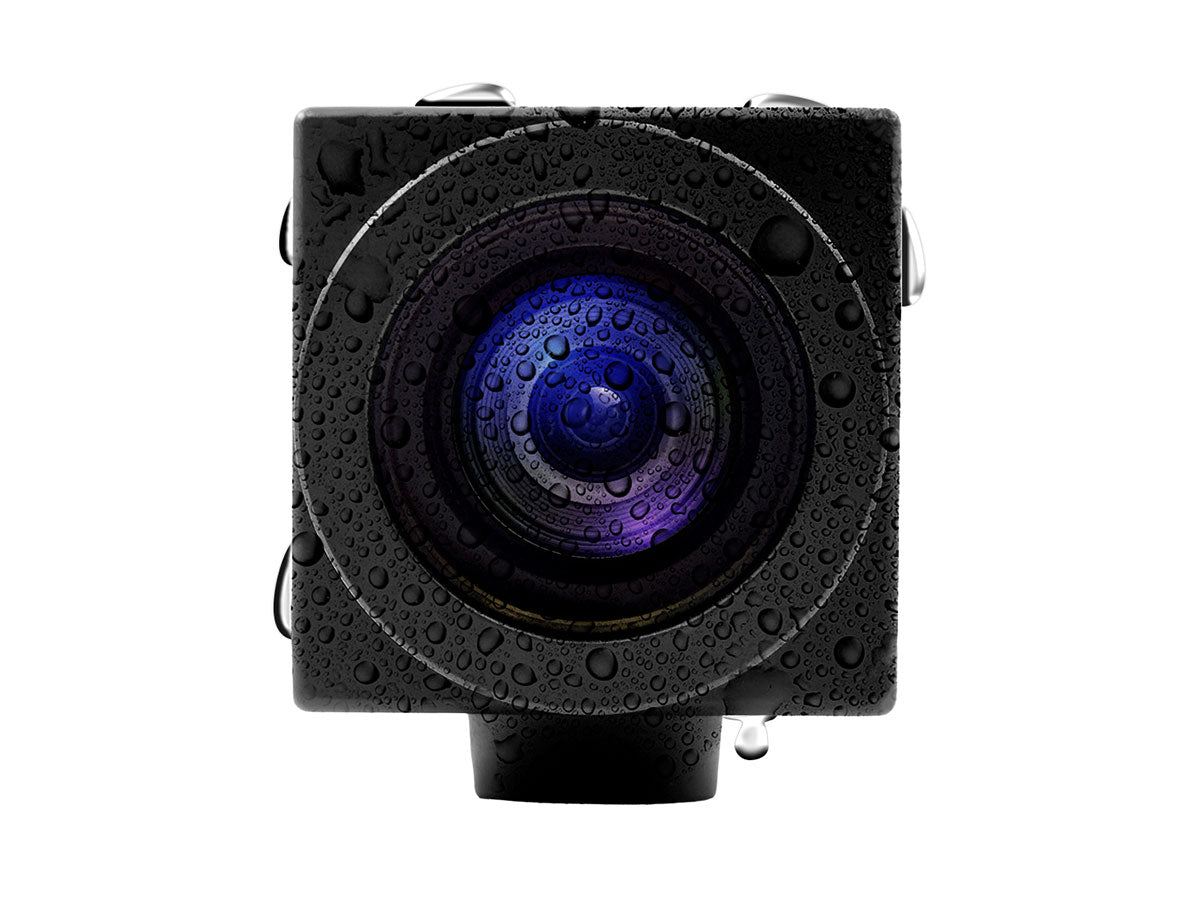

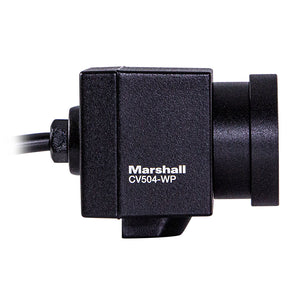

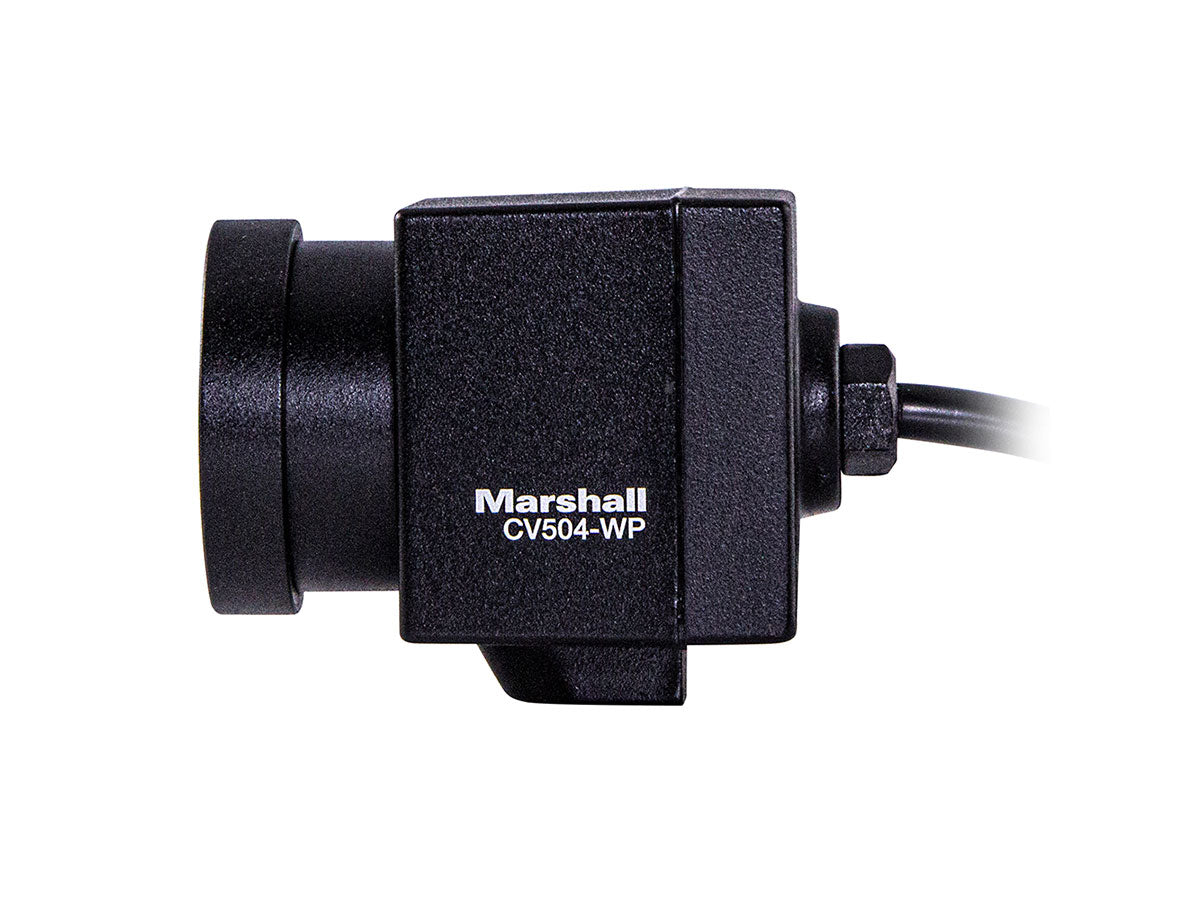

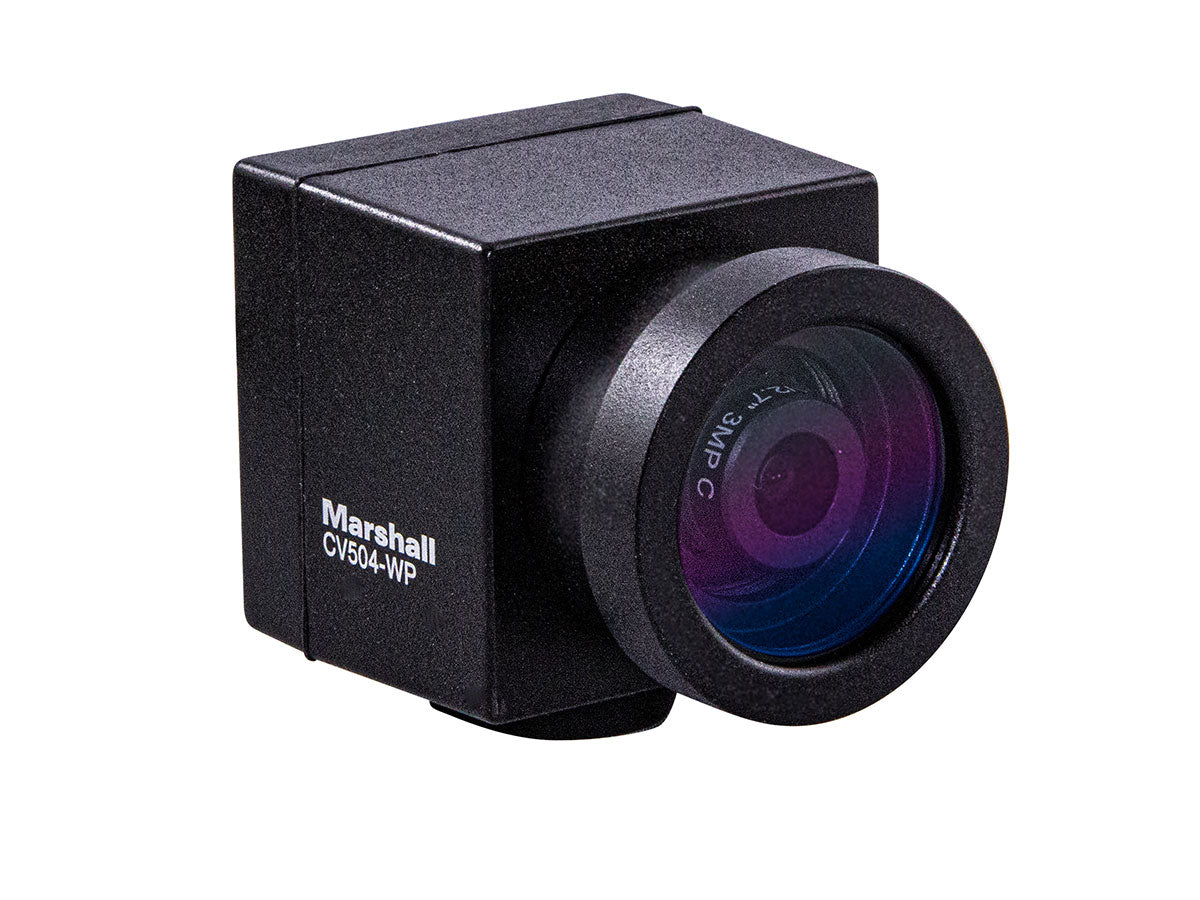

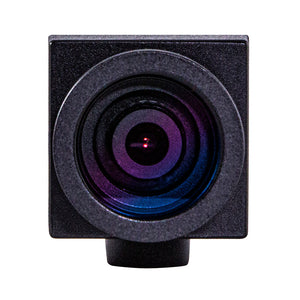

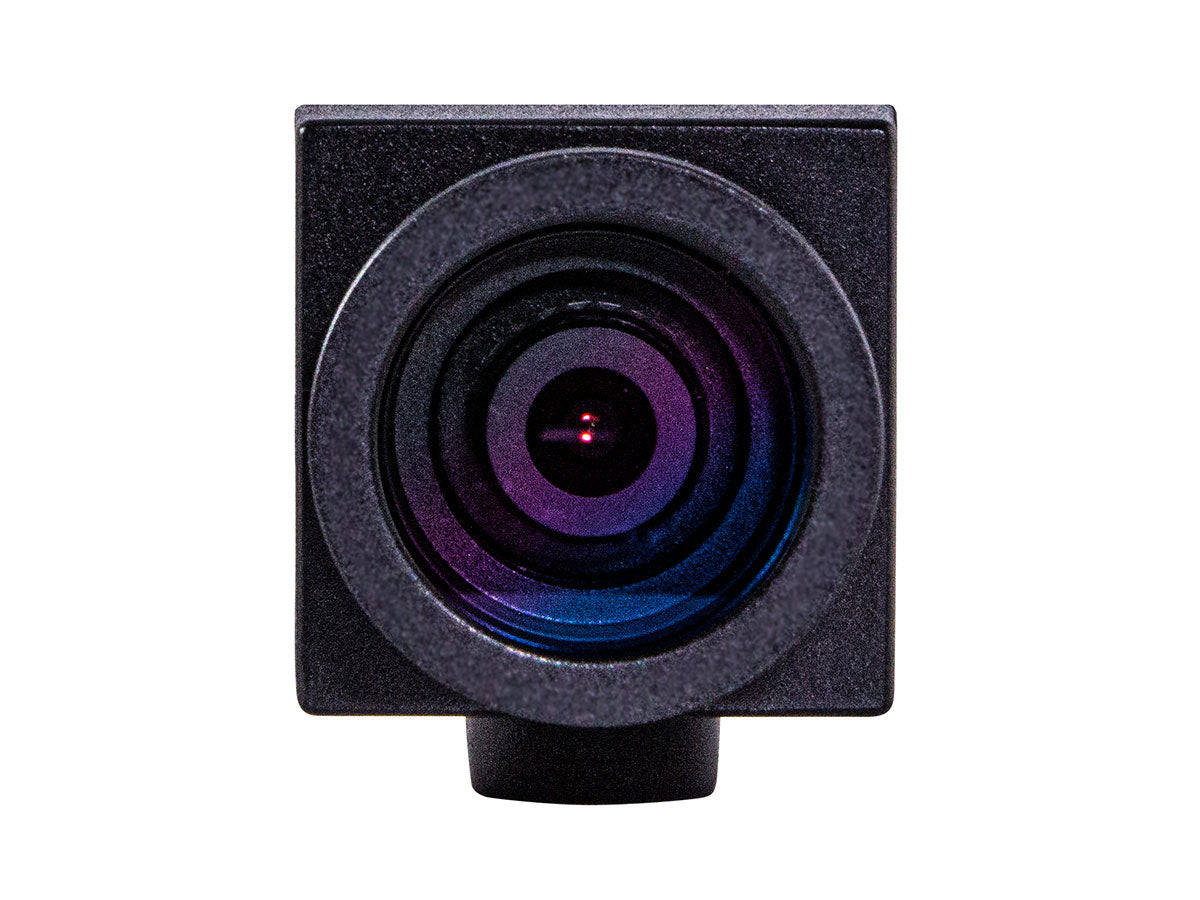

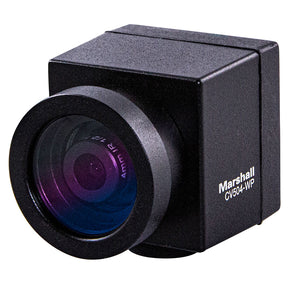

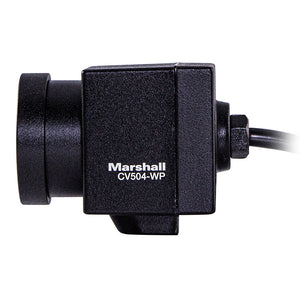

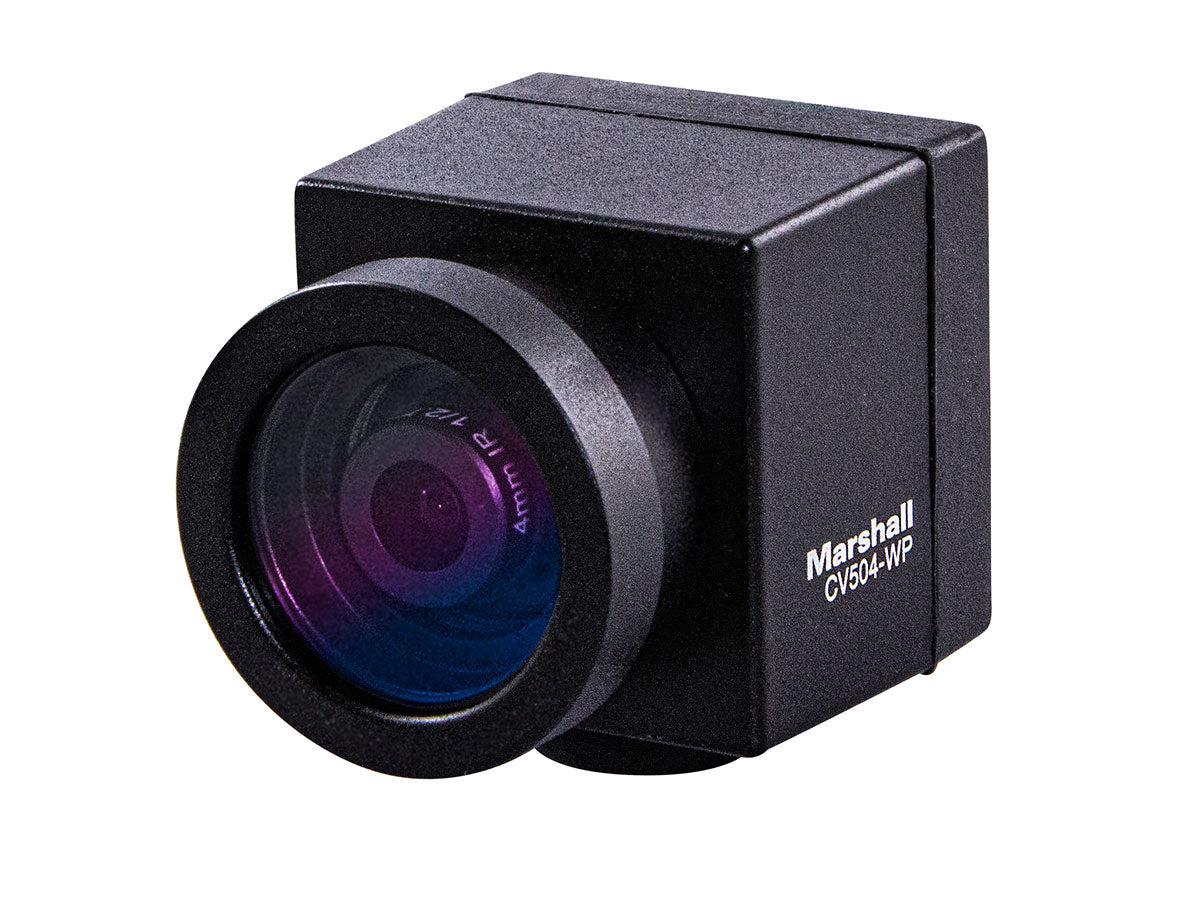

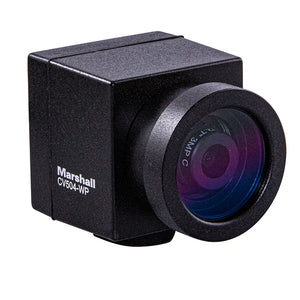

Marshall Electronics IP67 Weatherproof Mini Broadcast Camera with 4.0mm Interchangeable Lens - 3G-SDI Output
Marshall Electronics IP67 Weatherproof Mini Broadcast Camera with 4.0mm Interchangeable Lens - 3G-SDI Output
SKU:
ME-CV504-WP
Regular price
£469.00 GBP ex VAT
£562.80 GBP inc VAT
£562.80 GBP inc VAT
Regular price
ex VAT
Sale price
£469.00 GBP ex VAT
£562.80 GBP inc VAT
Unit price
per
£562.80 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
The CV504-WP delivers exceptional 10 bit 4:2:2 video performance from a durable aluminum alloy body through weatherproof breakout cable and flexible interchangeable lenses. The new Sony sensors offer rich color accurate video with improved low light sensitivity and refined remote adjust and match capability.
New Sony 1/2.8" (6.46mm) Solid-Sate Image Sensors
The next generation Sony sensors provide clear HD images with rich accurate 10bit (4:2:2) color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR wavelengths can be captured in complete darkness.
The next generation Sony sensors provide clear HD images with rich accurate 10bit (4:2:2) color even in low-light (0.01Lux) and ability to switch to night mode (0.005Lux) where IR wavelengths can be captured in complete darkness.
Interchangeable M12 Lenses
Marshall CV504 cameras come with a high-quality 4.0mm (85° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application.
Marshall CV504 cameras come with a high-quality 4.0mm (85° H.AOV) prime lens which ensures focus from near contact to infinity. Marshall offers a wide selection of high quality M12 prime and varifocal lenses to meet the individual needs of the production, project, or application.
Durable, Flexible, Powerful

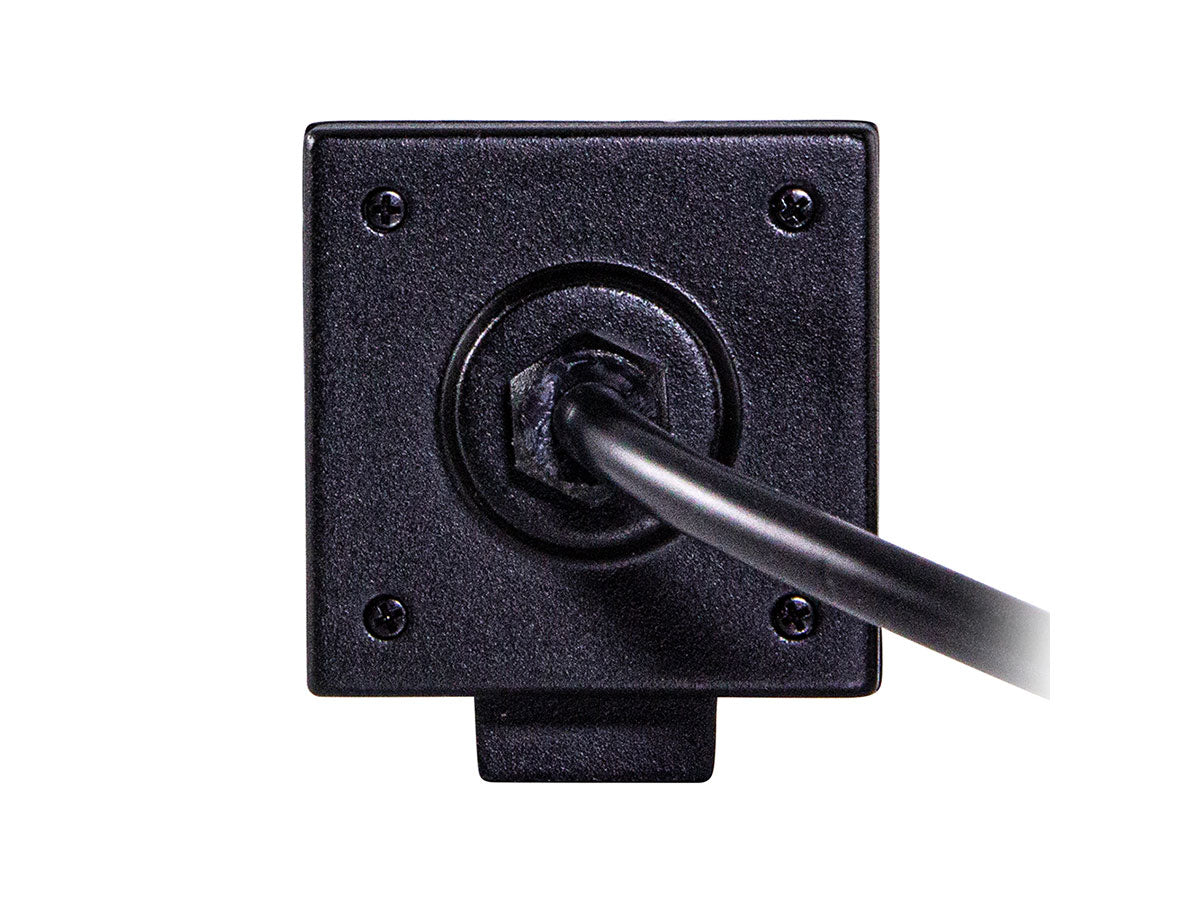

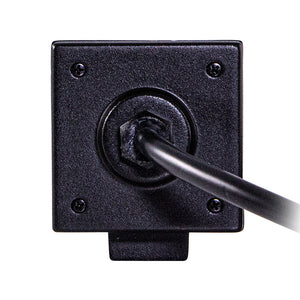

The durable all-weather CV504-WP body is chiseled from one block of aluminum alloy with 10-foot (3m) breakout cable. CV504-WP operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability.
The durable all-weather CV504-WP body is chiseled from one block of aluminum alloy with 10-foot (3m) breakout cable. CV504-WP operates with exceptional low-light sensitivity, ensuring a clear picture in challenging lighting conditions with refined remote adjust & match capability.
Broadcast Performance
Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.
Marshall Camera Division continues to develop camera products to follow the heritage of Marshall broadcast quality incorporating reliability, durability, flexibility and most importantly affordability with feature sets that matter to our industry partners.
- 2.2 Megapixel Sony sensor with square pixel array and larger pixels
- Interchangeable M12 lens mount, comes with 4.0mm - 85° H.AOV lens
- 10-foot (3 meter) weatherproof IP67 breakout cable to BNC, RS485, power
- 3GSDI (10bit, 4:2:2, BT.709) reliability with remote adjust & match capability
- 1920x1080p, 1920x1080i & 1280x720p resolutions available
- Framerates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps
- Remote adjust & match via CV-RCP-V2, Camera Control Software and 3rd party sources
such as Cyanview, Skaarhoj and more - Power Draw: 2.64W (max 6W) with 7~15V flexibility
| SENSOR | |
| Image Sensor: | Sony 1/2.8” IMX CMOS Solid-state Image Sensor with Square Pixel Array |
| Colour: | 10bit, 4.2.2, ITU BT.709 |
| Pixel Size: | 2.9 μm x 2.9 μm |
| Effective Pixel: | 1920 (H) x 1080 (V) - 16:9 HD ratio |
| Min. Illumination: | 0.01Lux (Day), 0.005Lux (Night) |
| OPTICS | |
| Lens: | Interchangeable M12, 4mm (85º H.AOV) |
| FUNCTIONS | |
| Back Light Compensation: | WDR, BLC, HLM |
| Exposure: | Auto / Manual / AGC Fix / Shutter Fix |
| White Balance: | ATW (1,900°K~11,000°K) / Manual / Indoor / Outdoor / One Push |
| Day & Night System: | Day (color) & Night (b/w) capability (Auto/Manual/Adjustable) with removable IR cut filter mechanism |
| Electronic Shutter: | 1/30~1/10000 |
| Functions: | Privacy Mask, Image Mirror/Flip, 2D+3DNR, Flicker-less, Defog, Dzoom DIS (Digital Image stabilizer), NegArt, Freeze |
| VIDEO OUTPUTS | |
| HDSDI / 3GSDI: | SMPTE 292M(1.485Gbps): 1920x1080p @ 23.976, 24, 25, 29.97, 30. 1920x1080i @ 50, 59.94, 60. 1280x720p @ 50, 59.94, 60 SMPTE 424M(2.97Gbps): 1920x1080p @ 50, 59.94, 60fps 800mVp-p, 75Ω, unbalanced generator (single-ended) |
| AUDIO INPUT | |
| MIC Input: | TRS Stereo, Mic/Line Level input with 2.5V Mic bias 48mHz, Bit Depth: 8bits data, 1 stop bit, no parity, 2400~115200bps |
| CONTROL INTERFACE | |
| Visca Over RS485: | SONY-VISCA protocol, Camera ID#, Baudrate 2400~115200 |
| GENERAL | |
| Operation Temperature: | -10℃ ~ 50℃ |
| Power Input: | 12V DC (7V to 15VDC) |
| Power Consumption: | Max 6W: 2.64W |
