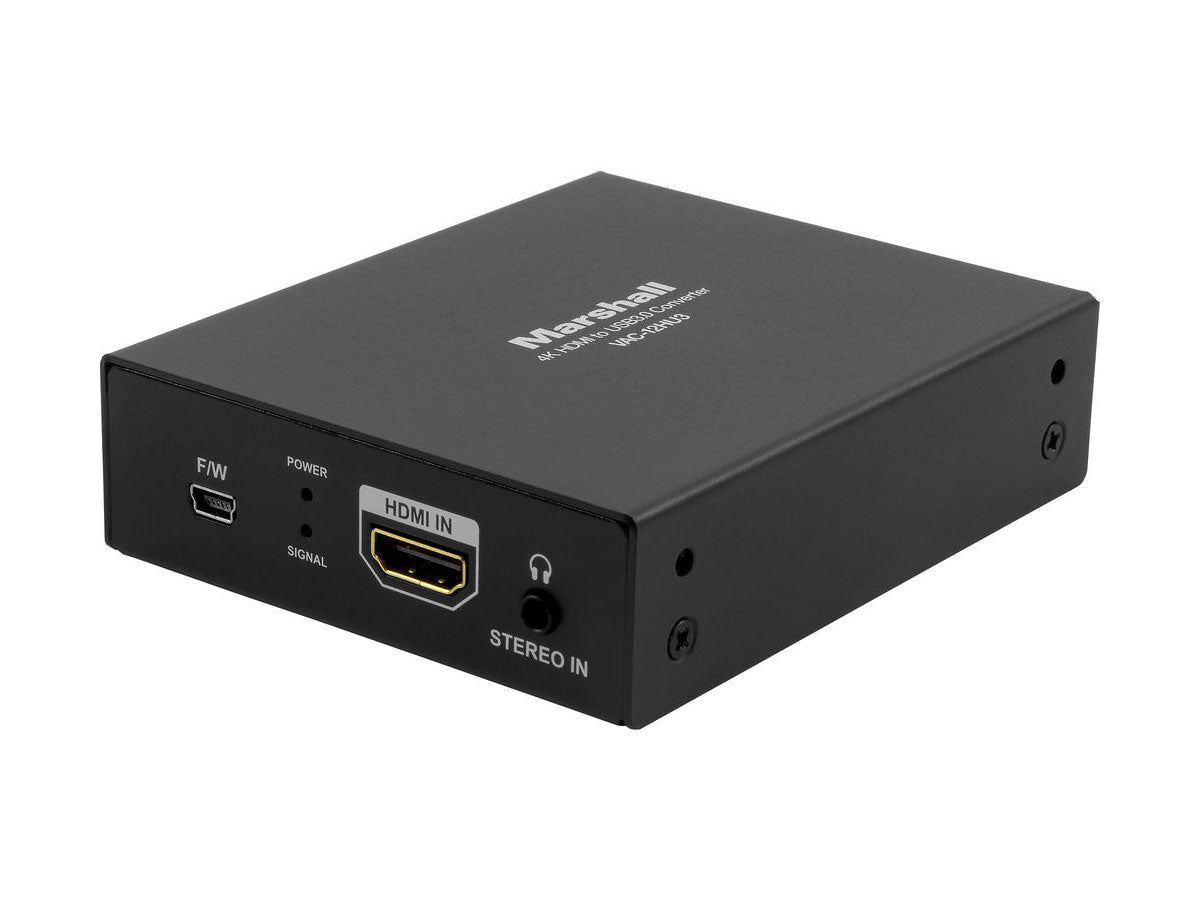

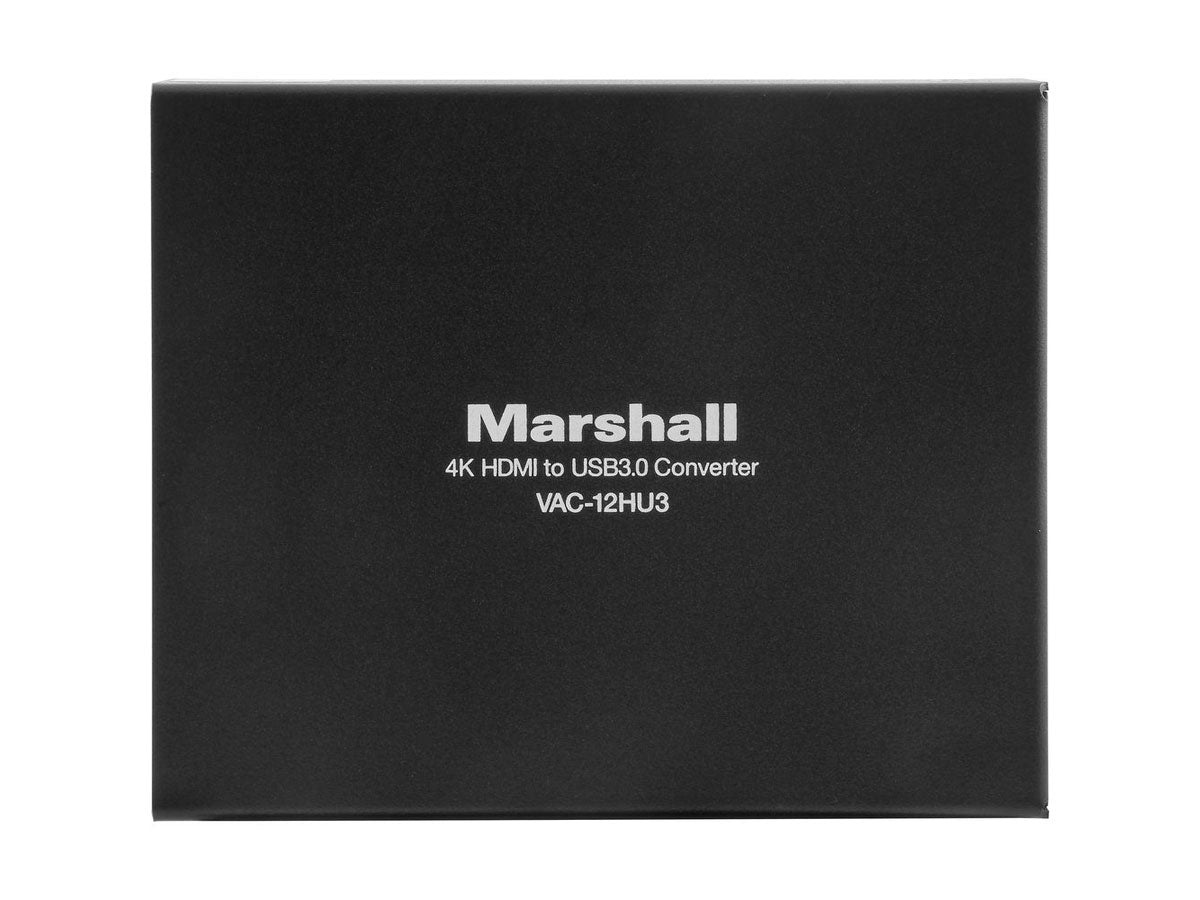

Marshall Electronics HDMI to USB Format Converter
Marshall Electronics HDMI to USB Format Converter
£252.00 GBP inc VAT
£252.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The HDMI to USB Format Converter from Marshall Electronics is a USB 3.0 adapter designed to connect video and audio sources to a computer. The converter uses a plug-and-play interface which integrates video sources to the selected PC applications. The HDMI 2.0 input accepts video formats up to UHD and its availability is maintained via the active loop-through for feeding monitors and recorders. The UVC protocol support allows the application to control the video format, frame rate, and additional settings without requiring the original source format to match.
HDMI 2.0 Input
Features active loop-through output
USB 3.0 Interface
Features UVC control and scaling (backwards compatible with USB 2.0)
Plug-and-Play
Driver installation not required for most applications
Varied Compatibility
Compatible with Zoom, Skype, OBS Studio, and similar applications
USB Powered
Allows for improved efficiency
- Converts HDMI to USB Output
- HDMI 2.0 Input with Loop-Through Output
- USB 3.0 Interface with UVC Control
- Plug-and-Play Operation
- Works with Common Streaming Apps
- USB Powered
- Rugged, Compact Design
| Video Input Connectors | 1 x HDMI (HDMI 2.0) Female 1 x BNC (3G-SDI) Female |
| Input Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB) UHD 4K at 50/60 fps SDI (10/12-Bit) 1080p 1080p 50/60 fps |
| Input Audio Format | S/PDIF: 44.1 kHz / 16-Bit |
| Video Output Connectors | 1 x HDMI (HDMI 2.0) Female (Loop Output) 1 x BNC (3G-SDI) Female (Loop Output) |
| Video Standard Compliance | SMPTE 259M/274M/296M/425M |
| HDCP Support | Version 2.2 |
| Other I/O | 1 x USB Mini-B Firmware Input |
| Dimensions | 4.11 x 3.33 x 1.07" / 10.43 x 8.46 x 2.72 cm |
| Weight | 0.7 lb / 317.51 g |
- Marshall Electronics HDMI to USB Format Converter
- USB Cable
- 2 x Mounting Brackets
- 4 x Attachment Screws
- Limited 1-Year Warranty
