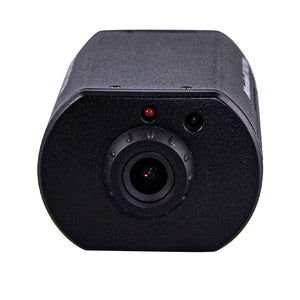

Marshall Electronics e4PTZ 4K60 Camera - HDMI, USB & NDI|HX3 Outputs
Marshall Electronics e4PTZ 4K60 Camera - HDMI, USB & NDI|HX3 Outputs
SKU:
ME-CV420Ne
Regular price
£1,085.00 GBP ex VAT
£1,302.00 GBP inc VAT
£1,302.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,085.00 GBP ex VAT
£1,302.00 GBP inc VAT
Unit price
per
£1,302.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

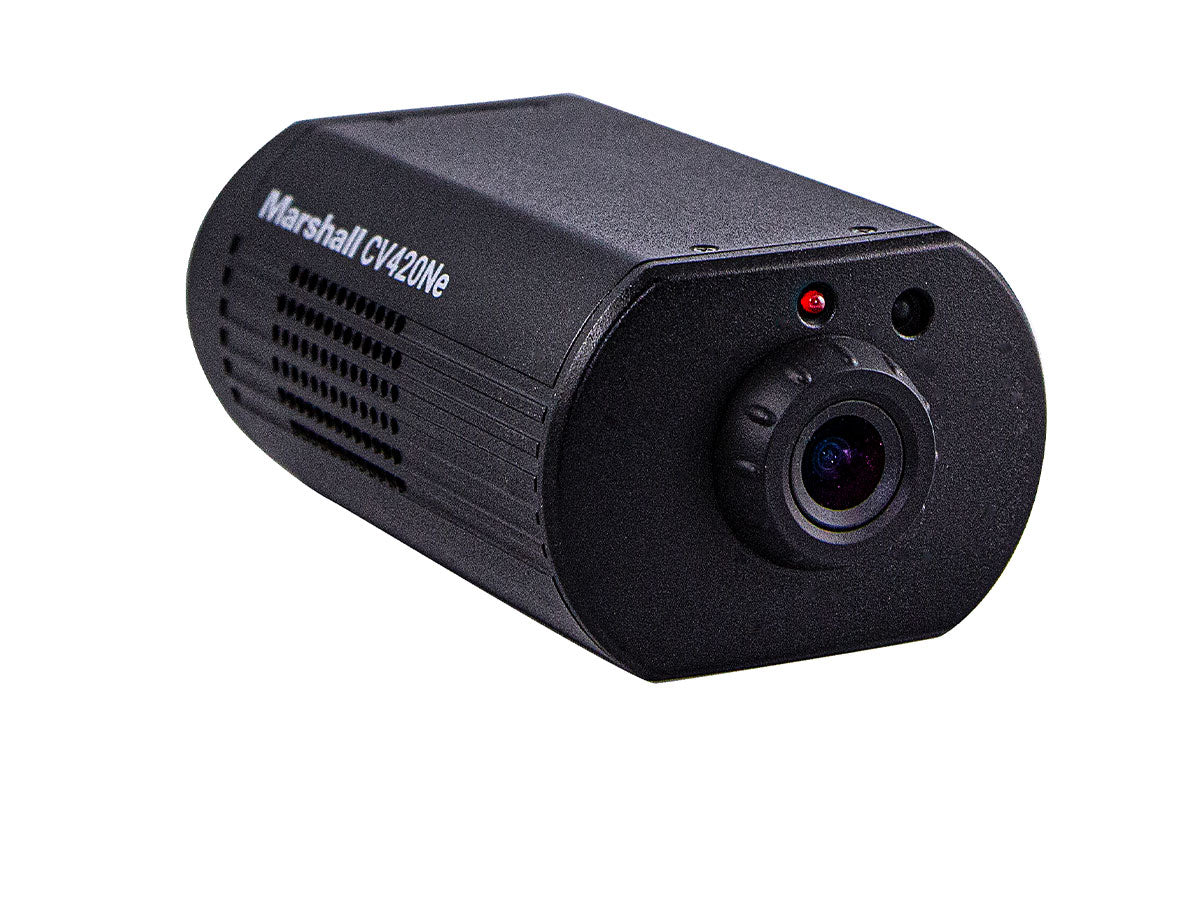

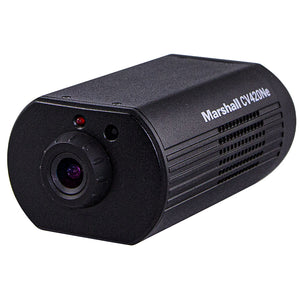

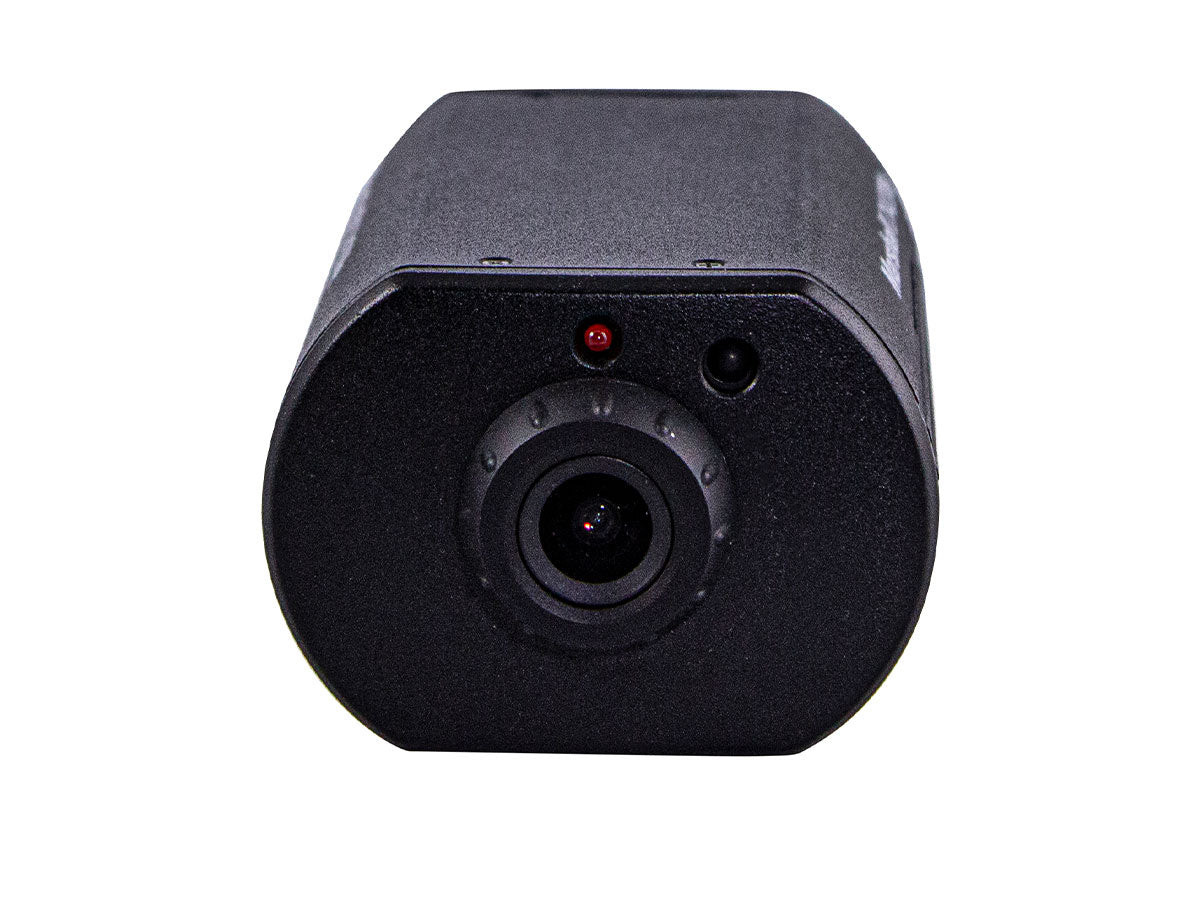

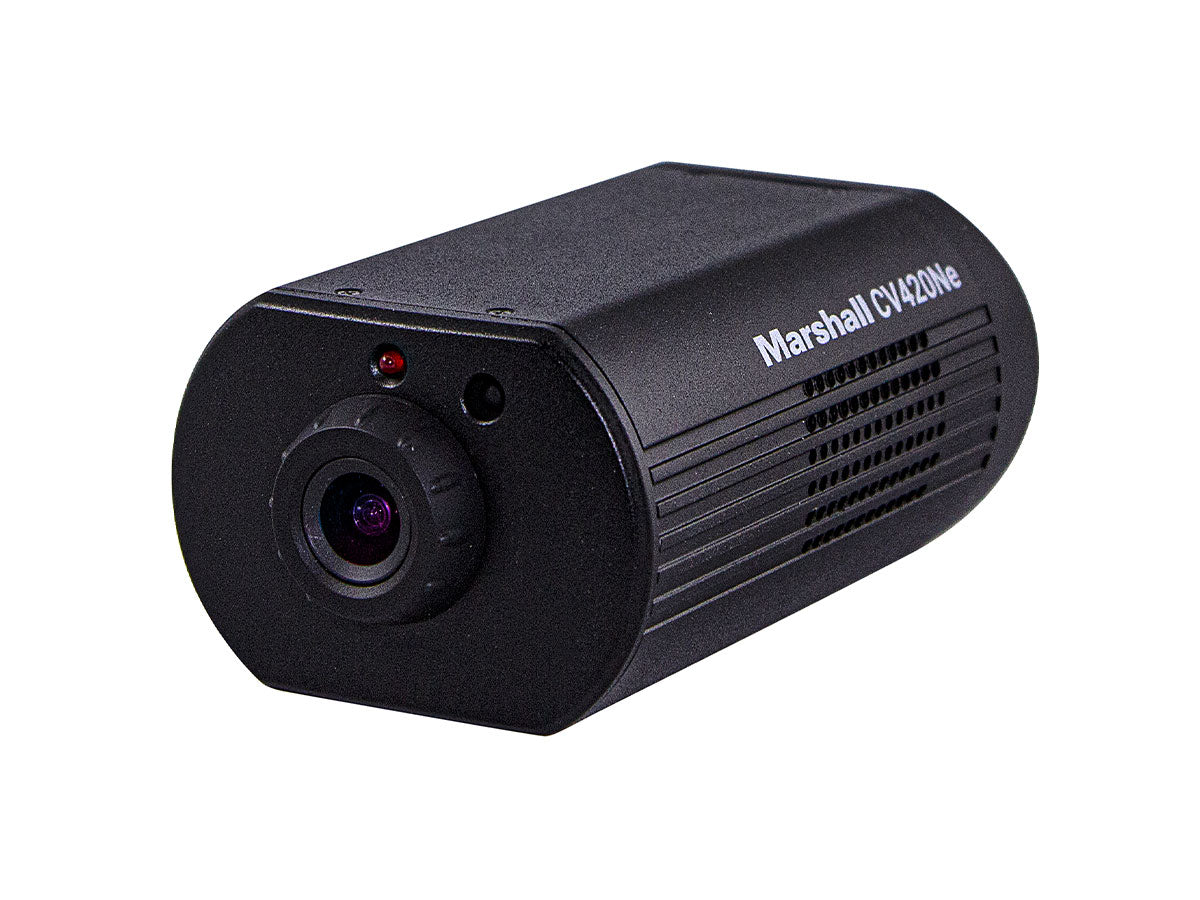

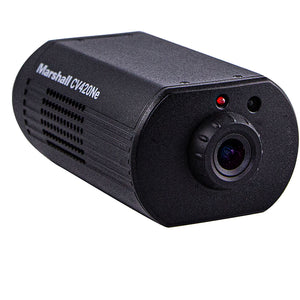

Compact and durable streaming camera with a large 9.2 megapixel 1/1.8" sensor size and ultra-wide 100 degree angle-of-view lens with zero curvature. CV420Ne comes with a CVM-5 monitor mount, however, can be installed on any 1/4"-20 camera mount including tripods, fixed mounts, and many others. Crystal clear UHD and HD images through the super-efficient NDI|HX3 stream codec or USB connectivity and HDMI output for traditional workflows.
Crystal Clear 4K Images with wide AOV
Incorporating a 1/1.8" 4K sensor with over 9.2 million pixels delivers unparalleled clarity and performance even in challenging light conditions. Starting at a 100° angle-of-view CV420Ne delivers an ultra-wide perspective with no curvature.
Incorporating a 1/1.8" 4K sensor with over 9.2 million pixels delivers unparalleled clarity and performance even in challenging light conditions. Starting at a 100° angle-of-view CV420Ne delivers an ultra-wide perspective with no curvature.
Flexible Workflow Options
The flexibility to stream content over IP (HEVC) with an HDMI simultaneous output, or USB3.0 with a simultaneous HDMI output offers flexibility for media streaming and collaboration from one camera. Stream live to YouTube, Livestream, Facebook (Meta), or Twitch while capturing local HDMI content and workflow manipulation.
The flexibility to stream content over IP (HEVC) with an HDMI simultaneous output, or USB3.0 with a simultaneous HDMI output offers flexibility for media streaming and collaboration from one camera. Stream live to YouTube, Livestream, Facebook (Meta), or Twitch while capturing local HDMI content and workflow manipulation.
ePTZ with Digital Pan, Tilt and Zoom
Utilizing a large Sony 1/1.8" 4K sensor opens optional ePTZ maneuverability of HD images within the 4K sensor space. Controllable remotely via VMS, GUI, or Visca over IP command from 3rd party control decks as well as UVC commands over USB. Hardware control from Marshall VS-PTC-IP controller via IP and locally by IR remote included in box.
Utilizing a large Sony 1/1.8" 4K sensor opens optional ePTZ maneuverability of HD images within the 4K sensor space. Controllable remotely via VMS, GUI, or Visca over IP command from 3rd party control decks as well as UVC commands over USB. Hardware control from Marshall VS-PTC-IP controller via IP and locally by IR remote included in box.
Durable, Flexible, Powerful

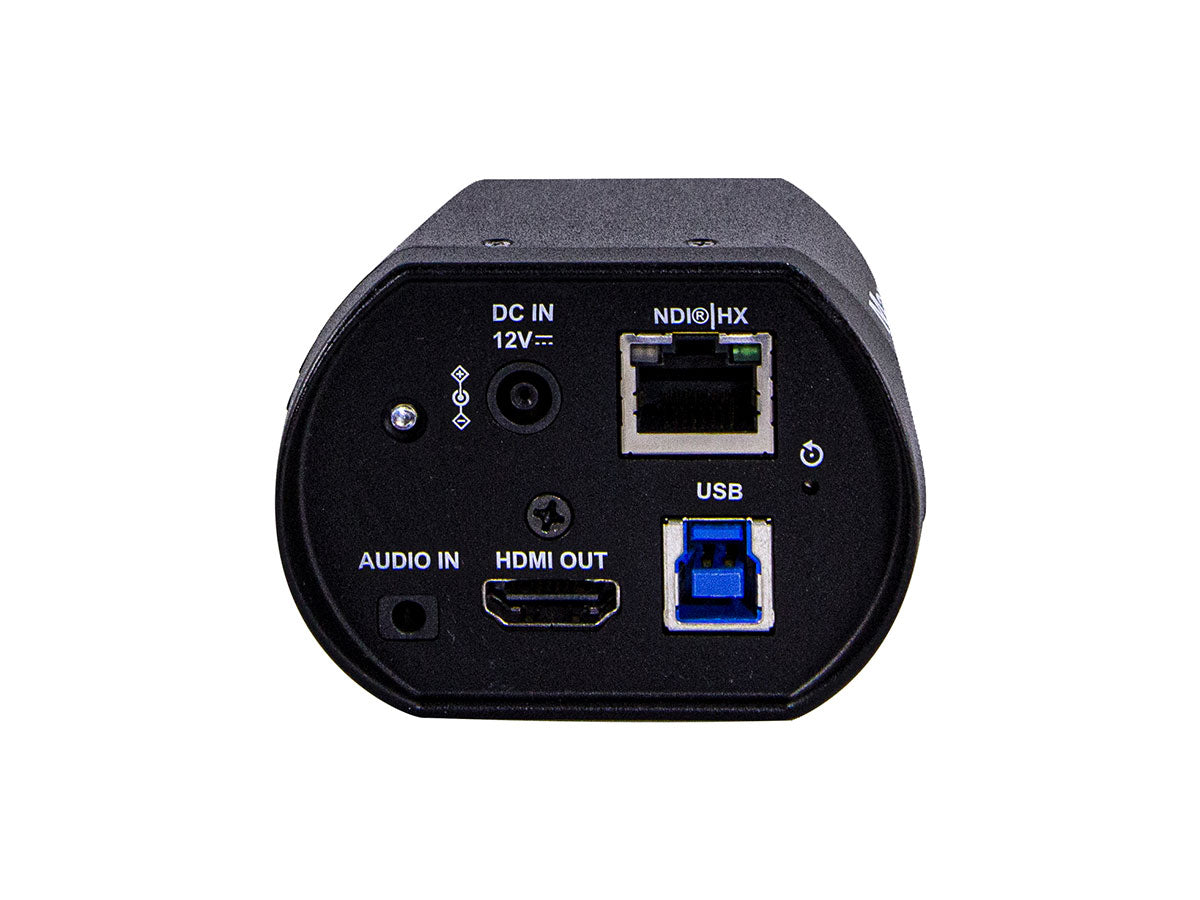

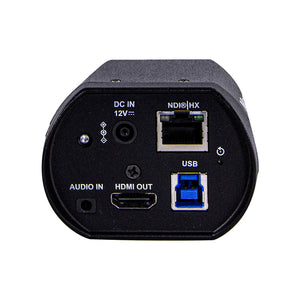

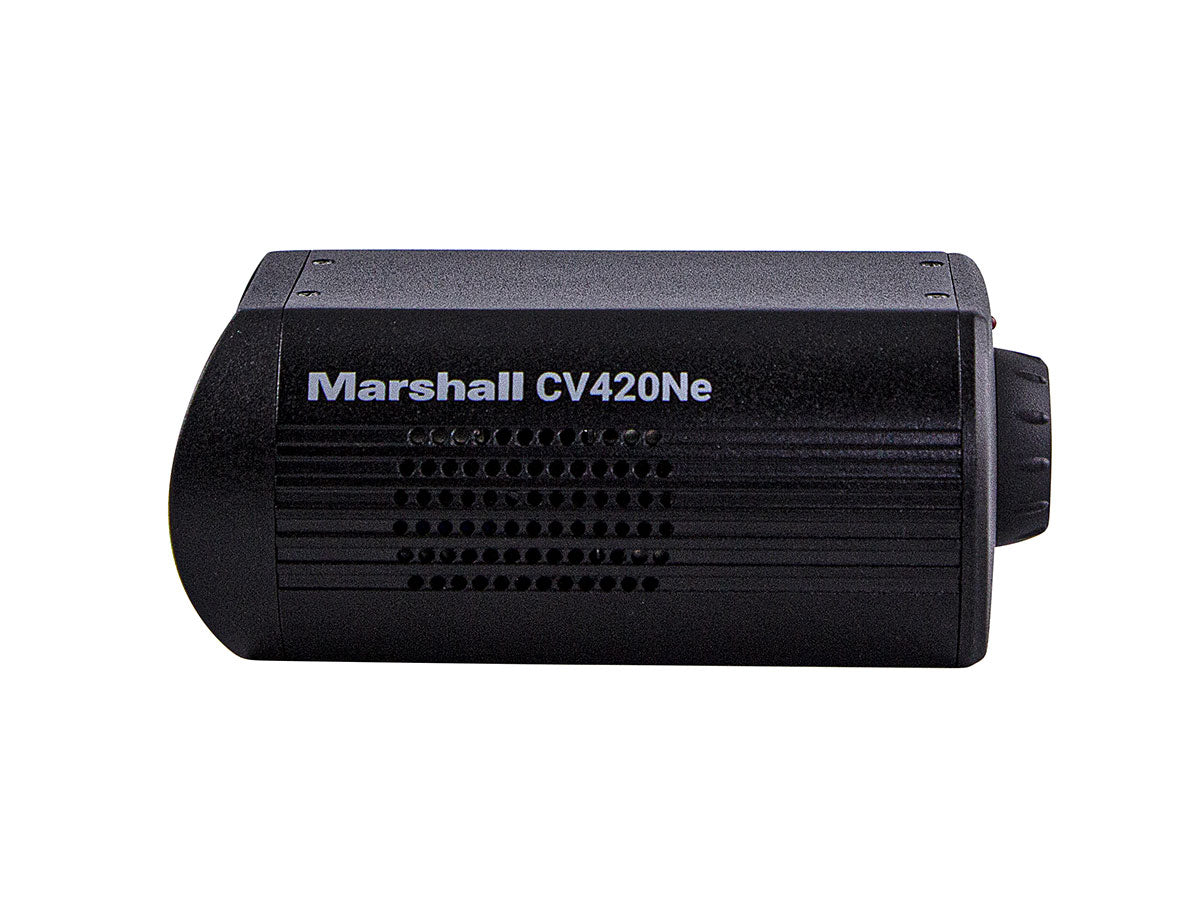

The CV420Ne is built into a compact and durable body with rear I/O protection wings. Marshall CVM-5 monitor mount and desktop stand is included (free) as well as IR remote for local setup and control. Compact, durable and powerful tool for a wide variety of streaming applications.
The CV420Ne is built into a compact and durable body with rear I/O protection wings. Marshall CVM-5 monitor mount and desktop stand is included (free) as well as IR remote for local setup and control. Compact, durable and powerful tool for a wide variety of streaming applications.
- Sony 1/1.8" 4K sensor
- 9.2 million pixels with large pixel size
- 4.5mm lens with 100° H.AOV (no curvature) + 12x clear digital zoom
- ePTZ maneuverable with HD images within UHD sensor with savable presets
- Control options: NDI|Tools, IR remote, UVC and ONVIF
- Video output up to 3840x2160p at 60fps, 1080p, 1080i & 720p
- Video output options of USB + HDMI or NDI|HX3 + HDMI
- Low latency, lossless NDI|HX3 streaming over challenging networks
- Low Light sensitivity (0.05 Lux) and Wide Dynamic Range
- 3.5mm Microphone & Line Level audio input for IP and HDMI streams
- Environmental: operating 0°C ~ 40°C, storage -20°C ~ 60°C
- Power Consumption: 11W via PoE, and 10W via DC (12V)
- Minimum Object Distance (M.O.D.) – 30cm
| Sensor: | Sony 1/1.8" 9.2 Megapixel CMOS |
| Video Format: | Resolution: 3840x2160p/1920x1080p/1280x720p Frame Rate: 60/59.94/50/30/29.97/25 |
| Video Output (HD) Interface: | NDI|HX3, HDMI 2.0, USB 3.0 (also USB2.0 compatible) |
| Optical Zoom: | No |
| Digital Zoom: | Yes |
| ePTZ: | Yes with HD (16:9) image within UHD (4K) sensor |
| Horizontal Viewing Angle: | 102°AOV (Horizontal) wide open |
| Aperture: | F1.6 |
| Focal Length: | 4.5mm |
| Shutter Speed: | 1 ~ 1/10,000 sec |
| Minimum Object Distance: | 30cm |
| Focus System: | Manual |
| Gain Control: | Auto, Manual |
| White Balance: | Auto, Manual |
| Exposure Control: | Auto, Manual |
| WDR: | Yes |
| 3D NR: | Yes |
| Image Flip: | Yes |
| Preset Positions: | 256 |
| Control Interface: | NDI5.5|Tools or USB (UVC) |
| Control Protocol: | NDI|HX3 or ONVIF/ UVC |
| Tally Light: | Yes |
| PoE: | PoE (IEEE802.3af) |
| Video Stream: | NDI|HX3, RTSP / RTMP / RTMPS / MPEG-TS / SRT / Zixi |
| Video Compression: | NDI|HX3, HEVC / H.264 / MJPEG |
| Audio Input: | Line In/Mic In, Phone Jack 3.5mm x1 |
| Audio Output: | HDMI 2.0, NDI|HX3, USB 3.0 |
| IR Receiver: | Yes |
| IR Remote Control: | Yes |
| Power Consumption: | DC : ≦11W ，PoE : ≦12W |
| Weight: | 350g typical |
| Dimensions: | 113 x 70 x 51 mm typical |
| Operating Temperature: | 0°C ~ 40°C |
| Storage Temperature: | -40°C ~ 60°C |
- 1x CV420Ne ePTZ Camera
- 1x IR remote
- 1x Power Cable
- 1x Power Supply Unit (PSU)
- 1x CVM5 Camera Clip Mount
