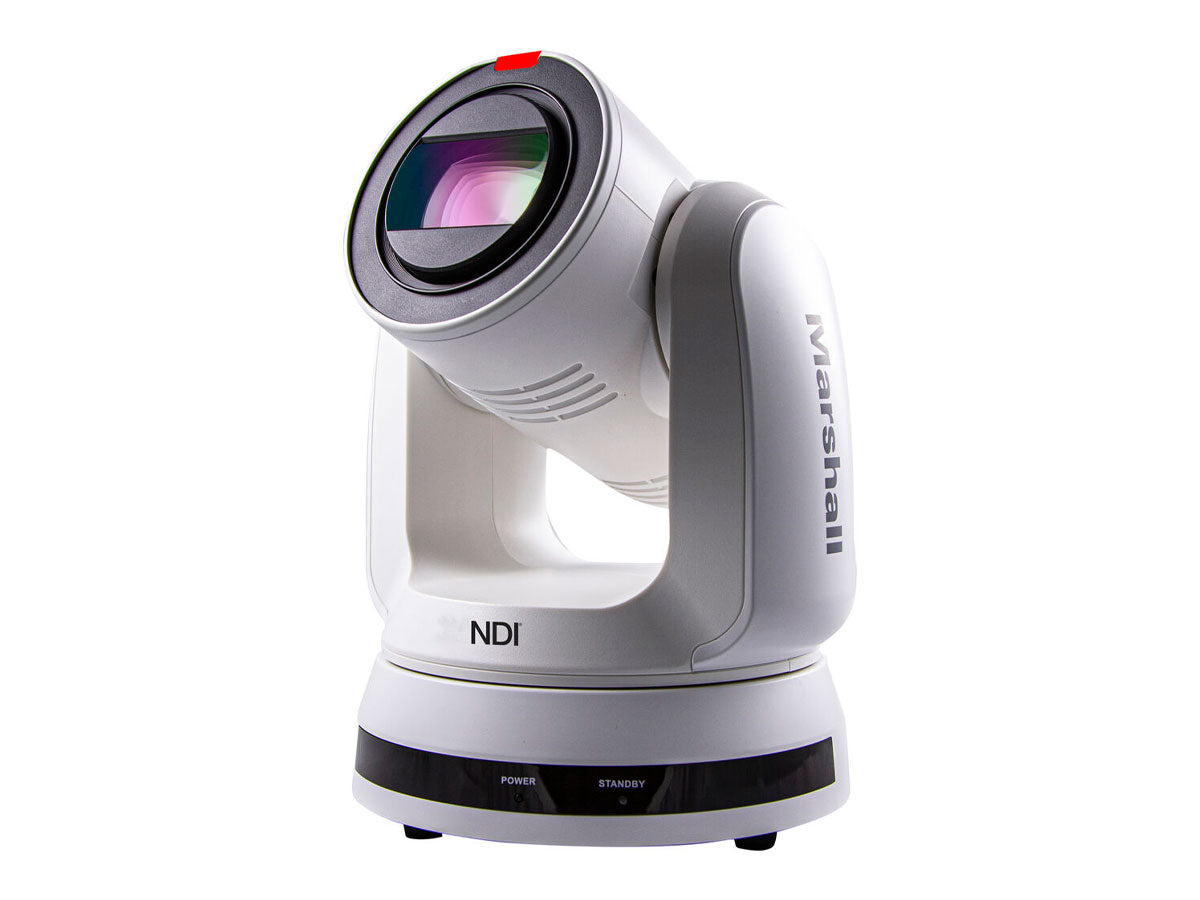

Marshall Electronics CV730-WHN 4K (UHD60) NDI PTZ Camera with 6.5mm-202mm 30x Zoom Lens (White)
Marshall Electronics CV730-WHN 4K (UHD60) NDI PTZ Camera with 6.5mm-202mm 30x Zoom Lens (White)
£4,428.00 GBP inc VAT
£4,428.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
CV730-BHN/WHN is Marshall’s top-range full NDI PTZ camera, capturing sharp UHD video at up-to 60p.
Full NDI delivers the lowest latency, highest quality, frame-accurate video, and audio in real time to IP workflows. NDI5.5 and other NDI Tools opens the ability to integrate more video devices and applications into your production workflow. Also, ability to Genlock the SDI signals via Black Burst or Tri-Level Sync and optional USB3.0 workflow.
Featuring 3G-SDI, 12G-SDI, HDMI2.0, USB-3.0, IP ethernet and NDI from a Sony Exmor 9.2MP 1/1.8″ UHD sensor and smooth synchronous movements. CV730-BHN/WHN delivers crystal-clear images up to 3840x2160p at 60fps. NDI|HX3 provides Video, Audio, Control, Tally and Power over one Ethernet cable for remote broadcast-style adjust & match settings control.
Constructed with a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm all the way out to 202mm which captures a crystal clear head & shoulder shot at very long distances.
CV730-BHN/WHN offers easy control over broadcast settings from NDI Tools such as NDI Studio Monitor, which opens the ability to integrate more networked video sources into your production workflow. Additionally, the CV730-BHN/WHN is compatible with RS-422, RS-232 and Marshall’s VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with one button dials and rocker control.
- 12G-SDI, HDMI, IP Ethernet, full NDI or NDI|HX3 & USB 3.0 outputs
- 30x optical zoom (6.5mm to 202mm)
- Smart Auto-Focus AI System ensures faces and eyes stay in focus at all times
- Remote control using RS-232/RS-422 protocols, Ethernet (VISCA over IP) or with included IR remote
- 3.5mm audio input for external microphone
| SENSOR | |
| Sensor Type: | 1/1.8″ 9.2 Megapixel |
| RESOLUTION & FRAME RATES | |
| UHD 3830x2160p: | 25, 29.97, 50 & 59.94 |
| HD 1920x1080p: | 25, 29.97, 30, 50 & 59.94 |
| HD 1920x1080i: | 50 & 59.94 |
| HD 1280x720p: | 25, 29.97, 59.94 & 60 |
| INPUT & OUTPUT CONNECTORS | |
| Video Output Connectors: | 1x 12G-SDI, 1x HDMI 2.0, 1x IP Ethernet, full NDI or NDI|HX3 (RJ45) & USB 3.0 (type B) |
| Remote Control: | 1x RS-422 Interface, 1x RS-232 Input, 1x RS-232 Output |
| Audio: | 1x 3.5mm Audio Input |
| Power: | 1x 12V DC Input, PoE++ |
| LENS | |
| Focal Length: | 6.5mm to 202mm |
| Optical Zoom Ratio: | 30x |
| CONTROL PROTOCOL | |
| Control Protocol: | RS-232/RS-422 |
- 1x Marshall CV730-BHN/WHN PTZ Camera Body
- 1x IR Remote Control
- 1x Power Supply Unit (PSU)
- 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
- 1x Metal Installation Plate A
- 1x Metal Installation Plate B
- 1x Set of M3 Screws
