Marshall Electronics CV630IP 4K (UHD) PTZ Camera with 4.6mm-135mm 30x Zoom Lens - White
Marshall Electronics CV630IP 4K (UHD) PTZ Camera with 4.6mm-135mm 30x Zoom Lens - White
£2,038.80 GBP inc VAT
£2,038.80 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included

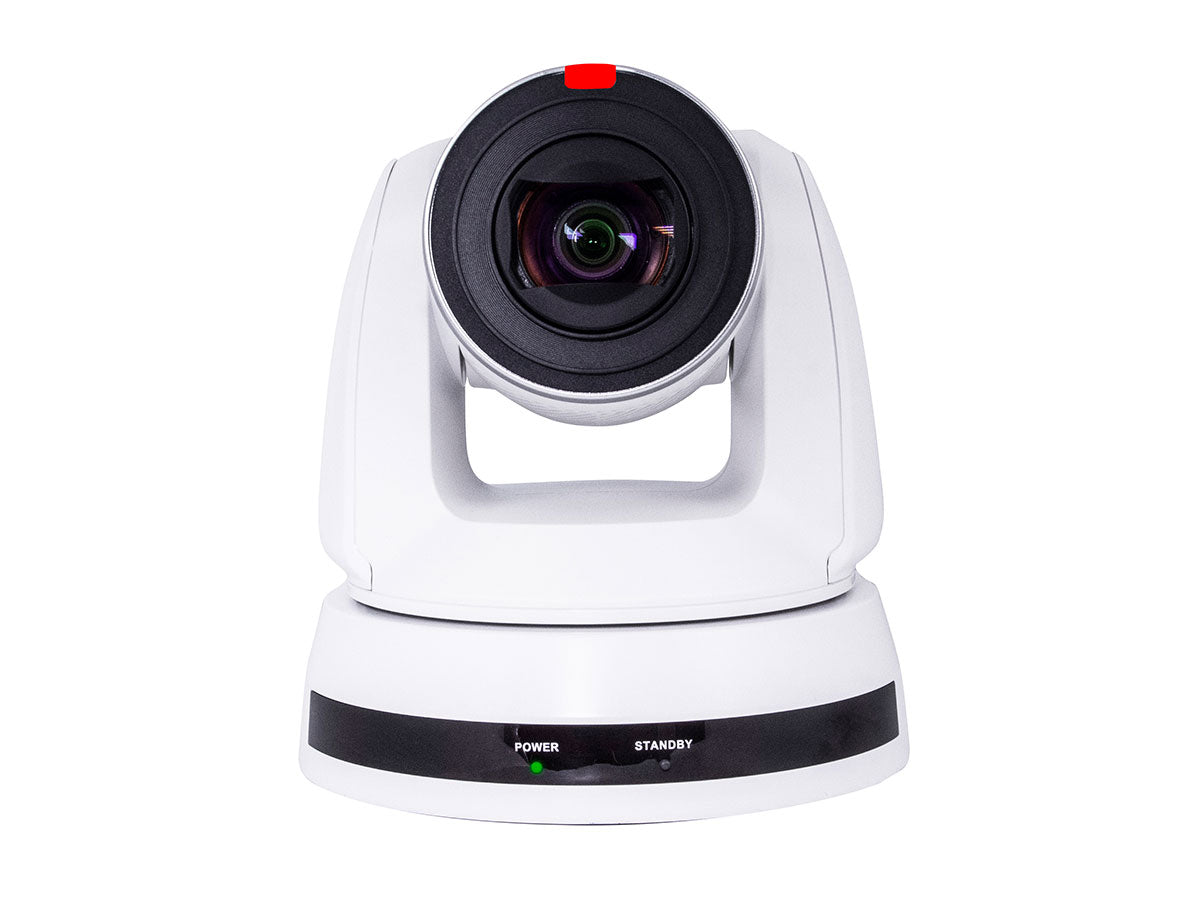

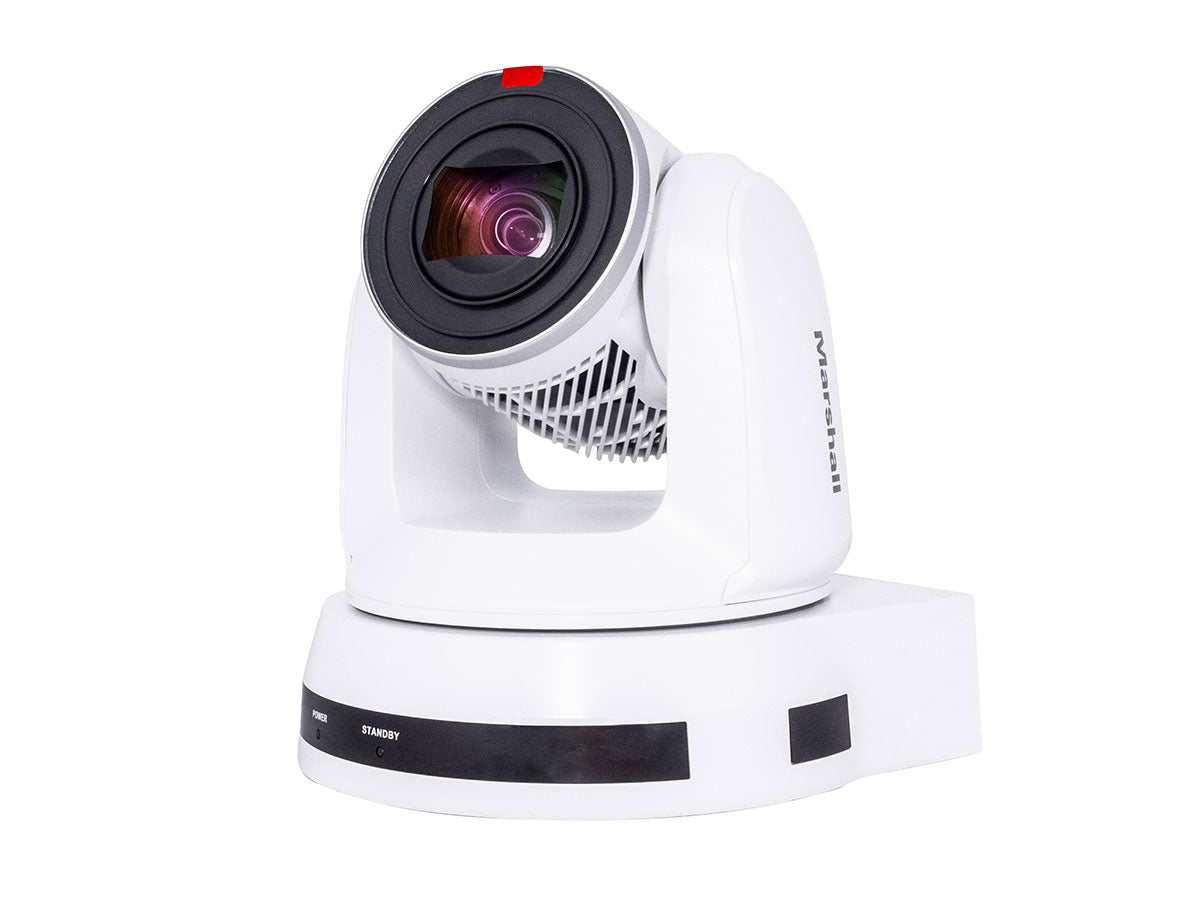

The Marshall CV630-IP PTZ Camera captures crisp UHD video combined with smooth PTZ camera positioning and 30X optical zoom for a versatile networked video solution.
At its core, the CV630-IP packs a powerful 8-megapixel 1/2.5″ sensor capturing up to Ultra-HD 3840x2160p video, with support for HD 1920x1080p, and 1280x720p.
The CV630-IP is equipped with synchronous pan, tilt, and zoom motors for smooth and silent camera movements during operation. A 30X optical zoom block provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest.
Multiple simultaneous video streams are available over HDMI, 3G-SDI, and triple-stream IP (H.265/H.264) with stereo audio input embeddable on all available outputs. PoE+ (power-over-Ethernet) provides an economical and easy solution for integrators during installation.
The CV630-IP offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, networked video management software (VMS) or RS-232/ RS-422 with support for Visca, Visca over IP, Pelco, and Onvif platforms.
- 3840×2160 up-to 30p and HD (1920×1080/1280×720) up-to 60p
- Simultaneous 3G-SDI, HDMI & IP Ethernet video outputs
- H.264 & H.265 encoding over IP
- 30x optical zoom (4.6mm-135mm)
- Remote control using RS-232/RS-422 protocols, Ethernet (VISCA over IP) or with included IR remote
- 3.5mm audio input for external microphone
| SENSOR | |
| Sensor Type: | 1/2.5″ 8 Megapixel |
| RESOLUTION & FRAME RATES | |
| UHD 3840x2160p: | 25 & 29.97 |
| HD 1920x1080p: | 25, 29.97, 30, 50 & 59.94/td> |
| HD 1920x1080i: | 50 & 59.94 |
| HD 1280x720p: | 25, 29.97, 50 & 59.94 |

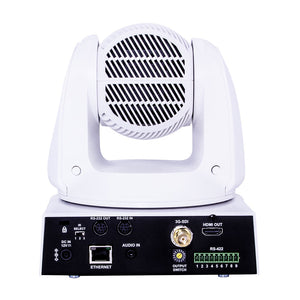

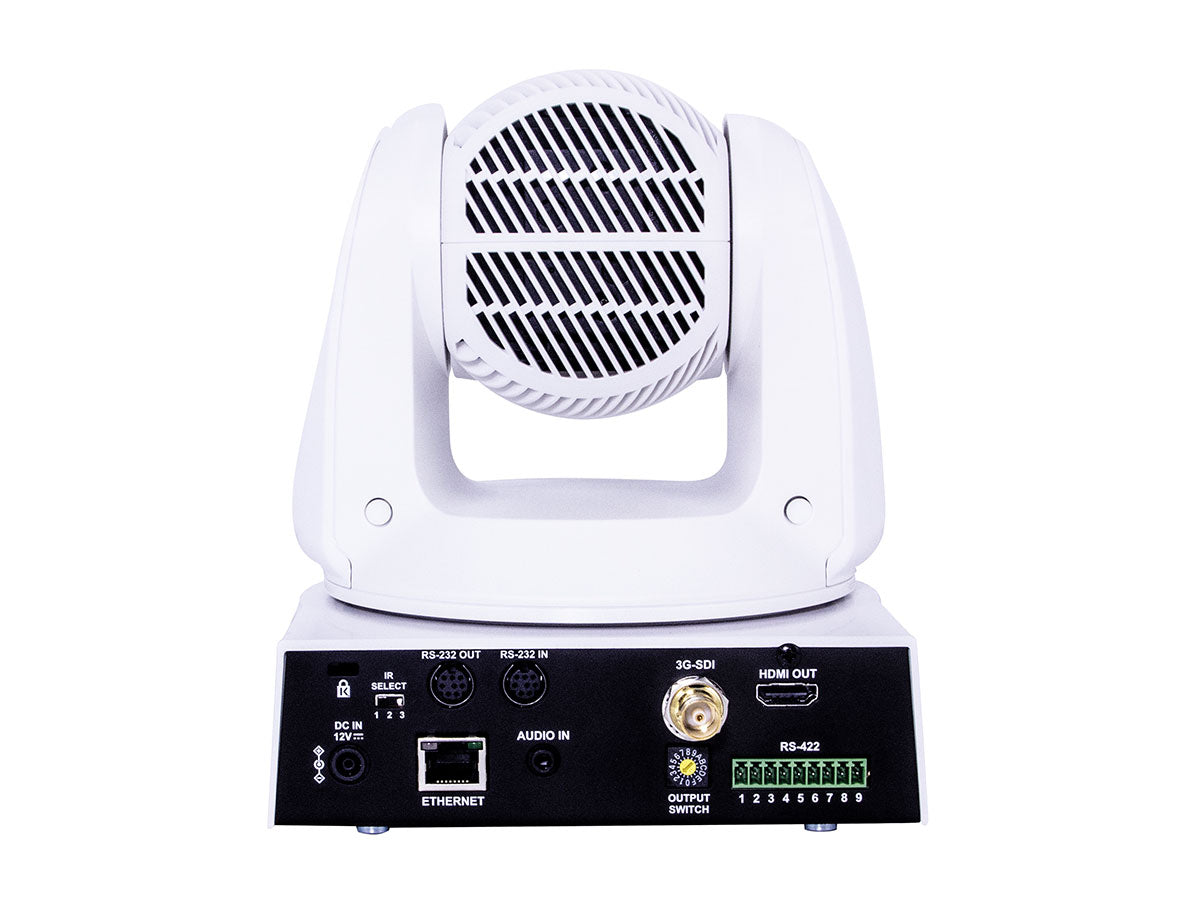

| INPUT & OUTPUT CONNECTORS | |
| Video Output Connectors: | 1x 3G-SDI, 1x HDMI & 1x IP Ethernet |
| Remote Control: | 1x RS-485 Interface, 1x RS-232 Input, 1x RS-232 Output |
| Power: | 1x 12V DC Input |
| LENS | |
| Focal Length: | 4.6mm to 135mm |
| Optical Zoom Ratio: | 30x |
| Max. Aperture: | f/1.6 to f/3.5 |
| CONTROL PROTOCOL | |
| Control Protocol: | RS-232/RS-422 & VISCA over IP |
| GENERAL | |
| Power Input: | 12V DC |
- 1x Marshall CV630-IPW PTZ Camera Body
- 1x IR Remote Control
- 1x Power Supply Unit (PSU)
- 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
- 1x RS-422 Connector
- 1x Metal Plate A
- 1x Metal Plate B
- 1x M3 Screws Set
