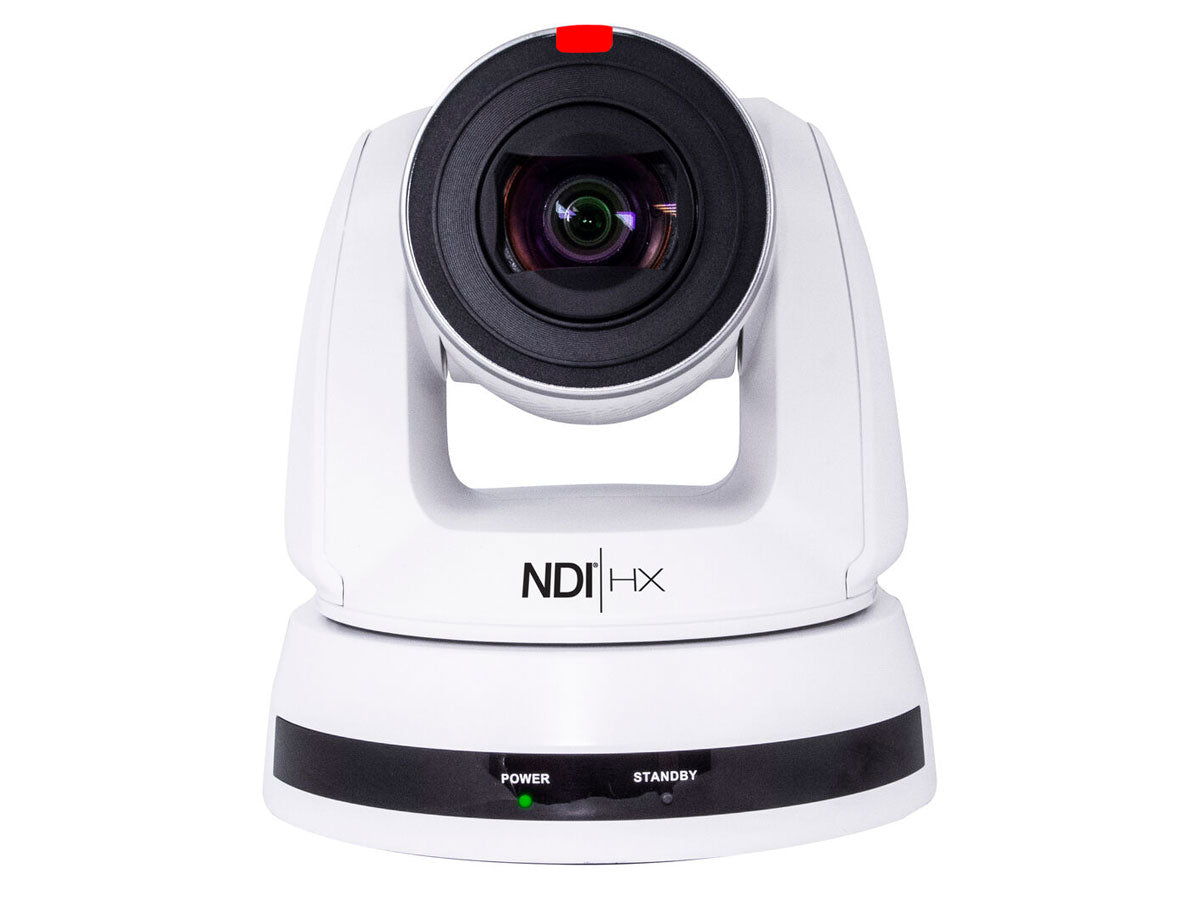

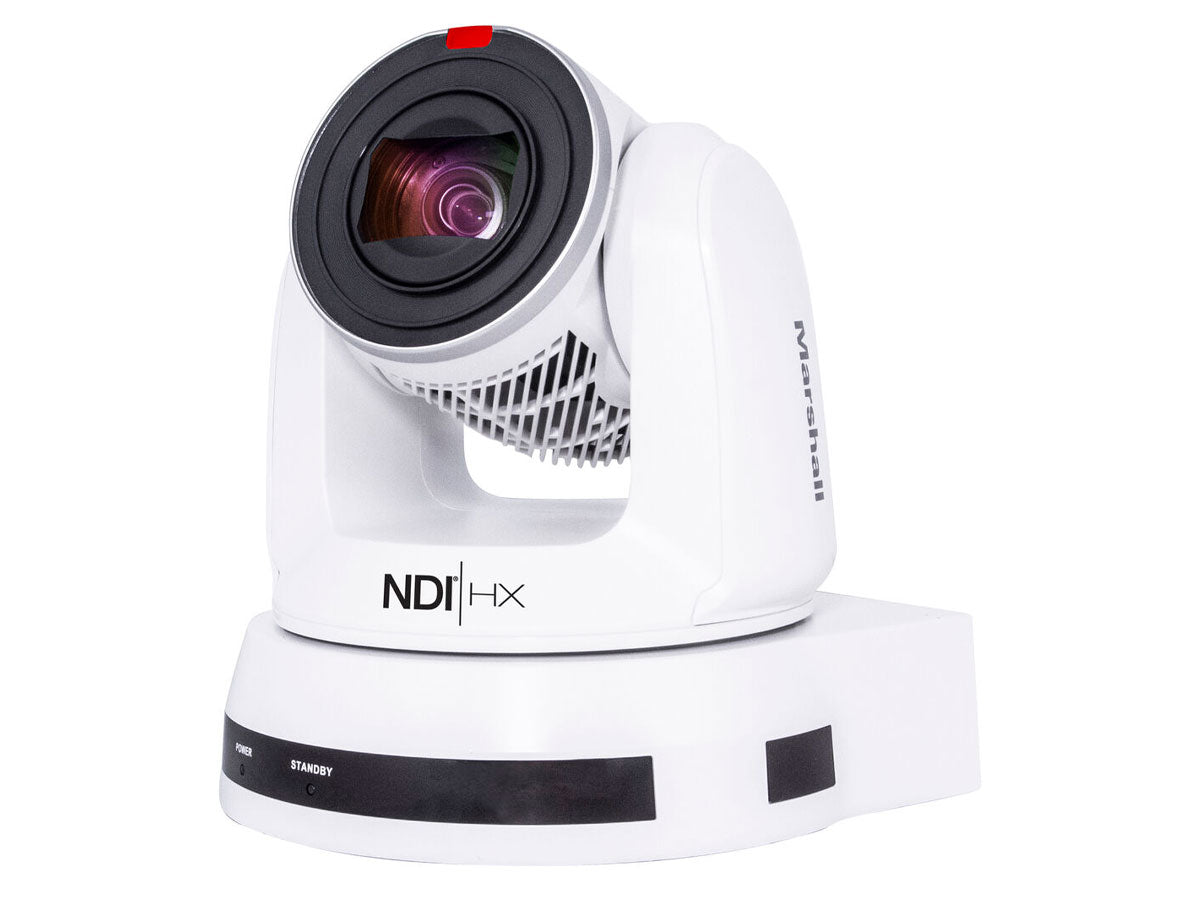

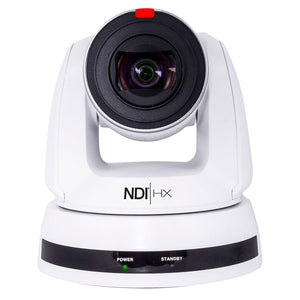

Marshall Electronics CV630-NDIW 4K NDI PTZ Camera - White
Marshall Electronics CV630-NDIW 4K NDI PTZ Camera - White
£2,038.80 GBP inc VAT
£2,038.80 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
CV630-NDI is Marshall’s entry-level NDI-equipped PTZ camera, capturing sharp UHD video at up-to 30p.
NDI®|HX2 provides low latency, high quality, frame-accurate video, and audio in real time to IP workflows. NDI® Tools opens up the ability to integrate more video devices and applications into your NDI production workflow. Simultaneous 3G-SDI & HDMI outputs allow for integration into traditional non-networked workflows.
CV630-NDI features a professional 8 megapixel UHD sensor combined with smooth & accurate pan, tilt & zoom motors. A 30X optical zoom provides flexibility from 4.6mm to 135mm, with a nearly 70-degree angle-of-view at its widest through close-ups at long distances.
CV630-NDI offers easy control over broadcast settings controllable from NDI® Tools such as NDI Studio Monitor and other NDI® Tools which opens the ability to integrate more networked video sources into your production workflow. Additionally, the CV630-NDI is compatible with Marshall’s VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with one button dials and rocker control.
- 3840×2160 up-to 30p
- Simultaneous 3G-SDI, NDI HX2 & HDMI video outputs
- 30x optical zoom (4.6mm to 135mm)
- Remote control using RS-232/RS-422 protocols, Ethernet (VISCA over IP) or with included IR remote
- 3.5mm audio input for external microphone
| SENSOR | |
| Sensor Type: | 1/2.5″ 8 Megapixel |
| RESOLUTION & FRAME RATES | |
| UHD 3830x2160p: | 25 & 29.97 |
| HD 1920x1080p: | 25, 29.97, 30, 50 & 59.94 |
| HD 1920x1080i: | 50 & 59.94 |
| HD 1280x720p: | 25, 29.97, 59.94 & 60 |

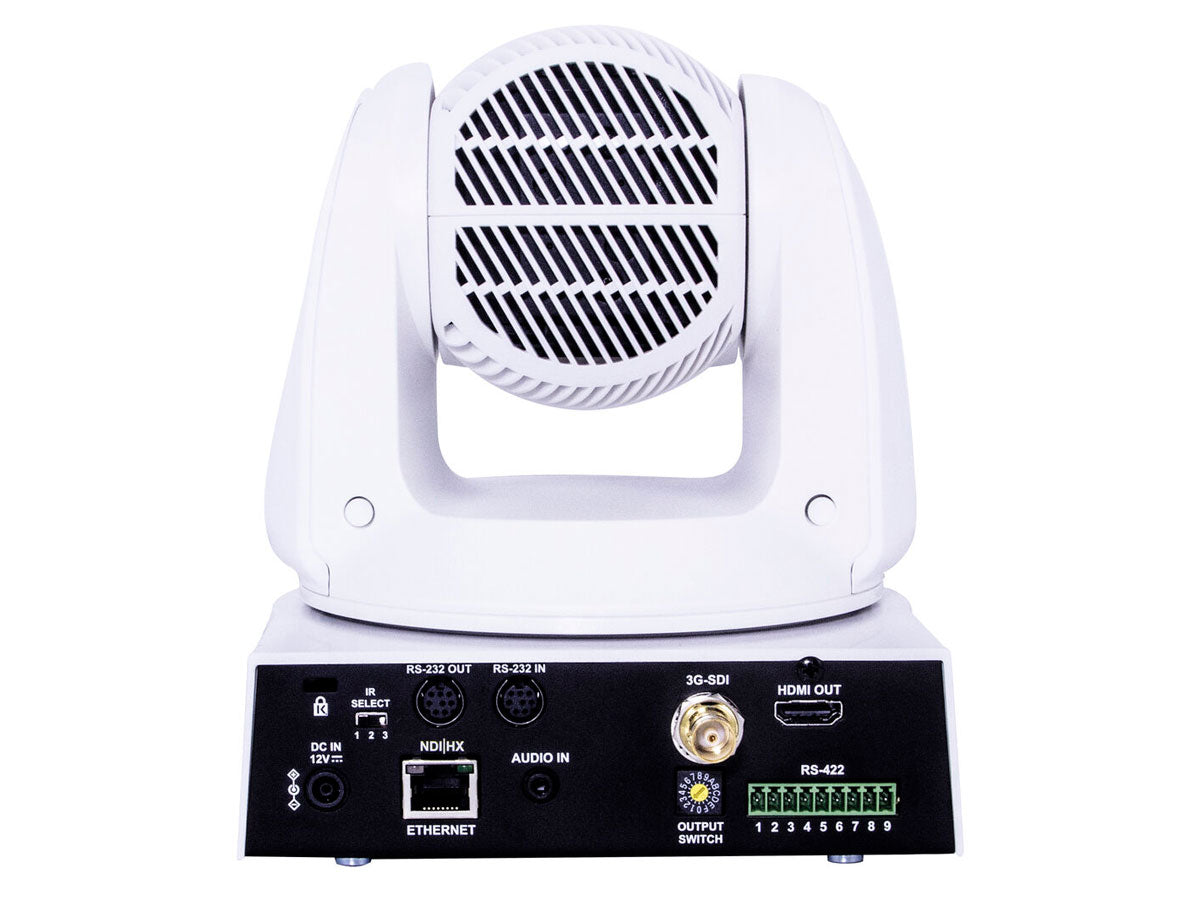

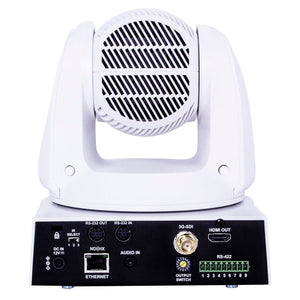

| INPUT & OUTPUT CONNECTORS | |
| Video Output Connectors: | 1x 3G-SDI, 1x HDMI, 1x IP Ethernet or NDI-HX2 (RJ45) |
| Remote Control: | 1x RS-422 Interface, 1x RS-232 Input, 1x RS-232 Output |
| Audio: | 1x 3.5mm Audio Input |
| Power: | 1x 12V DC Input |
| LENS | |
| Focal Length: | 4.6mm to 135mm |
| Optical Zoom Ratio: | 30x |
| CONTROL PROTOCOL | |
| Control Protocol: | RS-232/RS-422 |
- 1x Marshall CV630-NDIW PTZ Camera Body
- 1x IR Remote Control
- 1x Power Supply Unit (PSU)
- 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
