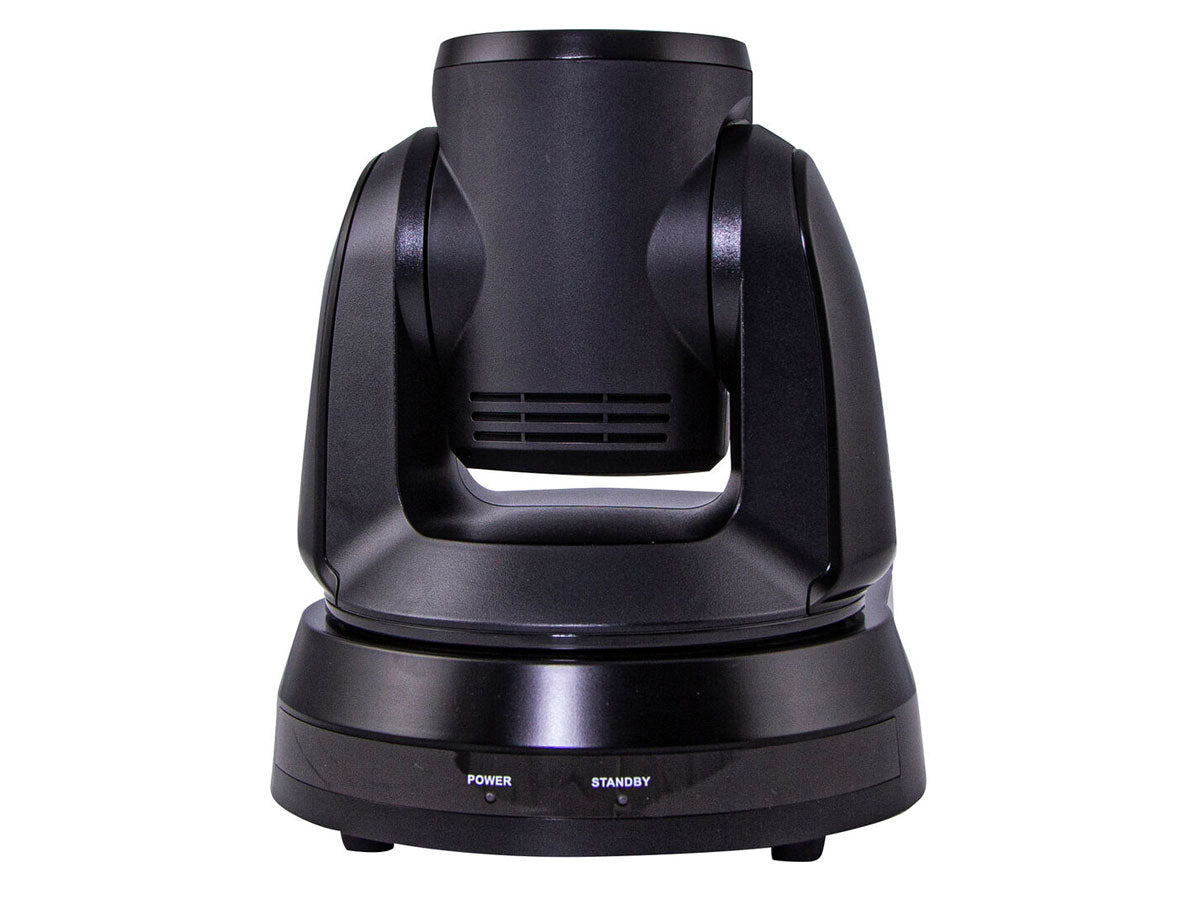

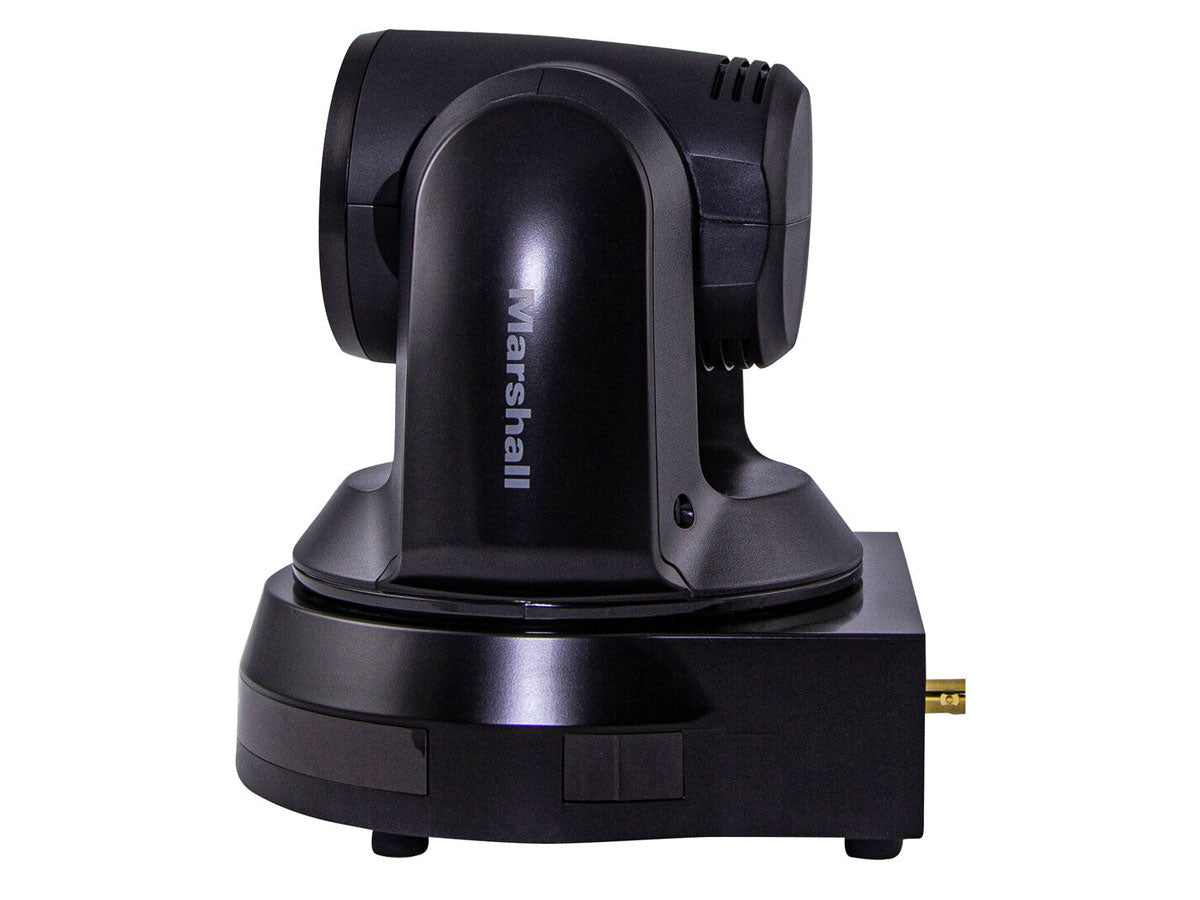

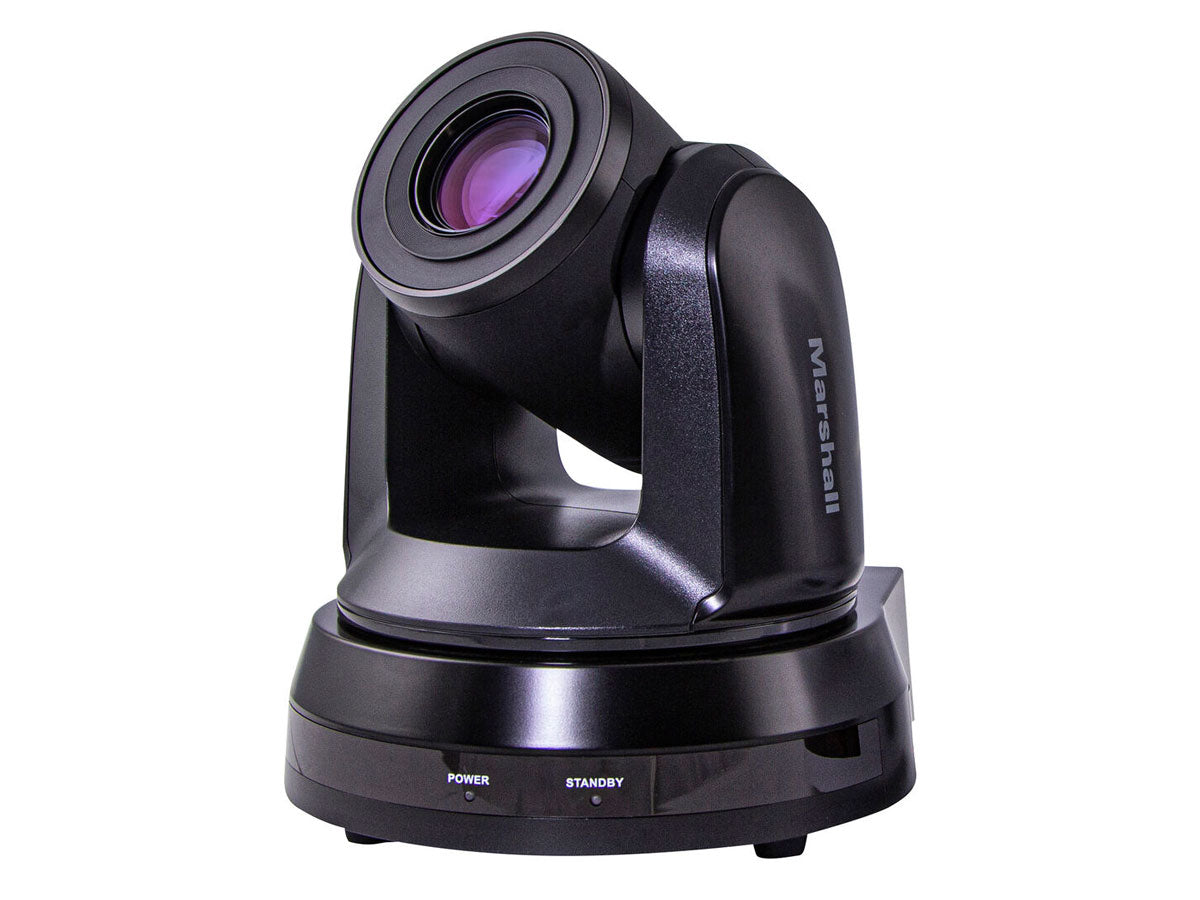

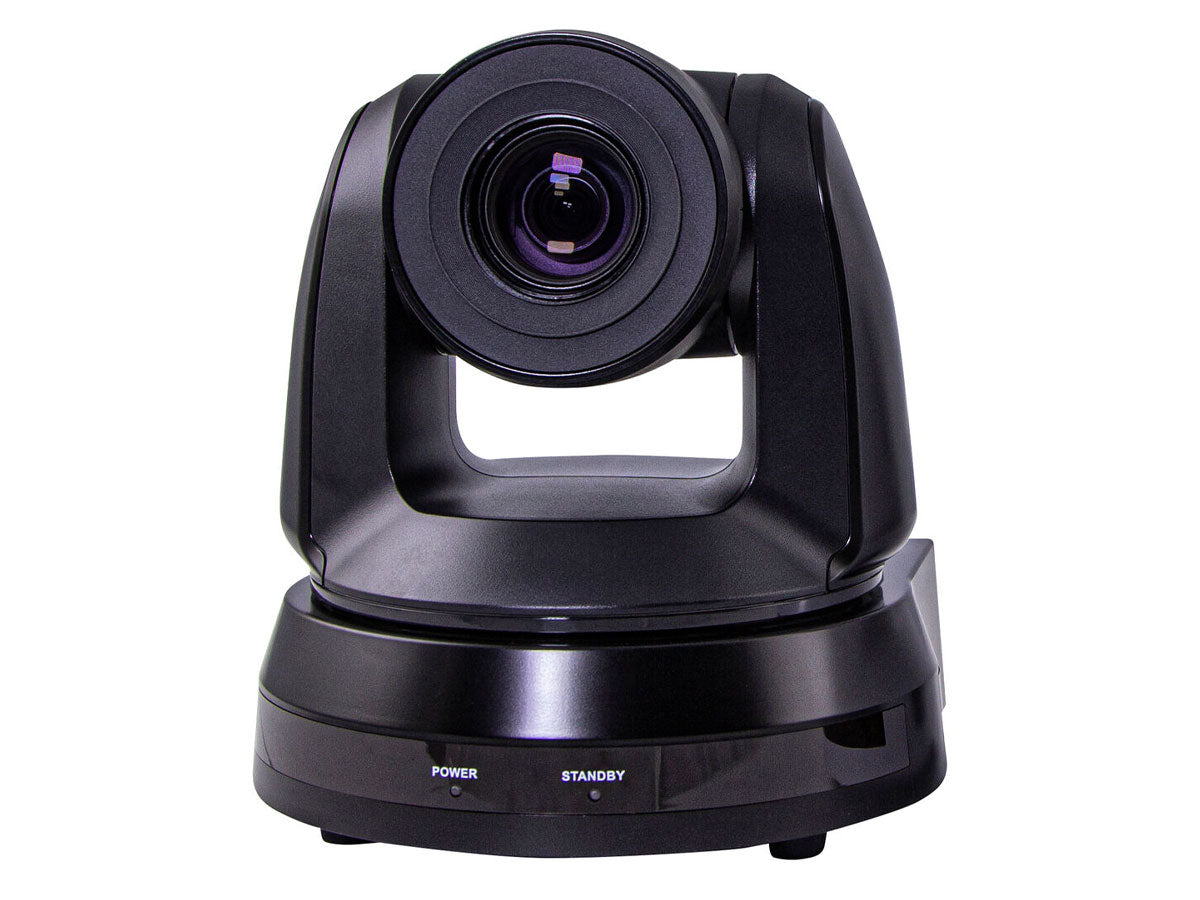

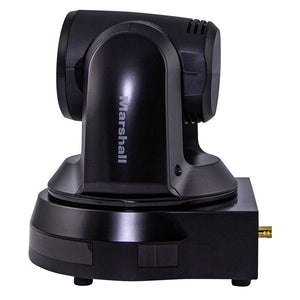

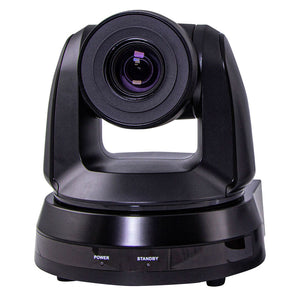

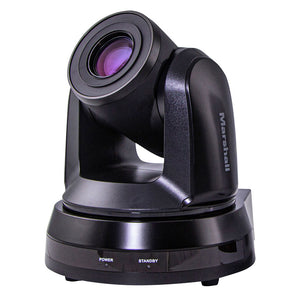

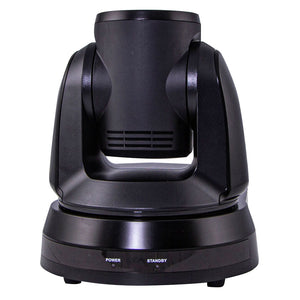

Marshall Electronics CV620 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (Black)
Marshall Electronics CV620 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (Black)
£1,962.00 GBP inc VAT
£1,962.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
CV620-BI/WI is a compact PTZ camera utilising a professional-grade 2 megapixel sensor to capture crisp HD video at up to 60fps. The camera uses a 20x optical zoom lens, starting at a wide-angle 5.33mm (60° angle-of-view) through to 110mm (3° angle-of-view).
With the choice of three video outputs – IP, 3GSDI and HDMI, CV620-BI can be used with a variety of use-cases and workflows.
The camera also features an RJ45 ethernet connector, allowing a single cable to send video and audio, control with Visca over IP, as well as being able to power the camera with PoE. Signals are encoded with either H.264 or H.265 and can be decoded with any existing IP networked solution.
Marshall’s straightforward design and ease-of-use make this camera an affordable camera for a wide variety of broadcast and professional AV applications.
- 1920x1080p up-to 60fps
- IP, 3GSDI, and HDMI simultaneous outputs
- 20x optical zoom (5.3mm to 110mm)
- Remote control using IR remote (included), VS-PTC-IP or VS-PTC-200 and other 3rd party software/hardware control decks.
- 3.5mm audio input for external microphone
| SENSOR | |
| Sensor: | SONY IMX327 |
| RESOLUTION & FRAME RATES | |
| HD 1920x1080p: | 25, 29.97, 30, 50, 59.94 & 60 |
| HD 1920x1080i: | 50, 59.94 & 60 |
| HD 1280x720p: | 50, 59.94 & 60 |
| VIDEO OUTPUT CONNECTORS | |

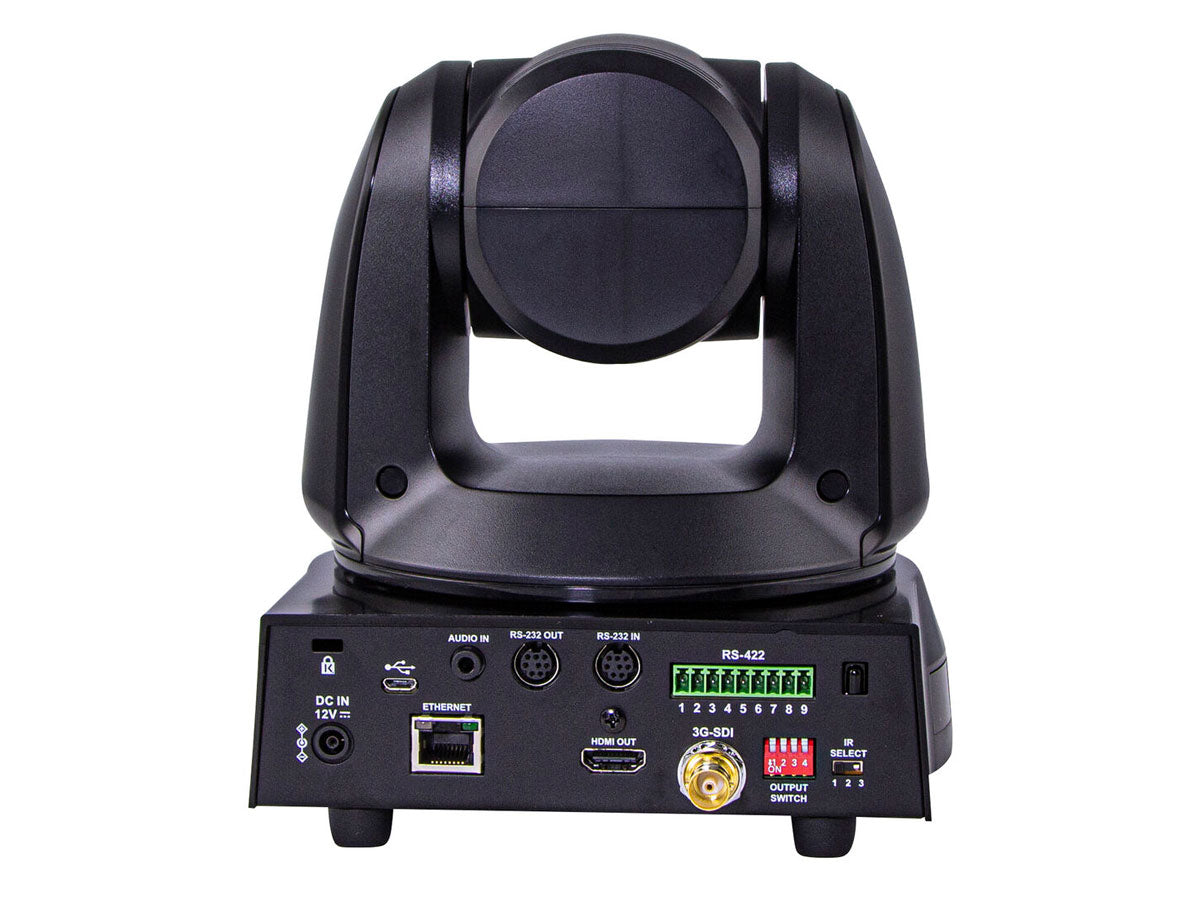

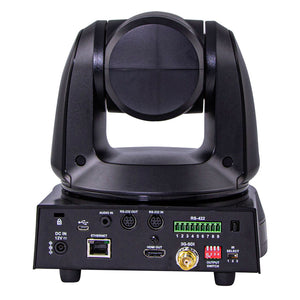

| Video Output Connectors: | 1x IP Ethernet (RJ45), 1x 3GSDI, & 1x HDMI |
| LENS | |
| Focal Length: | 5.3mm to 110mm |
| Optical Zoom Ratio: | 20x |
| AUDIO | |
| Input: | 3.5mm Stereo |
| CONTROL PROTOCOL | |
| Control Protocol: | RS-232/RS-422 & VISCA over IP |
- 1x Marshall CV620-BI PTZ Camera Body
- 1x IR Remote Control
- 1x Power Supply Unit (PSU)
- 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
- 1x RS-422 Connector
- 1x Metal Plate A
- 1x Metal Plate B
- 1x M3 Screws Set
