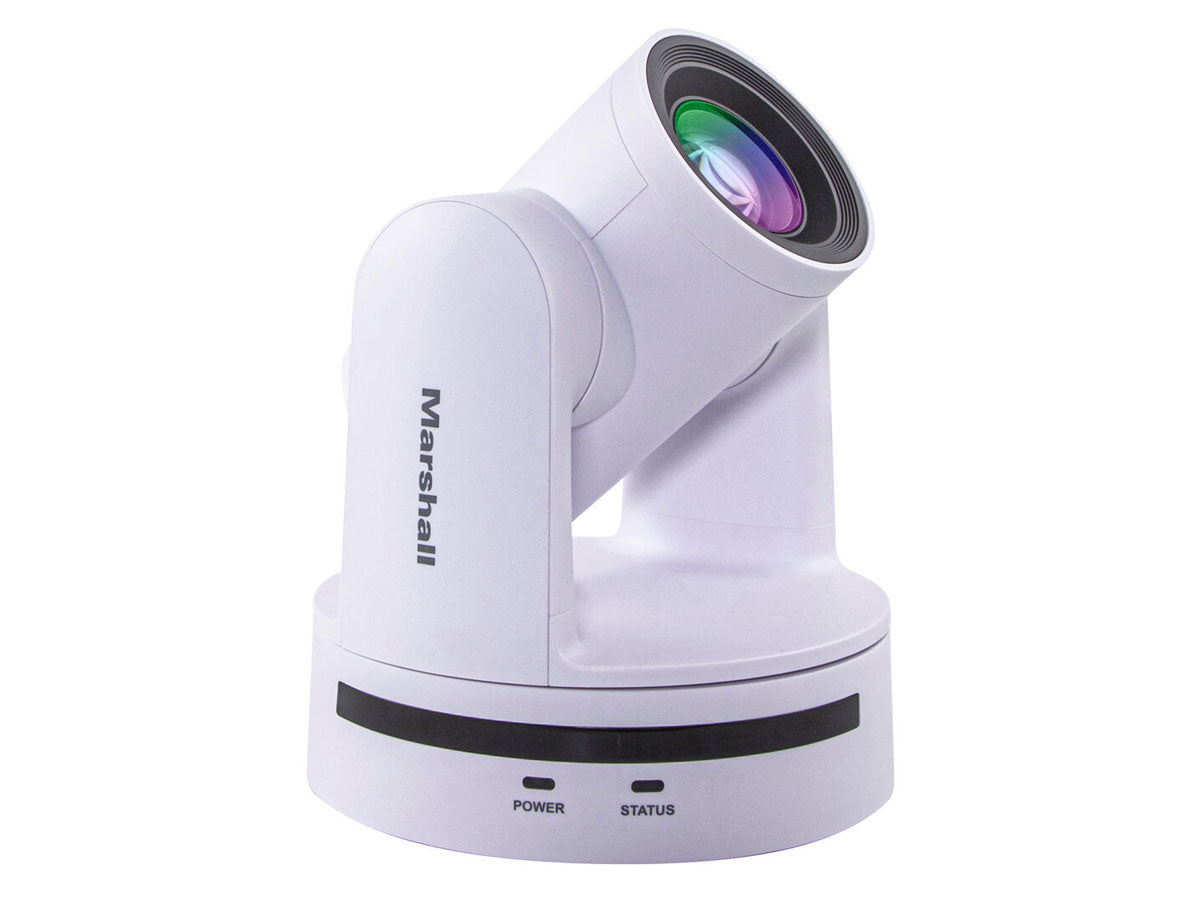

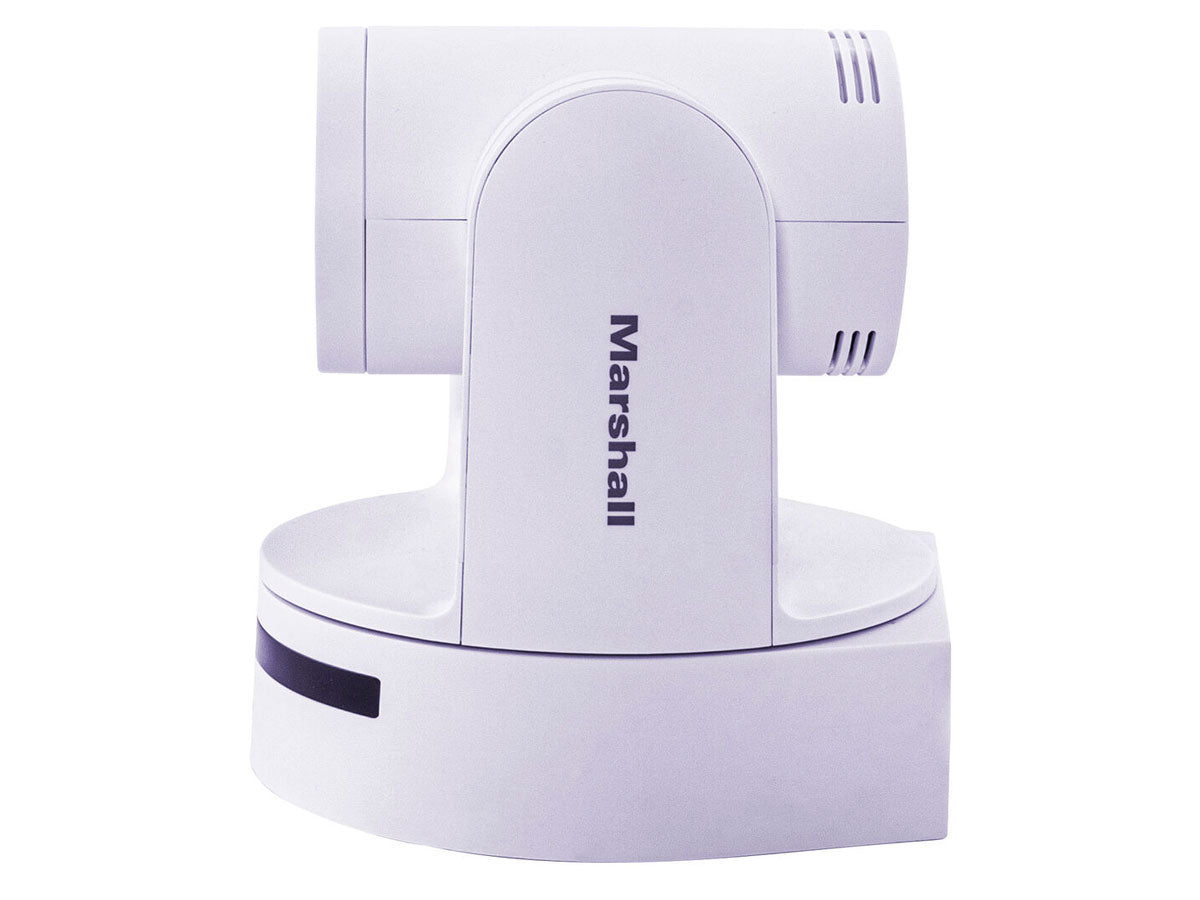

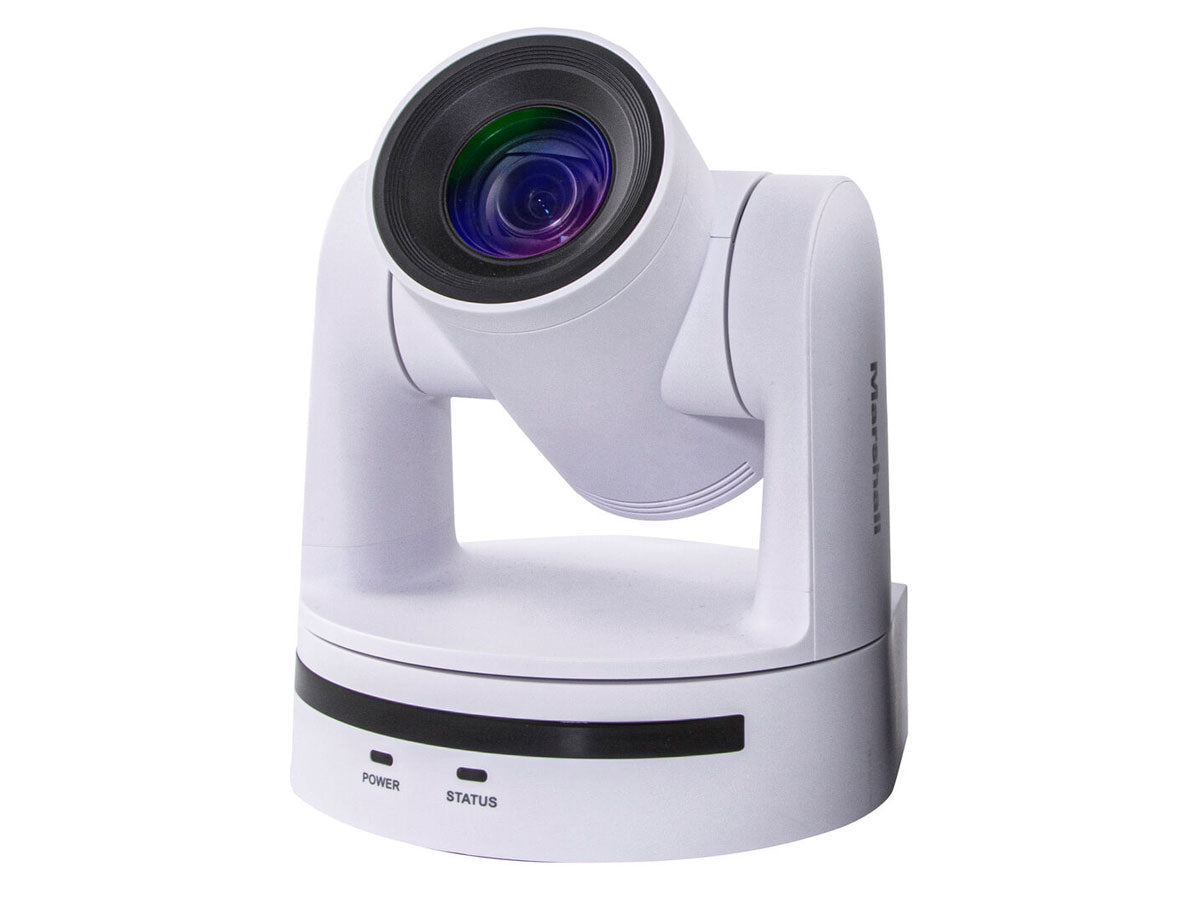

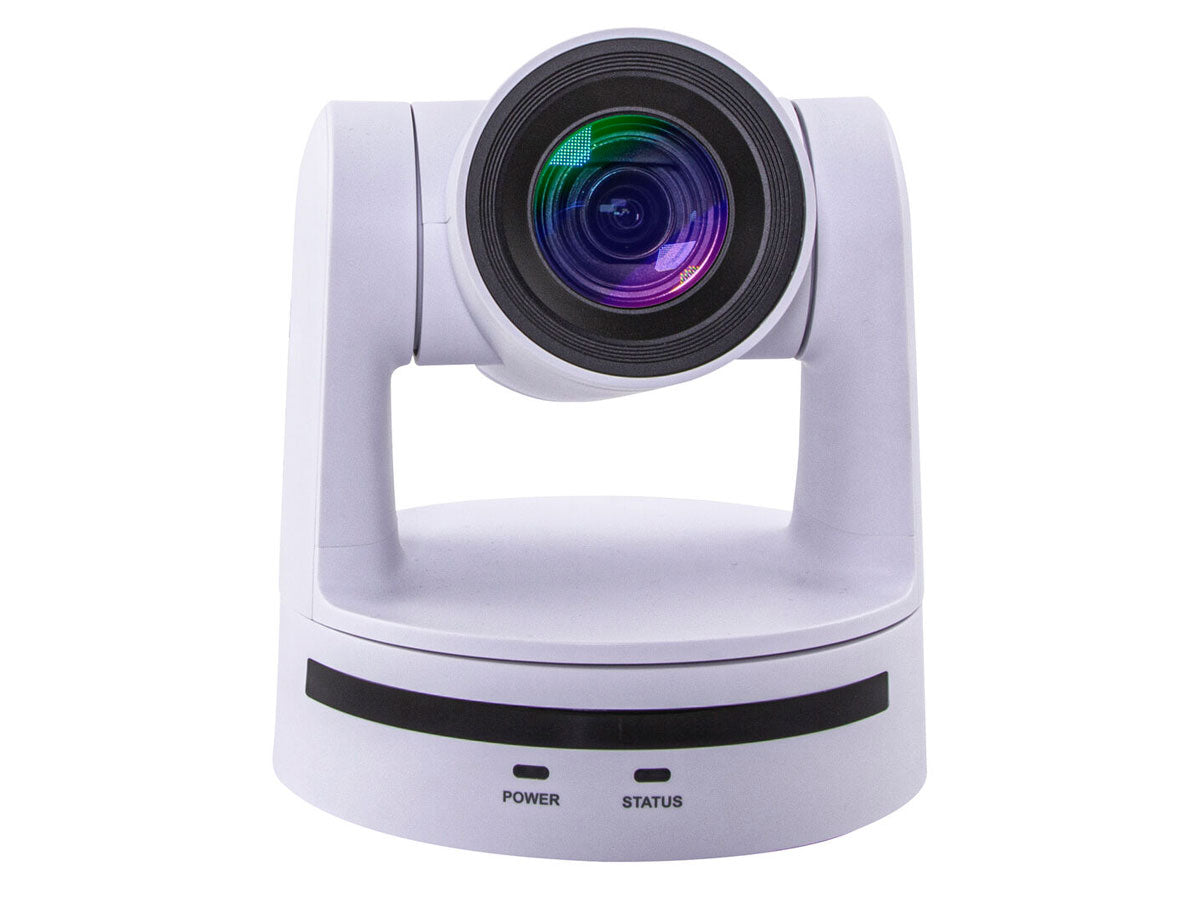

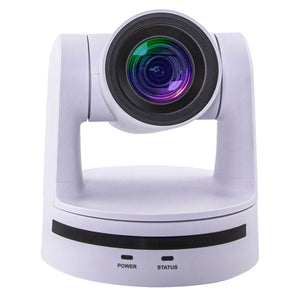

Marshall Electronics CV605 Compact 3G-SDI/IP PTZ Camera with 5x Optical Zoom (White)
Marshall Electronics CV605 Compact 3G-SDI/IP PTZ Camera with 5x Optical Zoom (White)
£918.00 GBP inc VAT
£918.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
CV605 is a compact PTZ camera utilising a professional-grade 2 megapixel sensor to capture crisp HD video at up-to 60p. The camera uses a 5x optical zoom lens, starting at a wide-angle 3mm (85° angle-of-view) through to 15.5mm (16° angle-of-view). The 3G-SDI output enables the camera to work with traditional workflows, with an IP/Ethernet output – encoded with H.264/H.265 – for use with networked setups. Marshall’s straightforward design and ease-of-use make this camera an affordable camera for a wide variety of broadcast and professional AV applications.
Ultra-Wide Lens with 5x Optical Zoom
The wide-angle optical zoom lens offers an impressive 85°(3mm) through 16°(15.5mm) angle-of-view with smooth transition and an additional 10x digital zoom range.
3G-SDI & IP/Ethernet Workflows
With both 3G-SDI & IP/Ethernet outputs, CV605 is compatible for use with both traditional SDI workflows and newer networked solutions. With the IP/Ethernet connector the camera can be powered with PoE, controlled using Visca over IP, as well as transmitting the camera’s audio and video signal – all over a single CAT5/6 cable.
Exceptional Low-Light Sensitivity
CV605 operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions.
- 1920x1080p up-to 60p
- 3G-SDI output for traditional workflows
- H.264 & H.265 over IP
- 5x optical zoom (3mm-15.5mm / 85° to 16°)
- Remote control using RS-232/RS-422 protocols, Ethernet (VISCA over IP) or with included IR remote
- 3.5mm audio input for external microphone
| SENSOR | |
| Sensor Type: | 1/2.8″ 2 Megapixel |
| RESOLUTION & FRAME RATES | |
| HD 1920x1080p: | 25, 29.97, 30, 50, 59.94 & 60 |
| HD 1920x1080i: | 50, 59.94 & 60 |
| HD 1280x720p: | 25, 29.97, 30, 50, 59.94 & 60 |
| VIDEO OUTPUT CONNECTORS | |
| Video Output Connectors: | 1x 3G-SDI & 1x IP Ethernet (RJ45) |
| LENS | |
| Focal Length: | 3mm to 15.5mm |
| Optical Zoom Ratio: | 5x |
| AUDIO | |
| Input: | 3.5mm Stereo |
| CONTROL PROTOCOL | |
| Control Protocol: | RS-232/RS-422 & VISCA over IP |
- 1x Marshall CV605 PTZ Camera Body
- 1x IR Remote Control
- 1x Power Supply Unit (PSU)
- 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
