- 1x Marshall CV570 Camera Body
- 1x Camera Breakout Cable
- 1x 4.0mm M12 Lens
- 1x Power Supply Unit (PSU)

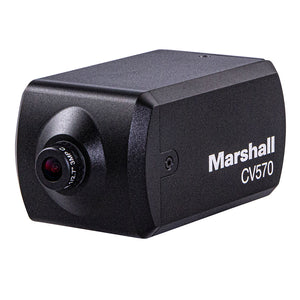

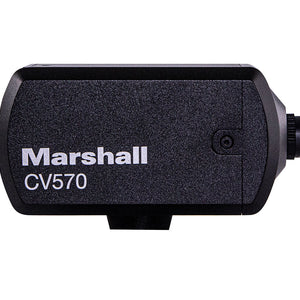

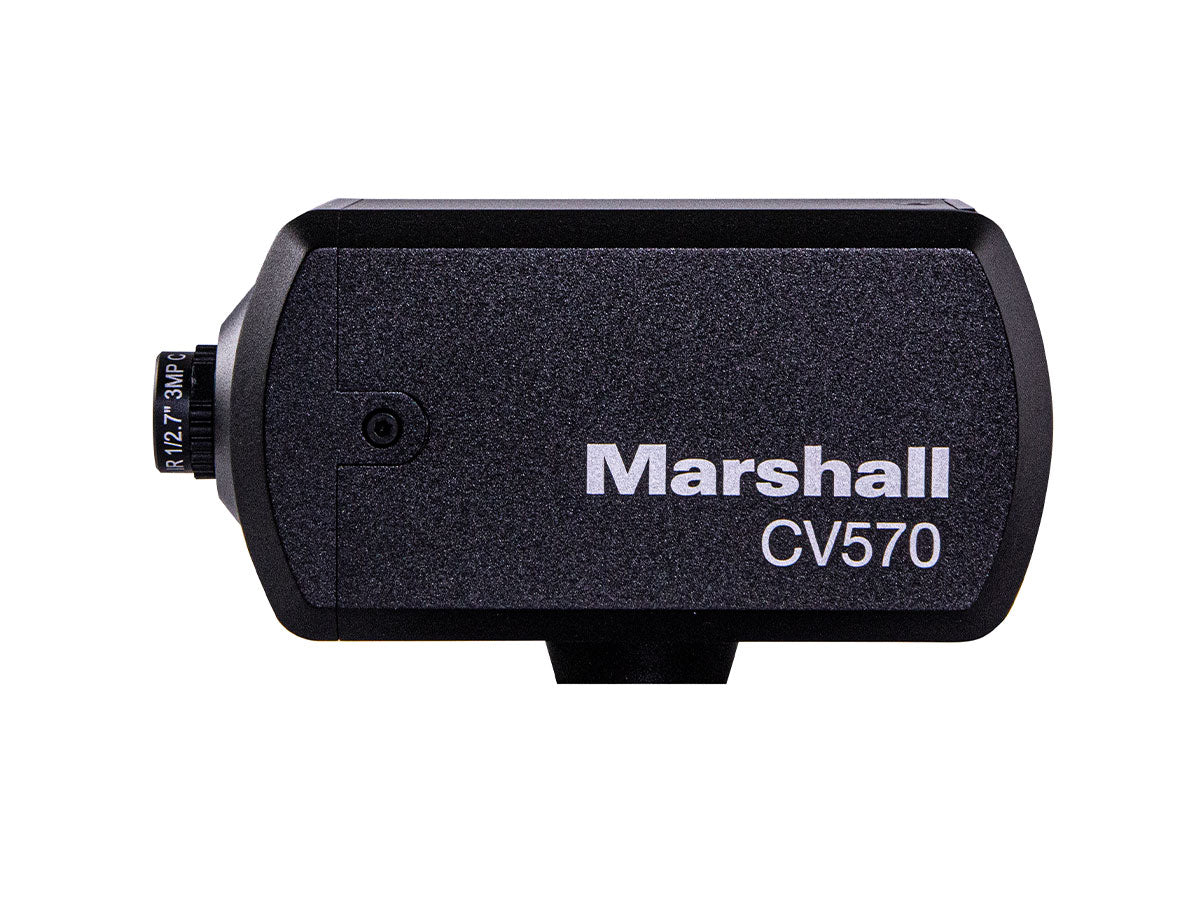

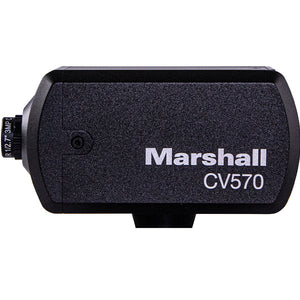

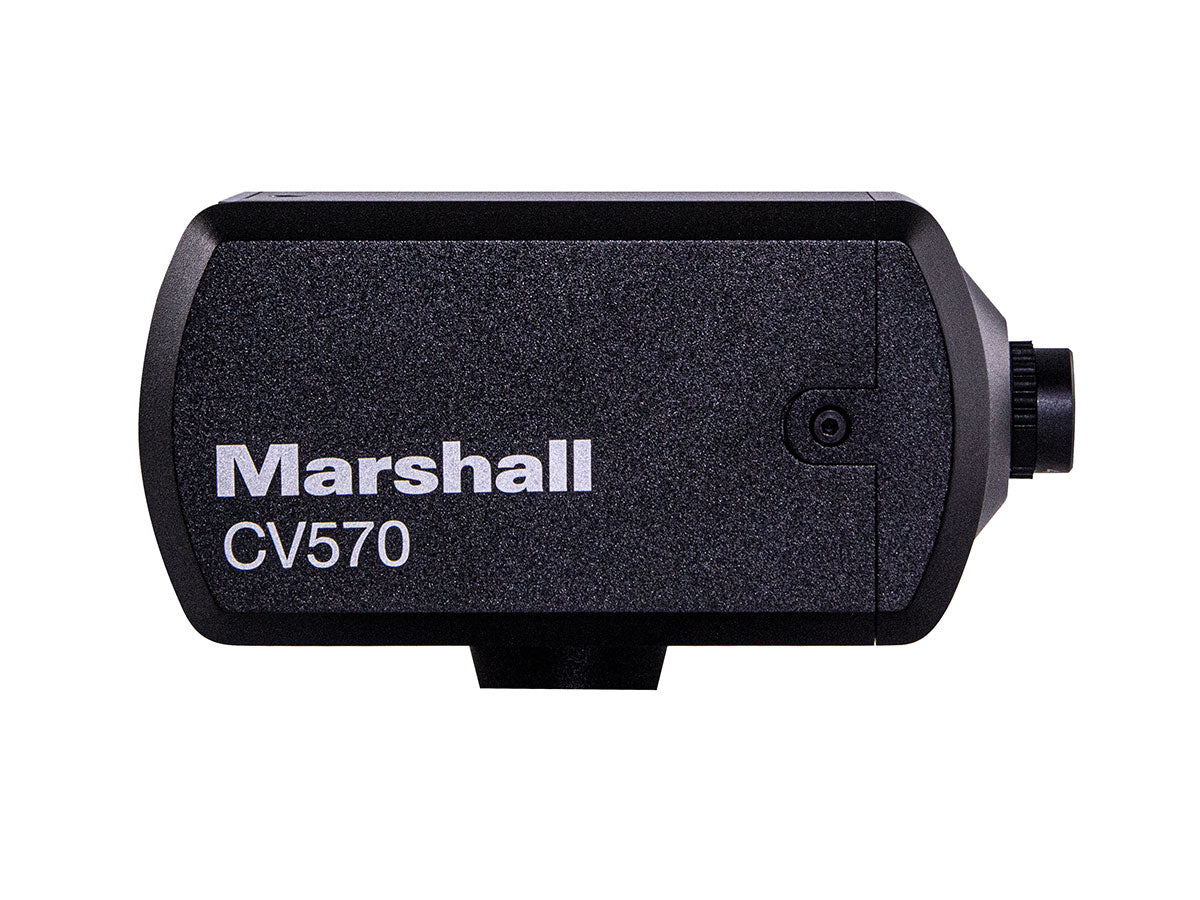

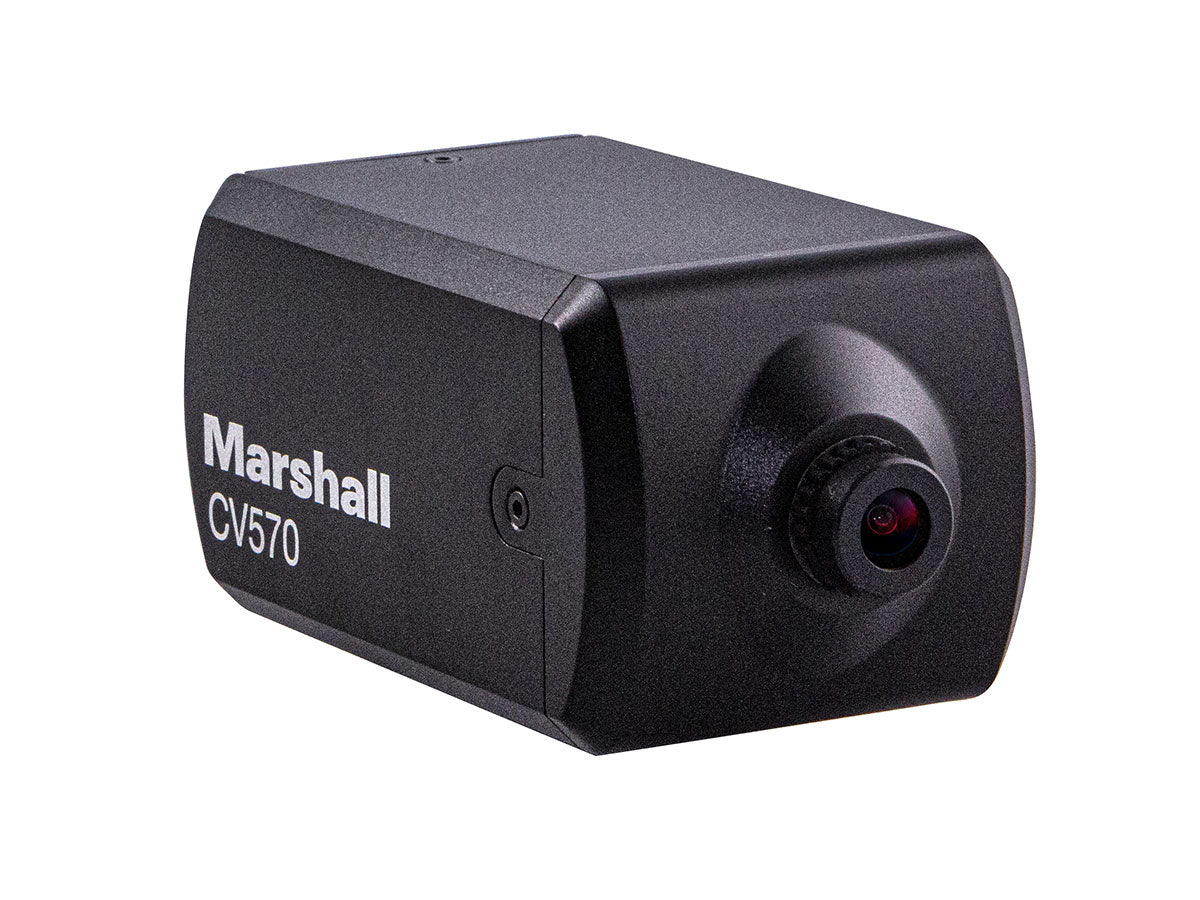

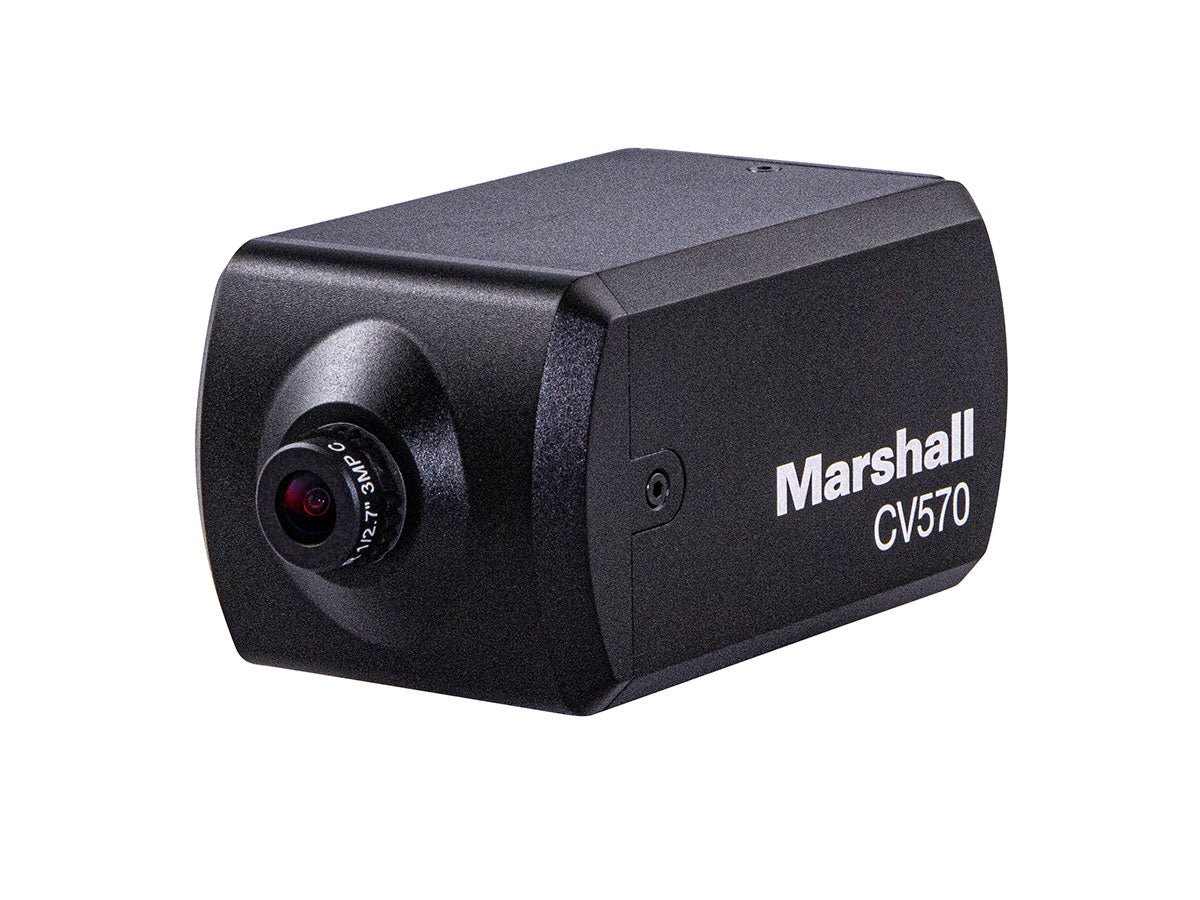

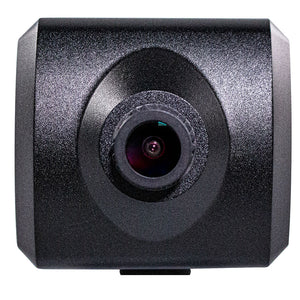

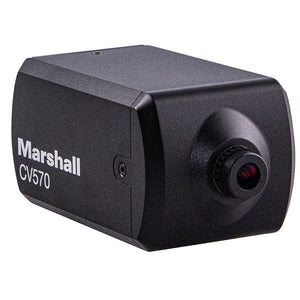

Marshall Electronics CV570 Miniature POV Camera - NDI|HX3 and HDMI
Marshall Electronics CV570 Miniature POV Camera - NDI|HX3 and HDMI
SKU:
ME-CV570
Regular price
£720.00 GBP ex VAT
£864.00 GBP inc VAT
£864.00 GBP inc VAT
Regular price
ex VAT
Sale price
£720.00 GBP ex VAT
£864.00 GBP inc VAT
Unit price
per
£864.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
CV570 networkable POV camera is a new addition to Marshall’s miniature camera lineup. Featuring NDI|HX3, the new Sony 1/2.8″ sensor and full HD output, the CV570 is performant and flexible, fitting into a variety of workflows.
With the NDI|HX3 codec, the CV570 can deliver low latency, high quality video with no visible compression artifacts. Simultaneous output with HDMI and other IP output options including SRT, RTSP, MPEG-TS and HEVC.
The included breakout cable enables audio input, power and control via RS-485 and the included control joystick. Alternatively, the CV570 supports PoE allowing for power, control and video over just 1 ethernet cable.

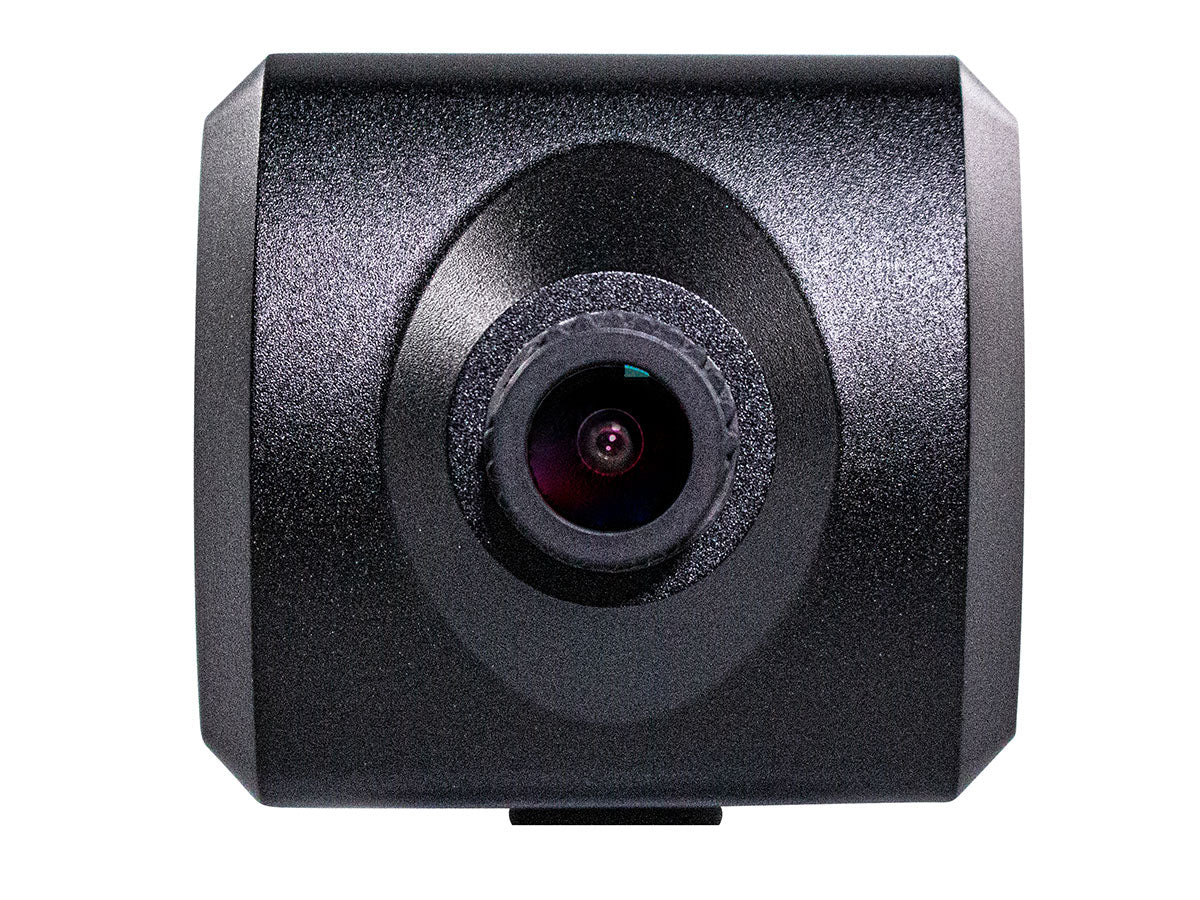

A wide selection of M12 lenses complement the included 4.0mm M12 lens, allowing users to select the perfect lens for any scenario.
CV570 is a durable and professional Mini camera with a variety of use-cases including sports broadcast, reality television & live stream events.
- 1/2.8″ Sony sensor with larger pixel size and square pixel array
- M12 interchangeable lens mount
- 4.0mm M12 lens included

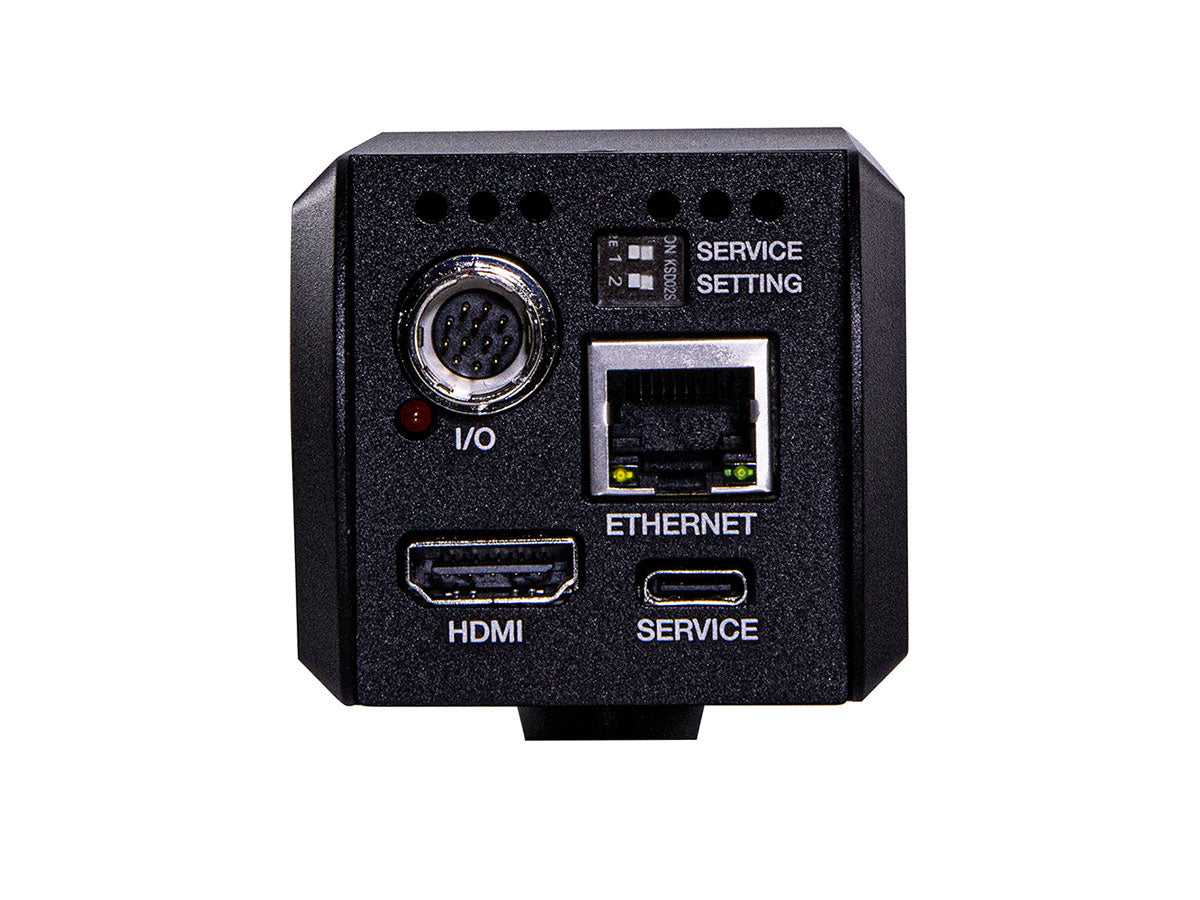

- HDMI & Ethernet video connectors
- IP (H.265), NDI|HX2 and NDI|HX3 output
- 1920×1080 up-to 60P
- I/O breakout cable with control joystick
- PoE support for 1-cable solution
| SENSOR | |
| Sensor Type: | 1/2.8″ 2.2 Megapixel |
| Pixel Size: | 2.9μm x 2.9μm |
| RESOLUTION & FRAME RATES | |
| HD 1920 x 1080p: | 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 |
| HD 1920 x 1080i: | 50, 59.94 & 60 |
| HD 1280 x 720p: | 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 |

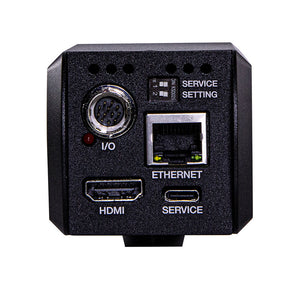

| INPUT & OUTPUT CONNECTORS | |
| Video Output: | HDMI & RJ45 (IP Ethernet, NDI|HX2 & NDI|HX3) |
| I/O Breakout Cable: | 1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input |
| Firmware & Service: | 1x USB-C |
| LENS | |
| Mount Type: | M12 |
| Focal Length: | 4.0mm |
| Max. Aperture: | f/2.0 |
| Focus: | Manual |
| IMAGE CONTROL SETTINGS | |
| White Balance: | Auto / Auto Ext / Preset / Manual (Red-Gain, Blue Gain) |
| CONTROL PROTOCOL | |
| Control Protocol: | RS-485 |
| GENERAL | |
| Power Input: | 12V DC |
