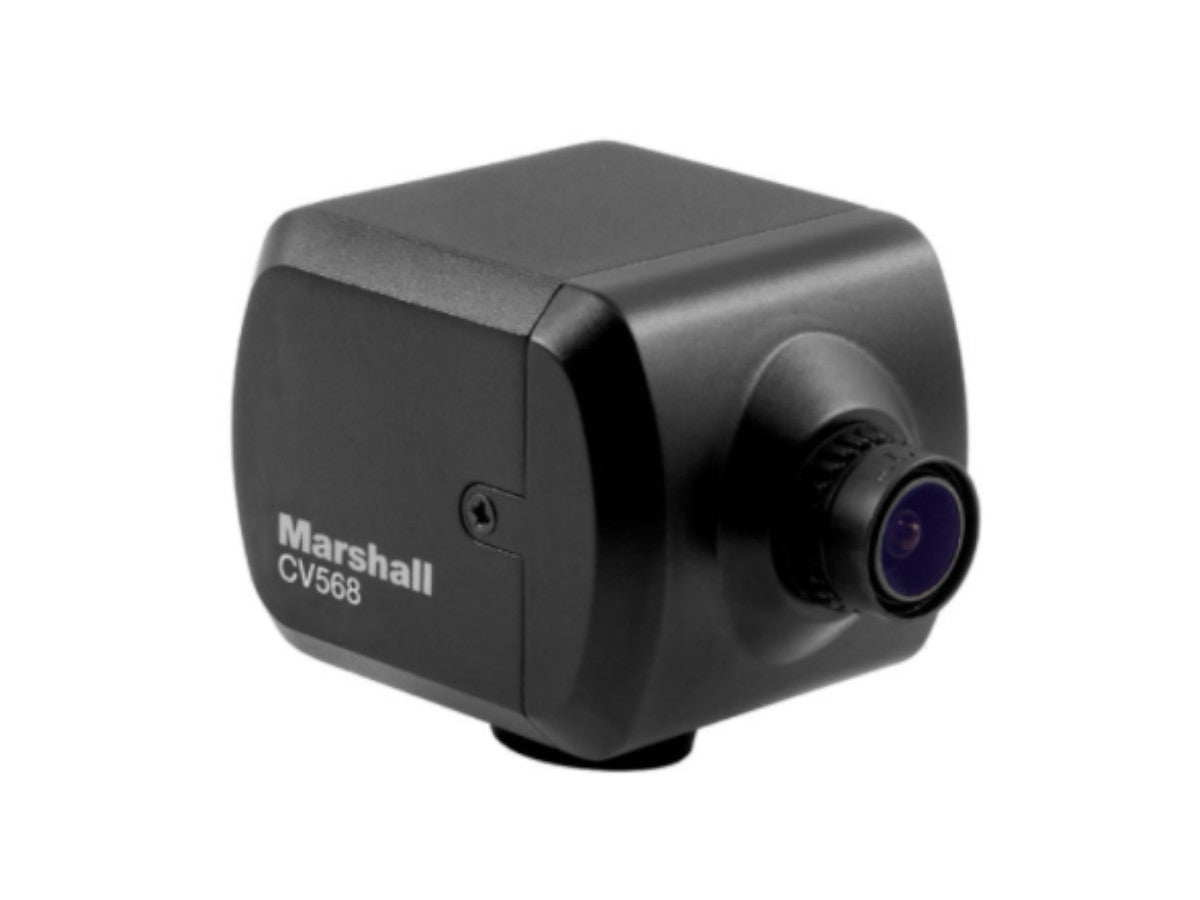

Marshall Electronics CV568 Miniature 1080P 3G/HD-SDI/HDMI Camera With Global Shutter & Genlock
Marshall Electronics CV568 Miniature 1080P 3G/HD-SDI/HDMI Camera With Global Shutter & Genlock
£930.00 GBP inc VAT
£930.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
CV568 is Marshall’s premier Mini camera, featuring a Sony global shutter sensor and Genlock tri-level sync. These features allow CV568 to integrate directly with broadcast workflows and provide the highest-quality images from any Marshall Mini camera.
The 1/1.8″ global shutter sensor from Sony delivers perfect, anomaly-free images – with the camera capturing every single frame across the entire sensor simultaneously. In addition, CV568’s sensor features 25% larger pixels – to deliver cleaner images, especially in low-light.
Genlock tri-level sync enables CV568 to integrate with broadcast environments, allowing multiple cameras of any brand to synchronise together seamlessly.
Dual 3G-SDI & HDMI outputs deliver 1920x1080p, 1920x1080i & 1280x720p images at up-to 60 frames per second. Further camera inputs & outputs are available through the included breakout cable, including external 3.5mm microphone input.
A wide selection of M12 lenses complement the included 4.4mm M12 lens, allowing users to select the perfect lens for any scenario.
CV568 is a durable and professional Mini camera with use-cases including sports broadcast, reality television & live stream events.
- Global shutter 1/1.8″ Sony sensor with 25% larger pixels
- Genlock tri-level sync for broadcast integration
- M12 interchangeable lens mount
- 4.4mm M12 lens included

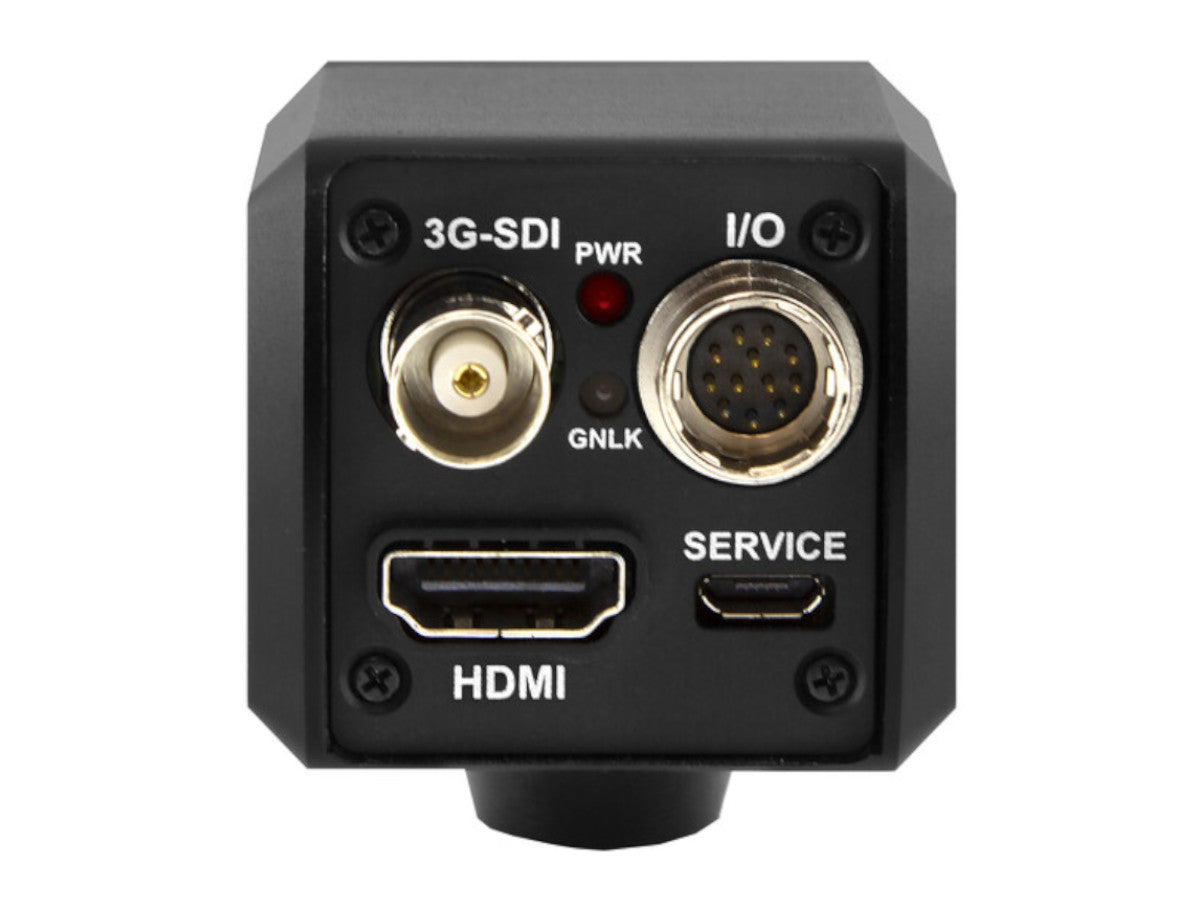

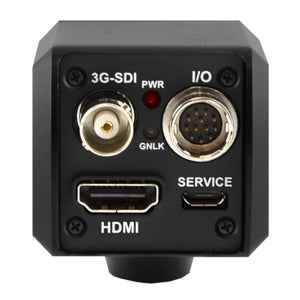

- 3G-SDI & HDMI video output connectors
- 1920×1080 up-to 60P
- I/O breakout cable with control joystick
- 3.5mm audio input
| SENSOR | |
| Sensor Type: | 1/1.8″ 3.2 Megapixel |
| RESOLUTION & FRAME RATES | |
| HD 1920x1080p: | 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 |
| HD 1920x1080i: | 50, 59.94 & 60 |
| HD 1280x720p: | 50, 59.94 & 60 |
| INPUT & OUTPUT CONNECTORS | |
| Video Output: | 1x 3G-SDI & 1x HDMI |
| I/O Breakout Cable: | 1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input & 1x Tri-Level Genlock |
| Firmware & Service: | 1x Micro-USB |
| LENS | |
| Mount Type: | M12 |
| Focal Length: | 4.4mm |
| Focus: | Manual |
| IMAGE CONTROL SETTINGS | |
| White Balance: | Auto / Auto Ext / Preset / Manual (Red-Gain, Blue Gain) |
| CONTROL PROTOCOL | |
| Control Protocol: | RS-485 |
| GENERAL | |
| Power Input: | 12V DC |
- 1x Marshall CV568 Camera Body
- 1x Camera Breakout Cable
- 1x 4.4mm M12 Lens
- 1x Power Supply Unit (PSU)
