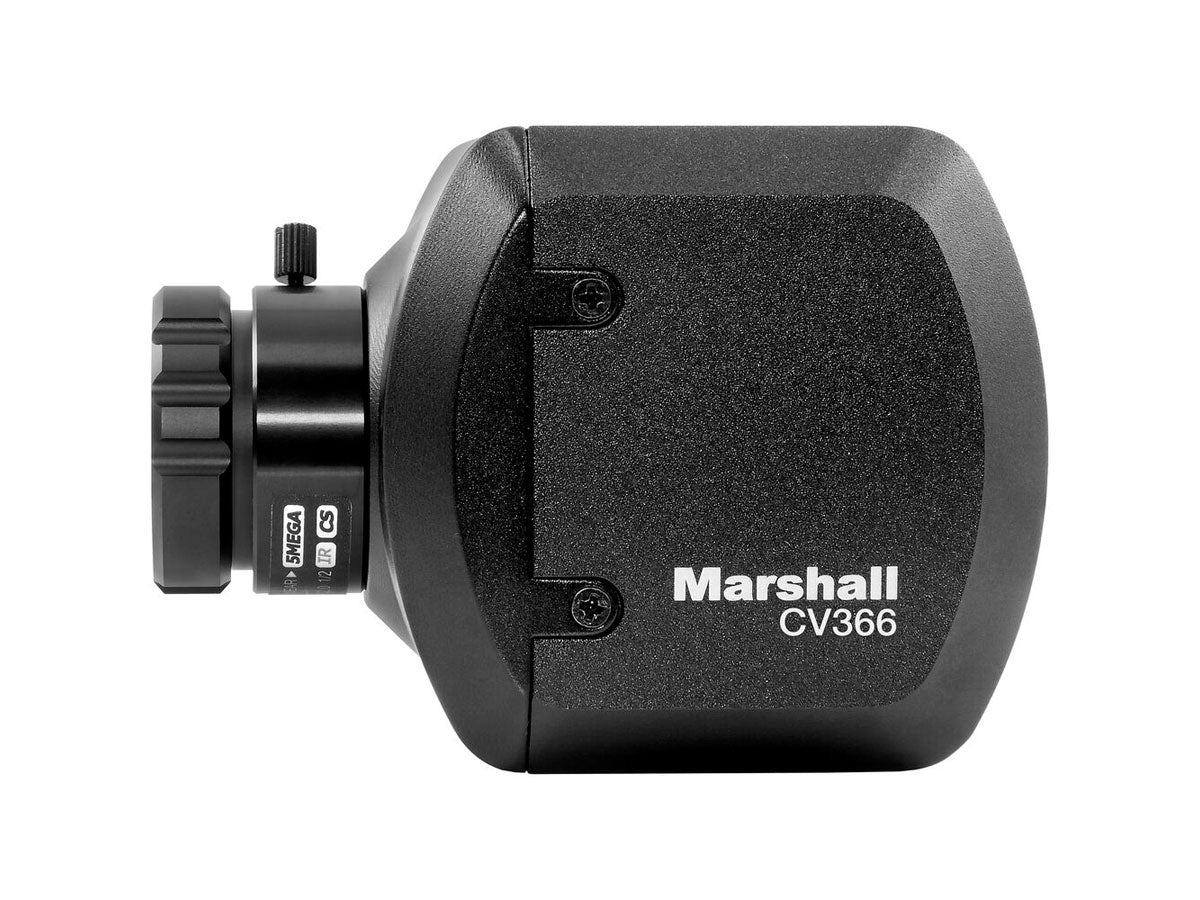

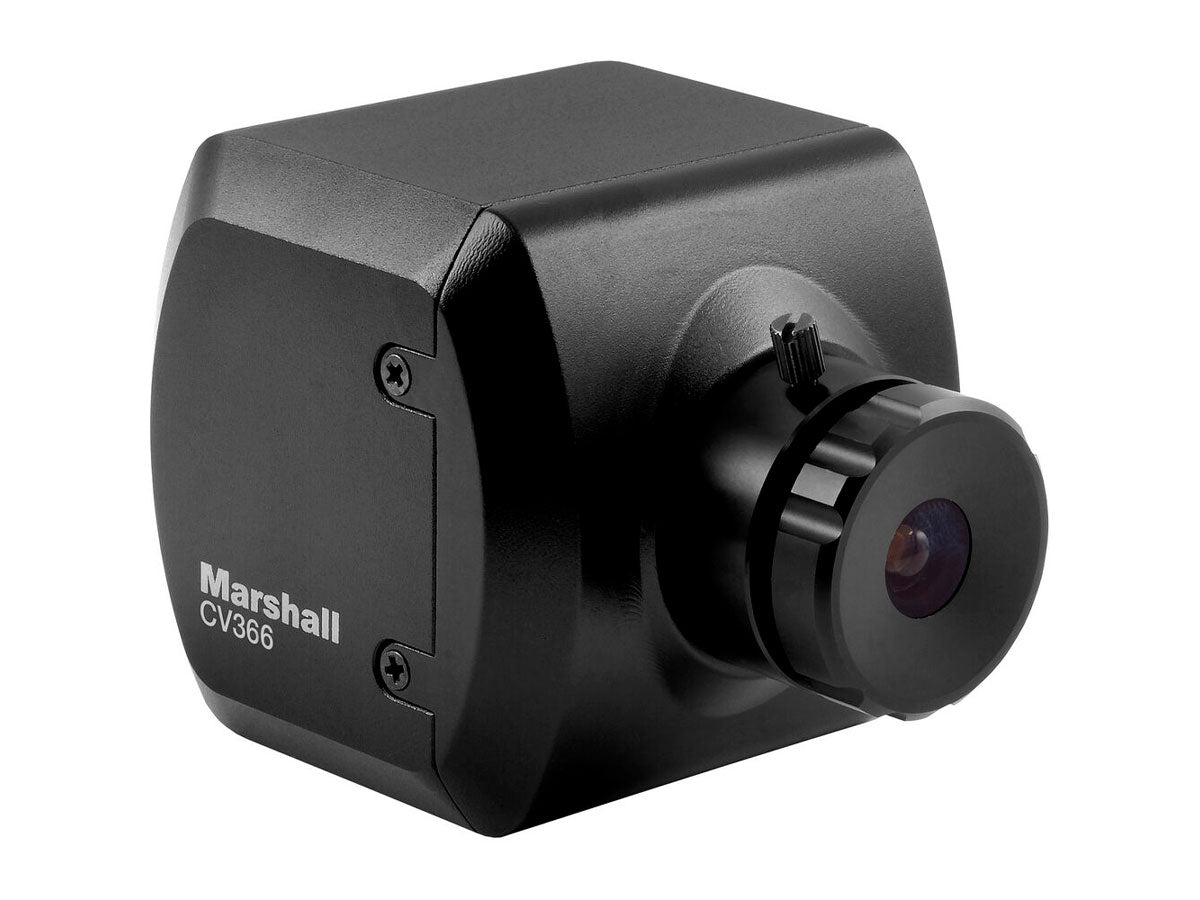

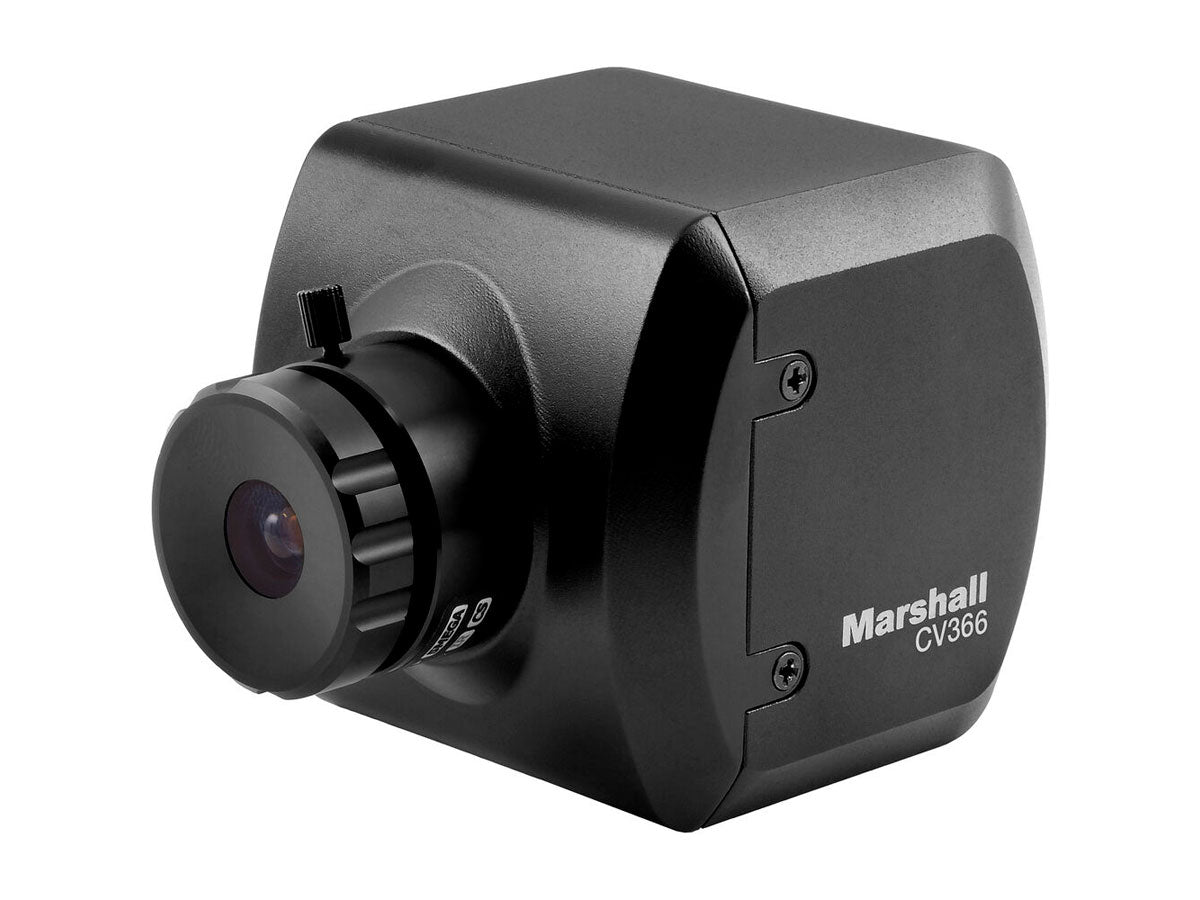

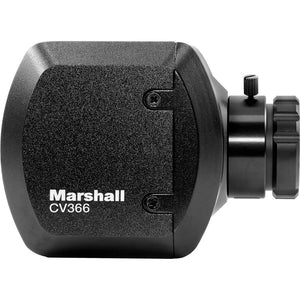

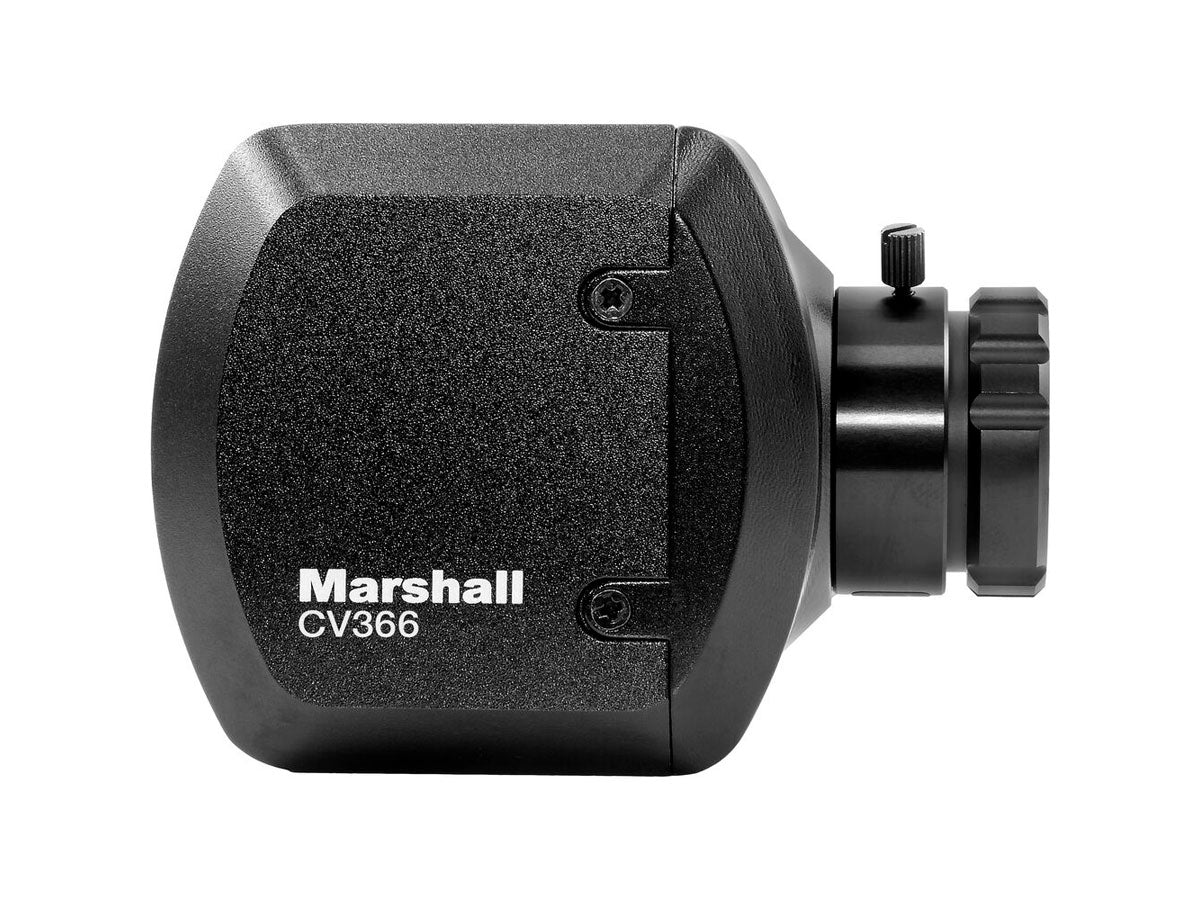

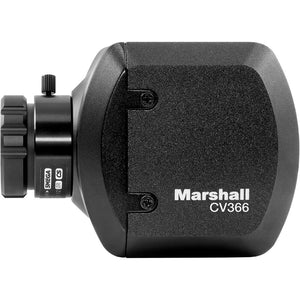

Marshall Electronics CV366 Compact Genlock Camera (3G-SDI, HDMI)
Marshall Electronics CV366 Compact Genlock Camera (3G-SDI, HDMI)
£778.80 GBP inc VAT
£778.80 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Featuring tri-level Genlock sync, Marshall’s CV366 seamlessly integrates into professional broadcasting workflows.
With a 1/2.8″ Sony sensor, CV366 captures sharp & vibrant images, even in low-light conditions.
Genlock tri-level sync enables CV366 to integrate with broadcast environments, allowing multiple cameras of any brand to synchronise together seamlessly.
Dual 3G-SDI & HDMI outputs deliver 1920x1080p, 1920x1080i & 1280x720p images at up-to 60 frames per second. Further camera inputs & outputs are available through the included breakout cable, including external 3.5mm microphone input.
A wide selection of CS Mount lenses are available, allowing users to select the perfect lens for any scenario.
CV366 is a durable and professional Compact camera with use-cases including sports broadcast, reality television & live stream events.
- Genlock tri-level sync for broadcast integration
- CS Mount for interchangeable lenses
- Auto-iris function with compatible lenses
- 3G-SDI & HDMI video output connectors
- 1920×1080 up-to 60P
- I/O breakout cable with control joystick
- 3.5mm audio input
| SENSOR | |
| Sensor Type: | 1/2.8″ 2.2 Megapixel |
| RESOLUTION & FRAME RATES | |
| HD 1920x1080p: | 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 |
| HD 1920x1080i: | 50, 59.94 & 60 |
| HD 1280x720p: | 50, 59.94 & 60 |

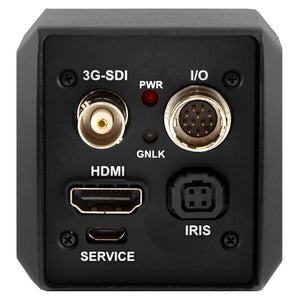

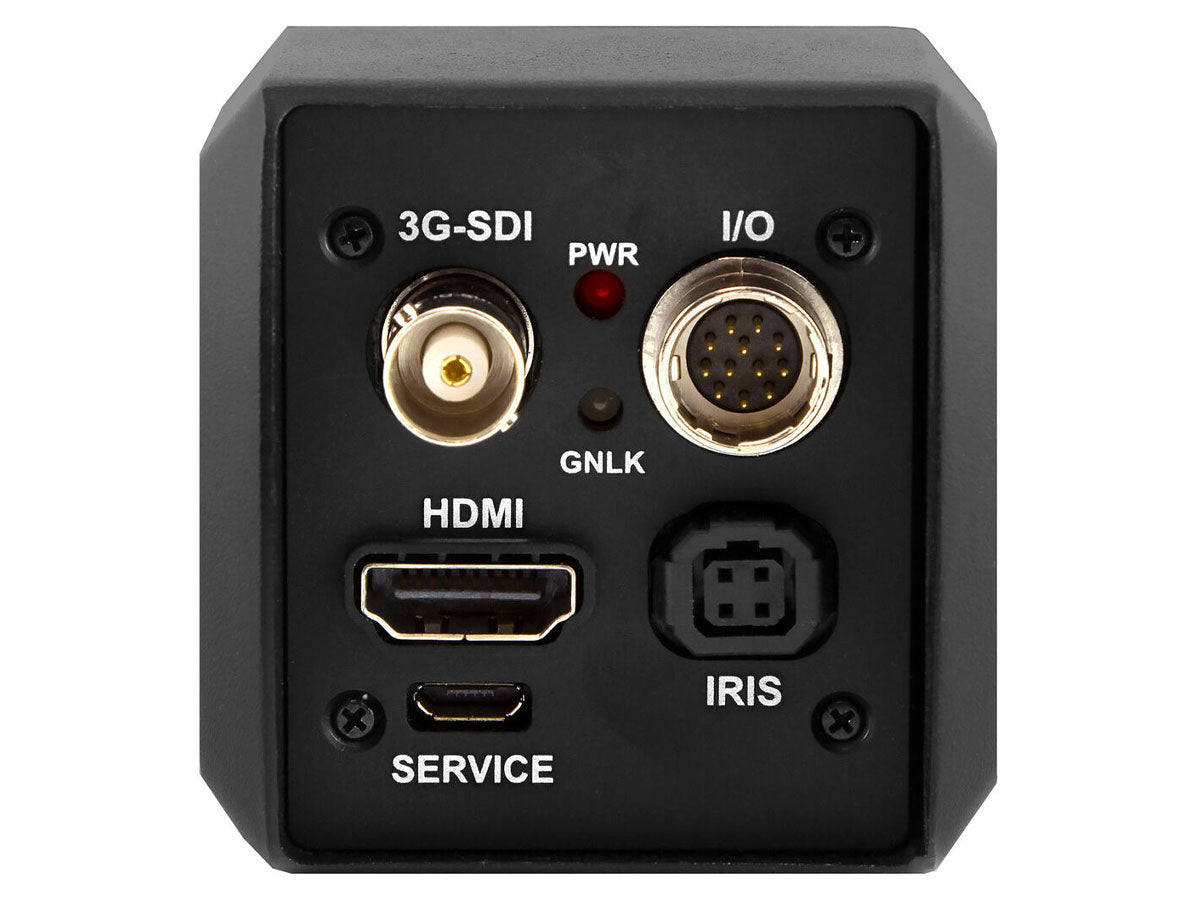

| INPUT & OUTPUT CONNECTORS | |
| Video Output: | 1x 3G-SDI & 1x HDMI |
| I/O Breakout Cable: | 1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input & 1x Tri-Level Genlock |
| Firmware & Service: | 1x Micro-USB |
| LENS | |
| Mount Type: | CS Mount |
| Focus: | Manual |
| IMAGE CONTROL SETTINGS | |
| White Balance: | Auto / Auto Ext / Preset / Manual (Red-Gain, Blue Gain) |
| CONTROL PROTOCOL | |
| Control Protocol: | RS-485 |
| GENERAL | |
| Power Input: | 12V DC |
- 1x Marshall CV366 Camera Body
- 1x Camera Breakout Cable
- 1x Power Supply Unit (PSU)
