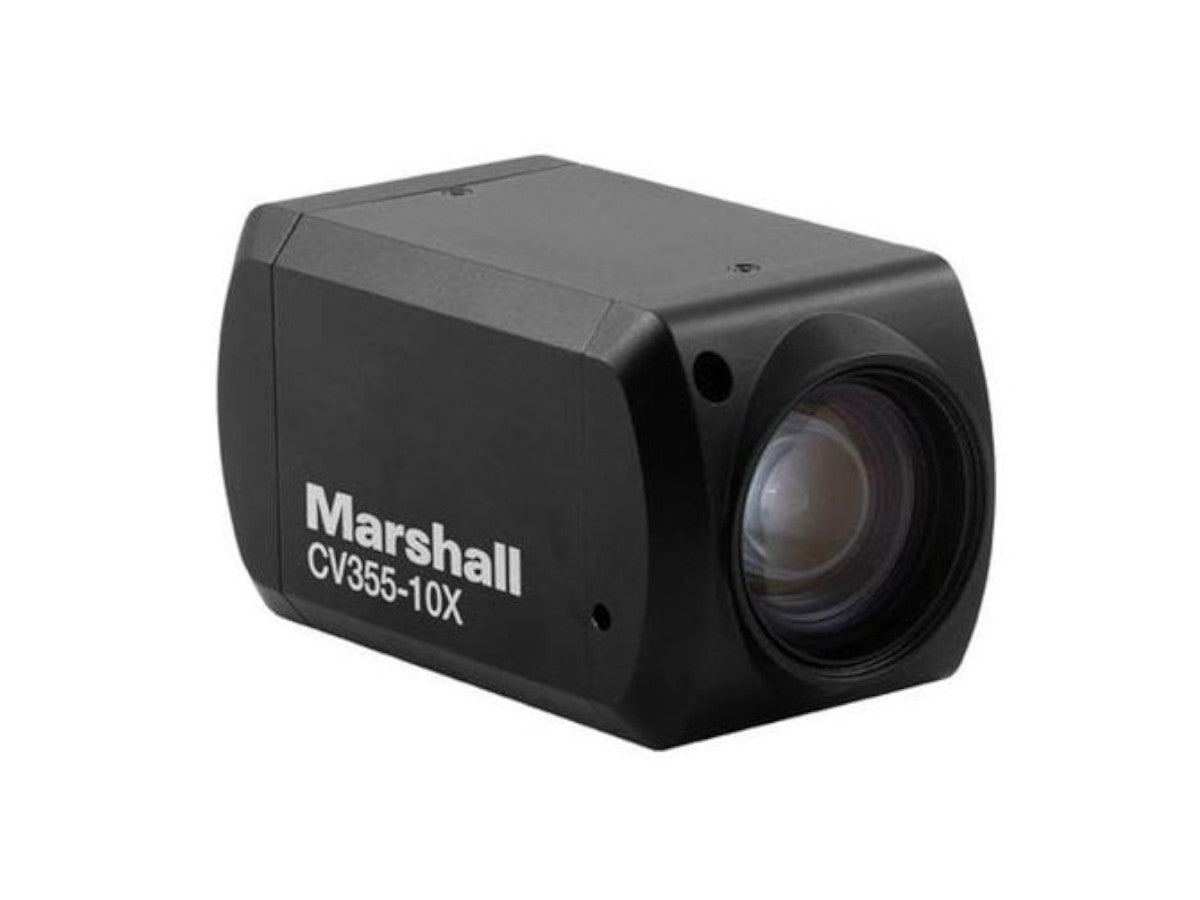

Marshall Electronics CV355-10X Compact HD Zoom Block Camera with 4.7mm-47mm 10x Zoom Lens
Marshall Electronics CV355-10X Compact HD Zoom Block Camera with 4.7mm-47mm 10x Zoom Lens
£957.60 GBP inc VAT
£957.60 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
Marshall CV355-10X features 10x optical (12x digital) zoom block and flexible 3GSDI/HDMI simultaneous outputs with clear HD images up to 1920×1080 at 60fps. Remote adjust and match settings include Iris, WB, Exposure, Pedestal, and many more over long distances or during setup with capable Auto settings that track environmental fluctuations.

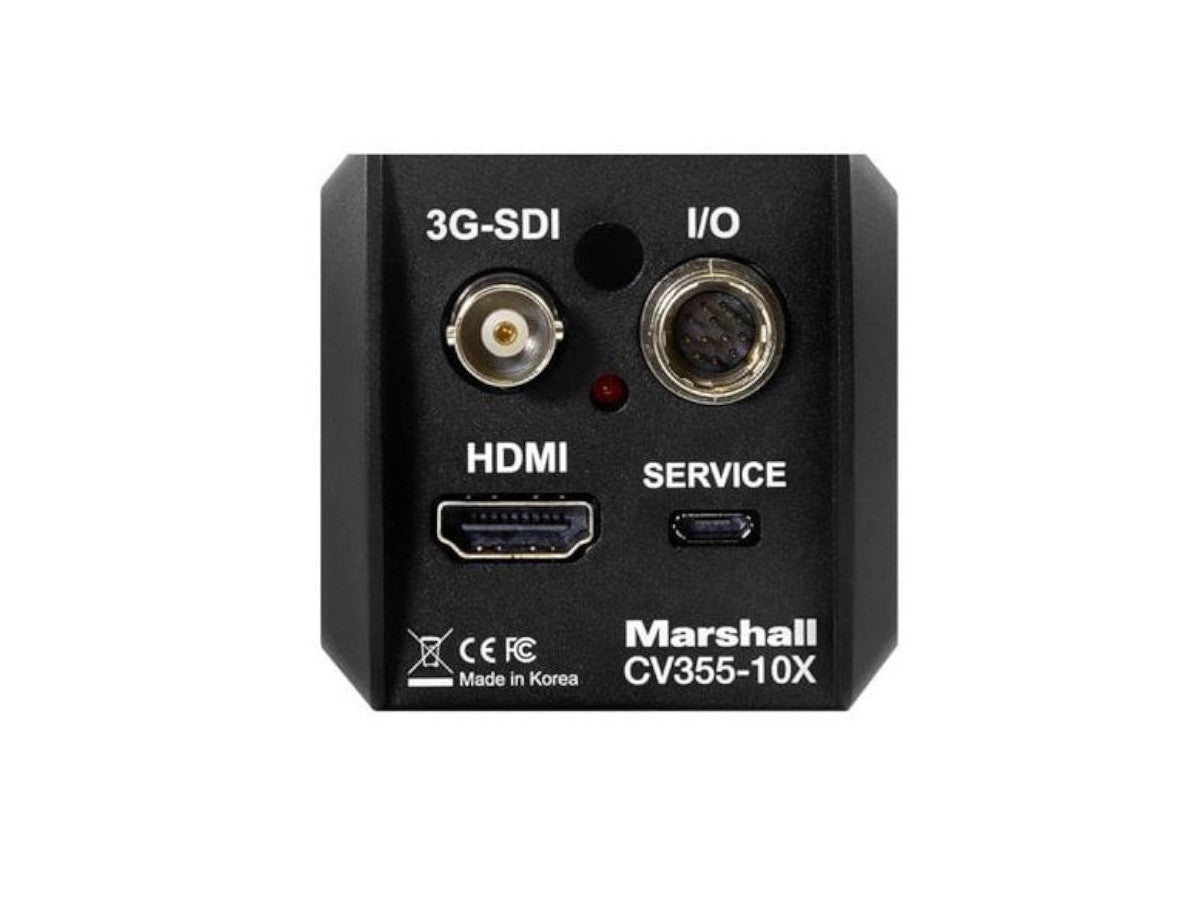

Constructed with a durable aluminium alloy body, full-sized BNC and HDMI connections, locking I/O cable carrying RS485/Audio/Power, and side impact protection panels to secure cable connections.
Featuring a wide range of HD selections in 1920x1080i (interlaced), 1920x1080p and 1280x720p (progressive). Choose between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 frames per second to capture any workflow or application in every region of the world.
- Simultaneous 3G-SDI & HDMI outputs
- 1080p (1920×1080) up-to 60p
- 10x optical zoom (4.7mm-47mm) with 12x digital zoom
- Remote control with RS-485 protocol
- 3.5mm audio input for external microphone
| SENSOR | |
| Sensor Type: | 1/2.8″ 2.1 Megapixel CMOS |
| Effective Pixels: | 1920×1080 |
| Pixel Size: | 2.9(μm) x 2.9(μm) |
| Minimum Illumination: | 0.1Lux (Day-color), 0.01Lux (Night-b/w), 0.001Lux (DSS on) |
| RESOLUTION & FRAME RATES | |
| HD 1920x1080p: | 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 |
| HD 1920x1080i: | 50, 59.94 & 60 |
| HD 1280x720p: | 50, 59.94 & 60 |
| VIDEO OUTPUT CONNECTORS | |
| Video Output Connectors: | 1x 3G-SDI & 1x HDMI |
| LENS | |
| Focal Length: | 4.7mm to 47mm |
| Optical Zoom Ratio: | 10x |
| Digital Zoom Ratio: | 12x |
| Angle of View: | 6° to 60° |
| Max. Aperture: | f/1.6 to f/3.0 |
| IMAGE CONTROL SETTINGS | |
| Focus: | Auto/Manual |
| Exposure: | Auto / Shutter Priority / Iris Priority / AGC Priority / Manual / Bright |
| White Balance: | Auto (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / INDOOR / OUTDOOR / ONE PUSH / Manual |
| Adjustable Features: | Pedestal (Black Level), White Level, Privacy Mask, Image Mirror/Flip, Image Freeze, 2D/3D Noise Reduction, Edge Enhance, Defog, DIS (Digital Image stabilizer), Gamma Correct |
| AUDIO | |
| Input: | 3.5mm Stereo via I/O Cable |
| CONTROL PROTOCOL | |
| Control Protocol: | RS-485 |
| GENERAL | |
| Power Input: | 12V DC (7V to 15V DC) |
| Power Consumption: | Max. 4.5W |
| Dimensions: | 365g (Body Only) / 465g (with I/O Cable) |
| Weight: | 105mm (l) x 56mm (w) x 56mm (h) |
- 1x Marshall CV355-10X Camera Body
- 1x IR Remote Control
- 1x Power Supply Unit (PSU)
