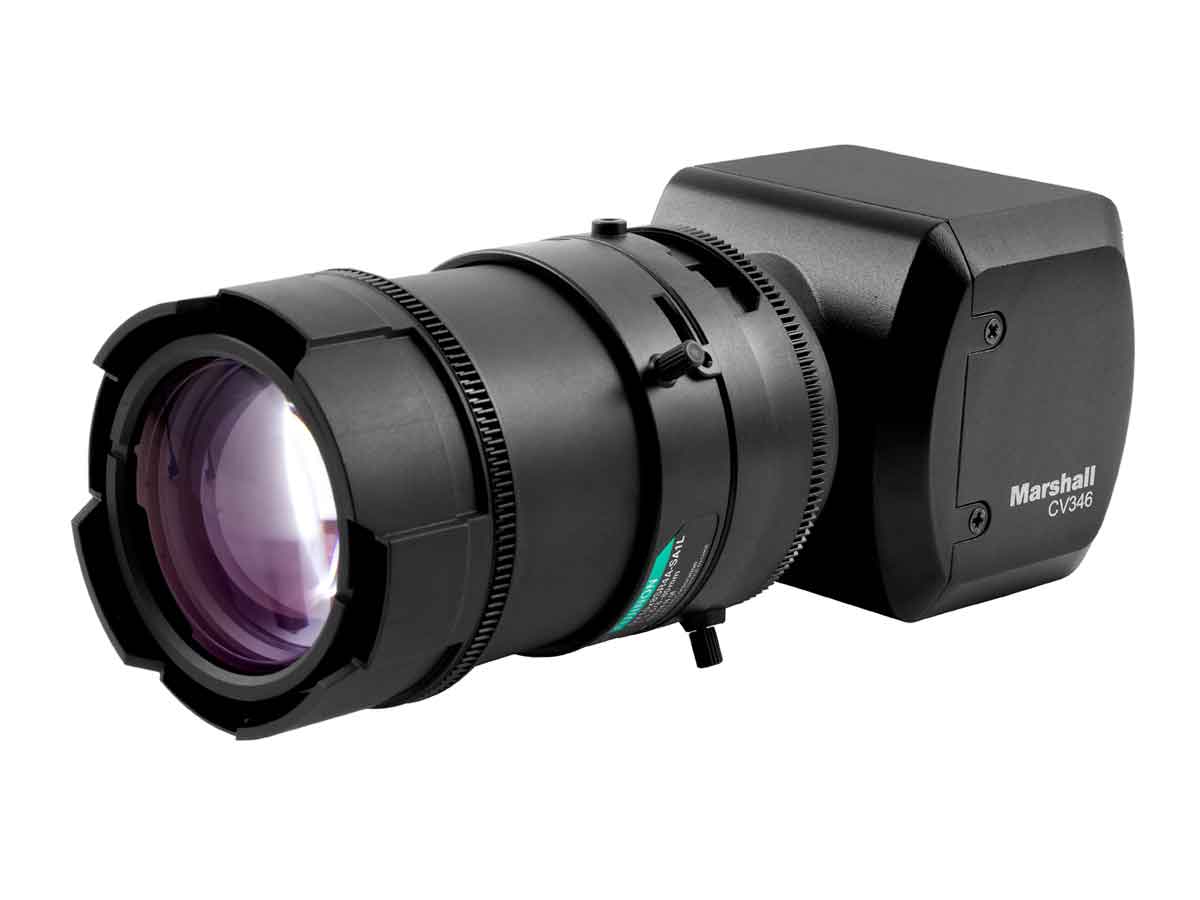

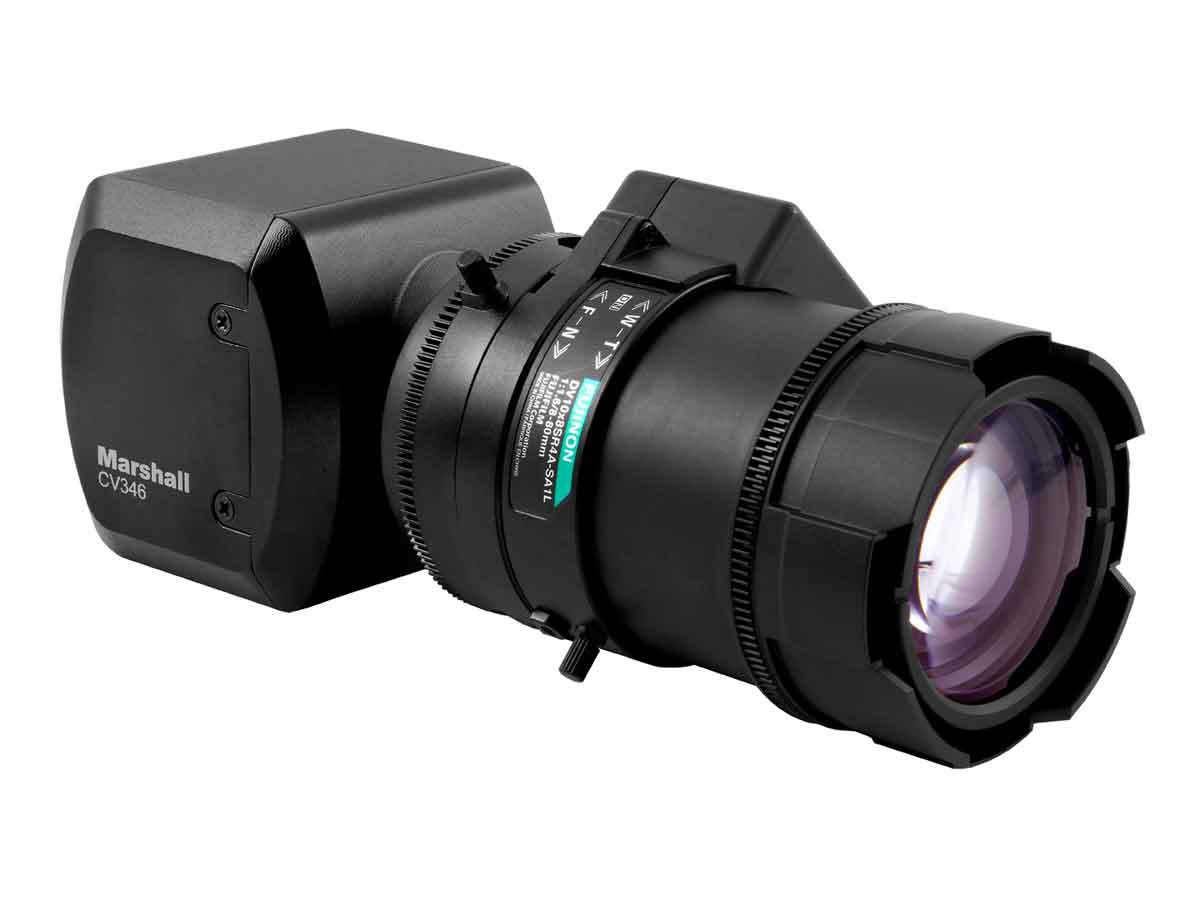

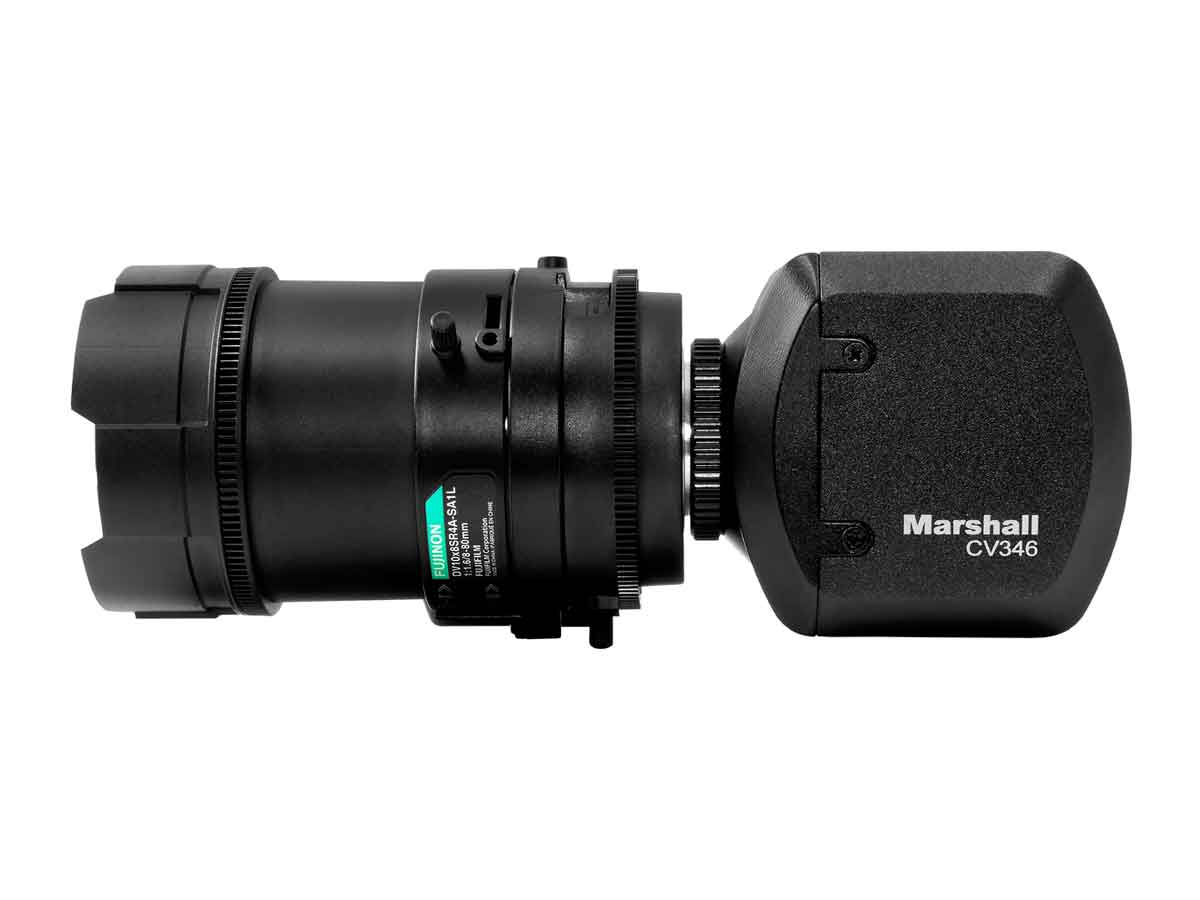

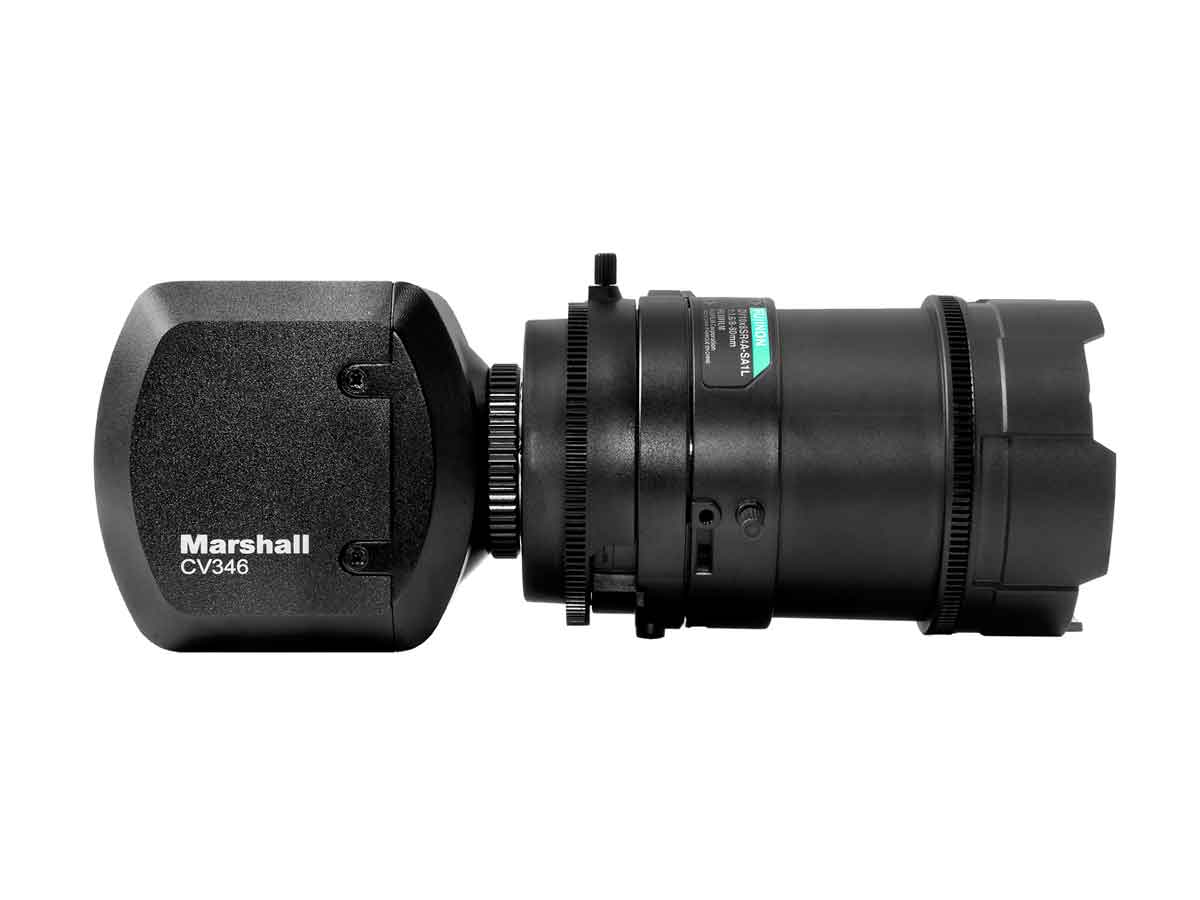

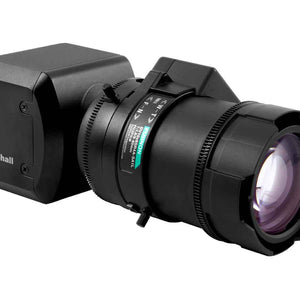

The Marshall CV346 Full-HD Miniature Camera offers performance, flexibility, and value in a compact form factor. Built around a next generation 2.5-Megapixel, 1/2.8-inch sensor, the CV346 delivers ultra-crisp, clear progressive Full-HD video up to 1920x1080p at 60/59/50fps and interlaced 1920x1080i at 59.94/50fps.

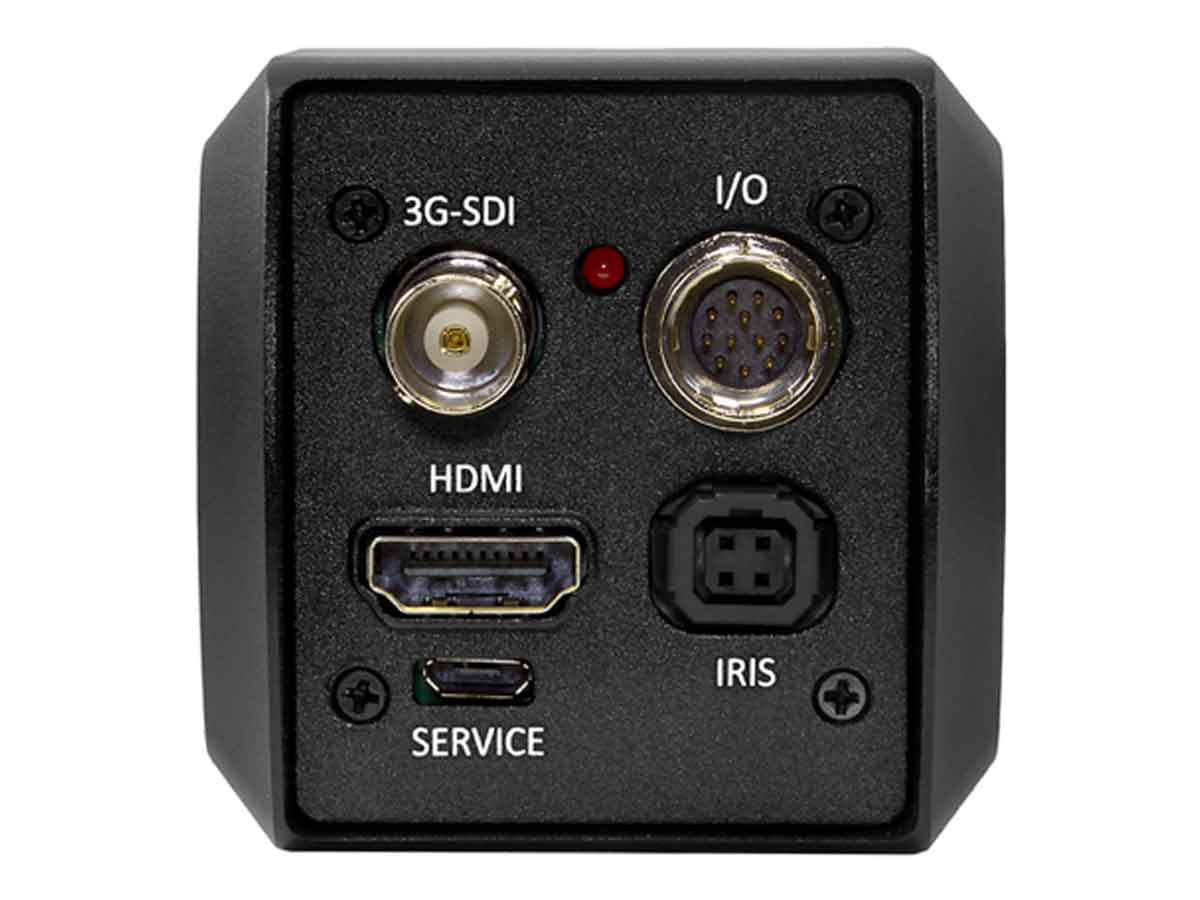

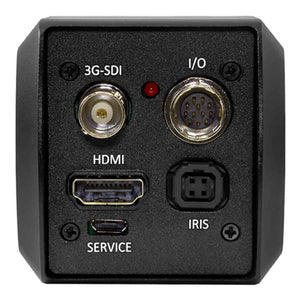

The CV346 utilizes a full-sized HDMI and BNC (3G/HDSDI) output on rear panel and locking I/O connection for power, control, and stereo audio input (embedded on HDMI & 3G/HDSDI outputs). The CV346's CS lens mount offers a wide range of prime and varifocal lens options from ultra-wide to telephoto.
The CV346 can capture detailed shots while maintaining an ultra-discreet compact point-of-view perspective without sacrificing versatility or convenience. Remote adjustment and picture settings commands are delivered via common RS485 (Visca) or OSD menu joystick on locking breakout cable. A wide range of picture adjustment settings are available and adjustable from a distance including paint (red/blue), white balance, exposure, gain control, pedestal (blacks), white clip, gamma, and more.
- Compact camera measuring just 58.6mm x 56mm x 56mm
- Interchangeable lens mount for CS lenses
- Auto-iris function with compatible lenses
- 3G-SDI & HDMI video output connectors
- 1/2.8″ 2.5 megapixel sensor
- 1920×1080 up-to 60P
- I/O breakout cable with control joystick
- 3.5mm audio input
- Remote control using RS-485 protocol
| SENSOR | |
| Sensor Type: | 1/2.8″ 2.5 Megapixel |
| RESOLUTION & FRAME RATES | |
| HD 1920x1080p: | 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 |
| HD 1920x1080i: | 50, 59.94 & 60 |
| HD 1280x720p: | 23.98, 24, 25, 29.97, 30, 50, 59.94 & 60 |
| INPUT & OUTPUT CONNECTORS | |
| Video Output: | 1x 3G-SDI & 1x HDMI |
| I/O Breakout Cable: | 1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input |
| Iris Control: | 1x 4-Pin DC Auto-Iris Control Connector |
| Firmware & Service: | 1x Micro-USB |
| LENS | |
| Mount Type: | CS |
| CONTROL PROTOCOL | |
| Control Protocol: | RS-485 |
| GENERAL | |
| Power Input: | 12V DC |
| Dimensions: | 58.67mm (l) x 56mm (w) x 56mm (h) |
- 1x Marshall CV346 Camera Body
- 1x Camera Breakout Cable
- 1x Power Supply Unit (PSU)
