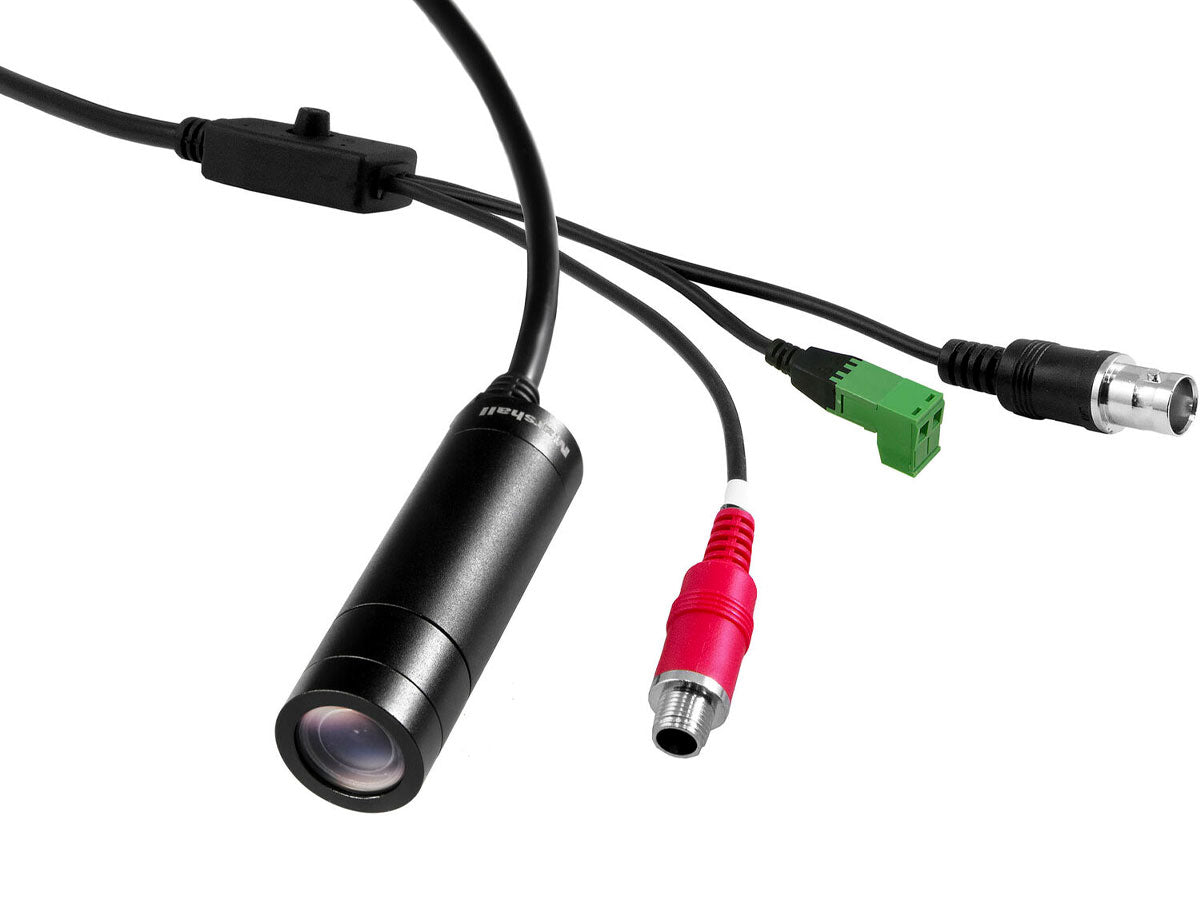

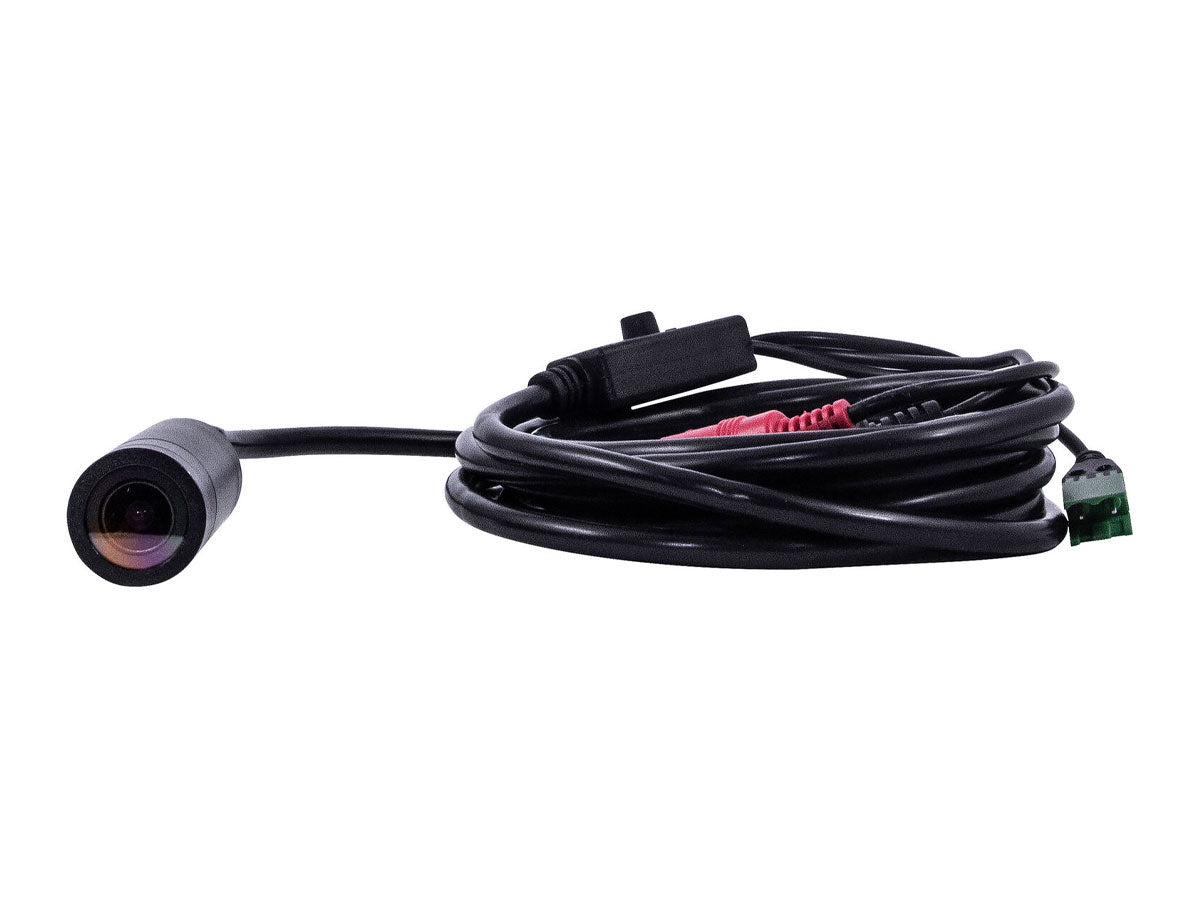

Marshall Electronics CV228 Weatherproof Lipstick-Style Camera with 4.0mm Interchangeable Lens - 3G-SDI Output
Marshall Electronics CV228 Weatherproof Lipstick-Style Camera with 4.0mm Interchangeable Lens - 3G-SDI Output
£456.00 GBP inc VAT
£456.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
CV228 can be positioned in discreet locations with the ability to withstand dirty, dusty and wet environments due to its IP67 rain and dust protected housing. Despite its compact form factor, CV228 produces high-quality video delivered over full-size 3G/HD-SDI in Progressive or Interlaced resolutions up to 1920×1080.
Utilising the latest Sony sensor and processor technology, CV228 produces professional images with a low noise threshold, even in dim lighting conditions. Easily select between 60, 59.94, 50, 30, 29.97, 25fps at 1080p, 1080i, and 720p resolutions. For remote matching and adjustment, CV228 supports RS-485 control, allowing precision picture adjustments to be performed from control rooms, OB vans or broadcast trucks.
- Ultra-compact lipstick-style camera measuring just 62.5mm x 19.5mm x 19.5mm
- M12 interchangeable lens mount
- 4mm M12 lens included
- 3G-SDI video output connector
- 1/2.86″ 2.5 megapixel sensor
- 1920×1080 up-to 60P
- IP67 rain & dust protection rating

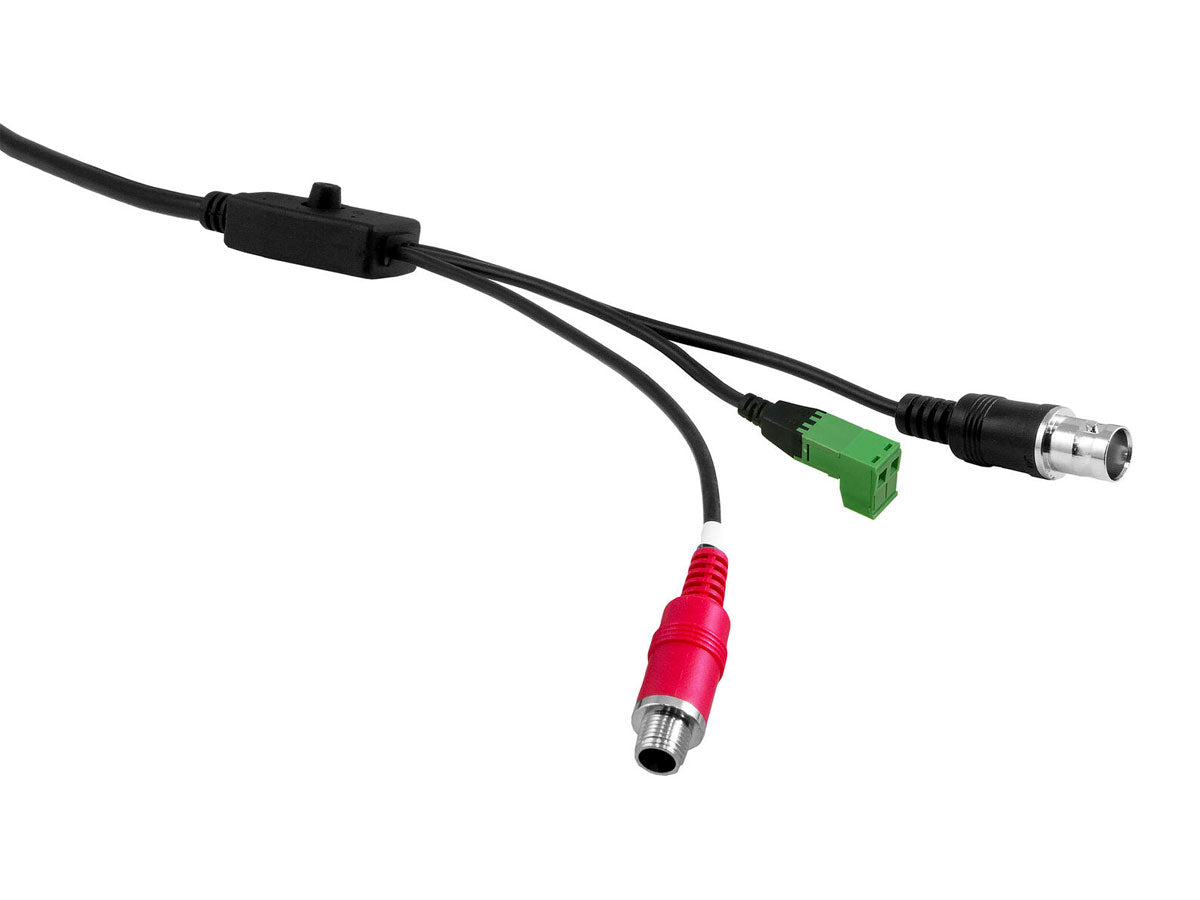

- Integrated 10′ I/O breakout cable with control joystick
| SENSOR | |
| Sensor Type: | 1/2.86″ 2.5 Megapixel |
| Effective Pixels: | 1981×1288 |
| Pixel Size: | 2.75(μm) x 3.2(μm) |
| RESOLUTION & FRAME RATES | |
| HD 1920x1080p: | 25, 29.97, 30, 50, 59.94 & 60 |
| HD 1920x1080i: | 50, 59.94 & 60 |
| HD 1280x720p: | 25, 29.97, 30, 50, 59.94 & 60 |
| INPUT & OUTPUT CONNECTORS | |
| Video Output: | 1x 3G-SDI |
| Remote Control: | 1x RS-485 Interface |
| Power Input: | 1x Locking Barrel 12V DC Power Connector |
| LENS | |
| Mount Type: | M12 |
| Focal Length: | 4mm |
| Max. Aperture: | f/2.0 |
| Focus: | Manual |
| IMAGE CONTROL SETTINGS | |
| White Balance: | Auto / Auto Ext / Preset / Manual (Red-Gain, Blue Gain) |
| CONTROL PROTOCOL | |
| Control Protocol: | RS-485 |
| GENERAL | |
| IP Rating: | IP67 |
| I/O Cable Length: | 10′ |
| Power Input: | 12V DC |
| Power Consumption: | Max. 6W |
| Dimensions: | 62.5mm (l) x 19.5mm (w) x 19.5mm (h) |
| Weight: | Approx. 195g (with I/O Cable) |
- 1x Marshall CV228 Camera Body
- 1x 10′ Breakout Cable (Attached to Camera Body)
- 1x 4mm M12 Lens
- 1x Power Supply Unit (PSU)
