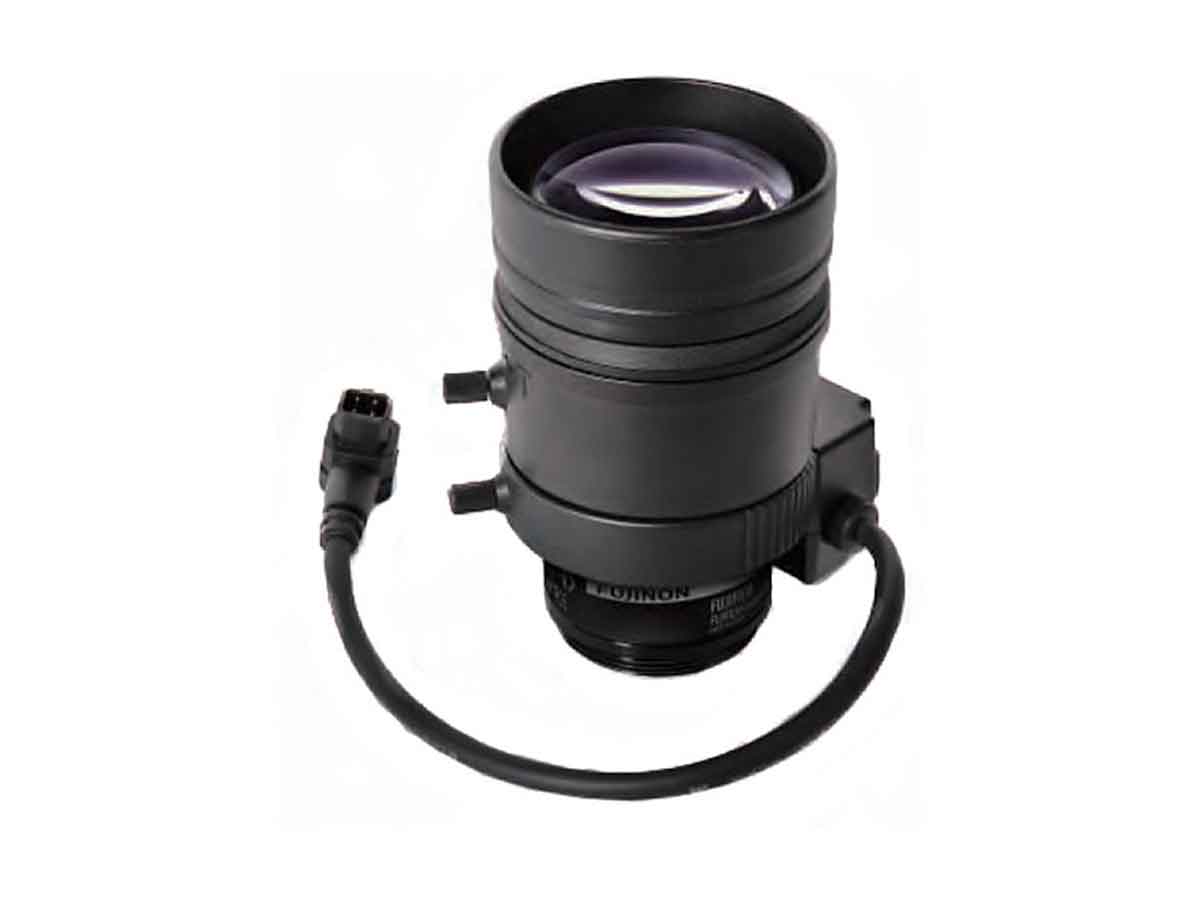

Marshall Electronics CS-Mount 15-50mm Varifocal Lens

Marshall Electronics CS-Mount 15-50mm Varifocal Lens

SKU: ME-VS-M1550-A
£159.00 GBP ex VAT
£190.80 GBP inc VAT
ex VAT £159.00 GBP ex VAT
£190.80 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

The CS-Mount 15-50mm Varifocal Lens from Marshall Electronics is designed to be used with 3MP 1/2.7" sensors and CS-mount cameras. This lens is a high-accuracy aspheric lens made of low-dispersion glass with a high refractive index. It has a focal length of 15-50mm and an aperture range of f/1.5-T360 and features a built-in neutral density (ND) filter.

  • 15-50mm varifocal lens for 3MP 1/2.7" sensors
  • 24-7° diagonal field of view
  • CS-mount
  • Compatible with 1/2.7" Image Sensors
  • CS-Mount
  • DC Auto Iris
  • ND Filter
  • Supports 3MP Sensors
Lens Mount CS
Sensor Compatibility 1/3" (3 MP)
Focal Length 15 to 50mm
Back Focal Length 7.68 to 7.89mm
Aperture f/1.5 to 360
Angle of View 1/3" Sensor
Horizontal: 20 to 6°
Vertical: 15 to 4°
Diagonal: 24 to 7°
Minimum Focus Distance 3.3' / 1 m
Iris Type DC Auto
Effective Diameter Front: 1.2007874015748" / 30.5 mm
Rear: 0.322834645669291" / 8.2 mm
IR Corrected Yes
Operating Temperature 14 to 122°F / -10 to 50°C
Storage Temperature -4 to 140°F / -20 to 60°C
Flange Back Length 0.49" / 12.5 mm
Dimensions (DxL) 1.6 x 2.7" / 40.5 x 68.7 mm
Weight 2.8 oz / 80 g
  • Marshall Electronics CS-Mount 15-50mm Varifocal Lens
