Marshall Electronics AV Consolidator Bridge with Dual HDMI and USB Pass-Through

Marshall Electronics AV Consolidator Bridge with Dual HDMI and USB Pass-Through

SKU: ME-VSC-100
£875.00 GBP ex VAT
£1,050.00 GBP inc VAT
ex VAT £875.00 GBP ex VAT
£1,050.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
Route your analog audio and HDMI video sources to a computer for recording, editing, or live production with this AV Consolidator Bridge from Marshall. The bridge features two HDMI inputs, dual loop-through HDMI outputs, USB 2.0 pass-through input and output, dual analog audio inputs, and USB 3.1 Gen 1 output.

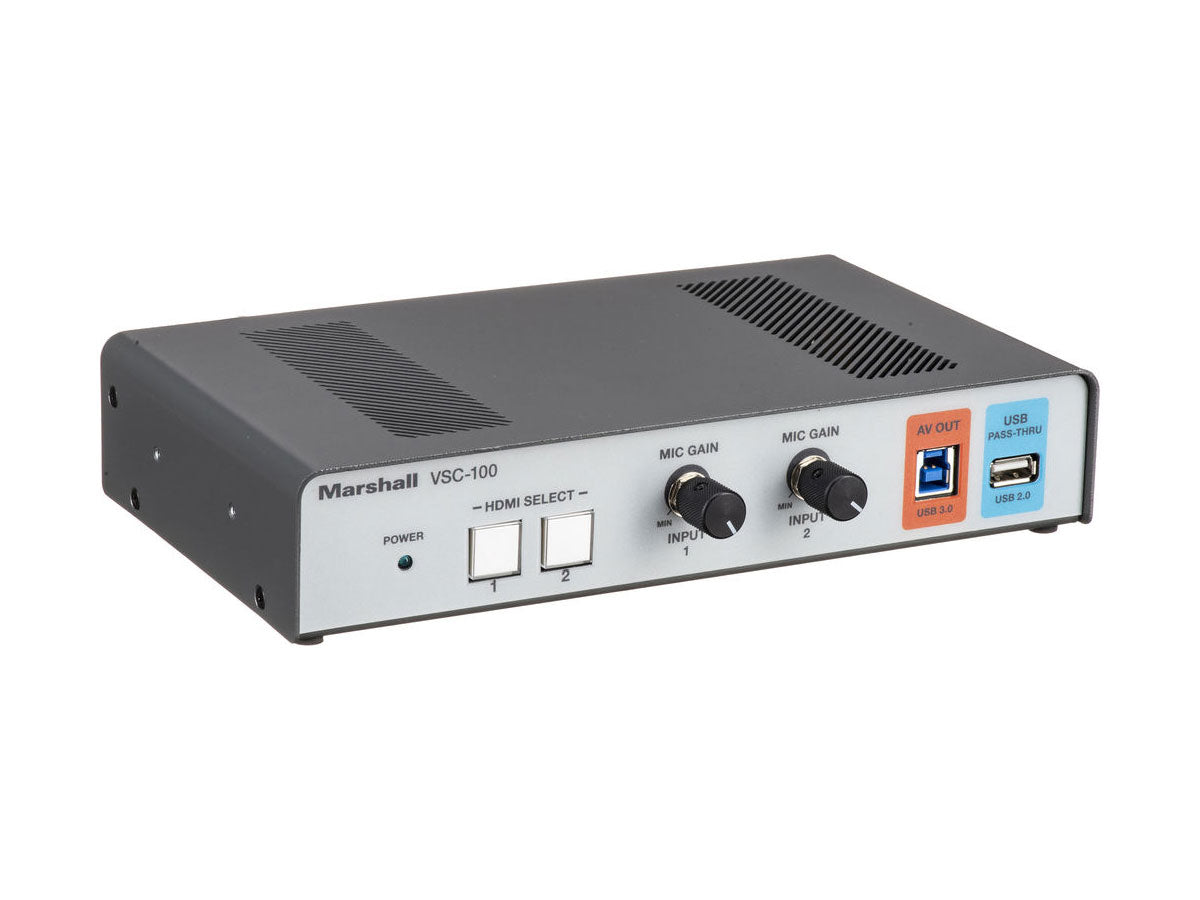

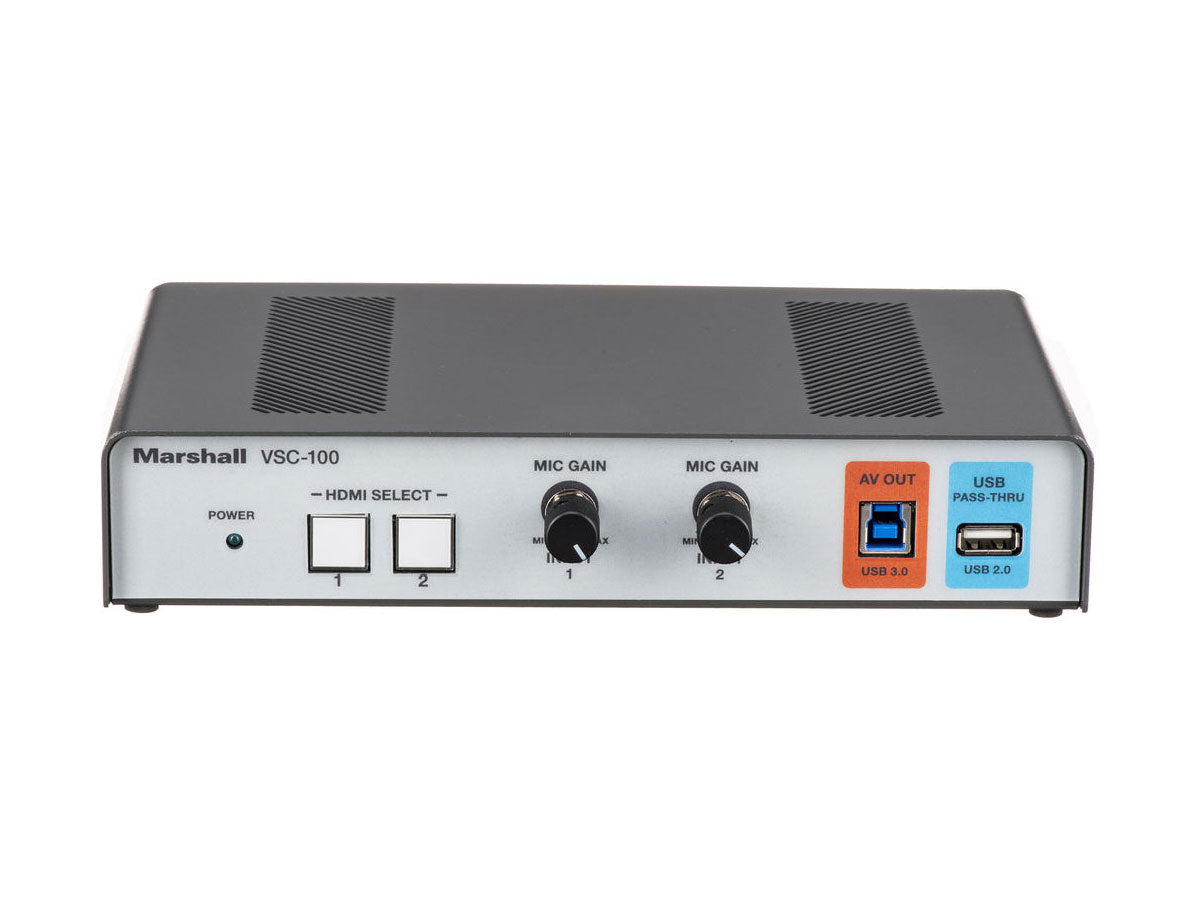

The bridge features plug-and-play operation, and most situations don't require any additional drivers. The front of the unit features HDMI select buttons and two audio gain dials for the analog inputs. Utilize the computer output video with editing software or broadcast applications such as Zoom, Skype, OBS Studio, and others.
  • Connect audio and HDMI video sources to a computer for podcasting, web conferencing, video production, and screen capture
  • Two selectable HDMI 2.0 type A inputs with active loop-through dual HDMI 2.0 type A outputs
  • USB 2.0 Type-A pass-through input and output
  • Independent audio gain controls for dual audio input sources
  • Wide gain control range accommodates low-output microphones up to line-level sources
  • USB 3.1 Gen 1 Type-B computer interface with UVC control and scaling (USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s. USB 3.1 Gen 1 and USB 3.0 are synonymous)
  • Simple plug-and-play operation; driver installation not required for most applications
  • Compatible with popular applications including Zoom, Skype, OBS Studio, and more
  • Connect Audio and Video to Computer
  • For Production, Conferencing, Recording
  • 2 x HDMI Inputs, 2 x HDMI Outputs
  • 2 x Analog Audio Inputs
  • USB 2.0 Type-A Pass-Through
  • USB 3.1 Gen 1 Type-B Output to Computer
  • Buttons to Select HDMI Input and Output
  • 2 x Analog Audio Gain Control Dials
  • Plug-and-Play Design

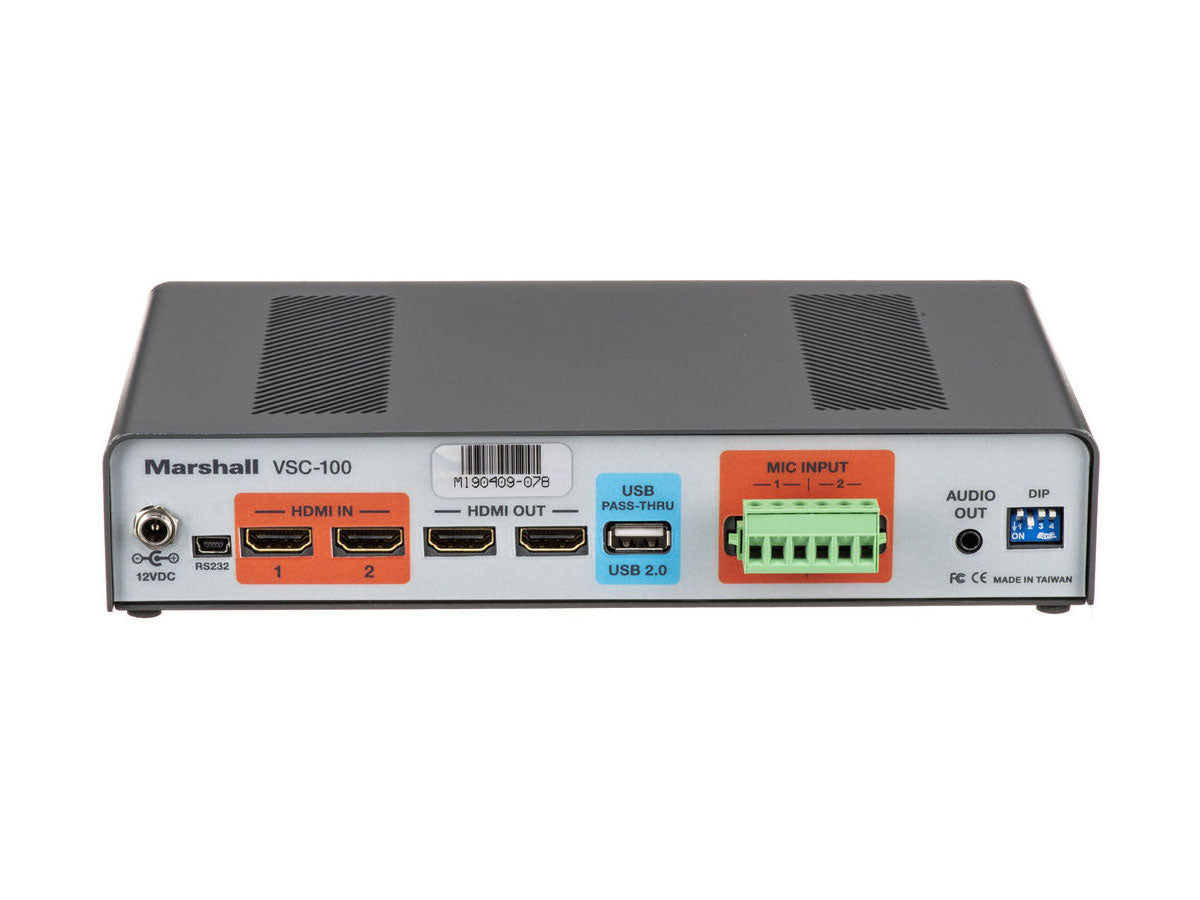

Connectors Inputs
2 x HDMI 2.0 Type A, Selectable
1 x USB 2.0 Type-A Pass-Through
2 x Analog Audio
1 x RS-232
Output:
2 x HDMI 2.0 Type A, Selectable
1 x USB 2.0 Type-A Pass-Through
1 x USB 3.0 Type-B
Power 12 VDC
  • Marshall Electronics AV Consolidator Bridge with Dual HDMI and USB Pass-Through
  • Limited 1-Year Warranty
