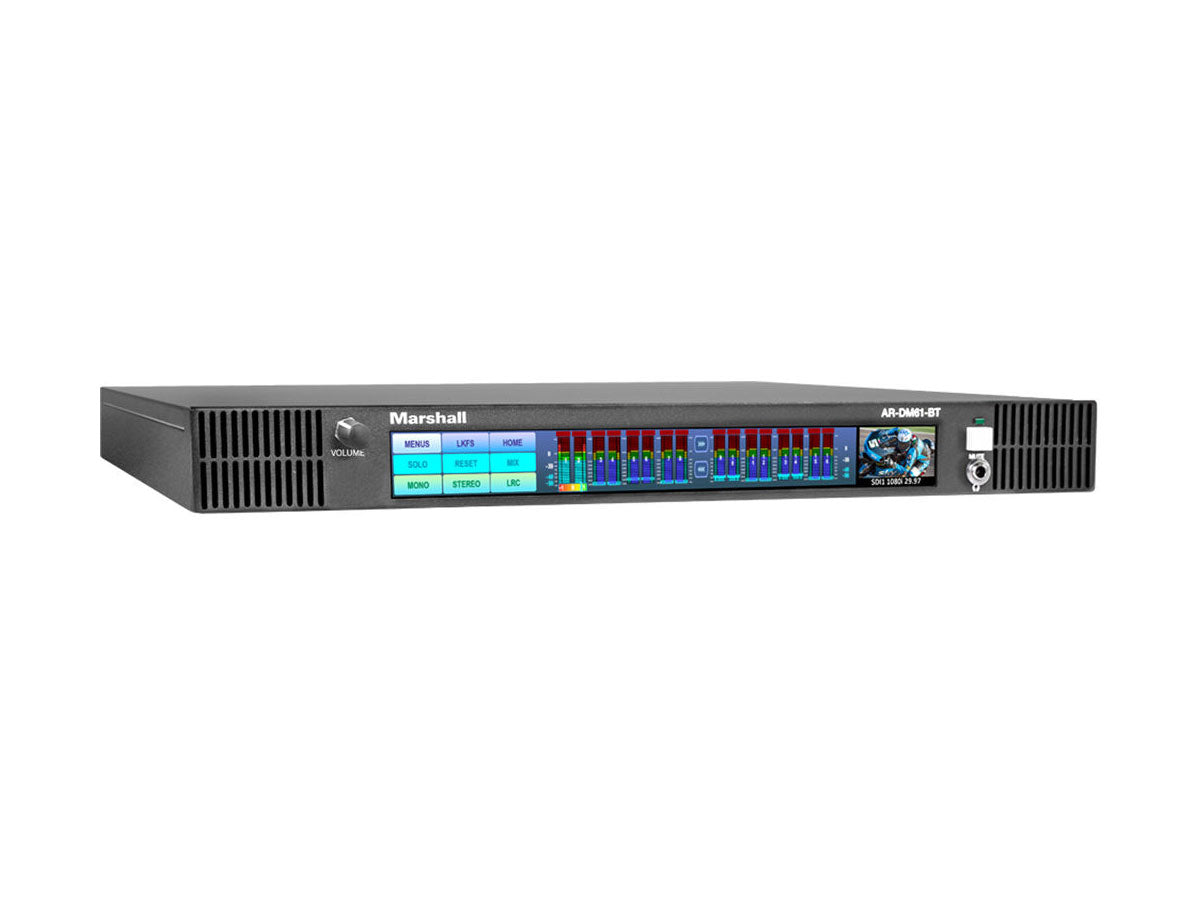

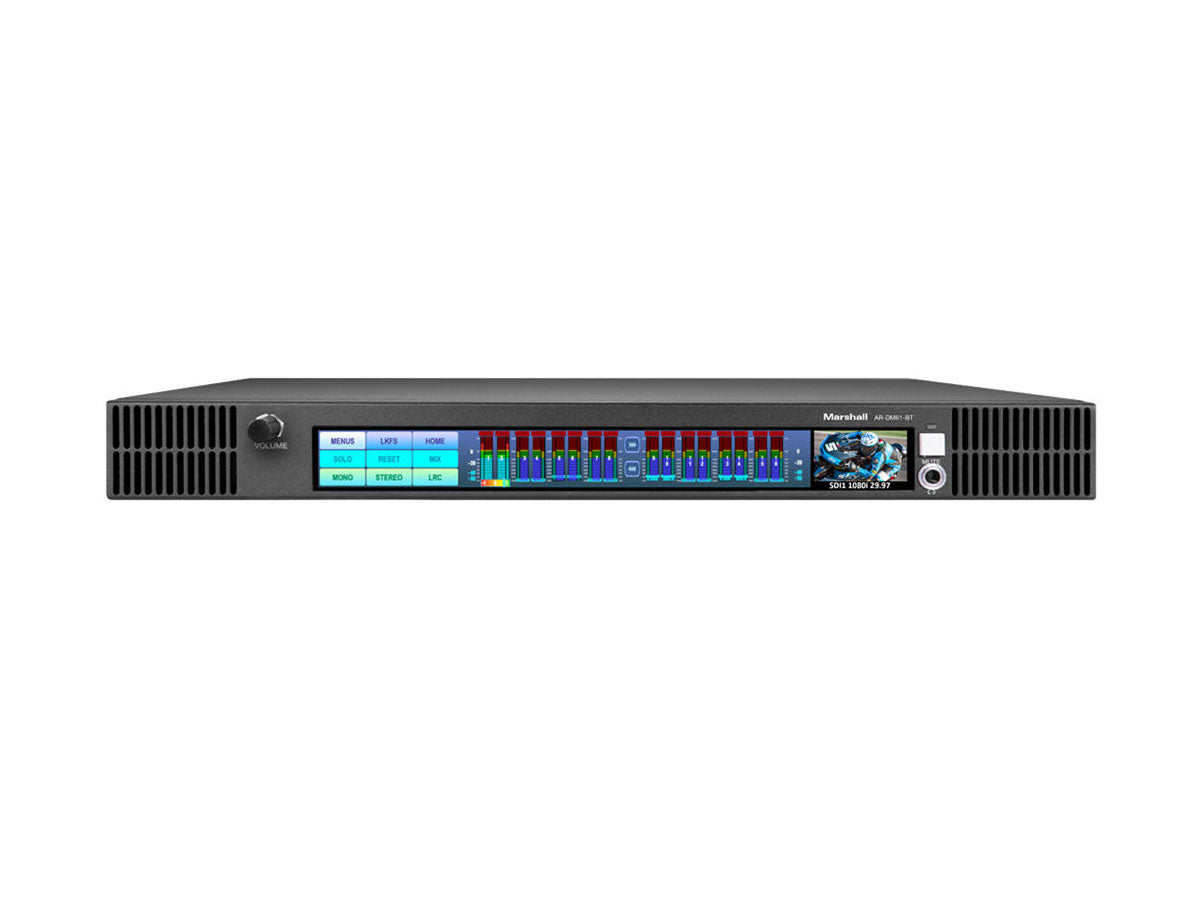

Marshall Electronics AR-DM61-BT-64DT 1RU 64-Channel Digital Audio Monitor (w/Dante)
Marshall Electronics AR-DM61-BT-64DT 1RU 64-Channel Digital Audio Monitor (w/Dante)
£5,226.00 GBP inc VAT
£5,226.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
Experience versatile audio analysis functions, flexible matrix routing and format conversion tools, and a pair of powerful speakers packed into 1 RU with the new Marshall AR-DM61-BT Multi-Channel Digital Audio Monitor. The AR-DM61-BT is a powerful audio/video QC solution designed specifically for TV stations, broadcast trucks, transfer stations and house of worship facilities.
Planned software upgrades and optional hardware extension ports enable the AR-DM61-BT to serve as a "future proof" solution that will evolve with the ever-changing requirements of the broadcast A/V industry. Additional features include support for the latest Dolby™ formats, Dante™ networked audio technology and a built-in web server for channel mixes, system settings and updates.
- Touch Screen Convenience and Flexibility
- Eliminates most mechanical components
- Quickly switch display modes between multi-channel and high-precision
- Layout design not “frozen”
- Integrated Video Display
- Provides visual confirmation of selected SDI input
- Displays selected audio channel numbers and video format
- High Performance Audio – Punches Above Its Weight
- Matches or exceeds most 2RU designs
- Enough “punch” for the noisiest server rooms
- One Model Supports Multiple Input Types
- Two 3G SDI / MADI (auto-detection) Inputs - Standard
- 8 Channels AES / EBU Digital - Standard
- 8 Channels Analog Balanced - Standard
- Up to 64 Dante / AES-67 Channels - Option
- Dolby Decode - Option Plug-in Card
- Network Control
- Web Browser Configuration
- Compact 1RU Design Saves Rack Space
| TECHNICAL | |
| Video Input Connections: | 2 x 3G SDI with looping output |
| Video Formats Supported: | SDI up to 1080p50, 59.94,60 |

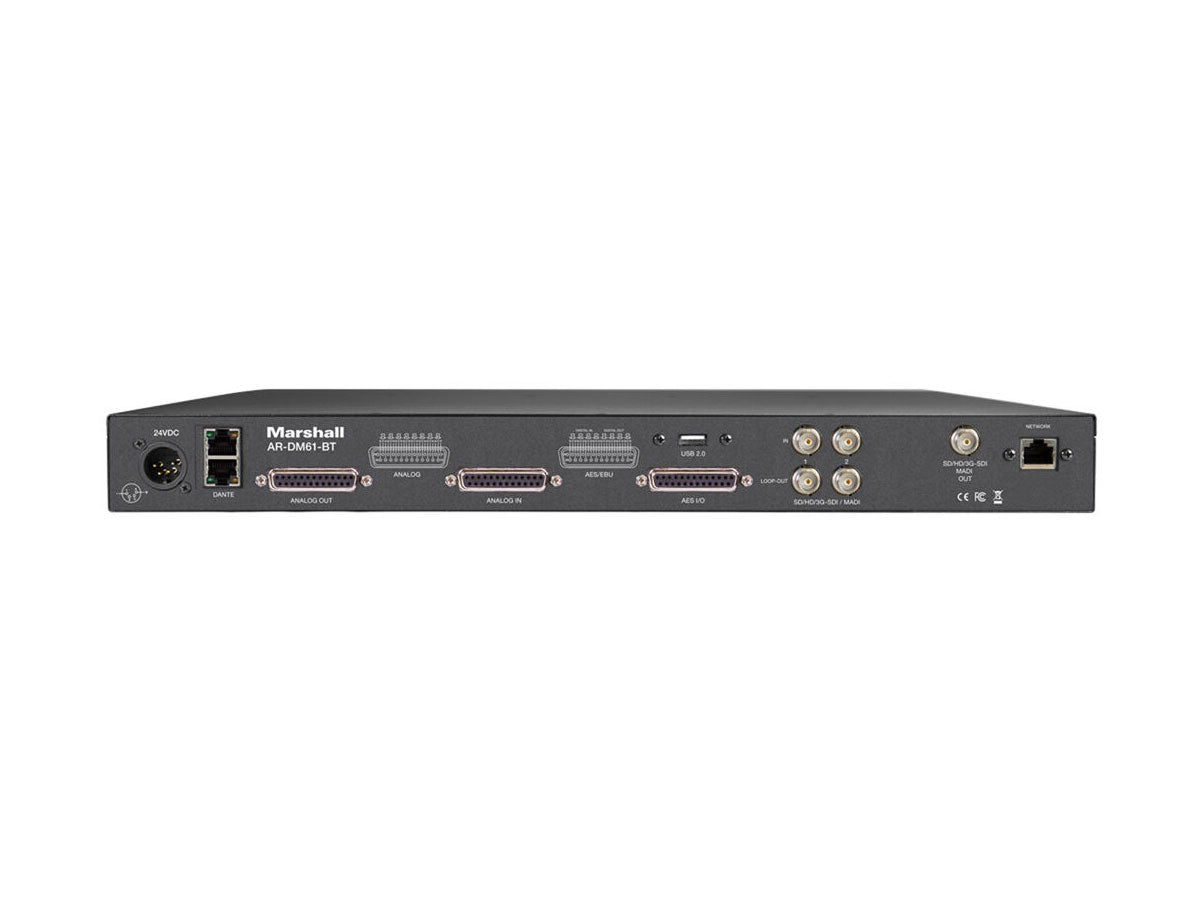

| Audio Input Connections: | SDI Embedded 16 channels (two inputs) Analog 8 channels balanced via 25-pin DSub (Tascam format) AES 8 channels digital via 25-pin DSub (Tascam format) Dante up to 64 channels via dual IP (option board) MADI 64 channels (auto selected if present on either SDI input) |
| Audio Output Connections: | AES/EBU 8 channels via 25-pin DSub (Tascam format) Analog 8 channels balanced via 25-pin DSub (Tascam format) |
| USB 2.0 Port: | Product Test / Service |
| Network Connections: | Ethernet 100 Base-T, supports DHCP or Fixed Addressing Dual 1GB Ethernet (included with Dante Option) |
| Dante Network Connection: | Dual 1Gigabit Ethernet. Supports Dual A/B Network Operation |
| MECHANICAL & ELECTRICAL | |
| Housing: | Metal enclosure |
| Dimensions: | 1.75” X 17.36” x 14.3” / 4.45 cm x 44.0 cm x 36.3 cm |
| Weight: | 8.8 lbs / 4 Kg |
| Mounting: | Integral “ears” for standard 19” rack mount |
| Included Power Supply: | DC 24-Volts 6.25 Amps 4-pin XLR connector |
| DC Power Consumption: | 20 Watts Typical |
| Operating Temperature: | 0~40 C [32~104 F] |
| Storage Temperature: | -20~60 C [-4~140 F] |
| ESD Protection: | Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] |
| Relative Humidity: | 20~90% RH [no condensation] |
