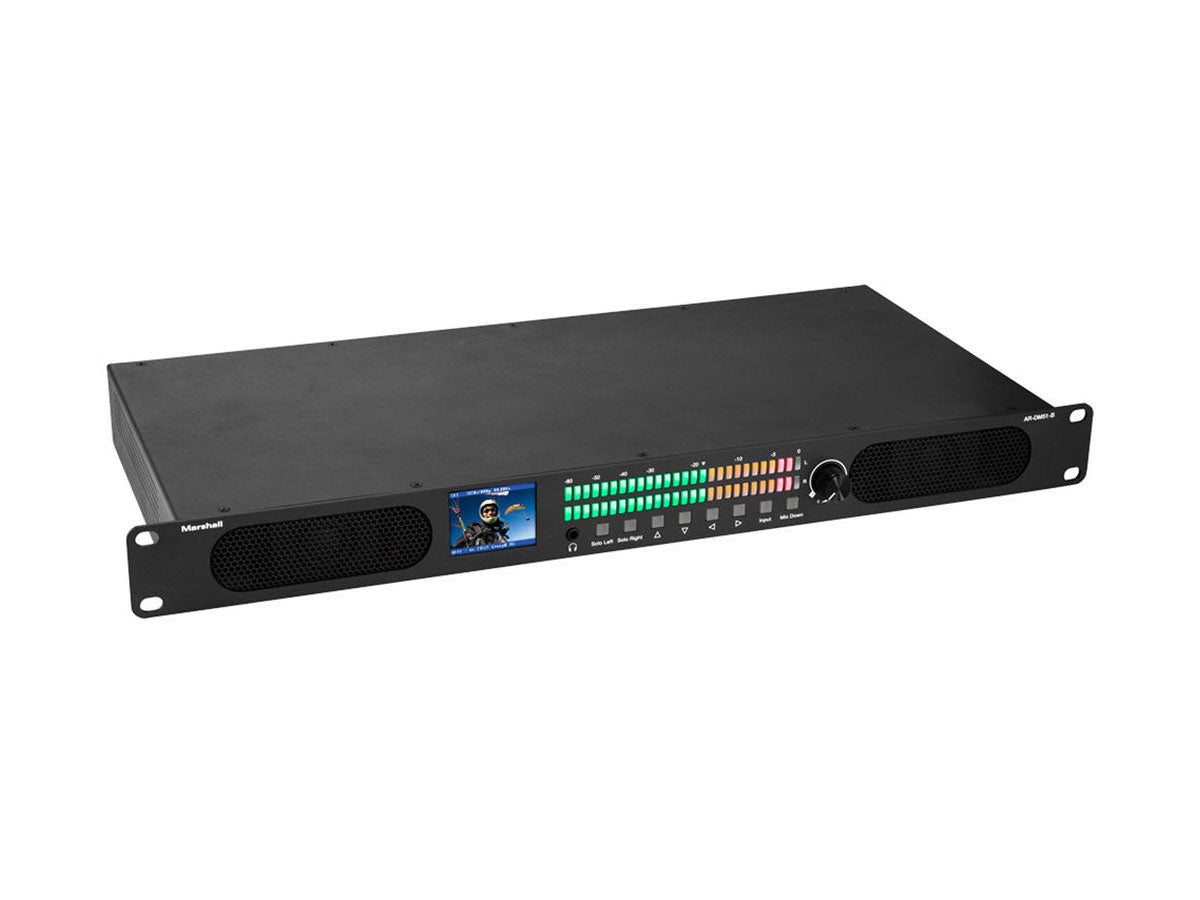

Marshall Electronics AR-DM51-B 16 Channel Audio Monitor with Built-in Preview Screen

Marshall Electronics AR-DM51-B 16 Channel Audio Monitor with Built-in Preview Screen

SKU: ME-AR-DM51-B
£995.00 GBP ex VAT
£1,194.00 GBP inc VAT
ex VAT £995.00 GBP ex VAT
£1,194.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

The AR-DM-51-B is a compact, lightweight audio monitor that can preview up to 8 stereo channels of audio. It has two extra powerful speakers (up to 100dB in volume) for accurate monitoring even in noisy environments, and the small built-in video screen allows for precise confidence monitoring during live broadcasts. The AR-DM-51-B accepts SDI, HDMI, analog XLR, and analog RCA inputs, and outputs in AES and analog RCA.

The AR-DM-51-B features one-button mix down and control through Ethernet or RS-232, and is only 1 RU tall so it fits in any flypack or mobile broadcast set up.

  • High Performance Audio
    • Matches or exceeds many larger 2RU designs
    • Enough “punch” for the noisiest server rooms (up to 100dB)
  • Multiple Input Types
    • 3G SDI with Looping Output
    • HDMI
    • Analog XLR Balanced - 2 Channels
    • Analog RCA Unbalanced Line Level - 2 Channels
  • Flexible Output Types
    • AES-EBU Pair Balanced XLR (converted from Analog input)
    • Analog Unbalanced RCA Line Level - 2 Channels
  • 2” Video Display
    • Provides confidence image of selected HDMI or SDI source
    • Text indicates Source, Format, Selected Channels and more
  • Controllable via Ethernet or RS-232 Serial
    • Remote Control App and Protocol available on Marshall Website
  • Compact 1RU Design Saves Rack Space
    • Minimum size
    • Low power consumption, low heat emission into rack
TECHNICAL
Video Inputs: HDMI 2.0 x 1
3G SDI x 1 with looping output
Video Formats Supported: HDMI Up to 4K2K@60fps (4:4:4 sampled 8-bits)
SDI up to 1080p50, 59.94,60 (4:2:2 sampled 10-bits)
HDMI HDCP: HDCP 2.2 and 1.4 Supported
Audio Inputs: Analog Balanced x 2 XLR Female
Analog Unbalanced x 2 RCA Jack
Audio Outputs: AES/EBU x 1 (Digital Pair) XLR Male
Analog Unbalanced x 2 RCA Jack
Signal to Noise Ratio (SNR): 85 dB
Digital Audio Supported: PCM 2, 5.1, 7.1 channels
HDMI Connector: HDMI type A
Serial Control Connector: DB-9 [9-pin D-sub female] supports RJ-45 for Ethernet control
Network Connector: WE/SS 8P8C for control via Ethernet
MECHANICAL & ELECTRICAL
Housing: Metal enclosure
Dimensions: 1.75” X 19” x 8.5” / 4.45 cm x 48.25 cm x 21.6 cm
Weight: 7.3 lbs / 3.3 Kg
Mounting: Chassis has “ears” for standard 19” rack mount
Included Power Supply: Rated 12 VDC 5 Amps, AC Input (120 - 240 VAC)
Power Consumption: 6 Watts Avg
Operating Temperature: 0~40 C [32~104 F]
Storage Temperature: -20~60 C [-4~140 F]
ESD Protection: Human body model — ±15kV [air-gap discharge] & ±8kV [contact
discharge]
Relative Humidity: 20~90% RH [no condensation]
