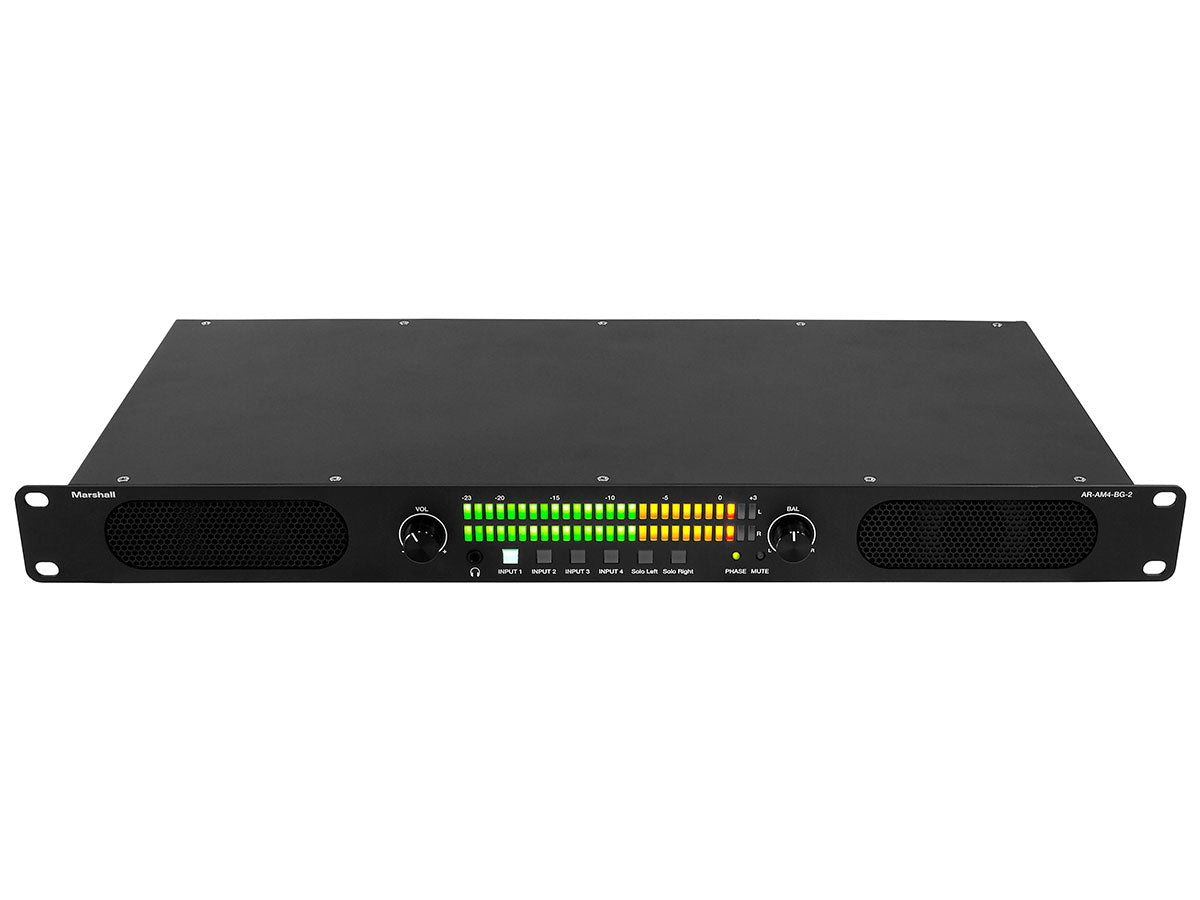

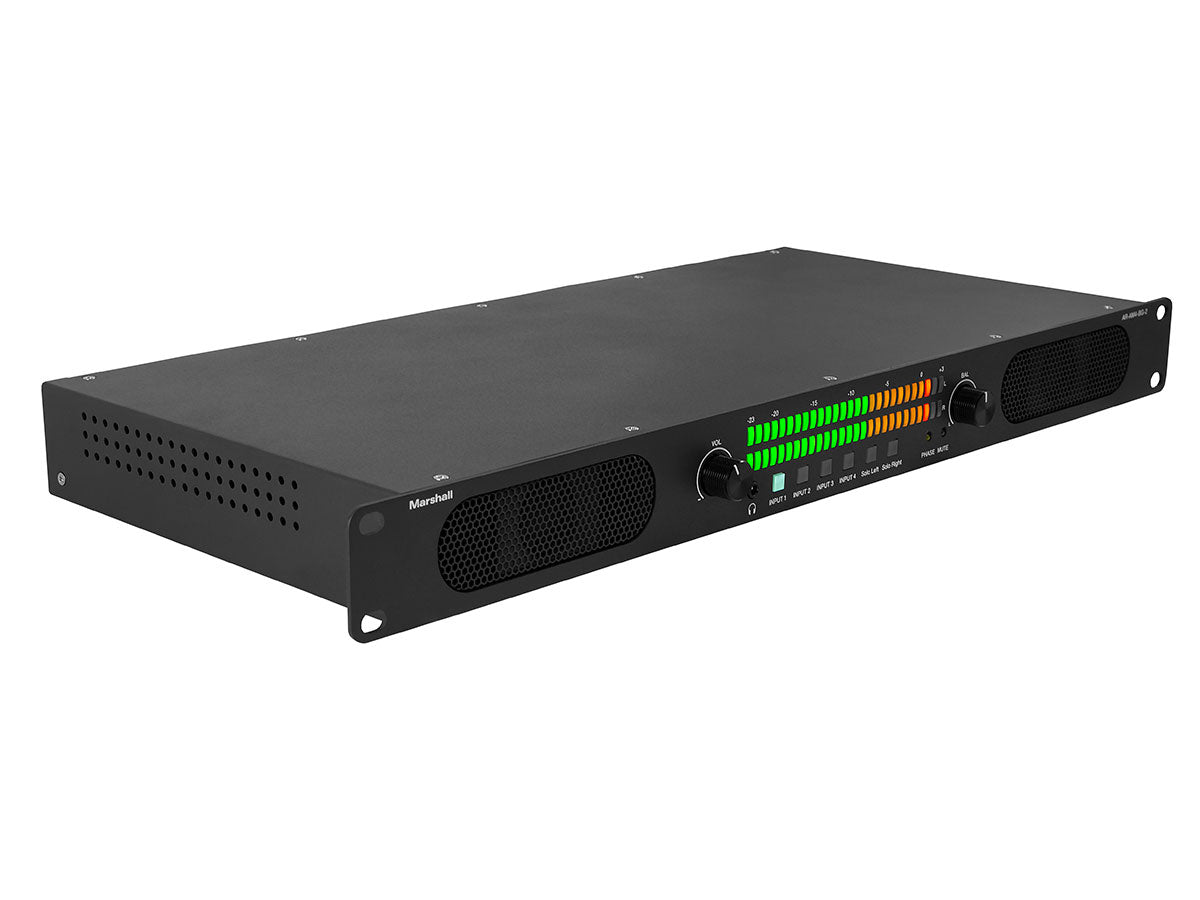

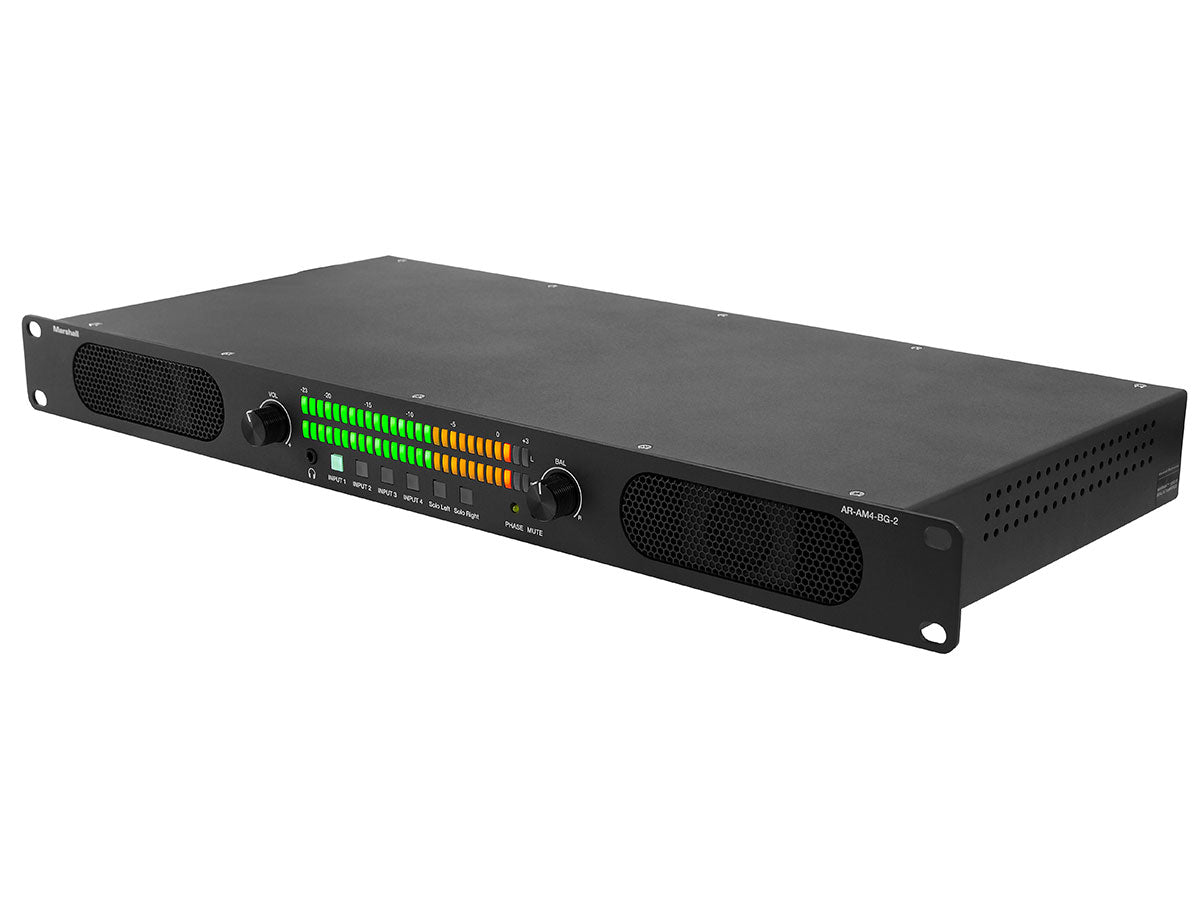

Marshall Electronics AR-AM4-BG-2 Analog Audio Monitor

Marshall Electronics AR-AM4-BG-2 Analog Audio Monitor

SKU: ME-AR-AM4-BG-2
£575.00 GBP ex VAT
£690.00 GBP inc VAT
ex VAT £575.00 GBP ex VAT
£690.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications

For straight-forward analog audio monitoring, the AR-AM4-BG-2 delivers simple setup and operation, making it one of the friendliest audio monitors on the market today. With four analog stereo balanced XLR inputs, the AR-AM4-BG-2 makes it easy to check audio sources whether on set or in the equipment room. An RS-232 control port makes it the right choice for automated systems.

The 1RU design makes it an easy fit into any rack setup, and the speakers deliver enough "punch" to be heard even in the noisiest server rooms. The AR-AM4-BG-2 comes with one 12V universal power supply.

  • 4 analog balanced XLR stereo inputs
  • 2 analog balanced XLR outputs
  • Two powerful speakers
  • LED VU display shows audio input activity
  • Remote control via RS-232
  • Headphone jack
  • Press volume knob for instant mute
  • 1 RU design
  • 12V DC Power Supply included

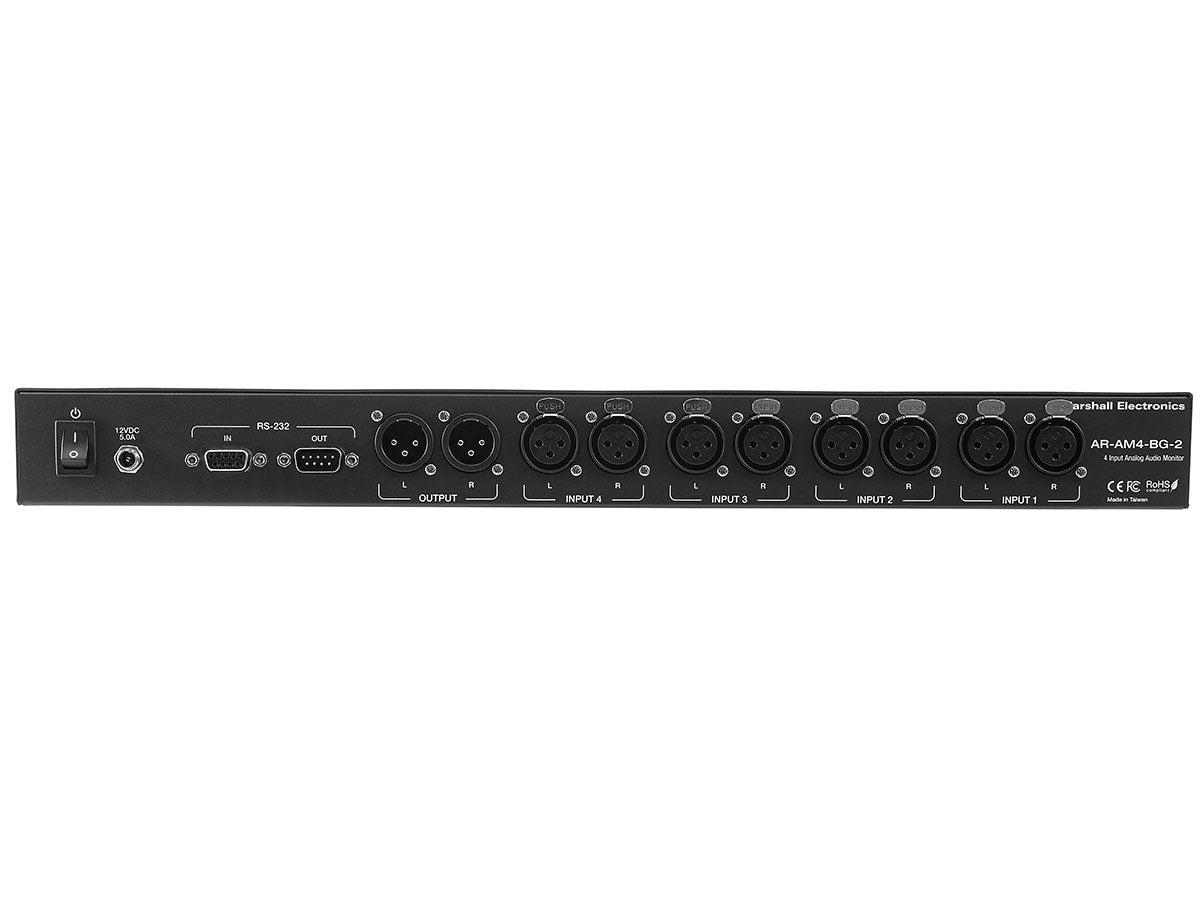

INTERFACES
Audio Inputs: Analog Balanced x 8 XLR Female
Audio Outputs: Analog Balanced x 2 XLR Male
Headphone Output: 3.5mm Stereo Phone Jack (plugging in headphone mutes speakers)
Serial Control Connector: 9-pin D-Sub supports RS-232 control and updates

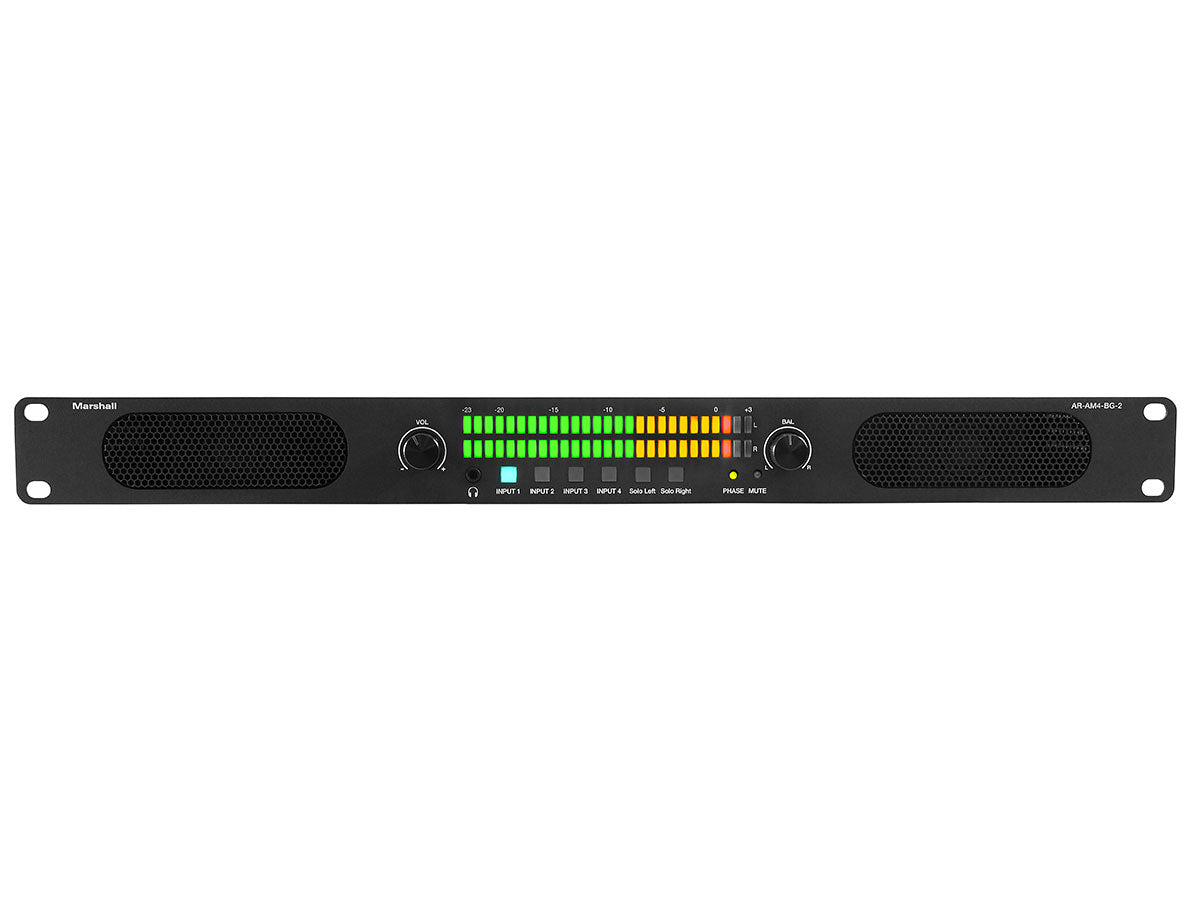

CONTROLS & DISPLAYS
Input Select: Four buttons, each selects one input pair
Solo Left, Solo Right: Select to monitor Left or Right channel individually
Volume Knob: Rotate to change speaker volume level, Push knob in to Mute speakers
Balance Knob: Rotate to change the volume ratio between left and right speakers
Phase LED: Green = Left / Right In-Phase
Red = 180° Phase, Blinking = Changing Phase
VU Meter: “0” mark indicates +4dBU (1.23 Volts RMS, 3.47 Volts P-P) input level
MECHANICAL & ELECTRICAL
Housing: Metal enclosure
Dimensions: 1.75” X 19” x 8.5” / 4.45 cm x 48.25 cm x 21.6 cm
Weight: 7.3 lbs / 3.3 Kg
Mounting: Chassis includes “ears” for standard 19” rack mount
Included Power Supply: 12 Volts DC, 5 Amps Coaxial Connector, Center Positive Accepts 100 – 240 Volts AC, 50/60 Hz Line
DC Power Consumption: 3 Watts at Typical Listening Level, Less than 2 Watts Silent
Operation Temperature: 0~40°C [32~104°F]
Storage Temperature: -20~60°C [-4~140°F]
ESD Protection: Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]
Relative Humidity: 20~90% RH [no condensation]
