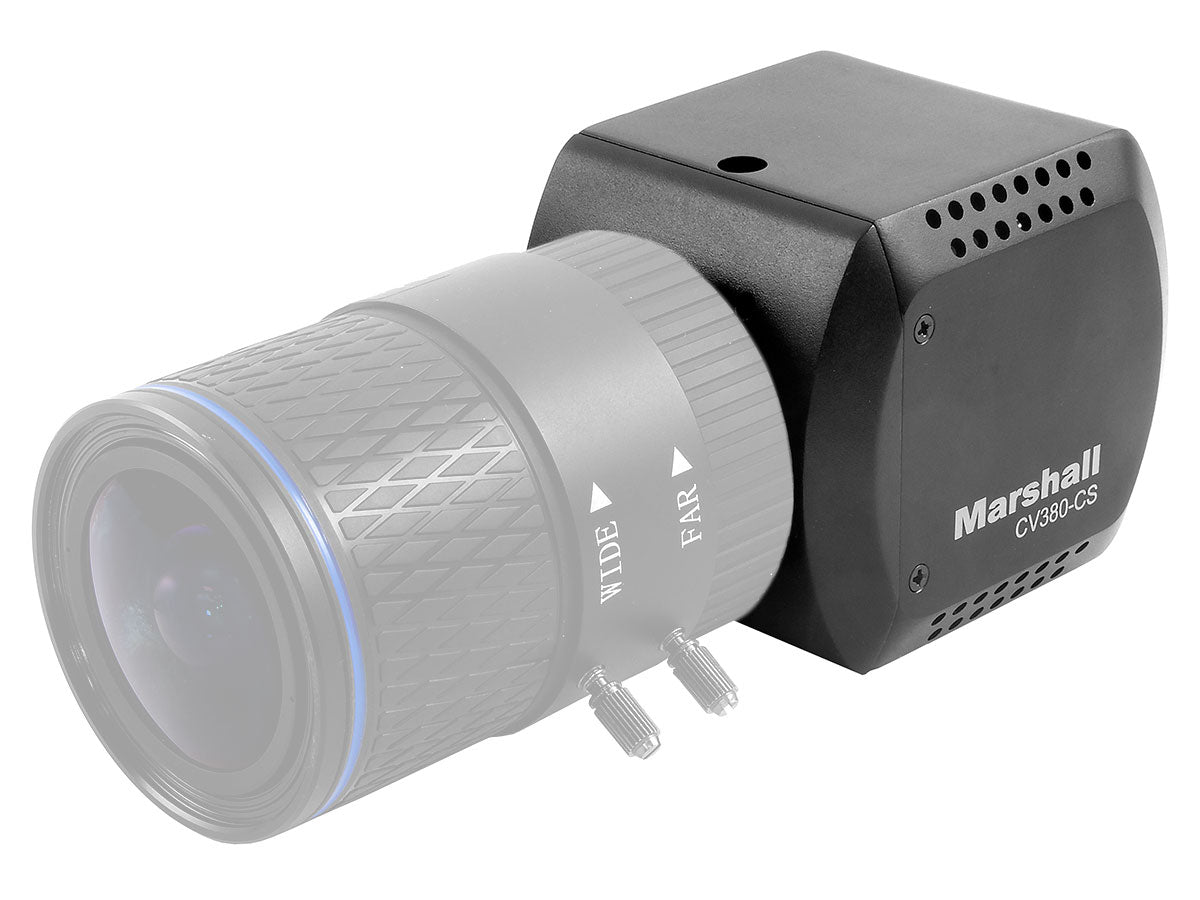

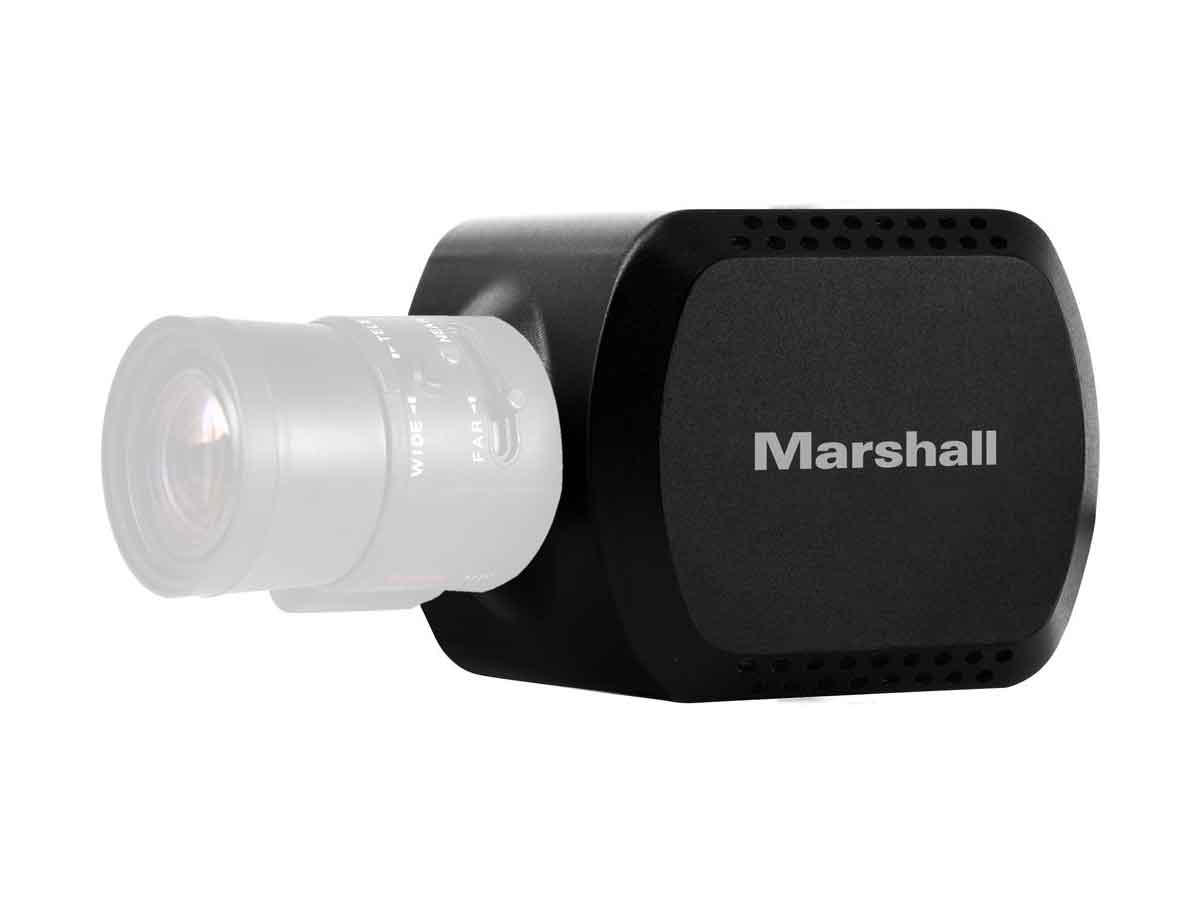

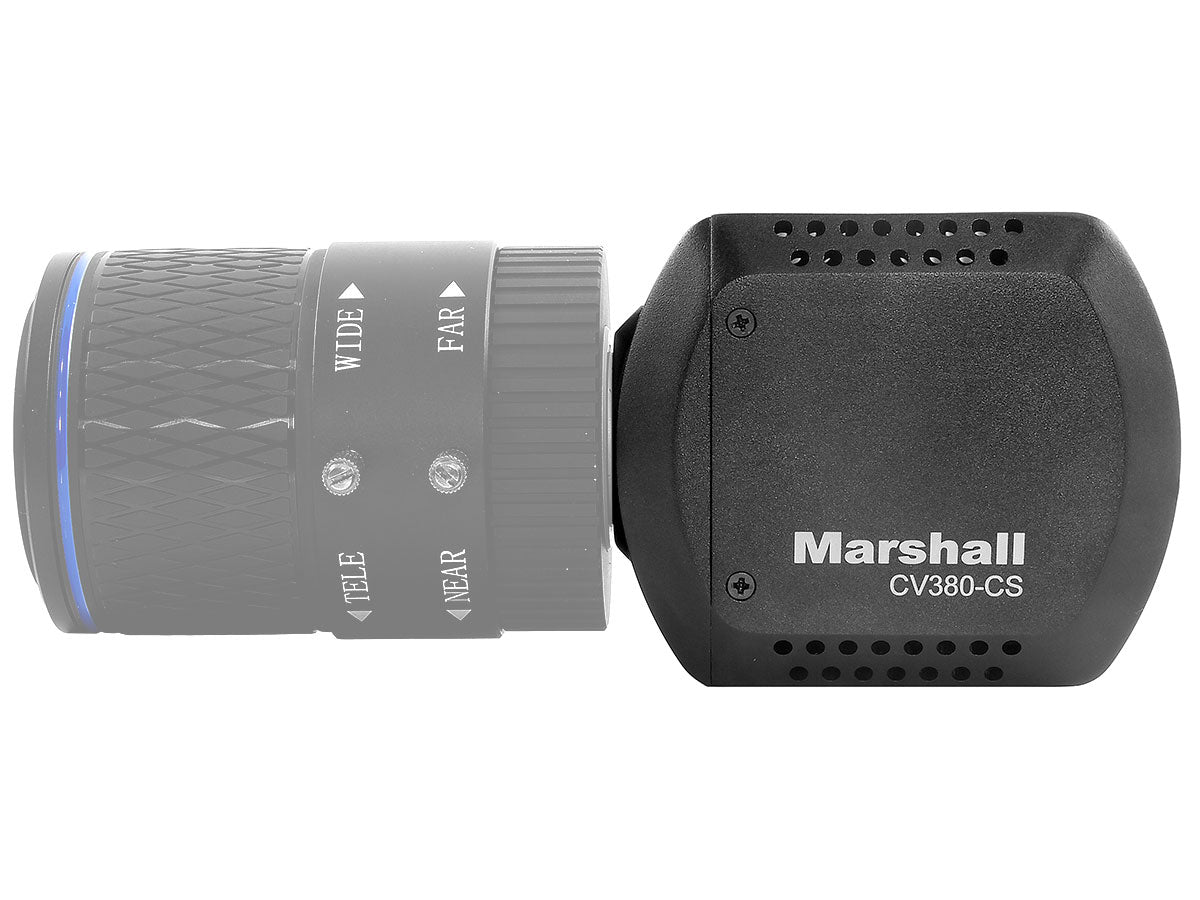

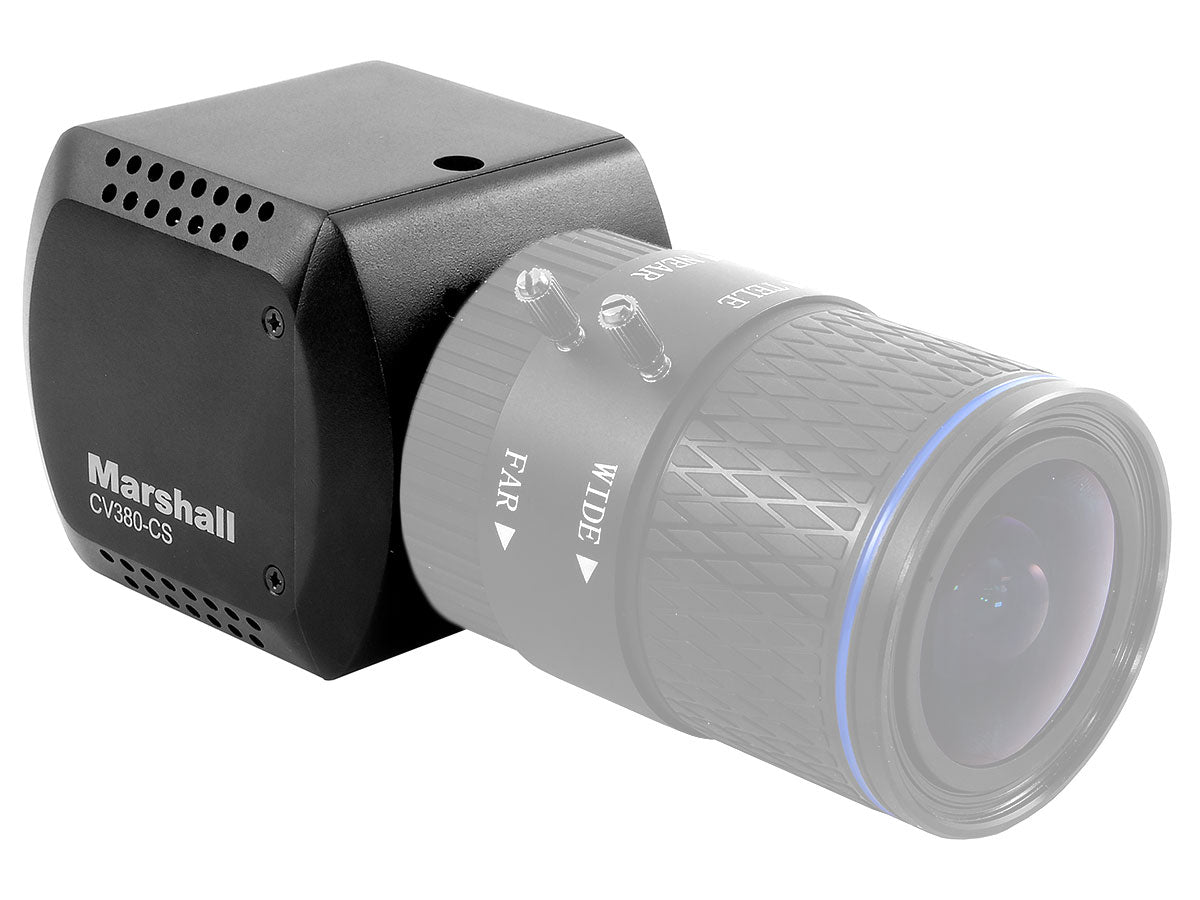

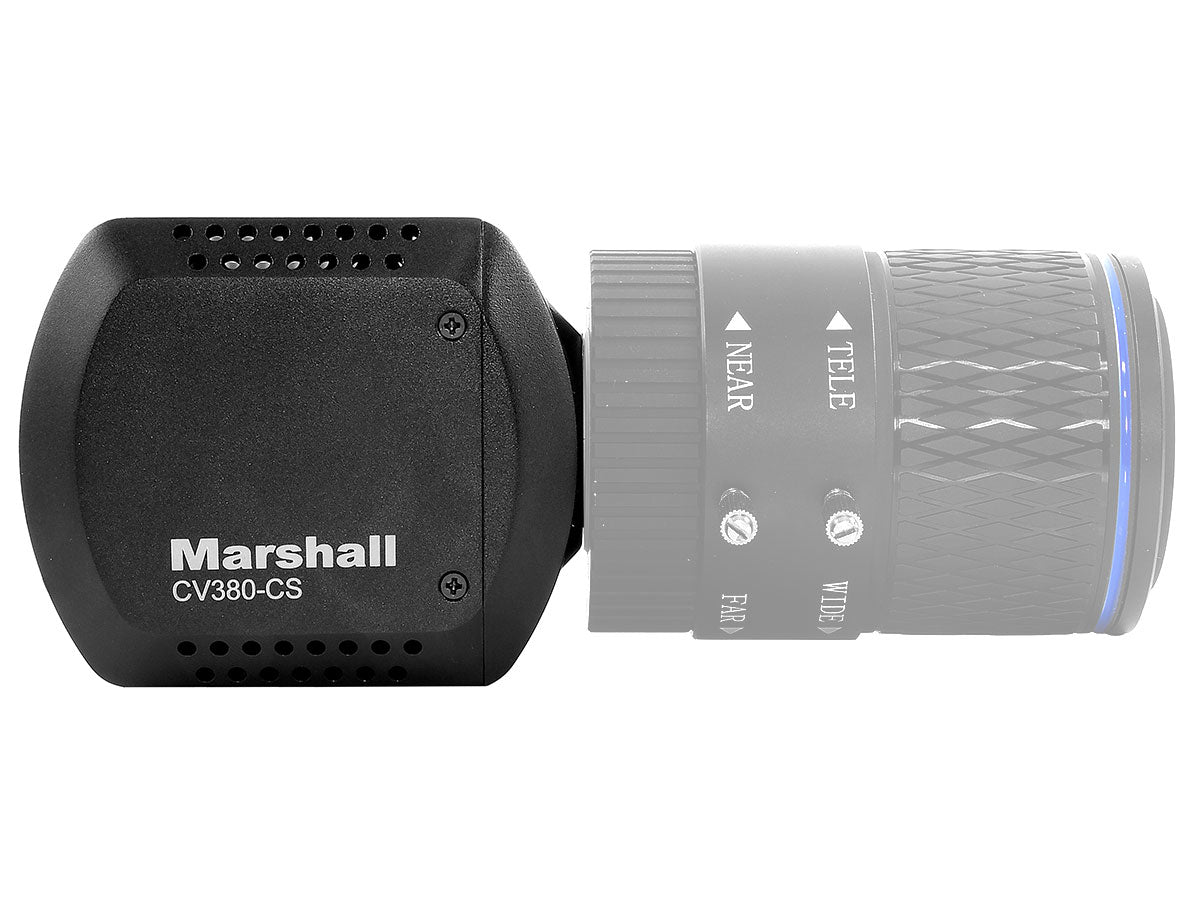

Marshall Electronics 4K/UHD Compact Broadcast Camera with CS Lens Mount - 6G-SDI & HDMI 1.4 Output
Marshall Electronics 4K/UHD Compact Broadcast Camera with CS Lens Mount - 6G-SDI & HDMI 1.4 Output
£1,422.00 GBP inc VAT
£1,422.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The Marshall CV380-CS is a compact, true 4K camera built around an 8.5-Megapixel, 1/2.5-inch sensor delivering ultra-crisp, clear true 4K resolution in 4096x2160p. The CV380-CS contains a single 6G (BNC) output with ability of 6G-SDI and a simultaneous HDMI output. Flexible CS/C lens mount offers a wide variety of lens options with DC Auto-Iris plug-in capability.
CV380 is a versatile and powerful camera solution in an easy to understand design. Remote adjust and match control is delivered via RS485 (Visca) or OSD menu joystick on breakout-cable. A wide range of picture adjustment settings are available such as paint (red/blue), white balance, gain control, pedestal (blacks), exposure, gamma and more. The CV380-CS can capture detailed shots while maintaining a discrete presence and can be used as a fixed 4K wide shot where select HD windows can be captured and used within the frame in post.
- DCI-4K (4096×2160) & UHD (3840×2160) at up-to 30p
- 6G-SDI & HDMI video output connectors
- Interchangeable lens mount for CS lenses
- Auto-iris function with compatible lenses
- 1/2.5″ 8.5 megapixel sensor
- I/O breakout cable with control joystick
- 3.5mm audio input
- Remote control using RS-485 protocol
| SENSOR | |
| Sensor Type: | 1/2.5″ 8.5 Megapixel |
| RESOLUTION & FRAME RATES | |
| DCI-4K 4096x2160p: | 24, 25, 29.97 & 30 |
| UHD 3840x2160p: | 24, 25, 29.97 & 30 |
| HD 1920x1080p: | 24, 25, 29.97, 30, 50, 59.94 & 60 |
| HD 1920x1080i: | 50, 59.94 & 60 |
| HD 1280x720p: | 50, 59.94 & 60 |

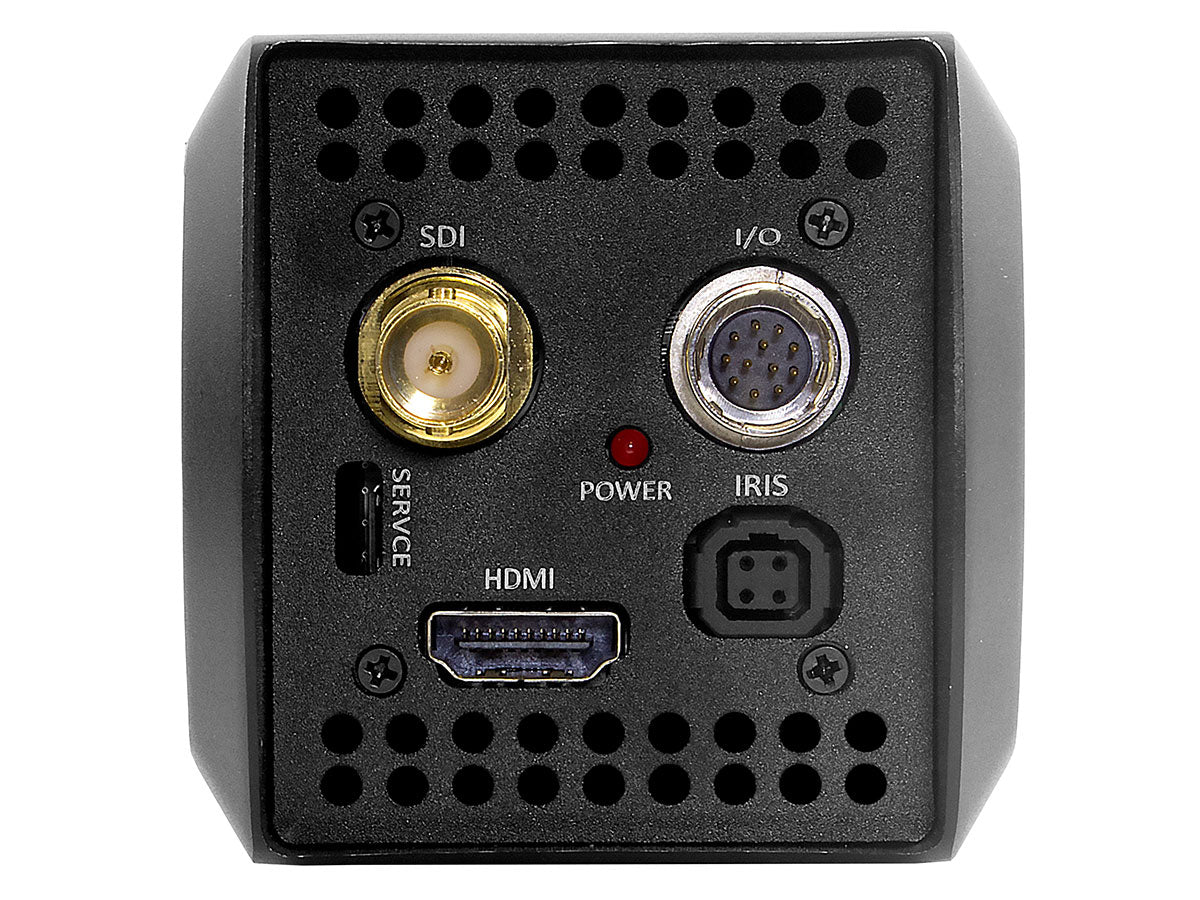

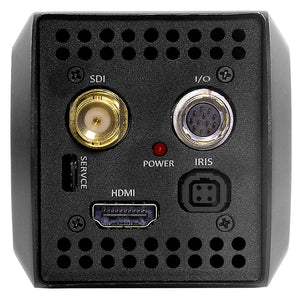

| INPUT & OUTPUT CONNECTORS | |
| Video Output: | 1x 6G-SDI & 1x HDMI |
| I/O Breakout Cable: | 1x RS-485 Interface, 1x Locking Barrel 12V DC Power Input, 1x 3.5mm Audio Input |
| Iris Control: | 1x 4-Pin DC Auto-Iris Control Connector |
| Firmware & Service: | 1x Micro-USB |
| LENS | |
| Mount Type: | CS |
| CONTROL PROTOCOL | |
| Control Protocol: | RS-485 |
| GENERAL | |
| Power Input: | 12V DC |
- 1x Marshall CV380-CS Camera Body
- 1x Camera Breakout Cable
- 1x Power Supply Unit (PSU)
