Marshall Electronics 4K (UHD60) PTZ Camera with 6.5mm-202mm 30x Zoom Lens - 12G-SDI, HDMI & IP Outputs (White)

Marshall Electronics 4K (UHD60) PTZ Camera with 6.5mm-202mm 30x Zoom Lens - 12G-SDI, HDMI & IP Outputs (White)

SKU: ME-CV730-WH
£2,560.00 GBP ex VAT
£3,072.00 GBP inc VAT
ex VAT £2,560.00 GBP ex VAT
£3,072.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

CV730 delivers crystal-clear UHD images at up-to 60p using simultaneous 12G-SDI, HDMI 2.0 and IP outputs. The high-quality 8.5MP 1/1.8″ UHD sensor is paired with accurate and smooth pan & tilt motors together with remote broadcast-style adjust & match setting control through RS232, RS422 or IP using universal protocols.

Featuring a precision 30x optical zoom range starting at just under 65° horizontal angle-of-view at 6.5mm through to 202mm which captures a tight head & shoulder shot at long distances.

Install one-cable to camera for all functions (power, control, audio, video) or use Ethernet for PoE+/Preview and other outputs (12G-SDI/HDMI) for simultaneous workflows for streaming, production or archiving.

  • 3840×2160 up-to 60p and HD (1920×1080/1280×720) up-to 60p
  • Simultaneous 12G-SDI, HDMI, IP Ethernet & USB 3.0 outputs
  • H.264 & H.265 encoding over IP
  • 30x optical zoom (6.5mm-202mm)
  • Remote control using RS-232/RS-422 protocols, Ethernet (VISCA over IP) or with included IR remote
  • 3.5mm audio input for external microphone
SENSOR
Sensor Type: 1/1.8″ 8.5 Megapixel
RESOLUTION & FRAME RATES
UHD 3840x2160p: 25, 29.97, 30, 50 & 59.94
HD 1920x1080p: 25, 29.97, 30, 50 & 59.94
HD 1920x1080i: 50 & 59.94
HD 1280x720p: 25, 29.97, 30, 50 & 59.94
VIDEO OUTPUT CONNECTORS

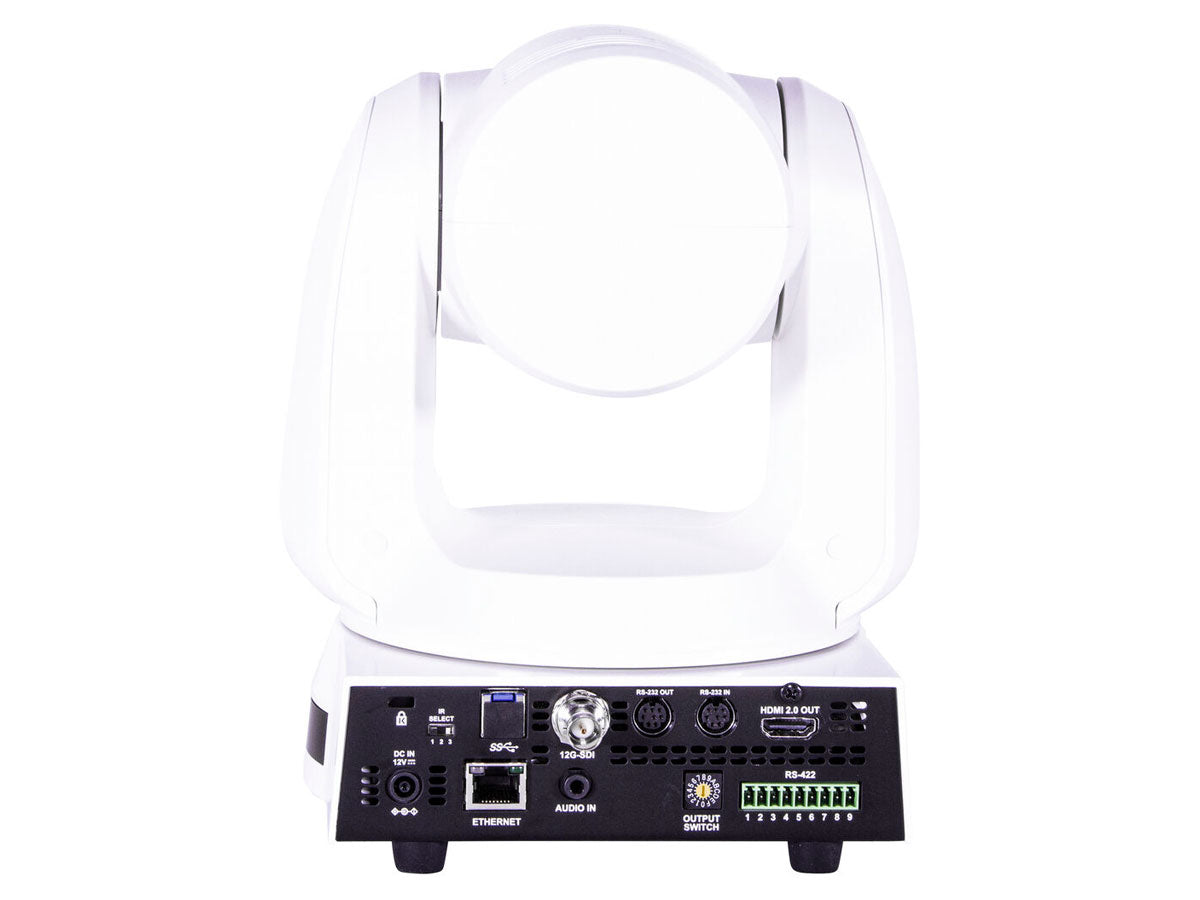

Video Output Connectors: 1x 12G-SDI, 1x HDMI 2.0, 1x IP Ethernet (RJ45) & 1X USB 3.0
LENS
Focal Length: 6.5mm to 202mm
Optical Zoom Ratio: 30x
Max. Aperture: f/1.55 to f/2.8
AUDIO
Input: 3.5mm Stereo
CONTROL PROTOCOL
Control Protocol: RS-232/RS-422 & VISCA over IP
  • 1x Marshall CV730 PTZ Camera Body
  • 1x IR Remote Control
  • 1x Power Supply Unit (PSU)
  • 1x US Power Cable, 1x EU Power Cable, 1x UK Power Cable
  • 1x Metal Installation Plate A
  • 1x Metal Installation Plate B
  • 1x Set of M3 Screws
