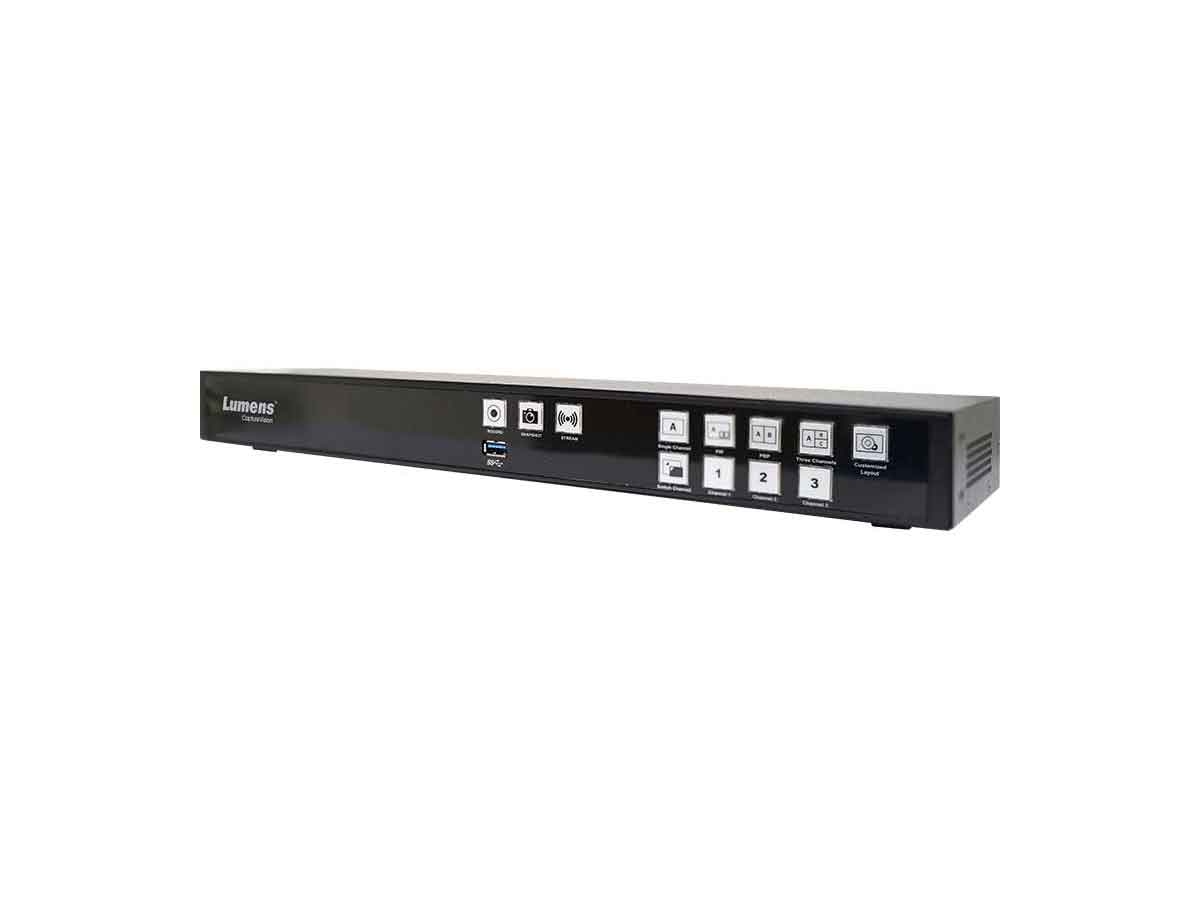

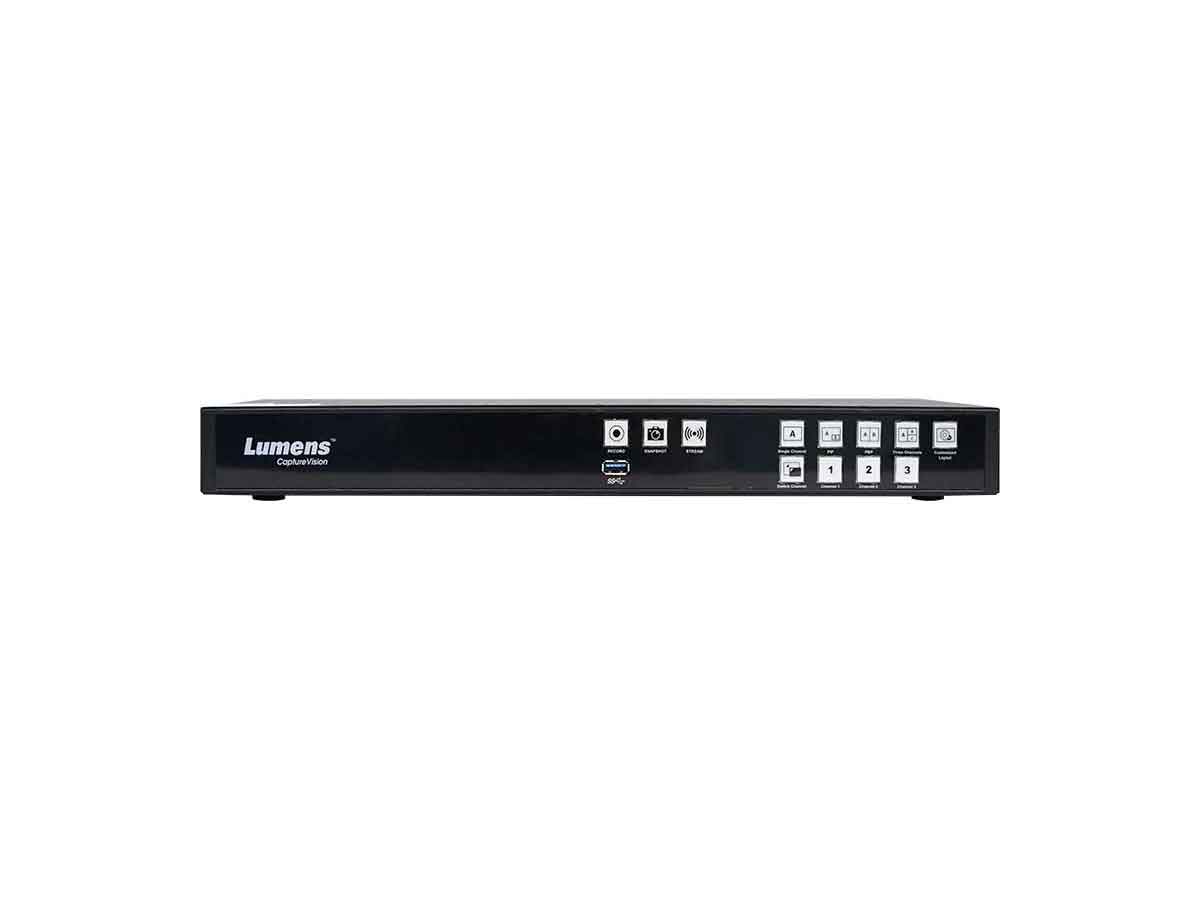

Lumens VS-LC200 Capture Vision Station
Lumens VS-LC200 Capture Vision Station
SKU:
LUM-VSLC200
Regular price
£2,900.00 GBP ex VAT
£3,480.00 GBP inc VAT
£3,480.00 GBP inc VAT
Regular price
ex VAT
Sale price
£2,900.00 GBP ex VAT
£3,480.00 GBP inc VAT
Unit price
per
£3,480.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
4-Channel Recording, Streaming, Live Switching Media Processor
Lumens LC200 CaptureVision Station is an all-in-one media processor. Just one stand-alone device that allows you to mix four video sources, recording, streaming, and live-switching simultaneously; perfect to serve as the core system for your video project.
Bring Multiple Videos and Audio Together
The LC200 captures various video sources, including HDMI inputs, Lumens IP cameras, NDI cameras, and RTSP streams, and allows you to switch among them. Together with four line-in / MIC-in inputs, you can provide complete audiovisual experience to your viewers!
Record Everything
The LC200 records not just the program-out video but also records four independent channels video as well with gorgeous high definition images and crystal clear audio, which also makes your post-production much easier.
Built-in 1TB HDD, USB port, FTP Supports
The LC200 has a built-in 1Terabyte hard drive that can store up to 500 hours of video. You also have options to upload your recordings to an external USB device or the FTP server.
Live Advanced Scenes Switch
The powerful function of advanced scenes switch, helps you capture the attention of your viewers and increase audience engagement in your event. By just one click, you can roll out user-defined scenes that contain PBP PIP layout, title/logo overlays, and pleasing background.
Scheduling
Through Outlook or Google calendar, you can schedule your important events to create, record and stream your video content.
Content Management System Integration
The LC200 integrates with several content management systems like Panopto, Kaltura, and Opencast,etc. which are great applications for enterprise video and school lectures.
Multi-stream Anywhere
Live streaming is a powerful tool. The LC200 can live stream up to three destinations like YouTube, Facebook, Twitter or twitch.
- Capture Vision Station
- 1080p 60/30fps recording
- 4 HDMI Inputs and IP video sources including Lumens IP Cameras, NDI|HX Camera, and standard RTSP streams
- Supports HDMI-embedded audio or analog stereo audio with 4 channels Audio Input mixing and gain control
- Advanced Scenes Switch
- Flexible scaling and window processing, supports PIP, PBP and up to 4 windows layout and mixing
- Built-in 1TB HDD storage
- Supports Katura, Panopto, OpenCast, YouTube, Twitter, Livestream, Wowza and more

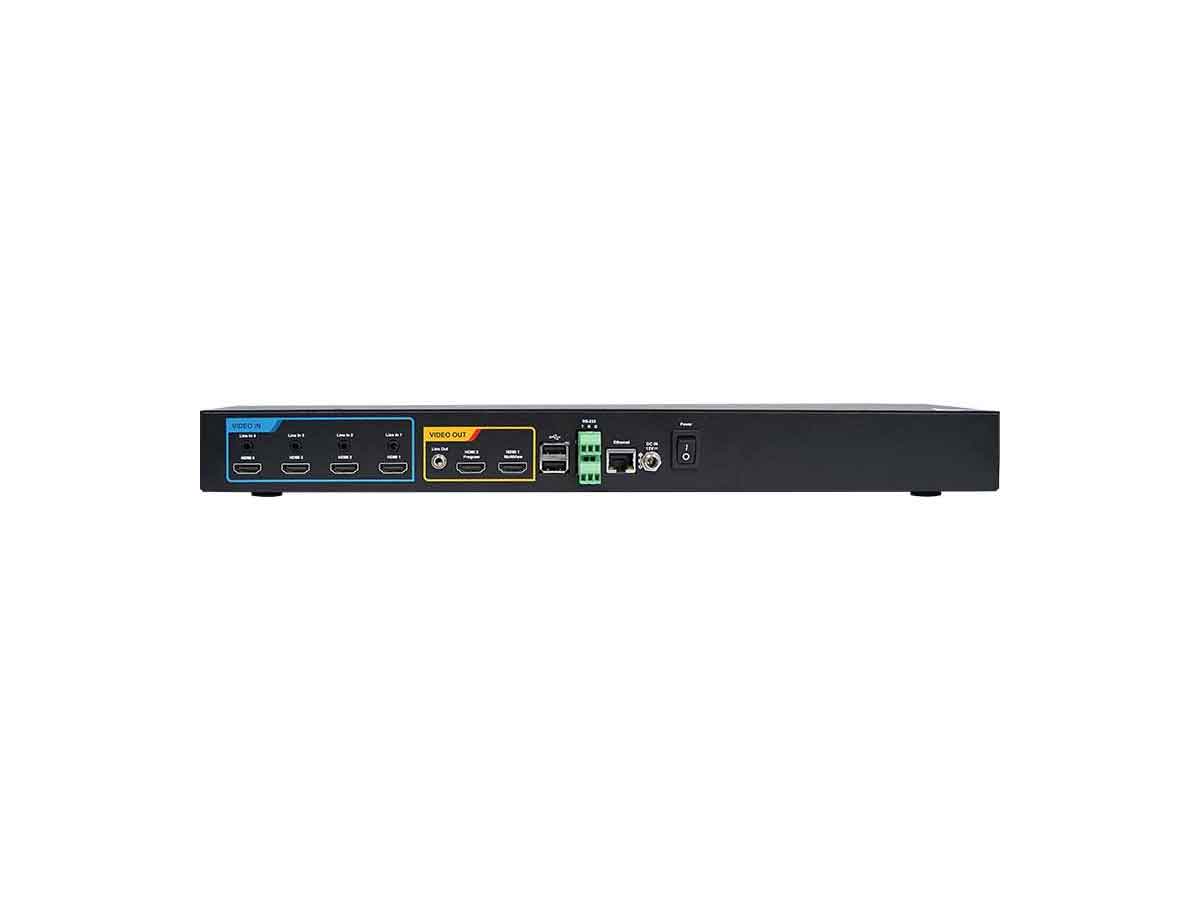

| VIDEO INPUT | |
| Number / Signal: | 4 HDMI digital video |
| Connection: | 4 female HDMI type-A |
| Resolution Range: | 480i~1080p 60fps |
| IP Source: | Lumens IP PTZ / Box Cameras RTSP Source (H.264 1080p 60/30fps) |
| VIDEO PROCESSING | |
| Video Compression: | H.264/AVC 4:2:0 8bit color Encoding profile: High, Main, Baseline |
| Bitrate: | 200 kbps to 10 Mbps |
| VIDEO OUTPUT | |
| Number / Signal: | 3 H.264/AVC digital video over Ethernet 2 HDMI digital video |
| Scaled Resolution: | 1080p |
| Frame Rate: | 30 / 60 fps |
| RECORDING & STORAGE | |
| Internal Storage: | Standard 1TB HDD / Optional 2TB HDD |
| External Storage: | 1 USB 3.0 port in front panel |
| File Type: | MP4 (H.264), JPEG |
| Resolution: | 360p, 720p, 1080p |
| Frame Rate: | Max. 1080p 60/30 fps |
| AUDIO INPUT | |
| Number / Signal: | 4 Line In (stereo, 3.5mm phone jack) 4 stereo, digital de-embedded audio from HDMI IP Audio Source (RTSP, 16K/44.1K/48K) |
| AUDIO OUTPUT | |
| Number / Signal: | 1 stereo, unbalanced 3.5mm phone jack 2 stereo, digital de-embedded audio from HDMI |
| COMMUNICATION | |
| USB: | 2 rear panel USB 2.0 type A Support USB mouse, keyboard, HID touch display |
| Serial Control: | RS-232 / RS-485 port |
| ETHERNET | |
| Ethernet Host Port: | 1 female RJ-45 10/100/1000 Base-T high/full duplex |
| Streaming Protocol: | Pull: RTSP Push: RTMP / RTMPS / MPEG-TS TCP, UDP, HTTP DHCP Client |
| FUNCTIONS | |
| Supports IP Sources: | Lumens IP Cameras, RTSP |
| Scenes Switch: | Yes, preset for layout, background, and overlay |
| Layout Switch: | Yes (Single, PIP, PBP, 3 and 4 windows layouts) |
| Background Switch: | Yes |
| Overlay: | Yes, PNG overlay or System time overlay |
| File Backup: | FTP / SFTP / NAS(CIFS/SMB, NFS) / USB Flash Drive |
| GENERAL | |
| Power Supply: | DC In , 12 V / 2A |
| Power Consumption: | 24W |
| Dimensions: | Standard 1u rack dimensions 122.5mm(L) x 431mm (W) x 44.3mm (H) |
| Weight: | 1.2 kg |
