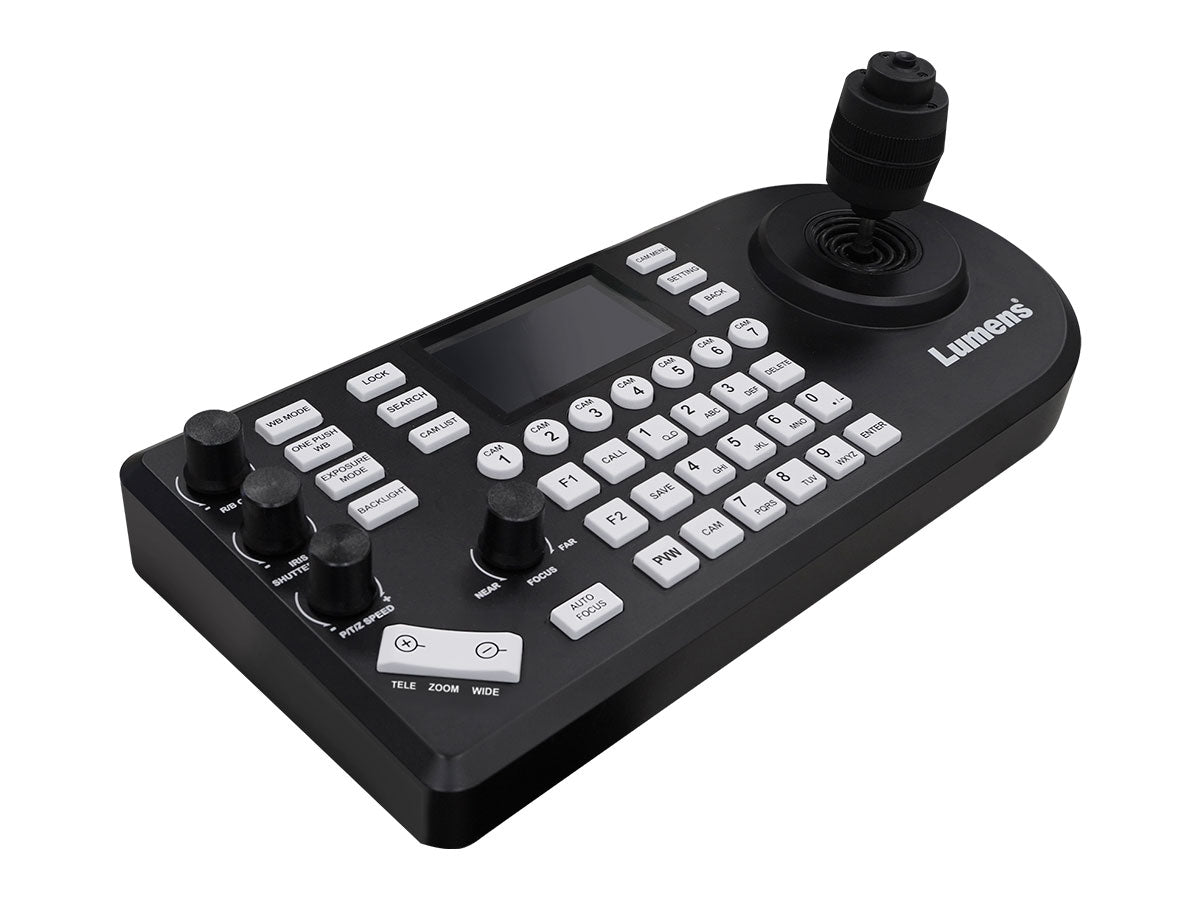

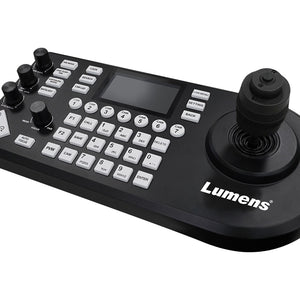

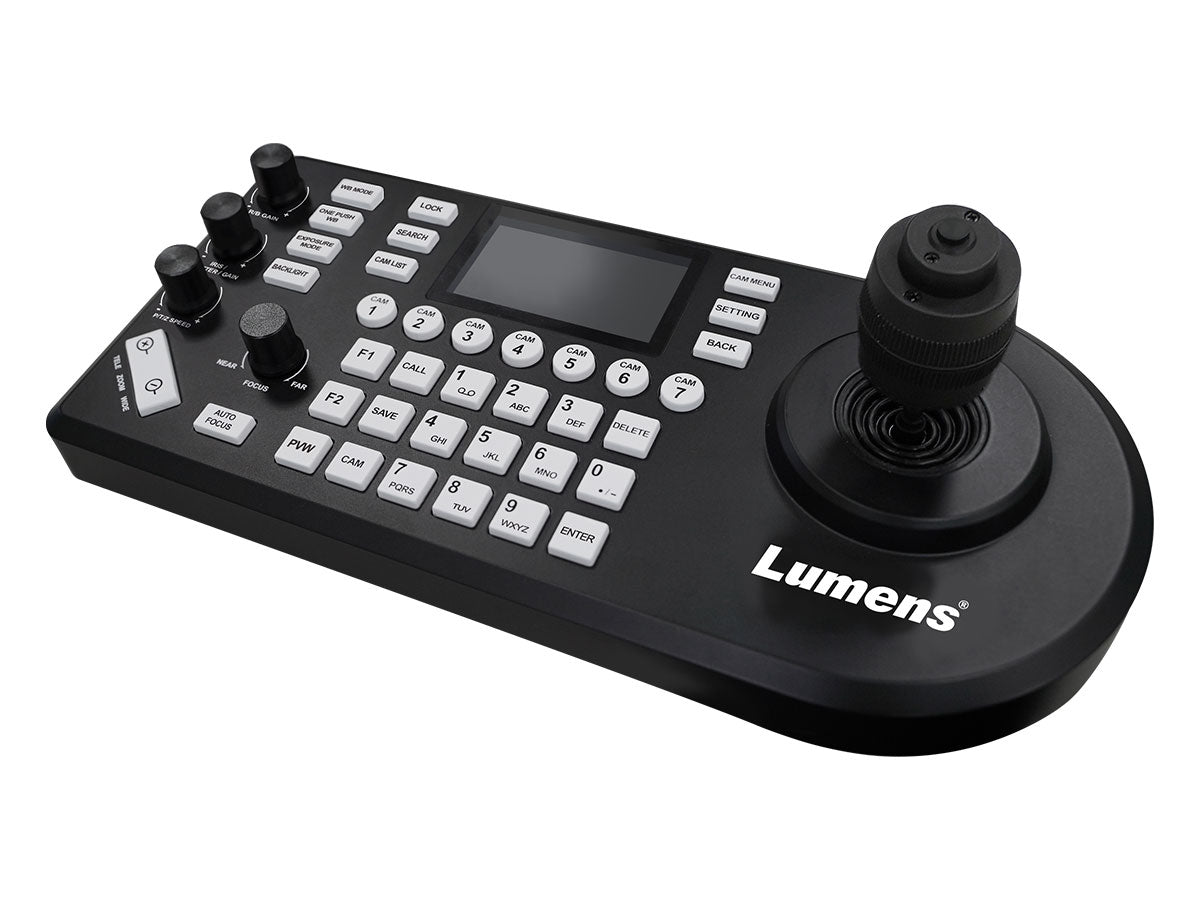

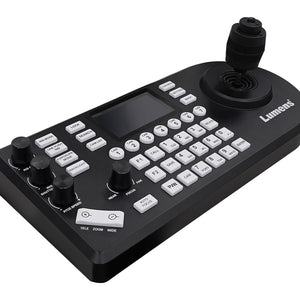

Lumens VS-KB21N IP Camera Controller with NDI
Lumens VS-KB21N IP Camera Controller with NDI
SKU:
LUM-VS-KB21N
Regular price
£1,340.00 GBP ex VAT
£1,608.00 GBP inc VAT
£1,608.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,340.00 GBP ex VAT
£1,608.00 GBP inc VAT
Unit price
per
£1,608.00 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
VS-KB21N is a fully-featured IP controller suitable for use with box and PTZ cameras. Its built-in display allows the user to preview the IP or NDI stream of each connected camera. This makes it easier and quicker to frame each shot and to set up presets.
NDI Workflows
VS-KB21N identifies NDI cameras on the IP network and allows monitoring and full device control. The controller also supports the VISCA protocol making it a supremely versatile unit.
VS-KB21N identifies NDI cameras on the IP network and allows monitoring and full device control. The controller also supports the VISCA protocol making it a supremely versatile unit.

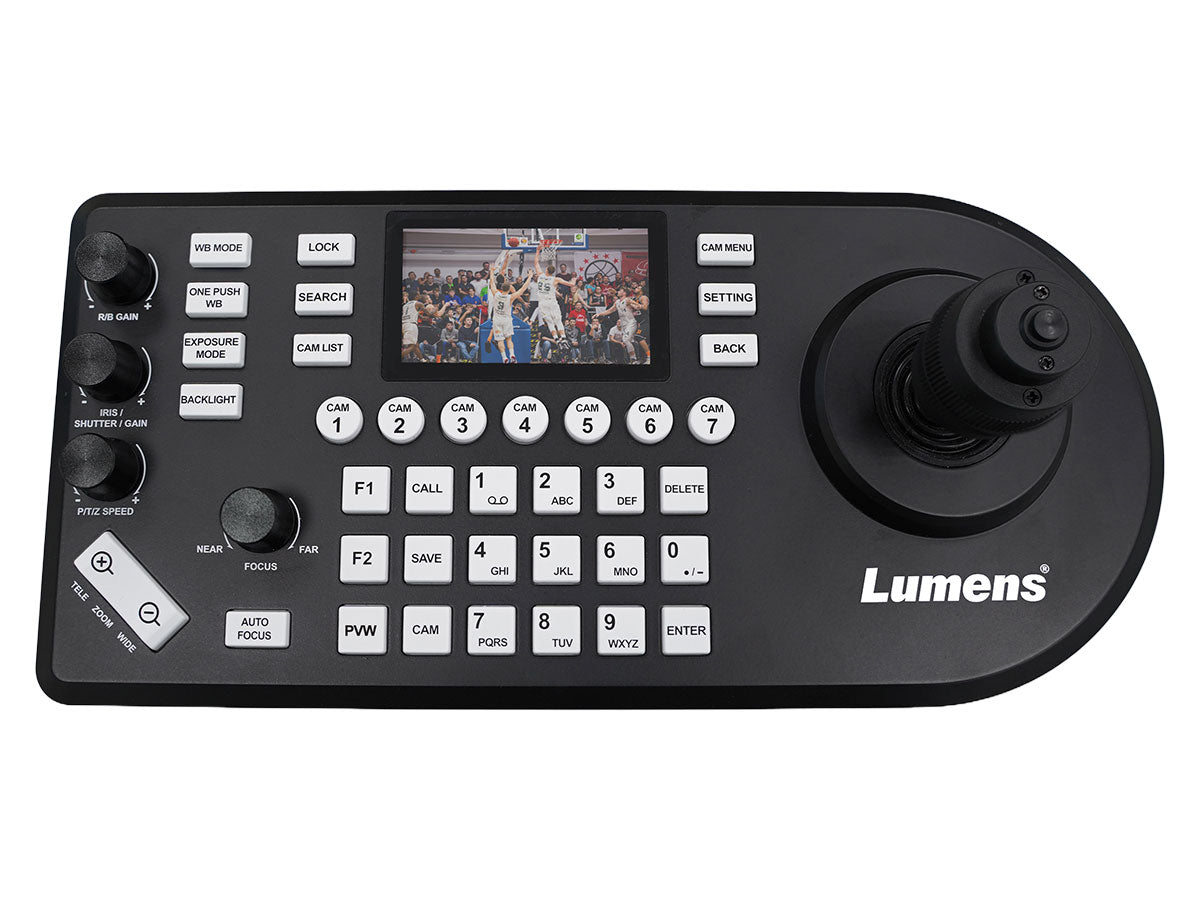

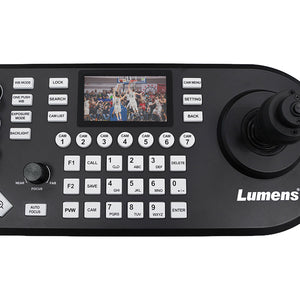

3" LCD Preview Screen
The low latency preview screen monitors up-to 255 IP streams simultaneously. For precise framing, the operator can switch to a single stream layout enabling full screen video preview.
The low latency preview screen monitors up-to 255 IP streams simultaneously. For precise framing, the operator can switch to a single stream layout enabling full screen video preview.
Quick Camera Select

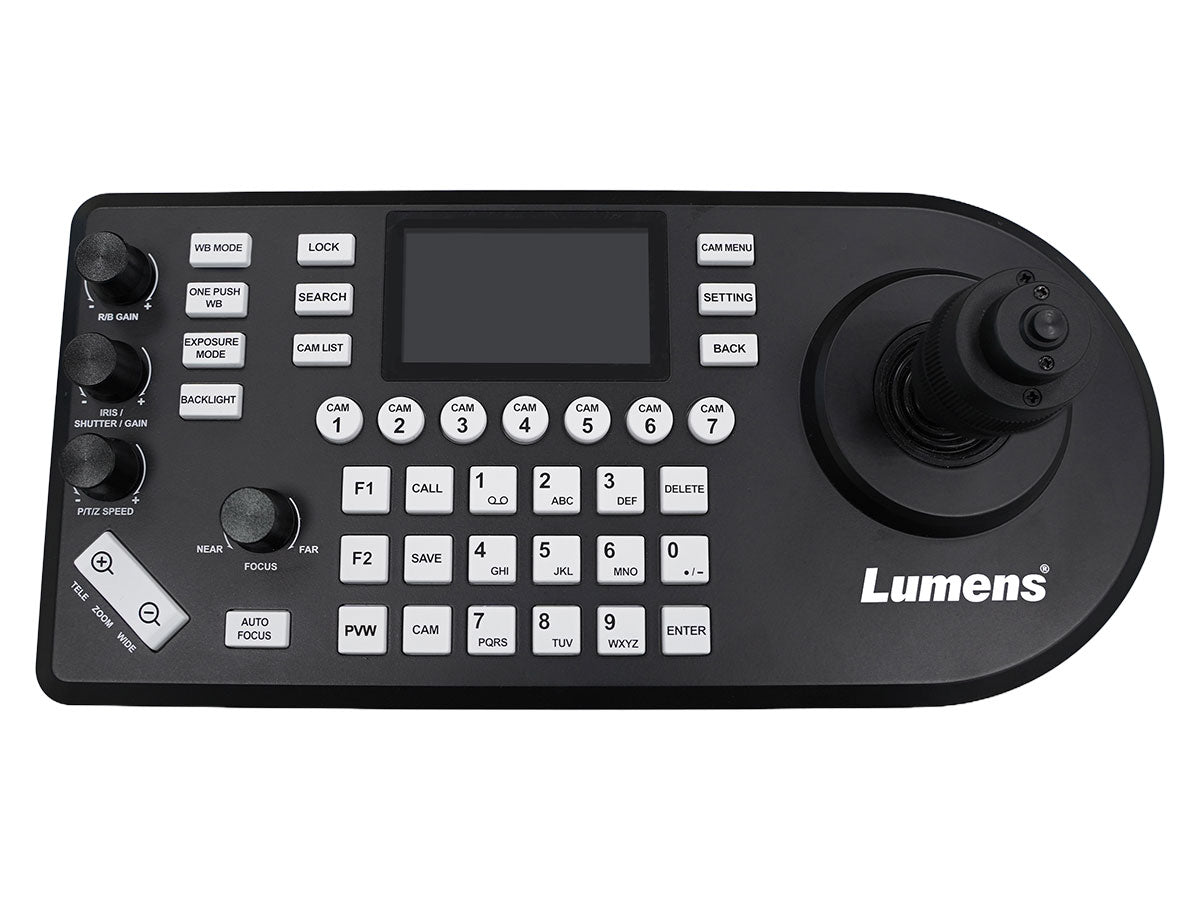

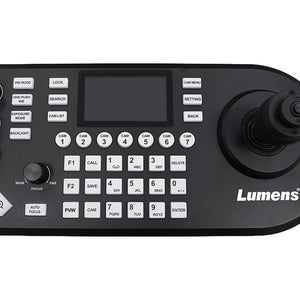

With 7 hot keys, the operator can instantly select the PTZ or box camera they want to control. This makes it easier than ever to manage a multi-camera production.
With 7 hot keys, the operator can instantly select the PTZ or box camera they want to control. This makes it easier than ever to manage a multi-camera production.
Quick Settings
The LCD screen displays all key camera parameters including iris, shutter and gain. This allows quick and accurate set-up of each camera.
The LCD screen displays all key camera parameters including iris, shutter and gain. This allows quick and accurate set-up of each camera.
- Controls up-to total of 255 IP-connected or NDI-connected cameras
- Quick access control of exposure, white balance, focus, PTZ speed and 2 user-assignable keys
- Supports RTSP and NDI Stream Preview on LCD screen

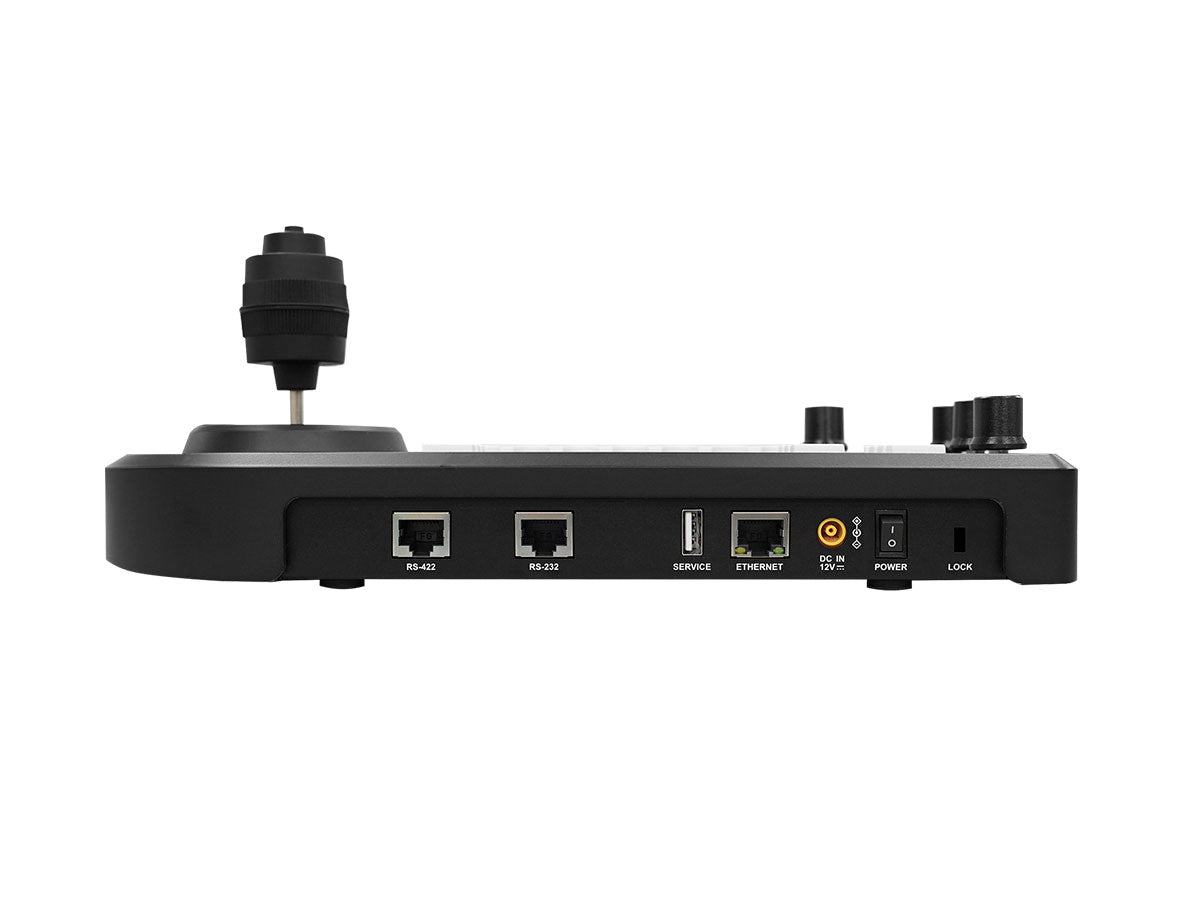

- Supports RS-232, RS-422, and Ethernet control
- Supports VISCA, VISCA Over IP and NDI control protocols
| Comm. Interface: | RS-232 / RS-422 / IP |
| Display: | 3" LCD |
| Joystick: | 4-axis (Pan / Tilt / Zoom) |
| Speed Control: | x1 (1 Knob) |
| Zoom Control: | x1 (Zoom Seesaw Lever) |
| Gain Control: | R/B Gain |
| Focus Control: | Auto / Manual |
| Assign Button: | x2 |
| Keypad With Backlight: | Yes |
| Stream Preview: | RTSP / NDI HX |
| Control Protocol: | NDI / VISCA / VISCA Over IP |
| Baud Rate: | 2400 / 4800 / 9600 / 38400 / 115200 bps |
| Camera Address: | 1~255 |
| Preset: | 255 |
| Power: | DC12V / PoE |
| Power Consumption: | PoE: 5W DC In: 5W |
| Dimensions: | 11.89″ x 5.63″ x 4.41″ / 302 mm x 143mm x 112mm |
| Weight: | 2.8 lbs / 1.3 kg |
