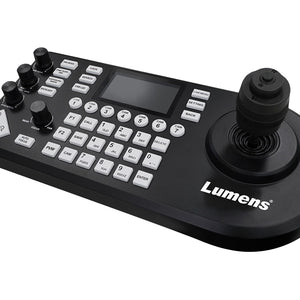

Lumens VS-KB21 IP Camera Controller
Lumens VS-KB21 IP Camera Controller
SKU:
LUM-VS-KB21
Regular price
£1,215.00 GBP ex VAT
£1,458.00 GBP inc VAT
£1,458.00 GBP inc VAT
Regular price
ex VAT
Sale price
£1,215.00 GBP ex VAT
£1,458.00 GBP inc VAT
Unit price
per
£1,458.00 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications

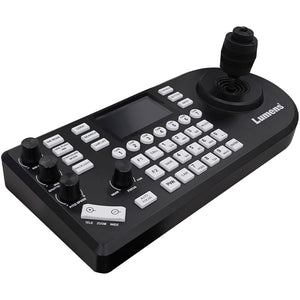

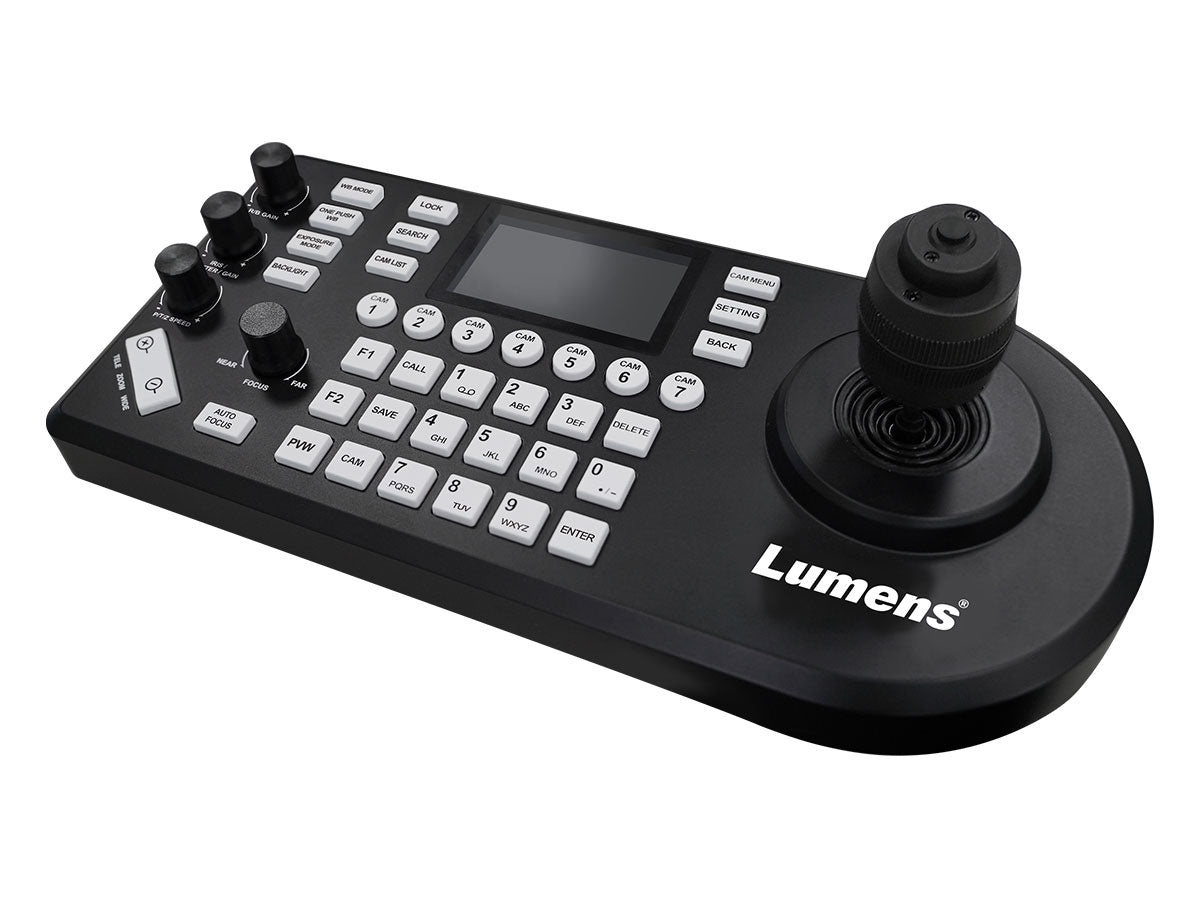

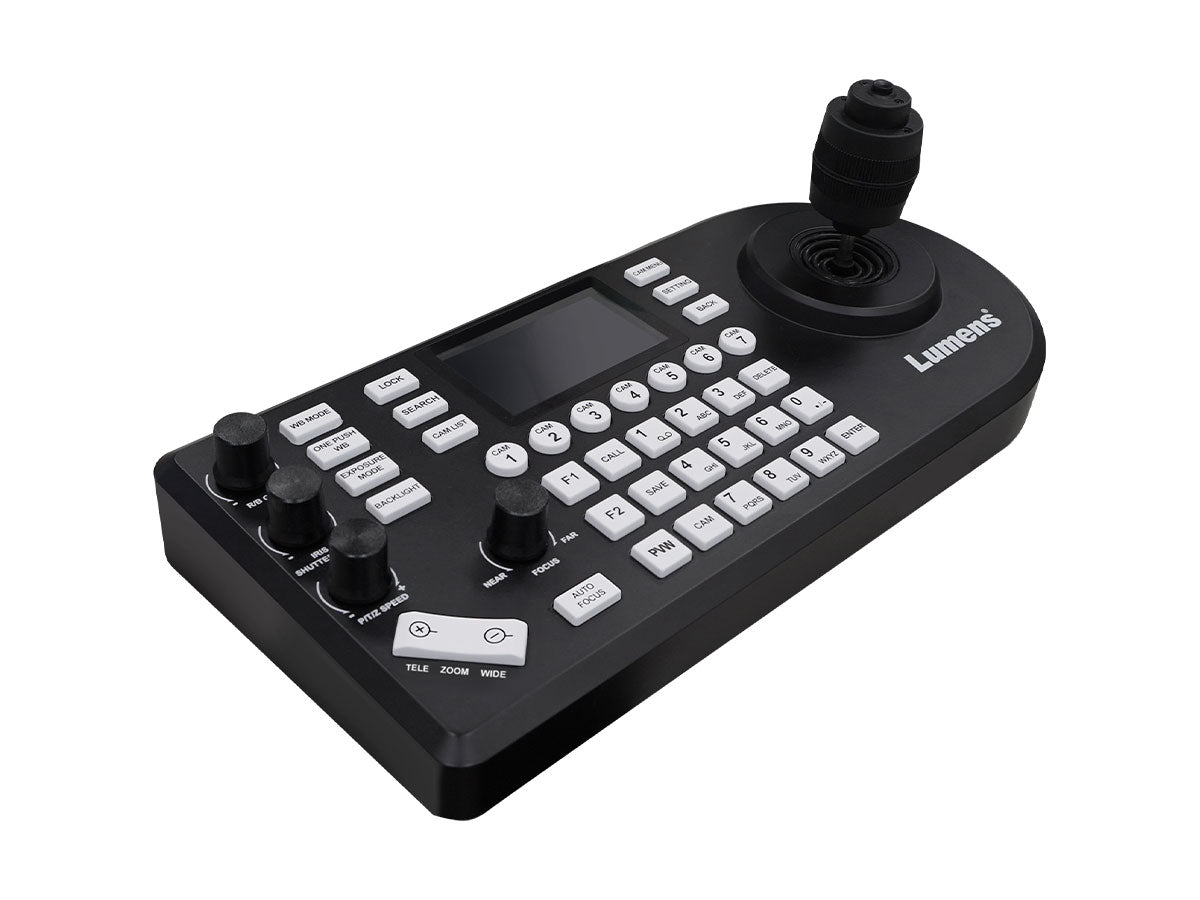

VS-KB21 is a fully-featured IP controller suitable for use with box and PTZ cameras. Its built-in display allows the user to preview the IP stream of each connected camera. This makes it easier and quicker to frame each shot and to set up presets.

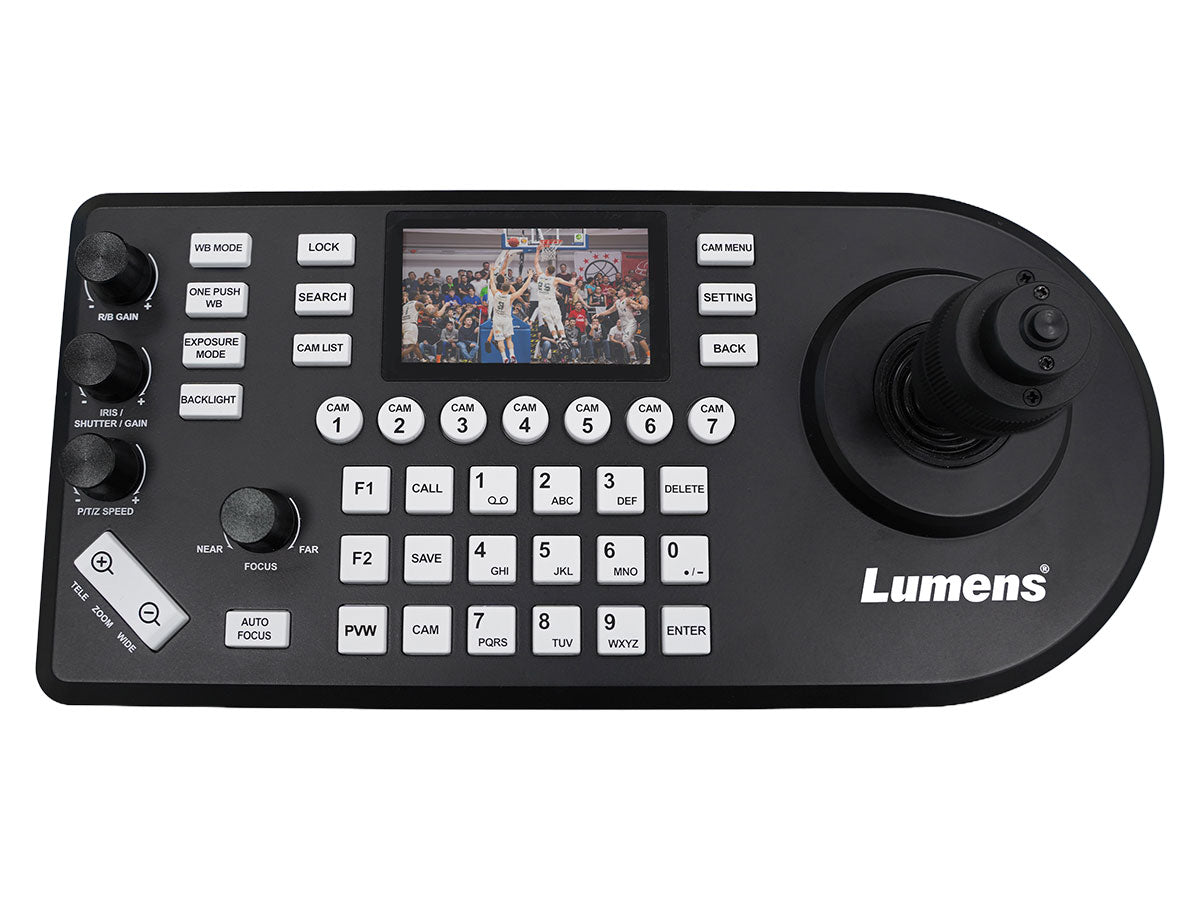

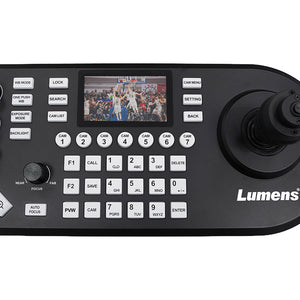

3" LCD Preview Screen
The low latency preview screen monitors up-to 255 IP streams simultaneously. For precise framing, the operator can switch to a single stream layout enabling full screen video preview.
The low latency preview screen monitors up-to 255 IP streams simultaneously. For precise framing, the operator can switch to a single stream layout enabling full screen video preview.
Quick Camera Select

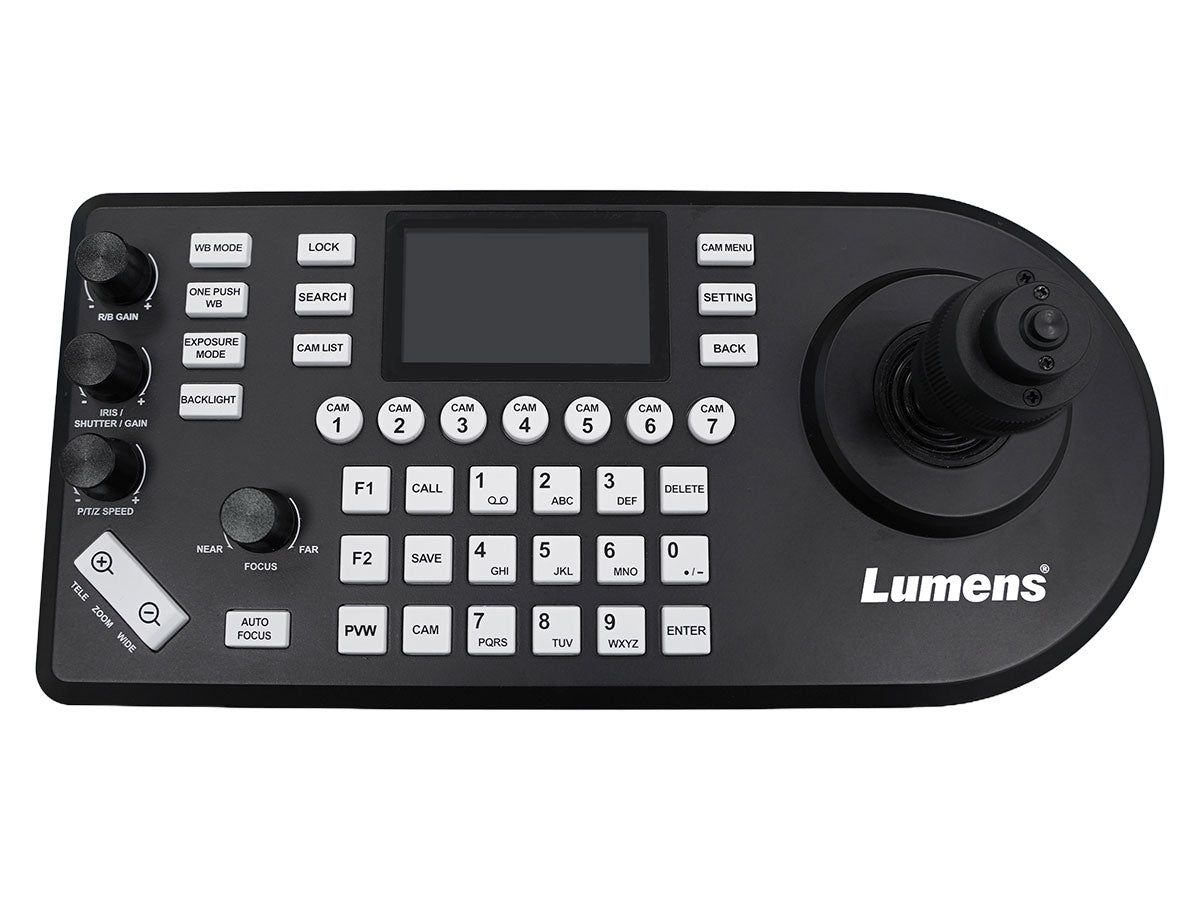

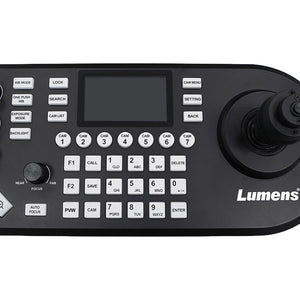

With 7 hot keys, the operator can instantly select the PTZ or box camera they want to control. This makes it easier than ever to manage a multi-camera production.
With 7 hot keys, the operator can instantly select the PTZ or box camera they want to control. This makes it easier than ever to manage a multi-camera production.
Quick Settings
The LCD screen displays all key camera parameters including iris, shutter and gain. This allows quick and accurate set-up of each camera.
The LCD screen displays all key camera parameters including iris, shutter and gain. This allows quick and accurate set-up of each camera.
Single Cable Installation

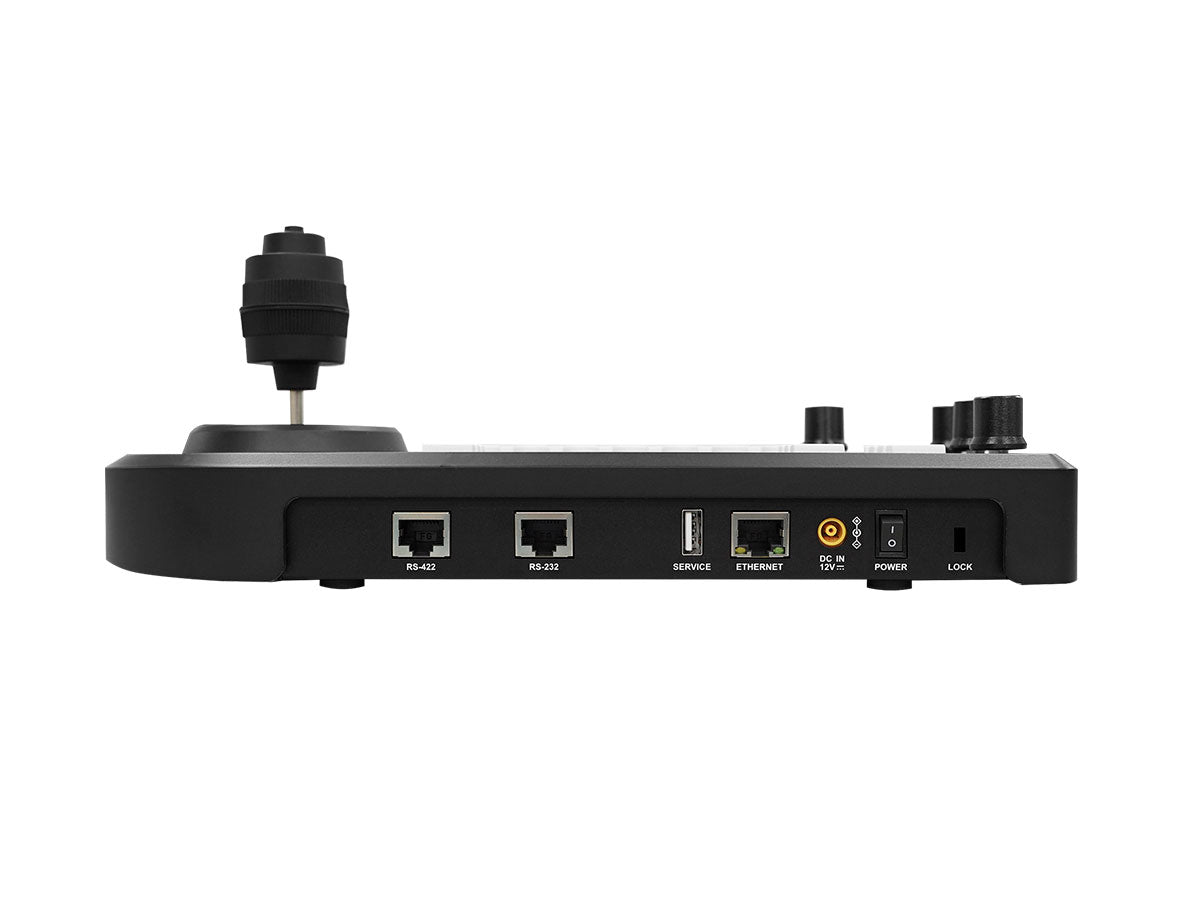

The VS-KB21’s Ethernet connection is multi-purpose. Connected to a PoE-enabled switch, the network cable can transport video, power and control signals. This makes installation extremely quick and cost-effective.
The VS-KB21’s Ethernet connection is multi-purpose. Connected to a PoE-enabled switch, the network cable can transport video, power and control signals. This makes installation extremely quick and cost-effective.
- Controls up-to total of 255 IP-connected cameras
- Quick access control of exposure, white balance, focus, PTZ speed and 2 user-assignable keys
- Supports RTSP Preview on LCD screen
- Supports RS-232, RS-422, and Ethernet control
- Supports VISCA and VISCA Over IP control protocols
| Comm. Interface: | RS-232 / RS-422 / IP |
| Display: | 3" LCD |
| Joystick: | 4-axis (Pan / Tilt / Zoom) |
| Speed Control: | x1 (1 Knob) |
| Zoom Control: | x1 (Zoom Seesaw Lever) |
| Gain Control: | R/B Gain |
| Focus Control: | Auto / Manual |
| Assign Button: | x2 |
| Keypad With Backlight: | Yes |
| Stream Preview: | RTSP |
| Control Protocol: | VISCA / VISCA Over IP |
| Baud Rate: | 2400 / 4800 / 9600 / 38400 / 115200 bps |
| Camera Address: | 1~255 |
| Preset: | 255 |
| Power: | DC12V / PoE |
| Power Consumption: | PoE: 5W DC In: 5W |
| Dimensions: | 11.89″ x 5.63″ x 4.41″ / 302 mm x 143mm x 112mm |
| Weight: | 2.8 lbs / 1.3 kg |
