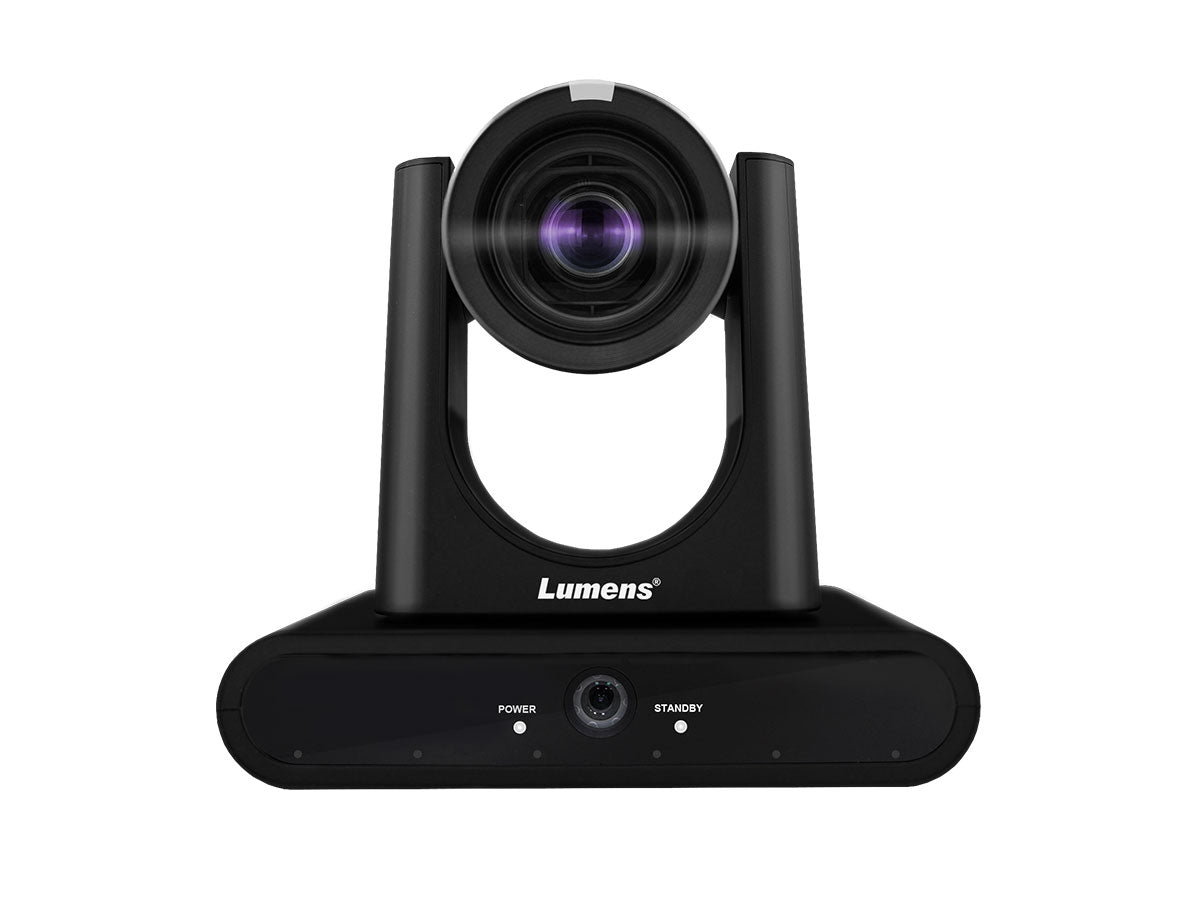

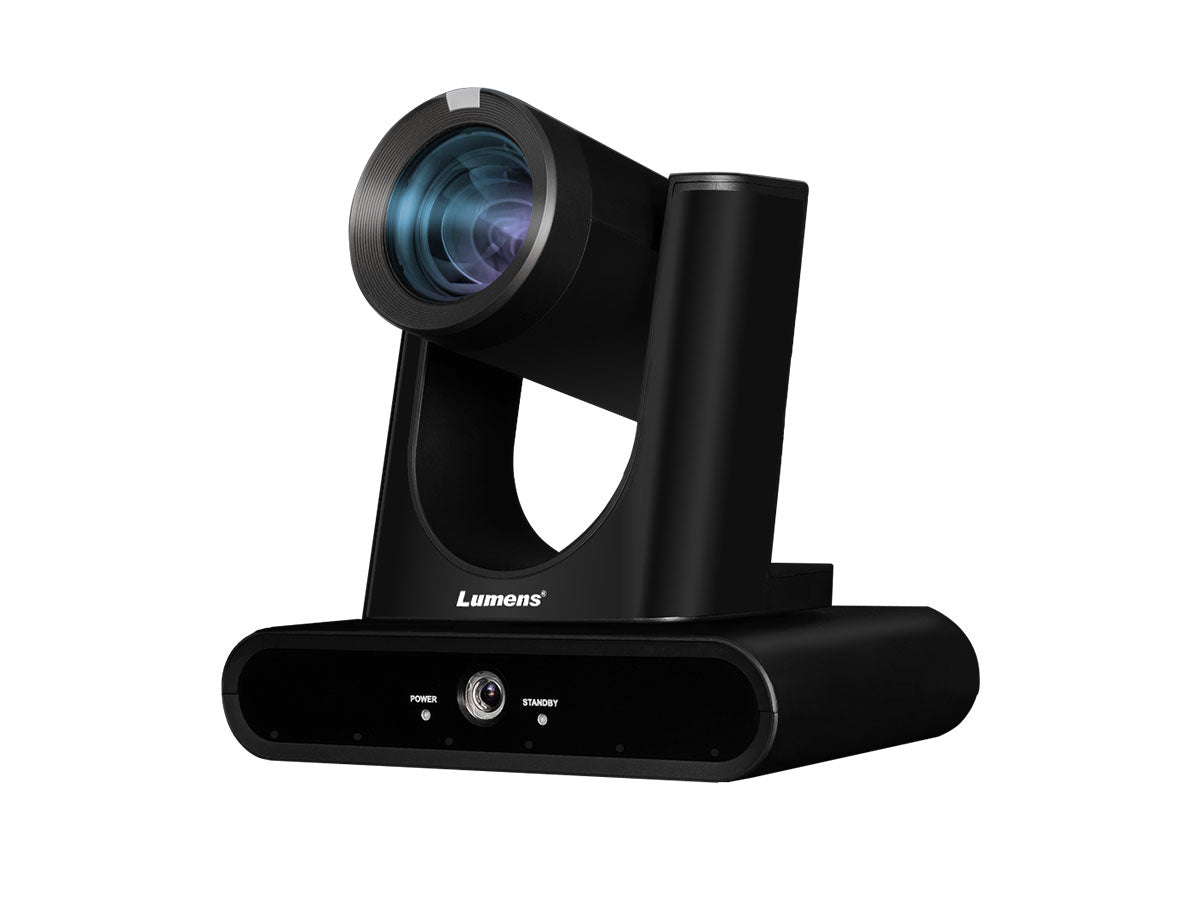

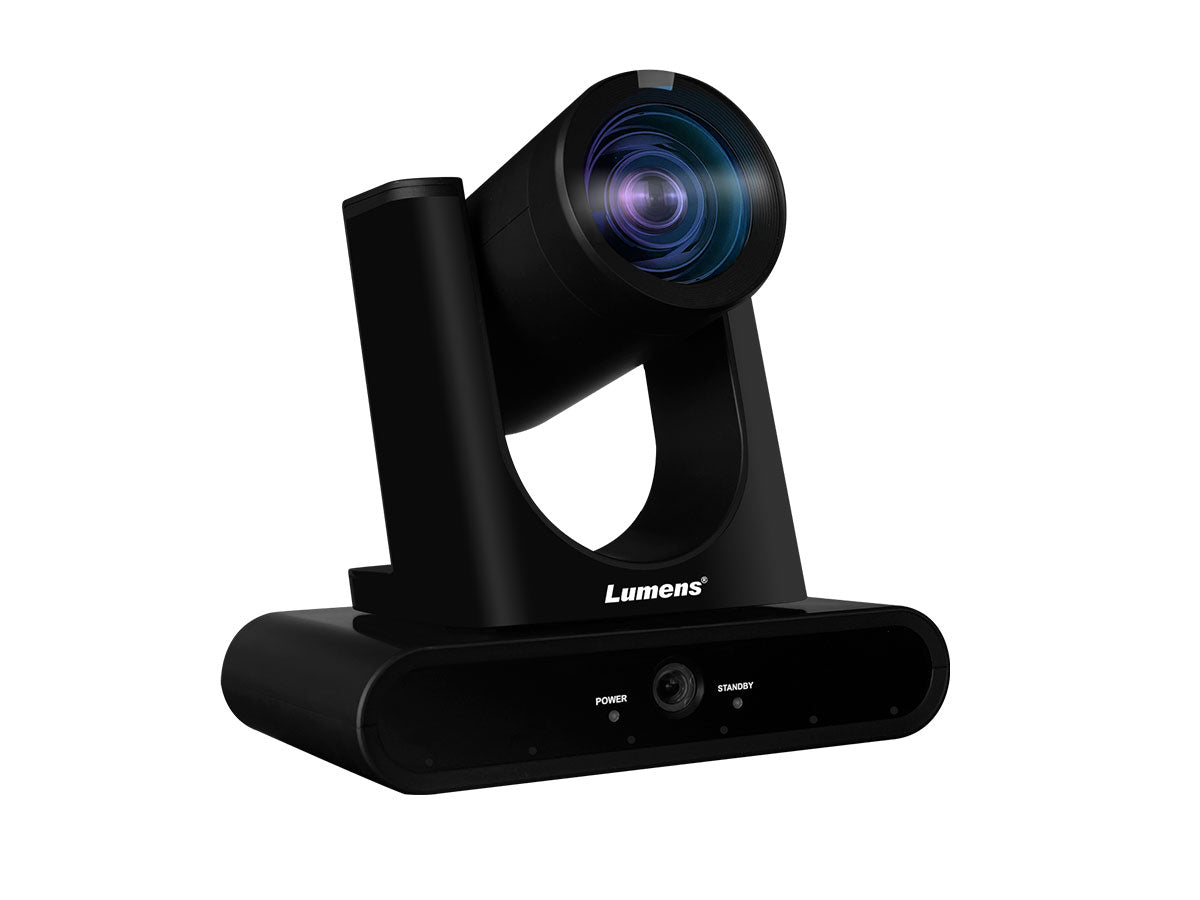

Lumens VC-TR60A 4K Dual Lens Speaker Tracking Camera - Black
Lumens VC-TR60A 4K Dual Lens Speaker Tracking Camera - Black
SKU:
LUM-VCTR60APB
Regular price
£1,924.00 GBP ex VAT
£2,308.80 GBP inc VAT
£2,308.80 GBP inc VAT
Regular price
ex VAT
Sale price
£1,924.00 GBP ex VAT
£2,308.80 GBP inc VAT
Unit price
per
£2,308.80 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
Intelligent Voice Tracking
VC-TR60A incorporates an array of directional sound sensors that detect the location of active human voices. The camera head moves and zooms to shoot the current speaker, re-framing as other voices enter the discussion. VC-TR60A supports a reference audio input (USB or line in). This eliminates remote side audio interference, ensuring precise and reliable voice-tracking of speakers within the room.
AI Motion Tracking
VC-TR60A features sophisticated auto-tracking and framing modes. Its intelligent human detection algorithms deliver smooth tracking for conferences, presentations, meeting rooms, classrooms and studios.
PIP Output
VC-TR60A can combine the two video images in a picture-in-picture display with output over HDMI and USB. This allows the audience to watch a composite video that incorporates both the wide-angle view and the tight shot. This function can be activated independently, or at the same time as running motion or voice tracking.
Dual Video Output
VC-TR60A generates two video streams from its panoramic fixed camera and the robotic zoom head. These can be delivered over IP into a media processor, IP-based production software or a lecture capture system to provide two camera angles from a single unit.
- 4K Dual Lens Speaker Tracking Camera
- Dual Lens Camera with 12x Optical Zoom
- Smart Speaker Tracking with integrated voice sensors
- Picture in Picture Function
- Motion-detect and auto-tracking

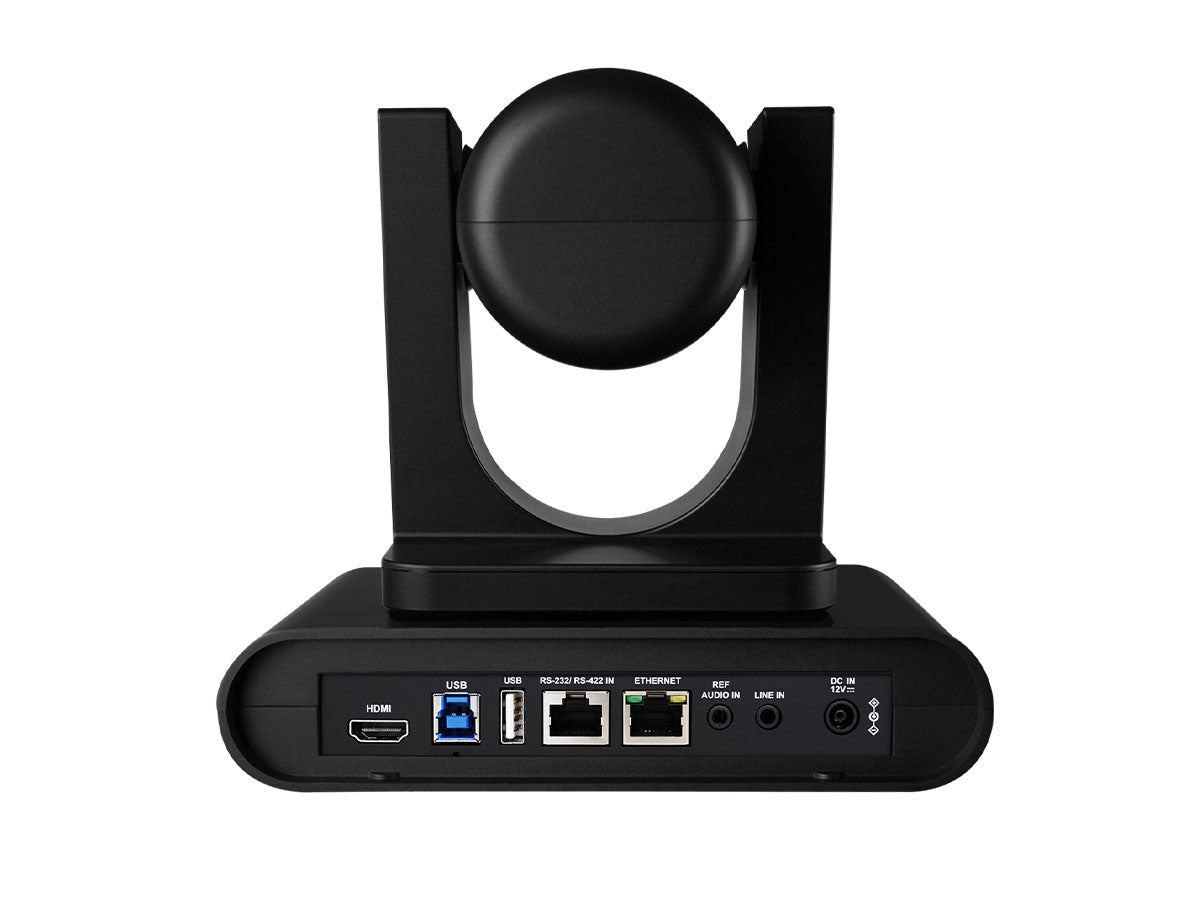

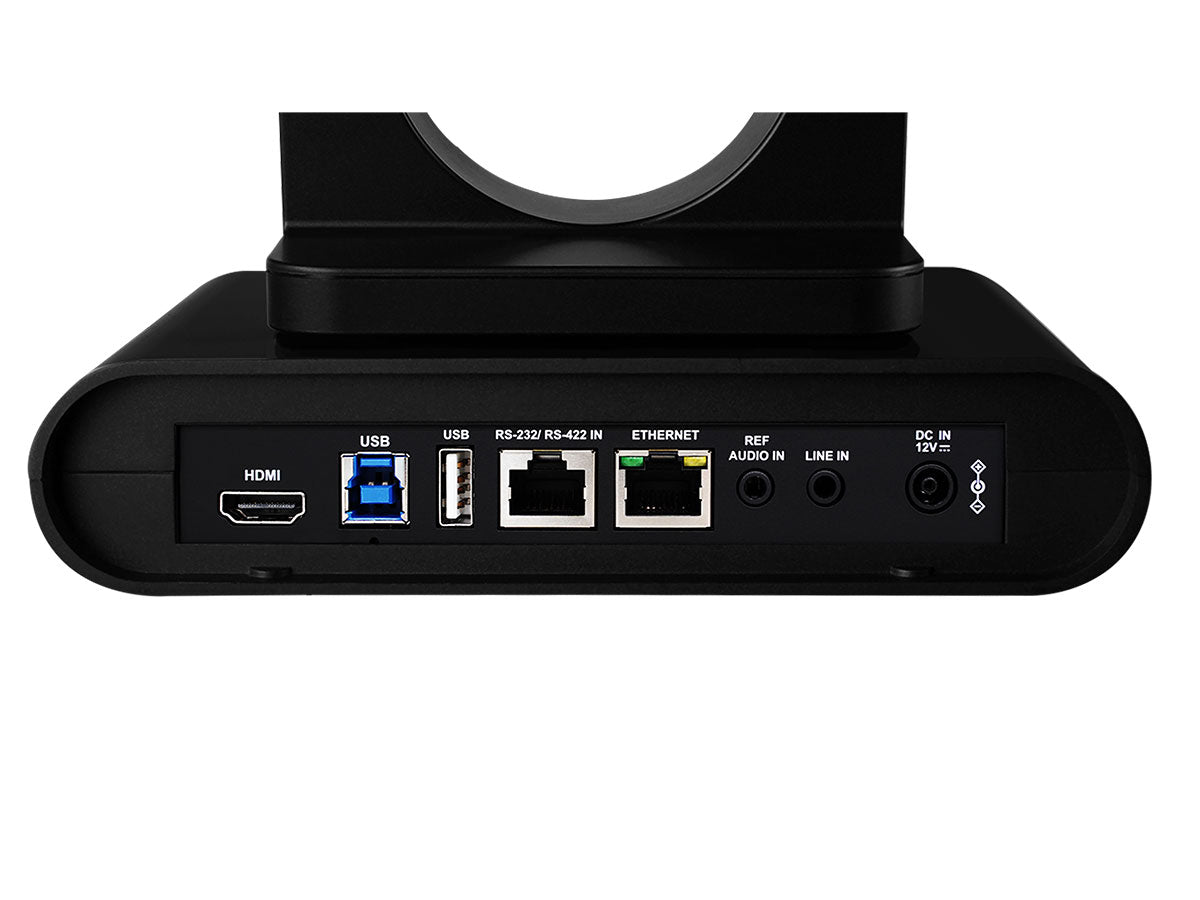

- HDMI, Ethernet, and USB simultaneous output
| PTZ CAMERA | |
| Sensor: | 1/2.8″ 8.51M |
| Video Format: | 2160p : 60 / 50 2160p : 30 / 25 1080p : 60 / 50 / 30 / 25 720p : 60 / 50 / 30 / 25 1080i : 60 / 50 |
| Video Output (HD) Interface: | HDMI / Ethernet / USB |
| Optical Zoom: | 12x |
| Digital Zoom: | 8x |
| Horizontal Viewing Angle: | 81° |
| Vertical Viewing Angle: | 50.5° |
| Diagonal Viewing Angle: | 88.9° |
| Aperture: | F1.8 ~ F3.6 |
| Focal Length: | 3.4 ~ 43.3 mm |
| Shutter Speed: | 1/25 ~ 1/10,000 sec |
| Minimum Object Distance: | Tele:1.5m / Wide:1m |
| Video S/N Ratio: | > 50dB |
| Minimum Illumination: | 0.5Lux (F1.8, AGC ON) |
| Focus System: | Auto / Manual |
| Gain Control: | Auto / Manual |
| White Balance: | Auto / Manual |
| Exposure Control: | Auto / Manual |
| WDR: | Yes |
| 3D NR: | Yes |
| Image Flip | Yes |
| PIP: | Yes |
| Auto Tracking: | Yes |
| Voice Tracking: | Yes |
| Auto Framing: | Yes |
| PANORAMIC CAMERA | |
| Sensor: | 1/2.8″ 8.51M |
| Video Format: | 2160p 30 / 25 1080p 60 / 50 / 30 / 25 |
| Horizontal Viewing Angle: | 110° |
| Vertical Viewing Angle: | 78° |
| Aperture: | F2.0 |
| Focal Length: | f=1.89mm |
| PAN & TILT | |
| Panning Angle: | +170° ~ -170° |
| Panning Speed: | 0.1°~100°/sec |
| Tilting Angle: | +90° ~ -30° |
| Tilting Speed: | 0.1°/s ~ 60°/sec |
| Preset Positions: | 256 |
| OUTPUT | |
| HDMI: | PTZ : 2160p 60 Panoramic : 2160p 30 |
| IP Stream: | PTZ : 2160p 30 / 720p 30 Panoramic : 1080p 60 |
| IP Compression: | H.264 |
| USB Output: | 2160p 30 |
| USB Compression: | H.264 / MJPEG / NV12 |
| NETWORK | |
| IP Protocol: | HTTP / RTSP / RTMP / RTMPS / SRT |
| PoE: | PoE+ (IEEE802.3at) |
| AUDIO | |
| Audio Input: | Line In |
| Ref Audio Input: | USB / Line In |
| Audio Output: | Ethernet / USB / HDMI |
| Audio Compression Format: | AAC / PCM |
| CAMERA CONTROL | |
| Interface: | RS-232 / Ethernet / USB |
| Protocol: | VISCA / ONVIF |
| UVC: | Yes |
| UAC: | Yes |
| GENERAL | |
| DC In: | 12V +/- 20% |
| Power Consumption: | PoE: 15W DC In: 14W |
| Body Colour: | Black / White |
| Weight: | 1.5 kg |
| Dimensions: | 190 ×185 ×144 mm |
