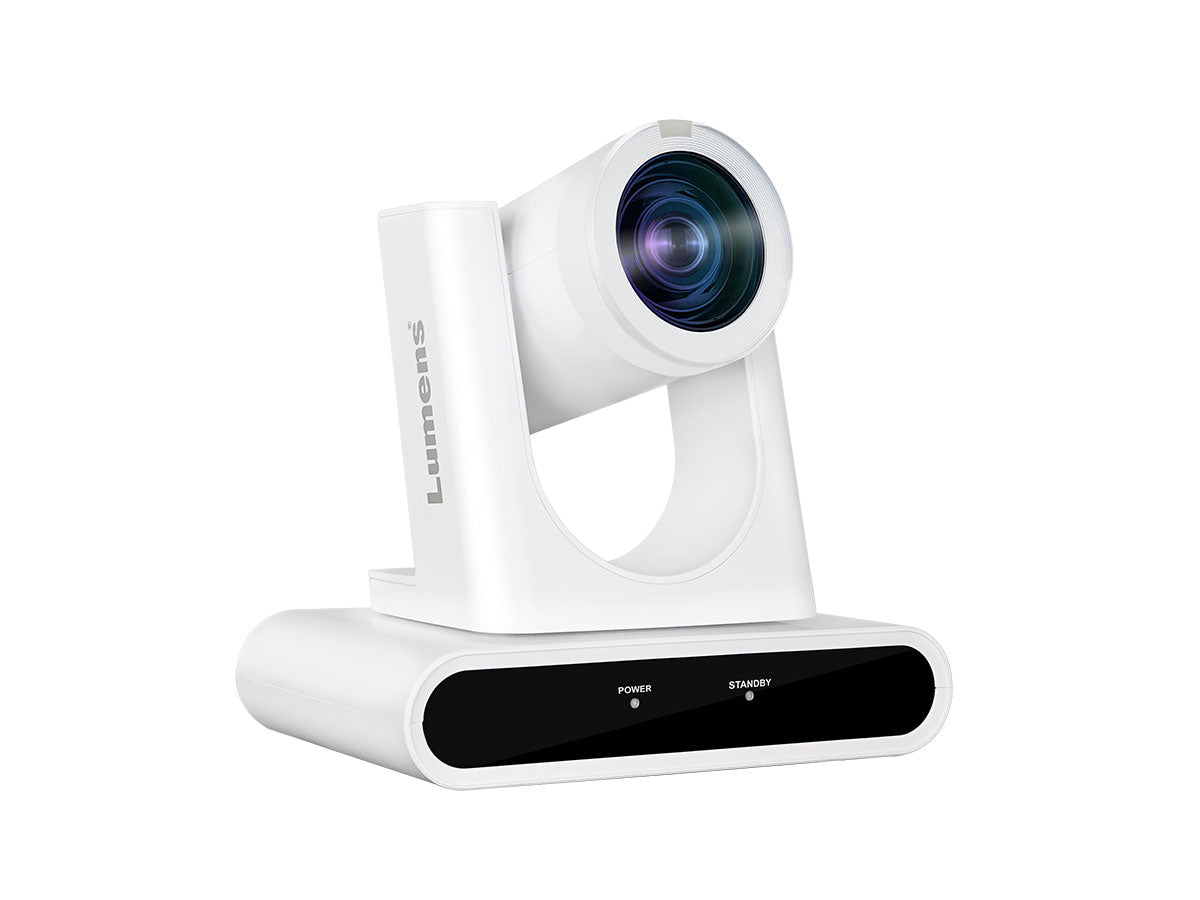

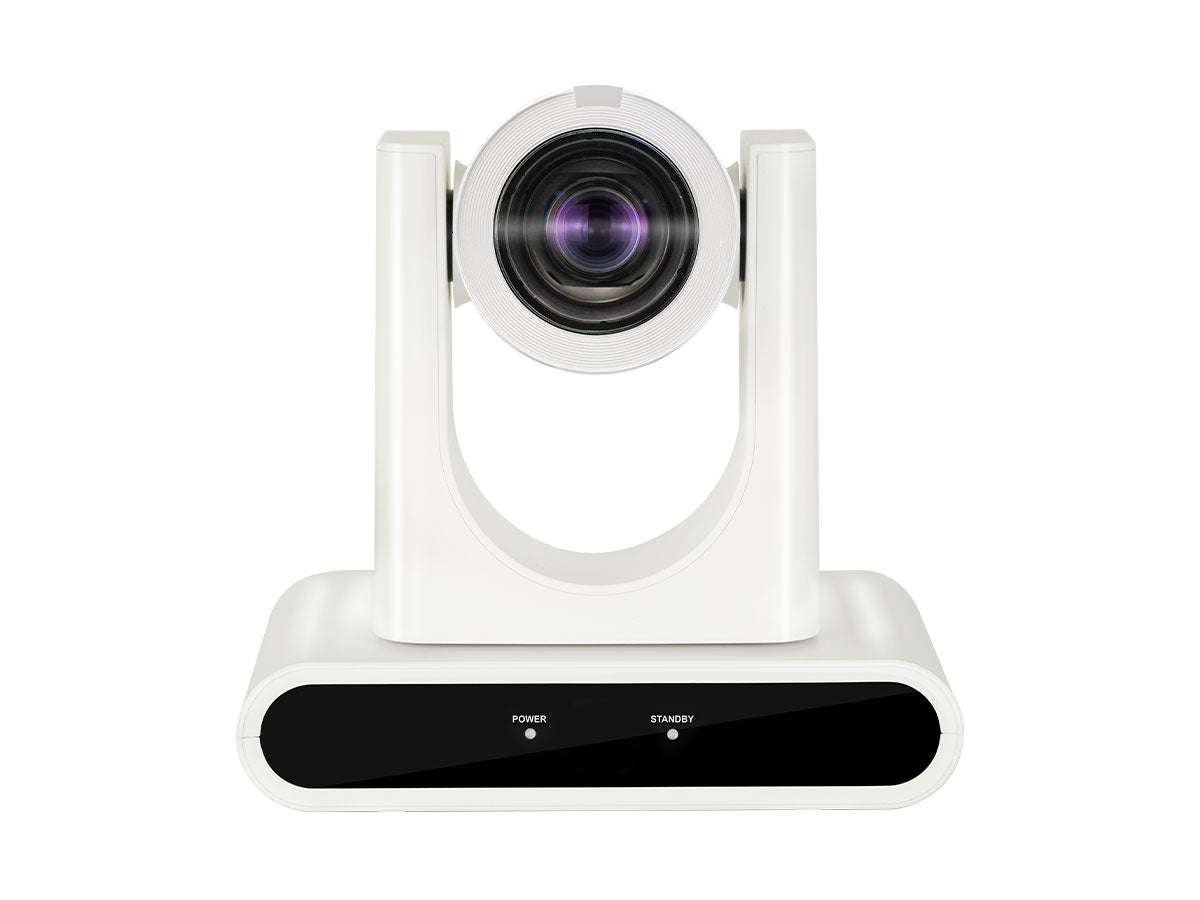

Lumens VC-TR60 4K AI Auto-Tracking Camera - White
Lumens VC-TR60 4K AI Auto-Tracking Camera - White
£2,076.00 GBP inc VAT
£2,076.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
Lumens VC-TR60 is versatile PTZ camera with an UltraHD sensor. Its ultra-wide lens features a 12x zoom giving it incredible flexibility. The camera includes auto-tracking and framing modes to enable autonomous operation and features simultaneous quad-port video out.
Wide-Angle UltraHD
Featuring an 81° horizontal frame of view, VC-TR60 can shoot as wide as a webcam. Its 12x optical zoom means that it can focus tight, with the 4K sensor picking out every detail.
Tracking and Framing Modes
VC-TR60 features sophisticated auto-tracking and framing modes. Its intelligent facial recognition algorithms deliver smooth tracking for conferences, presentations, meeting rooms, classrooms, and studios.
Quad Video Output
The camera delivers video over HDMI and SDI, making it suitable for AV and video workflows. Its USB video output is compatible with most VC / UC platforms and the Ethernet port is optimized to stream video over IP.
Flexible Mounting
Install VC-TR60 upright or suspended from the ceiling using Lumens' dedicated mounts.
- 4K AI Auto-Tracking Camera
- 4K 60fps
- 12x Optical Zoom HFOV 81°
- AI-based Human Detection
- HDMI, Ethernet, 3G-SDI, USB output
| PTZ CAMERA | |
| Sensor: | 1 / 2.8” 8.6M |
| Video Format: | 2160p: 59.94 / 50 / 29.97 / 25 1080p: 59.94 / 50 / 29.97 / 25 720p: 59.94 / 50 / 29.97 / 25 1080i: 59.94 / 50 |
| Video Output (HD) Interface: | HDMI, Ethernet, 3G-SDI, USB |
| Optical Zoom: | 12x |
| Digital Zoom: | 8x |
| Horizontal Viewing Angle: | 81° |
| Vertical Viewing Angle: | 50° |
| Diagonal Viewing Angle: | 90° |
| Aperture: | F1.8 ~ F3.6 |
| Focal Length: | 3.4 ~ 43.3 mm |
| Shutter Speed: | 1 / 25 ~ 1 / 10,000 sec |
| Minimum Object Distance: | Tele:1m Wide: 0.1m |
| Video S/N Ratio: | > 50dB |
| Minimum Illumination: | 1 lux (F1.8, 50IRE, 30fps) |
| Focus System: | Auto, manual |
| Gain Control: | Auto, manual |
| White Balance: | Auto, manual |
| Exposure Control: | Auto, manual |
| WDR: | Yes |
| 3D NR: | Yes |
| Image Flip: | Yes |
| Auto Tracking: | Yes |
| Auto Framing: | Yes |
| PAN & TILT | |
| Panning Angle: | +170 ~ 170° |
| Panning Speed: | 0.1°~100° / sec |
| Tilting Angle: | +90 ~ -30° |
| Tilting Speed: | 0.1° / s ~ 60° / sec |
| Preset Positions: | 256 |
| OUTPUT | |
| HDMI / 3G-SDI: | 2160p60 / 1080p60 |
| IP Stream: | Main: 2160p60 Second: 1080p30 |
| IP Compression: | H.264 |
| USB Output: | 2160p30 |
| USB Compression: | H.264 / MJPEG / YUY2 / NV12 |
| NETWORK | |
| IP Protocol: | HTTP/ RTSP / RTMP / RTMPS / SRT |
| PoE: | PoE+ (IEEE802.3at) |
| AUDIO | |
| Audio Input: | Line In |
| Audio Output: | Ethernet / USB / HDMI / SDI |
| Audio Compression Format: | USB: PCM |
| CAMERA CONTROL | |
| Interface: | RS-232 / Ethernet / USB |
| Protocol: | VISCA / PELCO D / ONVIF |
| UVC: | Yes |
| UAC: | Yes |
| GENERAL | |
| DC In: | 12V + / - 20% |
| Power Consumption: | PoE: 15W DC In: 14W |
| Body Colour: | Black / White |
| Dimensions: | 7.5” x 7.3” x 5.7” (190 × 185 × 144 mm) |
| Weight: | 3.3lbs (1.5kg) |
