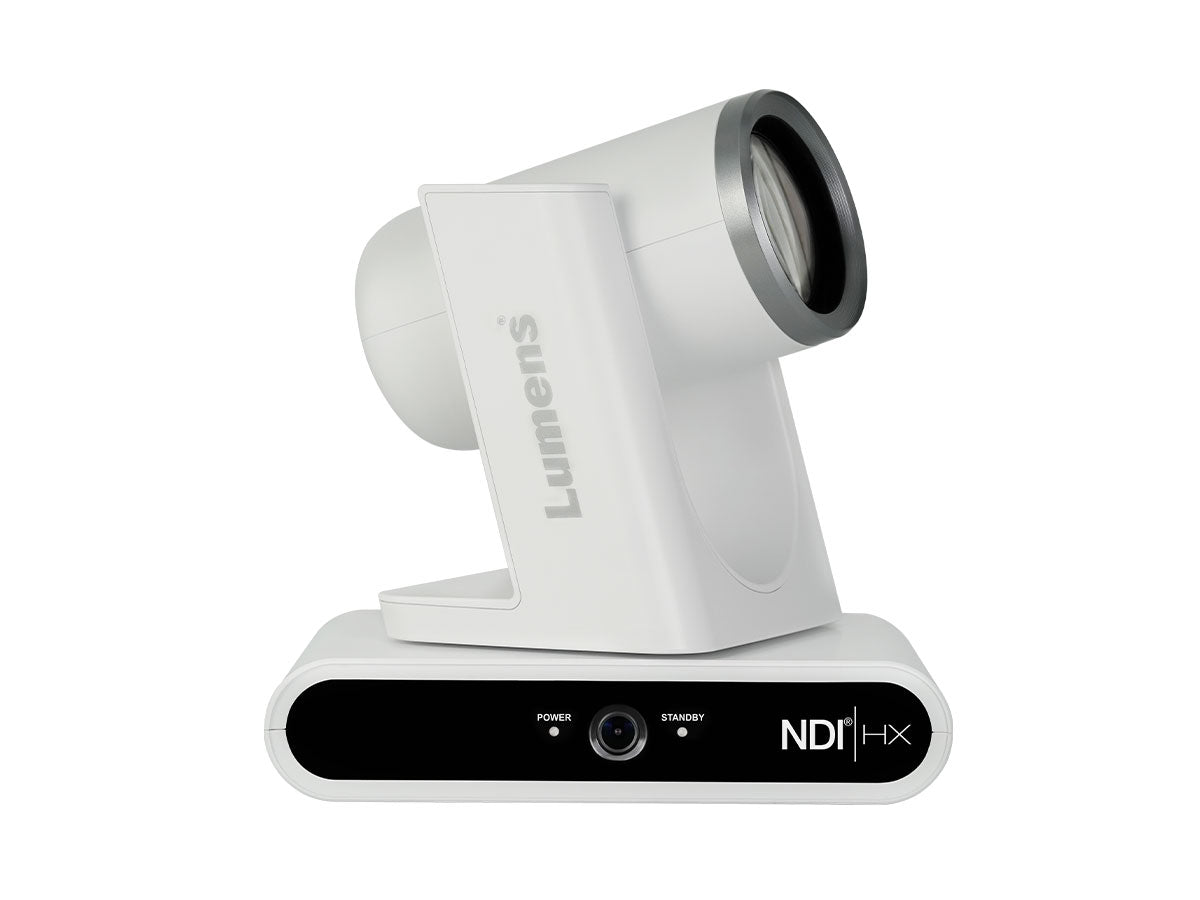

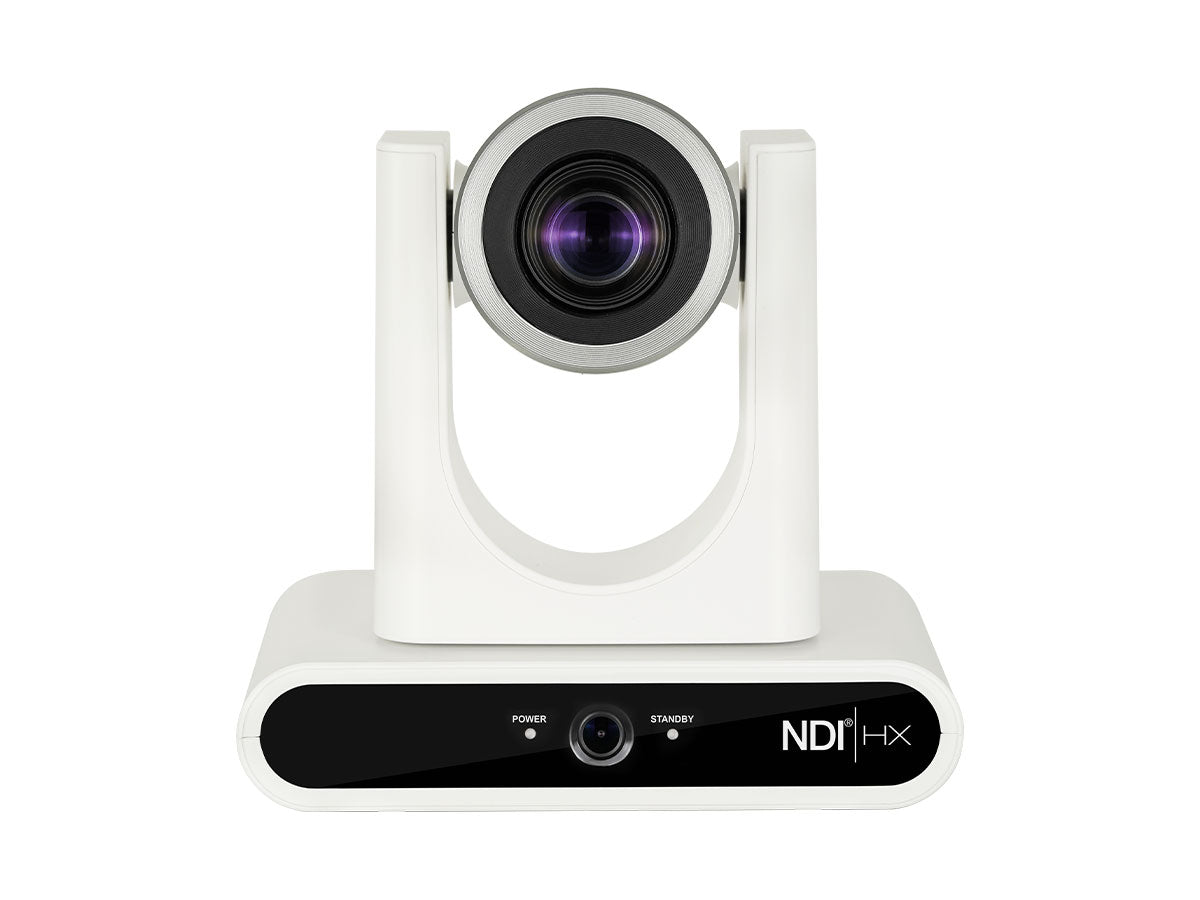

Lumens VC-TR40N AI-Powered NDI Auto-Tracking Camera - White
Lumens VC-TR40N AI-Powered NDI Auto-Tracking Camera - White
£1,944.00 GBP inc VAT
£1,944.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
Lumens VC-TR40N is an NDI-enabled dual camera auto-tracking PTZ. The camera works seamlessly with network-based NDI tools, including media processors, multi-channel recorders, live production software and streaming encoders.
NDI Technology
Connecting the camera to an NDI network means video, audio, control and power down a single Ethernet cable.
Intelligent Modes
VC-TR40N supports stage tracking, everywhere tracking, and partition tracking modes so that you can optimize the sensors to track more accurately than ever and deliver superb results every time.
Gesture Control Tracking
If you have multiple presenters on stage or require audience participation, all they need to do is raise their hands. The camera then switches its focus to the new target.
Auto-Framing and Partition Framing Mode
Auto-framing modes automatically set the ideal camera position for a team meeting or group discussion. The modes frame the delegates and not the space around them.
Flexible Mounting
Unlike many tracking cameras, VC-TR40N can be mounted vertically or inverted from the ceiling.
- AI-Powered NDI Auto-Tracking Camera
- AI-Powered face recognition for intelligent auto-tracking and framing
- NDI|HX output
- HDMI, 3G-SDI, IP and USB simultaneous output
- 1080P 60fps with 20x Optical Zoom
- Mount upright or inverted
| PTZ CAMERA | |
| Sensor: | 1 / 2.8” 2.16MP CMOS |
| Video Format: | 1080p60 1080p50 1080p30 1080p25 720p60 720p50 |
| Video Output (HD) Interface: | HDMI, Ethernet, 3G-SDI, USB 3.0 |
| Optical Zoom: | 20x |
| Digital Zoom: | 12x |
| Horizontal Viewing Angle: | 58.7° |
| Vertical Viewing Angle: | 33° |
| Diagonal Viewing Angle: | 67.3° |
| Aperture: | F1.6 ~ F2.8 |
| Focal Length: | 4.9mm ~ 94mm |
| Shutter Speed: | 1 / 25 ~ 1 / 10,000 sec |
| Minimum Object Distance: | 500mm |
| Video S/N Ratio: | > 50dB |
| Minimum Illumination: | 1 lux (F1.6, 50IRE, 30fps) |
| Focus System: | Auto, manual |
| Gain Control: | Auto, manual |
| White Balance: | Auto, manual |
| Exposure Control: | Auto, manual |
| WDR: | Yes |
| 3D NR: | Yes |
| Image Flip: | Yes |
| Auto Tracking: | Everywhere / Stage / Partition |
| Auto Framing: | Everywhere / Partition |
| Gesture Control: | Yes |
| PANORAMIC CAMERA | |
| Sensor: | 1 / 2.8” 2MP CMOS |
| Video Format: | 720p30 |
| Horizontal Viewing Angle: | 111° |
| Vertical Viewing Angle: | 62° |
| Aperture: | F2.4 |
| Focal Length: | 3.1mm |
| PAN & TILT | |
| Panning Angle: | +170 ~ 170° |
| Panning Speed: | 0.2~120° / sec |
| Tilting Angle: | +90 ~ -30° |
| Tilting Speed: | 0.2~80° / sec |
| Preset Positions: | 256 |
| OUTPUT | |
| HDMI / 3G-SDI: | 1080p60 |
| IP Stream: | PTZ Camera Main: 1080p60 Second: 720p30 Panoramic Camera: 720p30 |
| IP Compression: | H.264 |
| USB Output: | 1080p30 |
| USB Compression: | MJPEG |
| NETWORK | |
| IP Protocol: | HTTP / RTSP / RTMP / RTMPS / SRT / NDI|HX |
| PoE: | Yes(IEEE802.3af) |
| AUDIO | |
| Audio Input: | Line In / MIC In |
| Audio Output: | Ethernet / USB 3.0 / HDMI / SDI |
| Audio Compression Format: | USB: PCM |
| CAMERA CONTROL | |
| Interface: | RS-232 / Ethernet / USB 3.0 |
| Protocol: | VISCA / ONVIF / NDI |
| UVC: | 1.1 |
| UAC: | Yes |
| GENERAL | |
| DC In: | 12V + / - 20% |
| Power Consumption: | PoE: 11W DC In: 10W |
| Body Colour: | Black / White |
| Dimensions: | 7.5” x 7.3” x 5.4” (190 ×185 ×138 mm) |
| Weight: | 3.3lbs (1.5 kg) |
