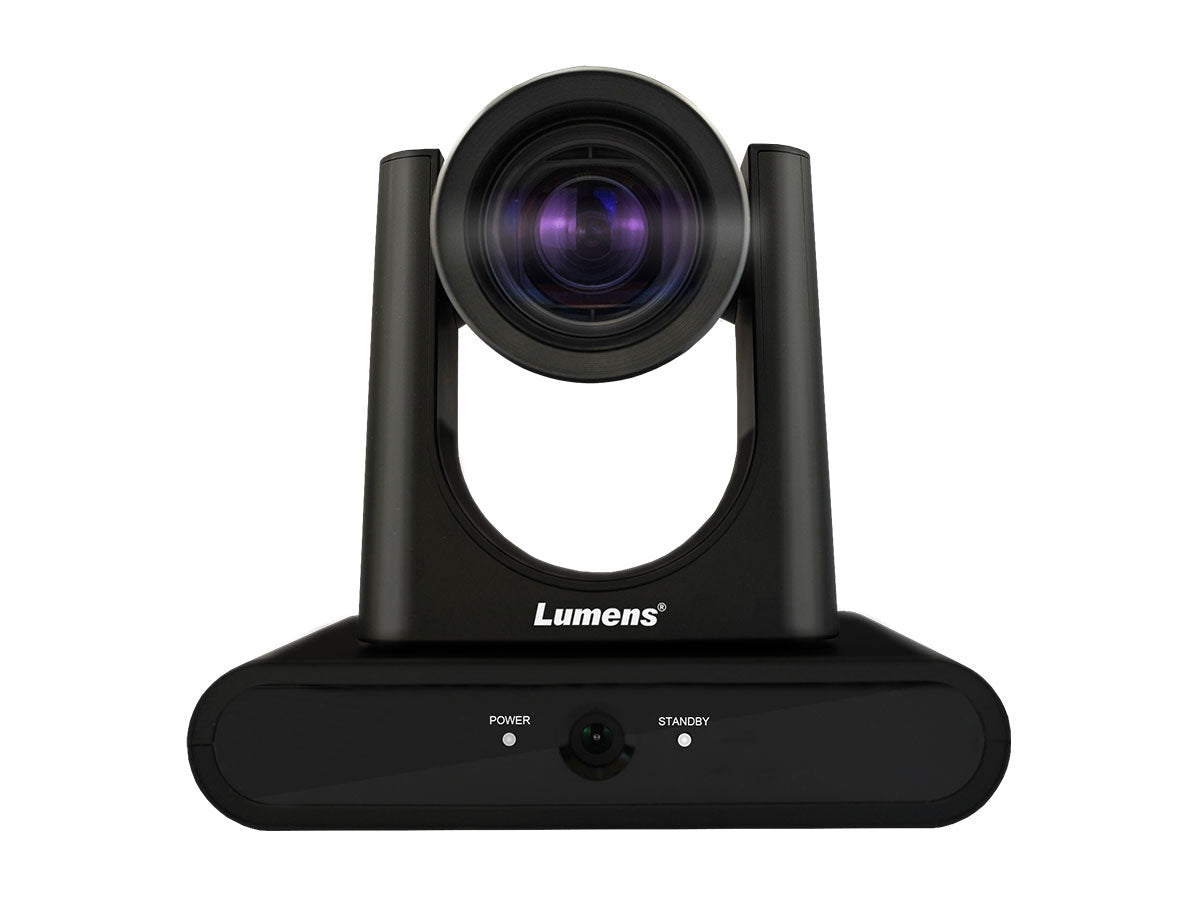

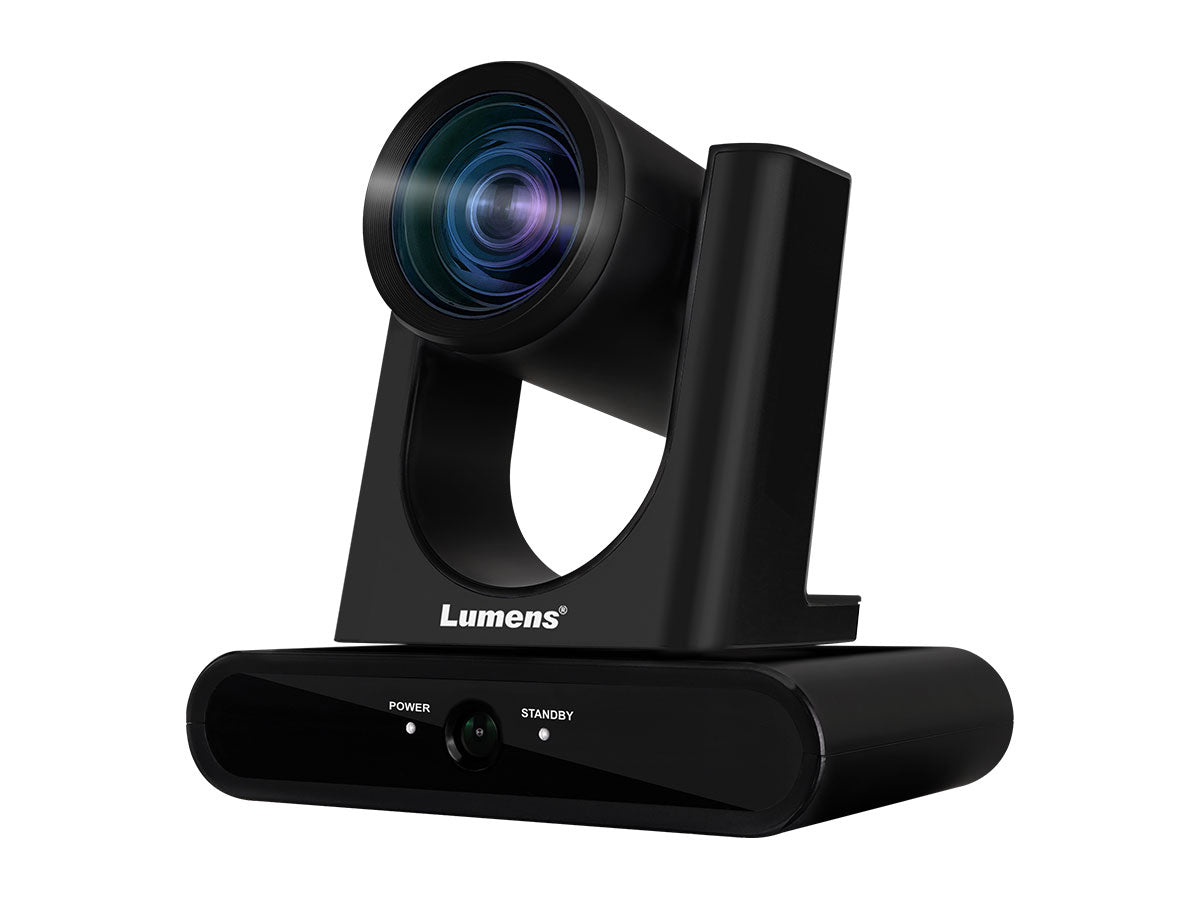

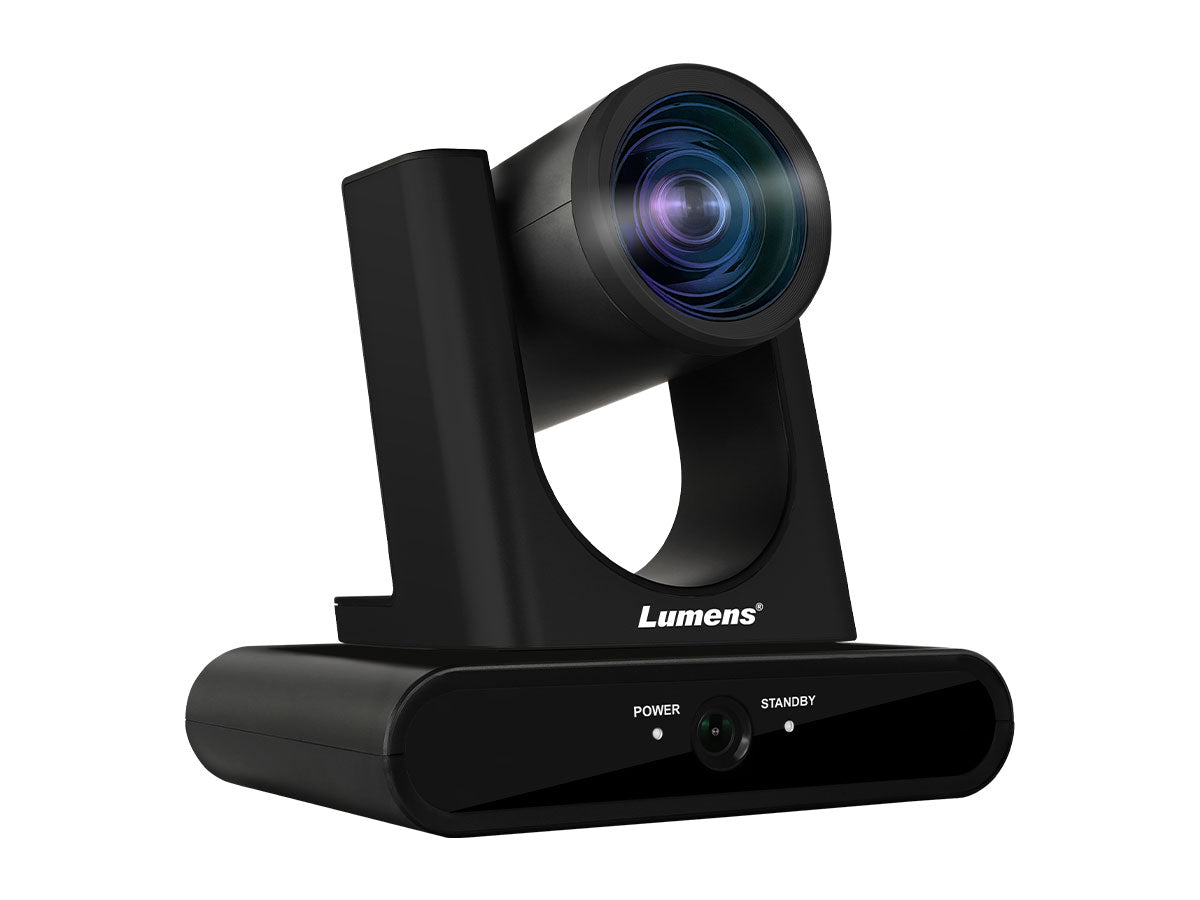

Lumens VC-TR30 AI Auto-Tracking Camera - Black
Lumens VC-TR30 AI Auto-Tracking Camera - Black
£1,536.00 GBP inc VAT
£1,536.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
Automatic Production
VC-TR30 is perfect for use in meeting rooms and presentations because of its intelligent auto-tracking and auto-framing modes. Both enable hands-off video capture, with the camera following a presenter or framing the shot around delegates present in the meeting room.
Flexible Lens
The 12x zoom lens has a 72.5° horizontal field of view at its widest setting, facilitating its use in small video studios, meeting spaces or presentation stages. It works in partnership with the high sensitivity sensor to deliver excellent video quality in all lighting conditions.
Gesture Control Tracking Method
The VC-TR30 features advanced gesture control. When the presenter raises their hands, the tracking target will switch automatically. You can also manually change the tracked subject by selecting the individual via the web interface.
Single Cable Installation
The VC-TR30's Ethernet connection is multi-purpose. Connected to a PoE-enabled switch, the network cable can transport video, power and control signals. This makes installation extremely quick and cost-effective.
- AI-Powered Tracking with Human Detection
- 3 Tracking modes and 2 Framing modes

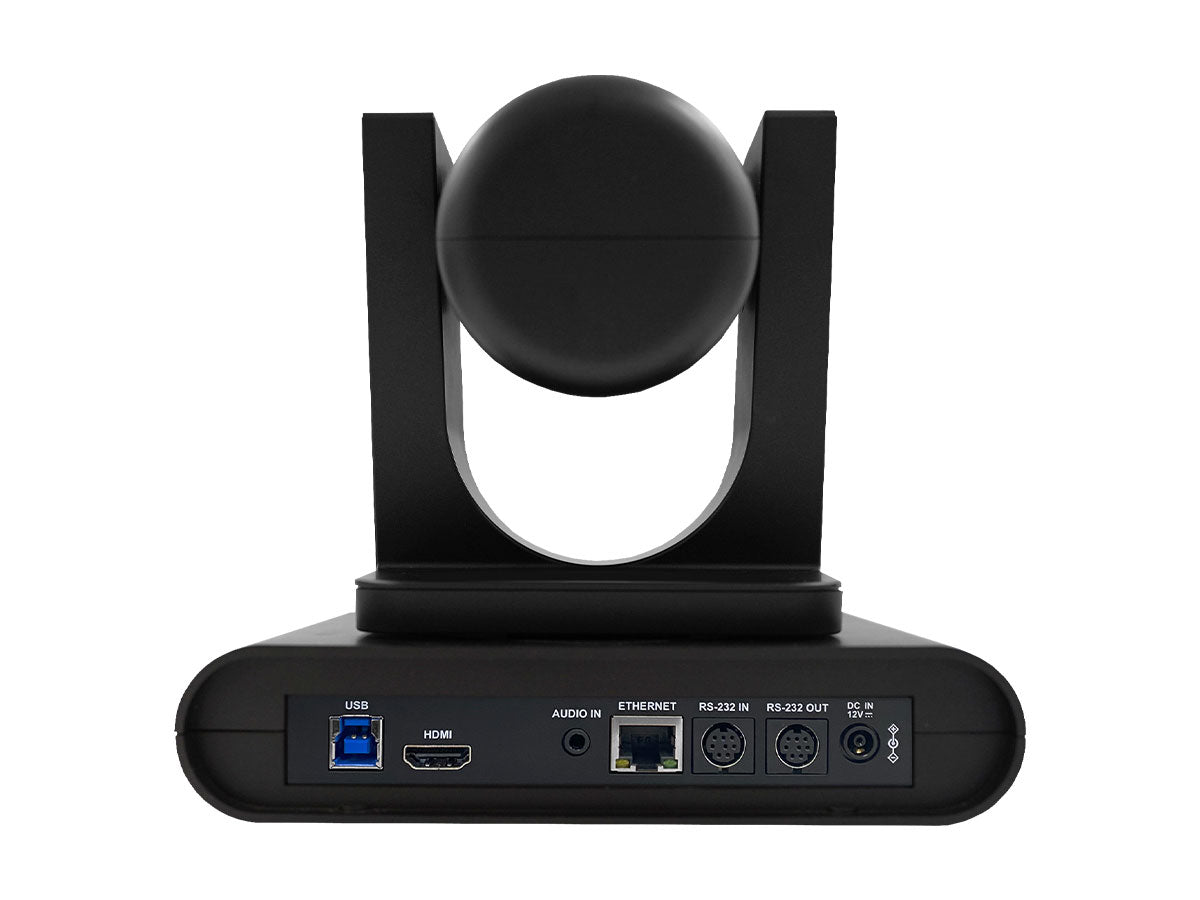

- HDMI, Ethernet and USB simultaneous output
- 1080P 60fps with 12x Optical Zoom
- Mount upright or inverted
| PTZ CAMERA | |
| Sensor: | 1 / 2.8” 2.16MP CMOS |
| Video Format: | 1080p60 1080p50 1080p30 1080p25 720p60 720p50 |
| Video Output (HD) Interface: | HDMI / Ethernet / USB 3.0 |
| Optical Zoom: | 12x |
| Digital Zoom: | 12x |
| Horizontal Viewing Angle: | 72.5° |
| Vertical Viewing Angle: | 40.8° |
| Diagonal Viewing Angle: | 83.2° |
| Aperture: | F1.6 ~ F2.8 |
| Focal Length: | f = 3.9mm ~ 46.8mm |
| Shutter Speed: | 1 / 25 ~ 1 / 10,000 sec |
| Minimum Object Distance: | Wide = 1000mm, Tele = 1500mm |
| Video S/N Ratio: | > 50dB |
| Minimum Illumination: | 1 lux (F1.6, 50IRE, 30fps) |
| Focus System: | Auto, manual |
| Gain Control: | Auto, manual |
| White Balance: | Auto, manual |
| Exposure Control: | Auto, manual |
| WDR: | Yes |
| 3D NR: | Yes |
| Image Flip: | Yes |
| Auto Tracking: | Everywhere / Stage / Partition |
| Auto Framing: | Everywhere / Partition |
| Gesture Control: | Yes |
| PANORAMIC CAMERA | |
| Sensor: | 1 / 2.8” 2MP CMOS |
| Video Format: | 720p30 |
| Horizontal Viewing Angle: | 111° |
| Vertical Viewing Angle: | 62° |
| Aperture: | F2.4 |
| Focal Length: | 3.1mm |
| PAN & TILT | |
| Panning Angle: | +170 ~ 170° |
| Panning Speed: | 0.2 ~ 120° / sec |
| Tilting Angle: | +90 ~ -30° |
| Tilting Speed: | 0.2 ~ 80° / sec |
| Preset Positions: | 256 |
| OUTPUT | |
| IP Stream: | PTZ Camera Main: 1080p60 Second: 720p30 Panoramic Camera: 720p30 |
| IP Compression: | H.264 |
| USB Output: | 1080p30 |
| USB Compression: | MJPEG |
| NETWORK | |
| IP Protocol: | HTTP / RTSP / RTMP / RTMPS / SRT |
| PoE: | Yes (IEEE802.3af) |
| AUDIO | |
| Audio Input: | Line In / MIC In |
| Audio Output: | Ethernet / USB 3.0 / HDMI |
| Audio Compression Format: | USB: PCM |
| CAMERA CONTROL | |
| Interface: | RS-232 / Ethernet / USB 3.0 |
| Protocol: | VISCA / ONVIF |
| UVC: | 1.1 |
| UAC: | Yes |
| GENERAL | |
| DC In: | 12V + / - 20% |
| Power Consumption: | PoE: 11W DC In: 10W |
| Body Colour: | Black / White |
| Dimensions: | 7.5” x 7.3” x 5.4” / 190 x 185 x 138 mm |
| Weight: | 3.3lbs / 1.5 kg |
