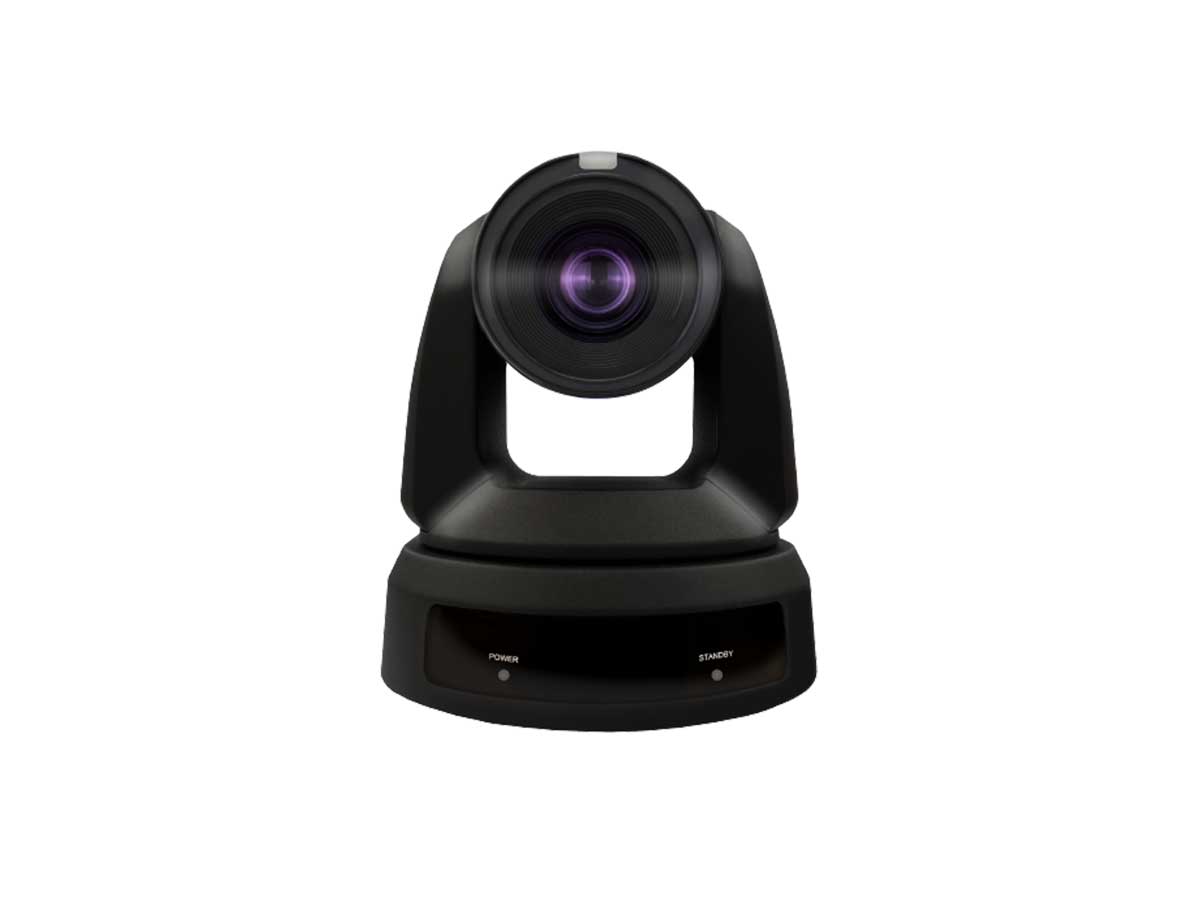

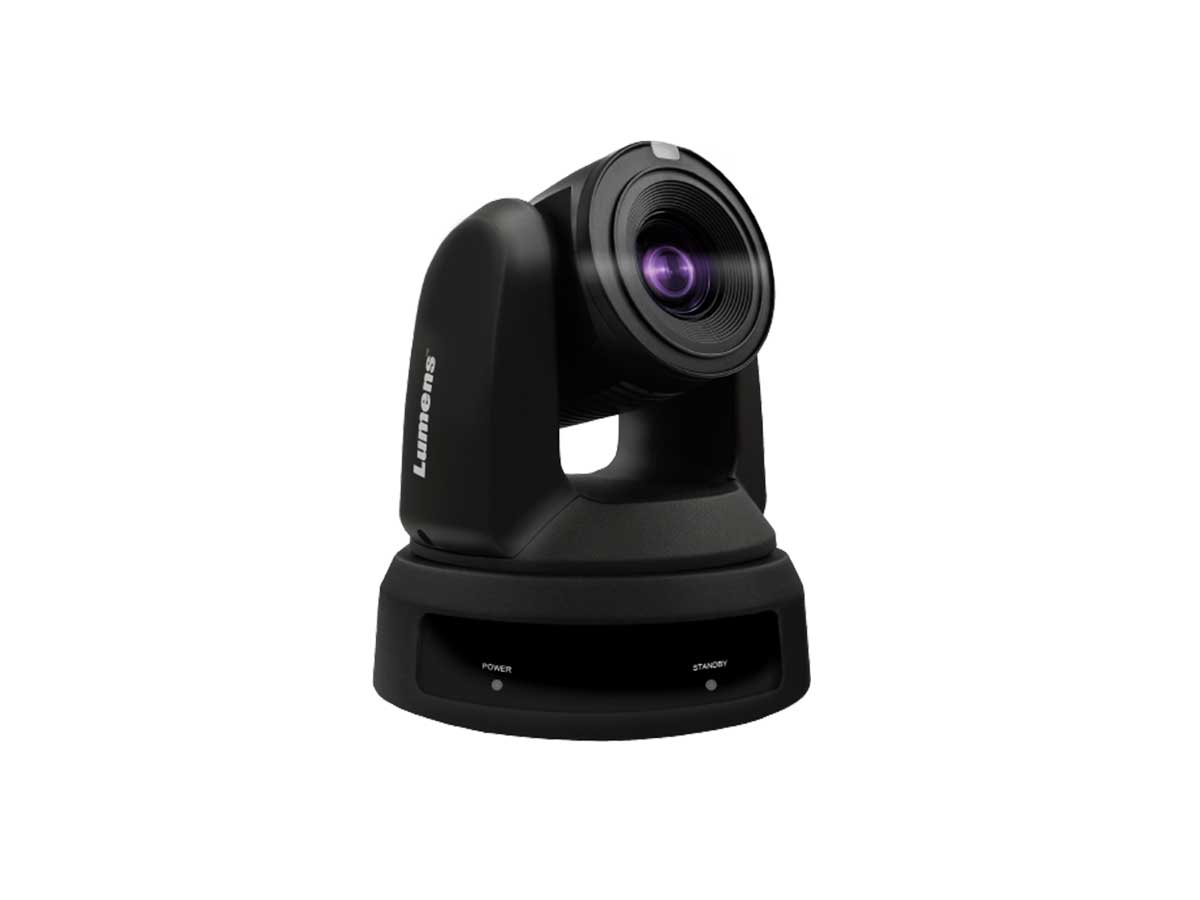

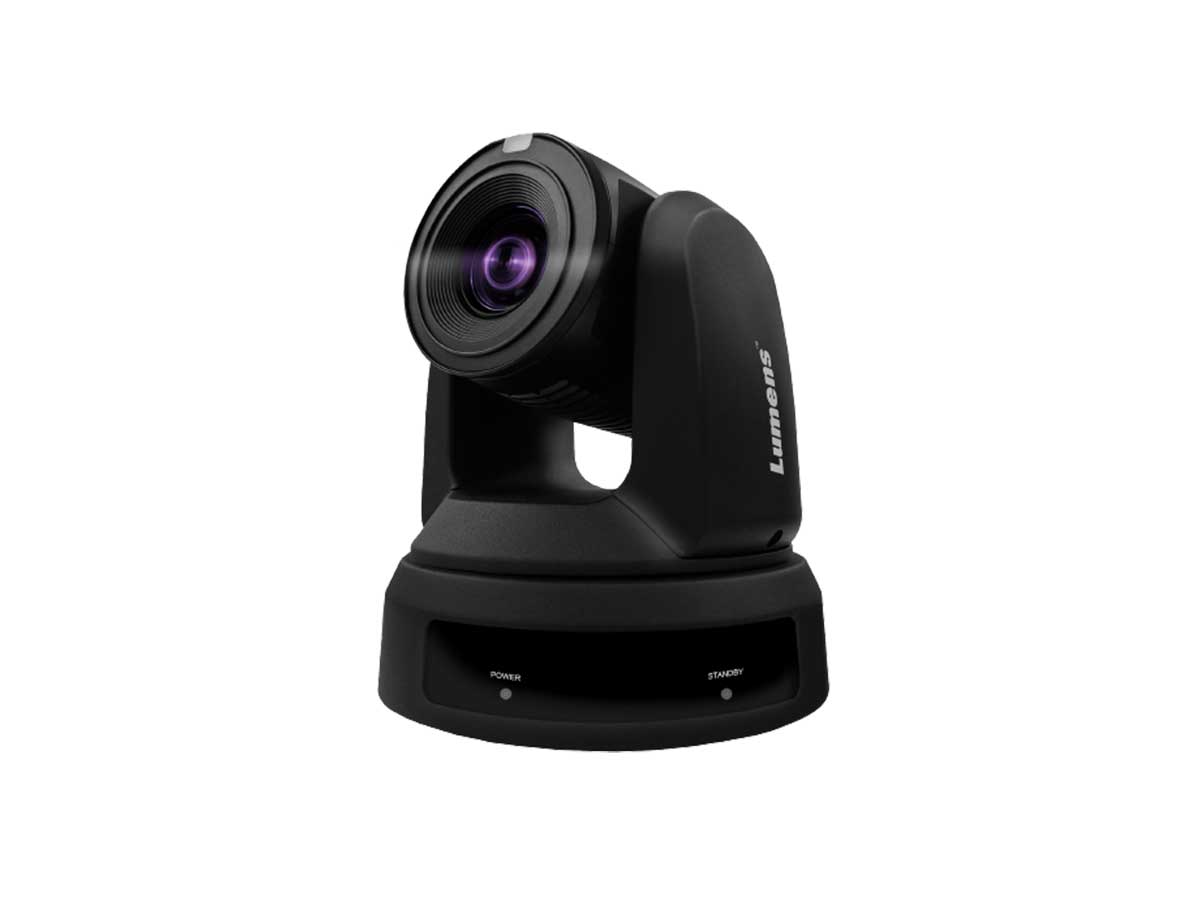

Lumens VC-A53 Full HD PTZ IP Camera - Black
Lumens VC-A53 Full HD PTZ IP Camera - Black
SKU:
LUM-VCA53PB
Regular price
£1,849.00 GBP ex VAT
£2,218.80 GBP inc VAT
£2,218.80 GBP inc VAT
Regular price
ex VAT
Sale price
£1,849.00 GBP ex VAT
£2,218.80 GBP inc VAT
Unit price
per
£2,218.80 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
The VC-A53 PTZ unit combines broadcast-quality robotics and a professional imaging sensor to deliver an exceptional remote video camera. It features excellent color reproduction and low light shooting and gives users an incredible level of flexibility in terms of power, pan, tilt and zoom control and video output.
Professional High Speed Robotics
With high-precision motors, the VC-A53 can run at up-to 225° per second for very fast movement between preset positions. The unit is also able to move at low speed to deliver smooth and judder-free tracking shots.
Networking Built-in
The VC-A53’s Ethernet port is truly multi-purpose. It supports power over Ethernet, video streaming in a variety of secure and broadcast standard formats, and IP control. Users can remotely control multiple units and manage their cameras facility-wide using the complimentary Lumens Deployment Tool 2.0.
Production Ready
The VC-A53 is based around a professional Sony sensor, making the video output easy to integrate into mixed camera productions. The unit can be controlled using RS-232, RS-422 , USB and Ethernet control interfaces enabling users to add the camera into existing workflows.
Intelligent Auto
VC-A53 offers full manual settings to give producers full creative control. The camera also incorporates intelligent automatic modes that deliver exceptional auto-focus, predictive auto-exposure and auto-white balance. These features allow users to trust the camera to run without user-input and to deliver consistently professional results.
- Full HD PTZ IP Camera
- Professional Sony image sensor
- Supports 1080p at 60fps and versatile 20x optical zoom
- Delivers HD video output via Ethernet, HDMI, USB and 3G-SDI simultaneously
| PTZ CAMERA | |
| Sensor: | 1/2.8” 2.16 MP CMOS |
| Video Format: | 1080p: 60 / 50 / 30 / 25 720p: 60 / 50 / 30 |
| Video Output (HD) Interface: | 3G-SDI / HDMI / Ethernet / USB3.0 |
| Optical Zoom: | 20x |
| Digital Zoom: | 12x |
| Horizontal Viewing Angle: | 57° |
| Vertical Viewing Angle: | 32.1° |
| Diagonal Viewing Angle: | 65.4° |
| Aperture: | F1.6~F3.8 |
| Focal Length: | 5.33mm~110mm |
| Shutter Speed: | 1/1 ~ 1/10,000 sec |
| Minimum Object Distance: | Wide: 0.5M / Tele: 1.5M |
| Video S/N Ratio: | > 50dB |
| Minimum Illumination: | 1.0 lux (F1.6, 50IRE, 30fps) |
| Focus System: | Auto / Manual / Smart AF |
| Gain Control: | Auto / Manual |
| White Balance: | Auto / Manual |
| Exposure Control: | Auto / Manual |
| WDR: | Yes |
| 3D NR: | Yes |
| Image Flip: | Yes |
| AR / VR Systems: | FreeD |
| Tally Light: | Yes |
| PAN & TILT | |
| Panning Angle: | +170° ~ -170° |
| Panning Speed: | 225°/sec |
| Tilting Angle: | +90° ~ -30° |
| Tilting Speed: | 225°/sec |
| Preset Positions: | 256 |
| OUTPUT | |
| HDMI / 3G-SDI: | 1080p 60 |
| IP Stream: | Main: H.264 1080p 60 Second: H.264 640x360p 30 Webpage Preview: 1280x720 30 |
| IP Compression: | H.264 |
| USB Output: | 1080p 60 |
| USB Compression: | H.264 / MJPEG |
| NETWORK | |
| IP Protocol: | RTSP / RTMP / RTMPS / MPEG-TS / SRT |
| PoE: | PoE (IEEE802.3af) |
| AUDIO | |
| Input: | Line In / MIC In |
| Output: | Ethernet / USB 3.0 / HDMI / SDI |
| Compression Format: | AAC / PCM |
| CAMERA CONTROL | |
| Interface: | RS-232 / RS-422 / Ethernet / USB / Remote |
| Protocol: | VISCA / VISCAIP / ONVIF |
| UVC: | 1.1 |
| UAC: | Yes |
| GENERAL | |
| DC In: | 12V +/- 20% |
| Power Consumption: | PoE : 10W DC In : 9W |
| Weight: | 2 kg (4.4 lbs) |
| Dimensions: | 174 x 197 x 180 mm / 6.85” x 7.76” x 7.09” |
