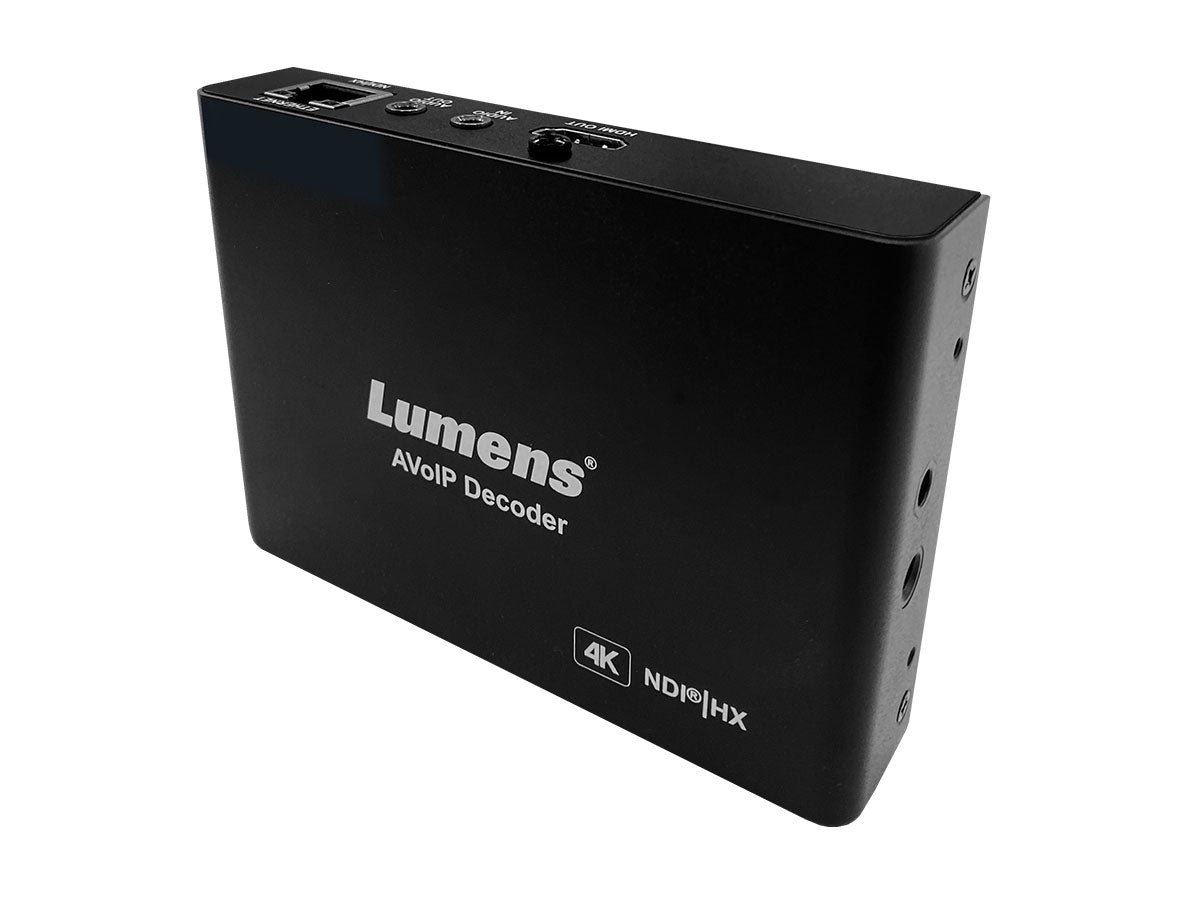

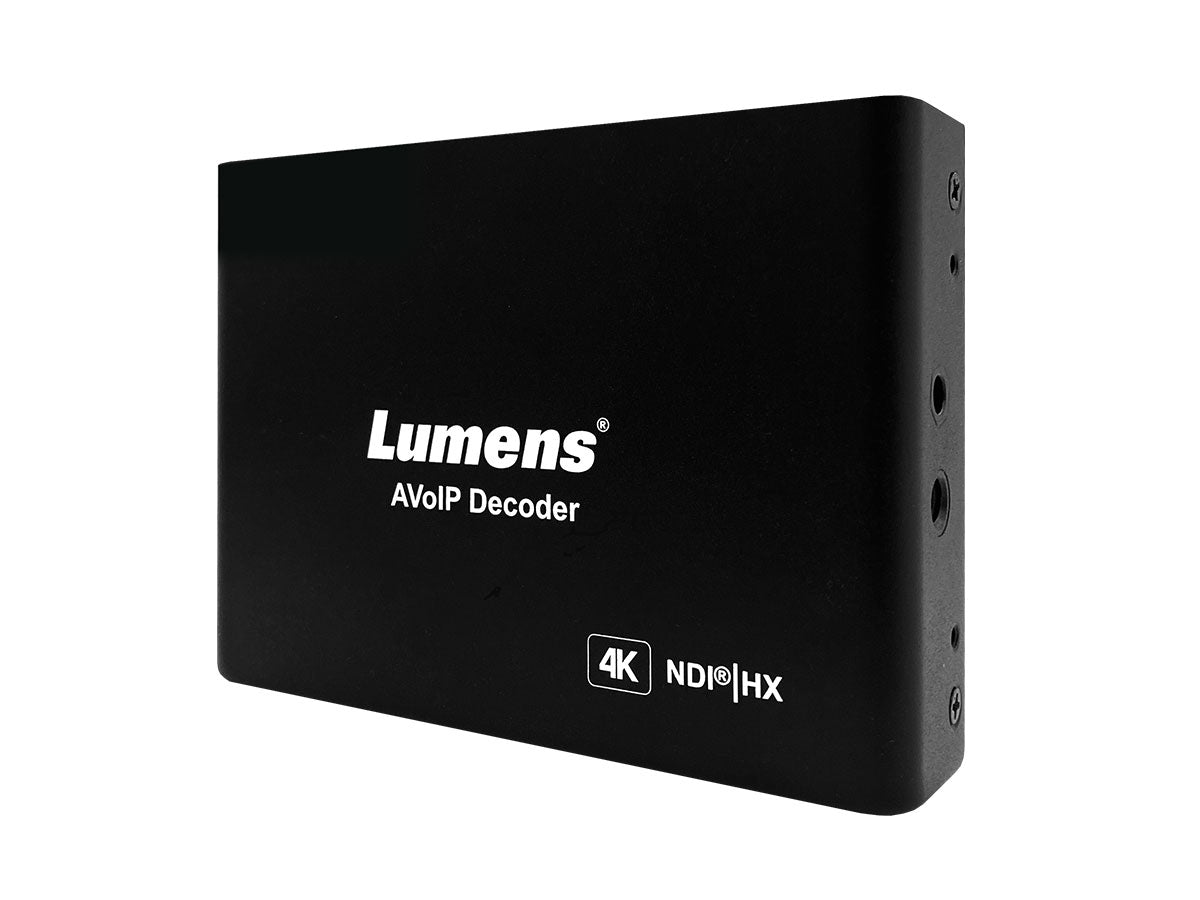

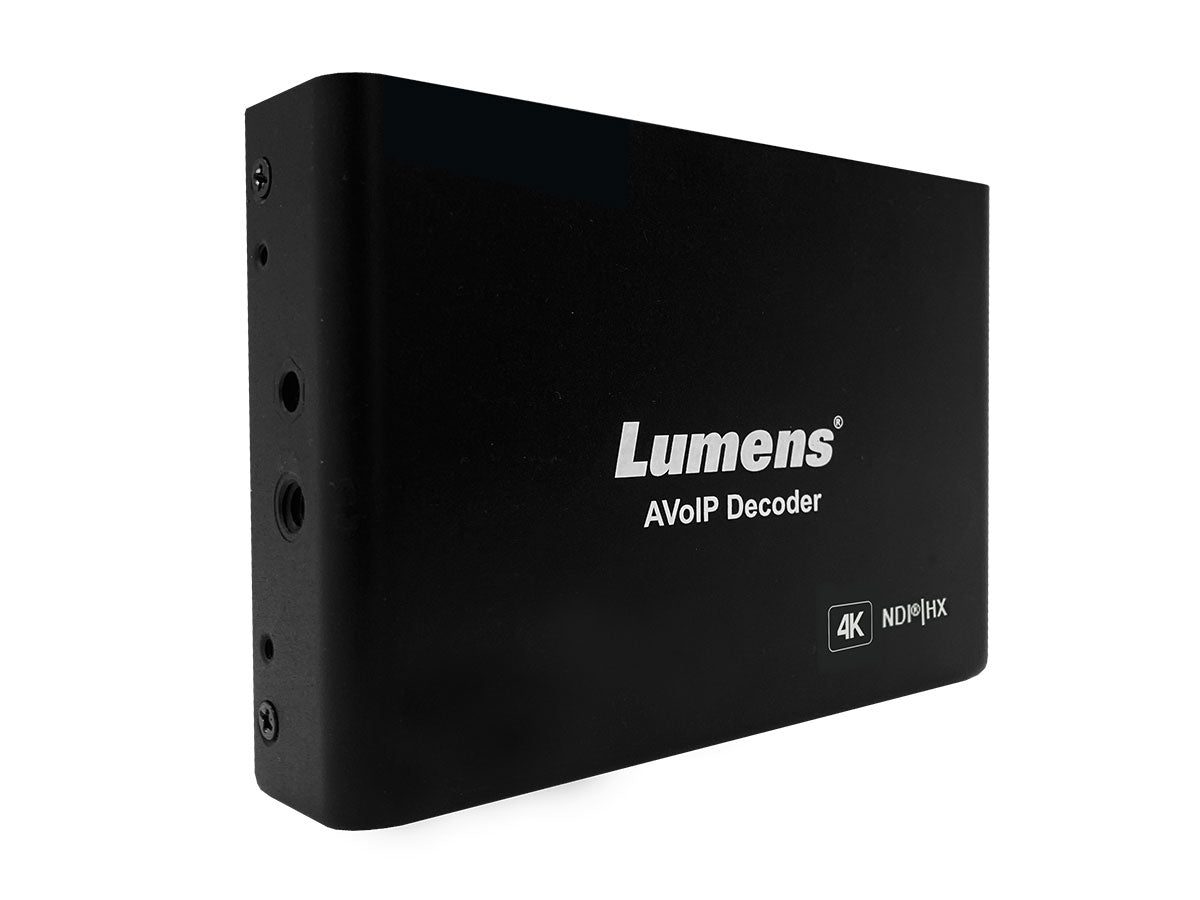

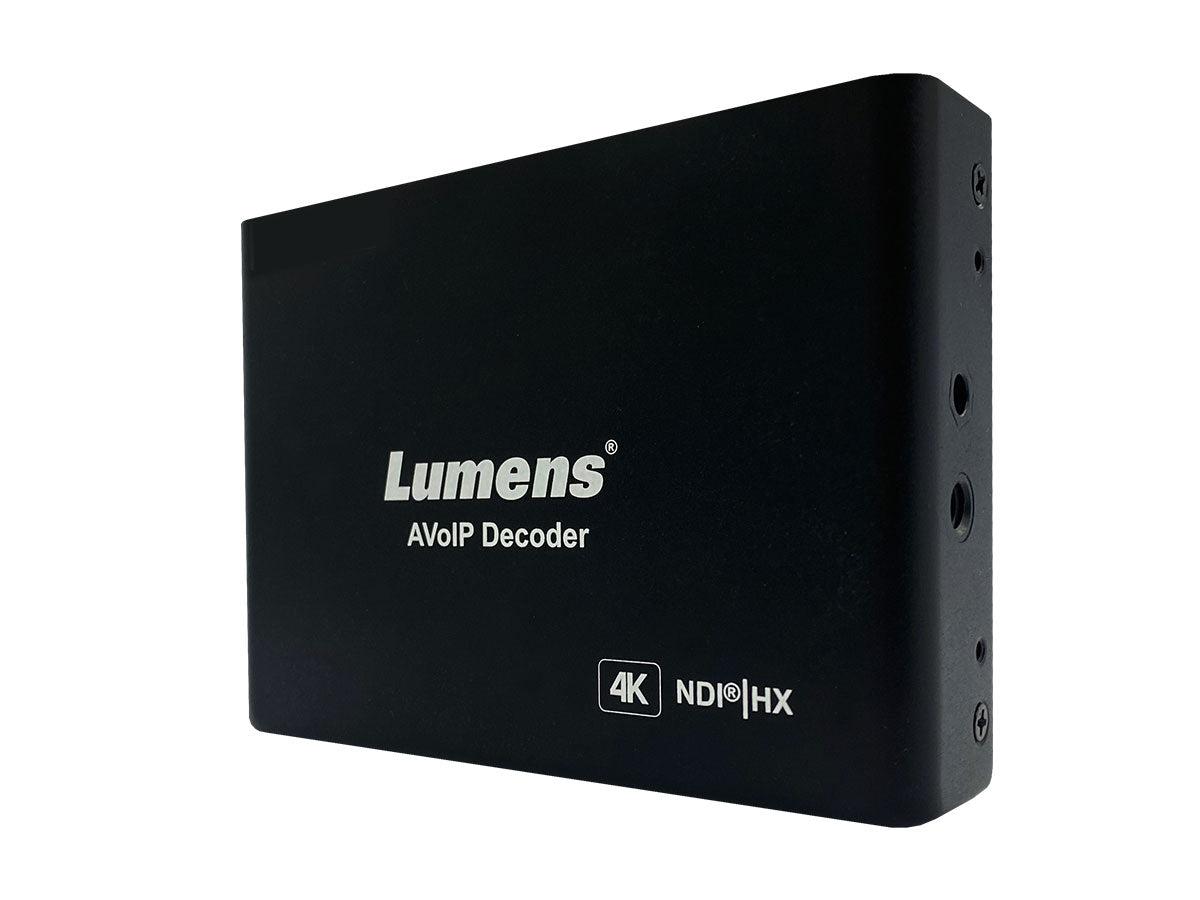

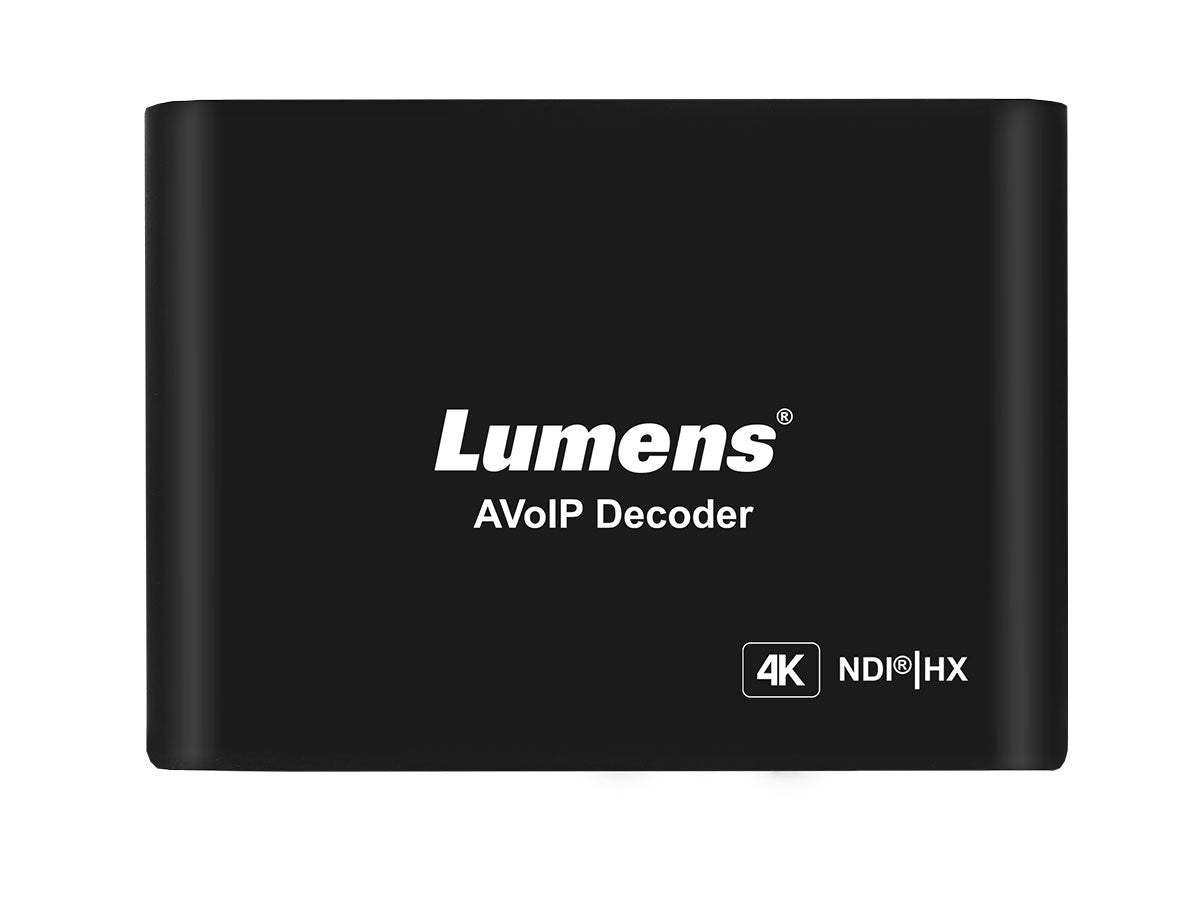

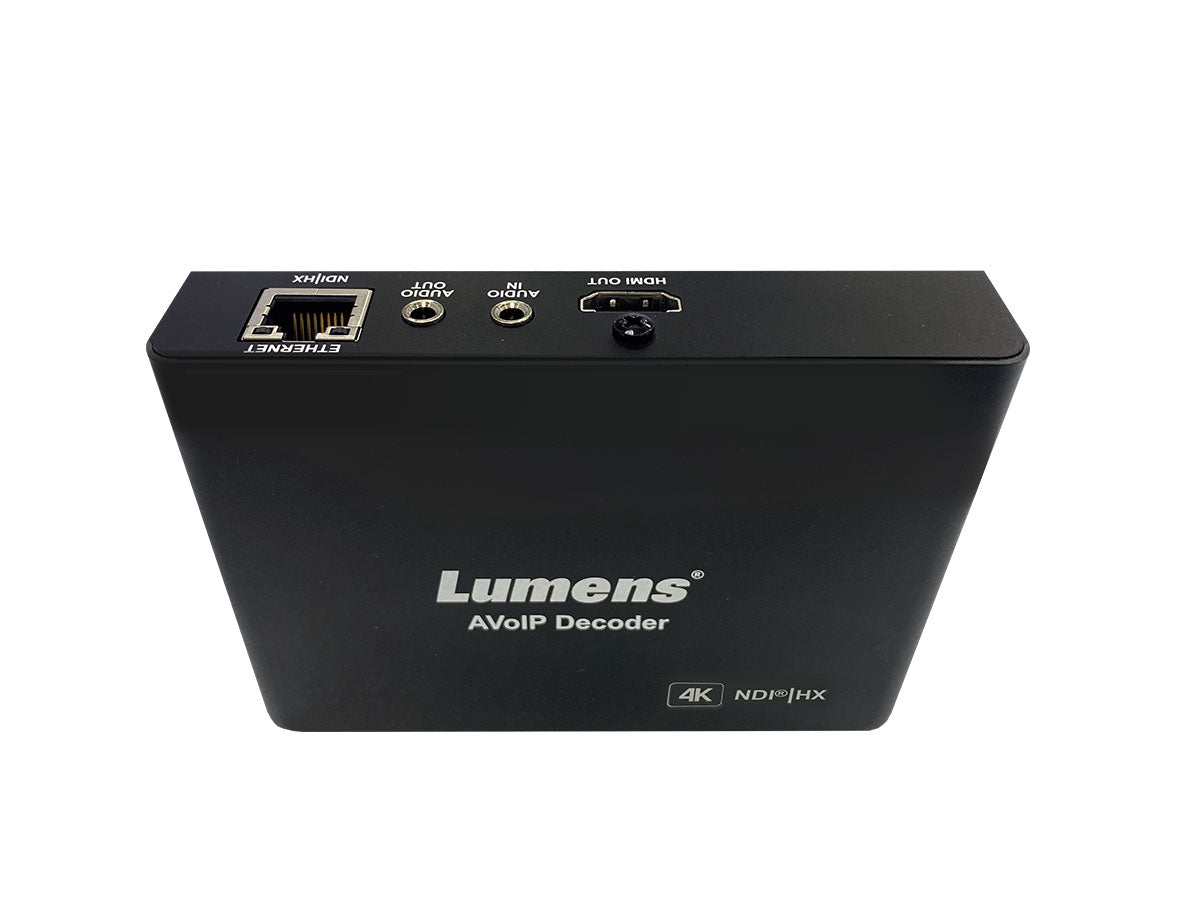

Lumens OIP-N60D AV over IP and NDI HX 4K Decoder
Lumens OIP-N60D AV over IP and NDI HX 4K Decoder
SKU:
LUM-OIPN60D
Regular price
£510.00 GBP ex VAT
£612.00 GBP inc VAT
£612.00 GBP inc VAT
Regular price
ex VAT
Sale price
£510.00 GBP ex VAT
£612.00 GBP inc VAT
Unit price
per
£612.00 GBP inc VAT
Available to Order
Couldn't load pickup availability
- Details
- Features
- Specifications
NDI HX3 & IP Decoding
4K and HD NDI HX3 and IP video streams can be decoded in high quality to HDMI with minimal latency.
IP Video to USB Conversion
OIP-N60D decodes IP video streams from NDI HX and RTSP to UVC/UAC-compliant USB for use with video conferencing platforms. The device also supports NDI Virtual USB output.
USB Webcam Extension
OIP-N60D transmits webcams over your IP network for quick and easy AV integration. The signal is decoded by the OIP-N40E for output to USB.
Video Wall Deployment
The OIP-N60D decoder is an ideal building block for video walls, supporting monitors mounted in landscape or portrait mode. Combine multiple decoders and screens to build the wall configuration you need.
*This feature can be implemented through future firmware updates.
*This feature can be implemented through future firmware updates.
- AV over IP and NDI HX 4K Decoder
- Supports RTSP, NDI HX3, NDI HX2
- Delivers high video quality with ultra-low latency
- Long-distance 4K IP-based AV transmission
- USB Extension over IP
- Instant source switching

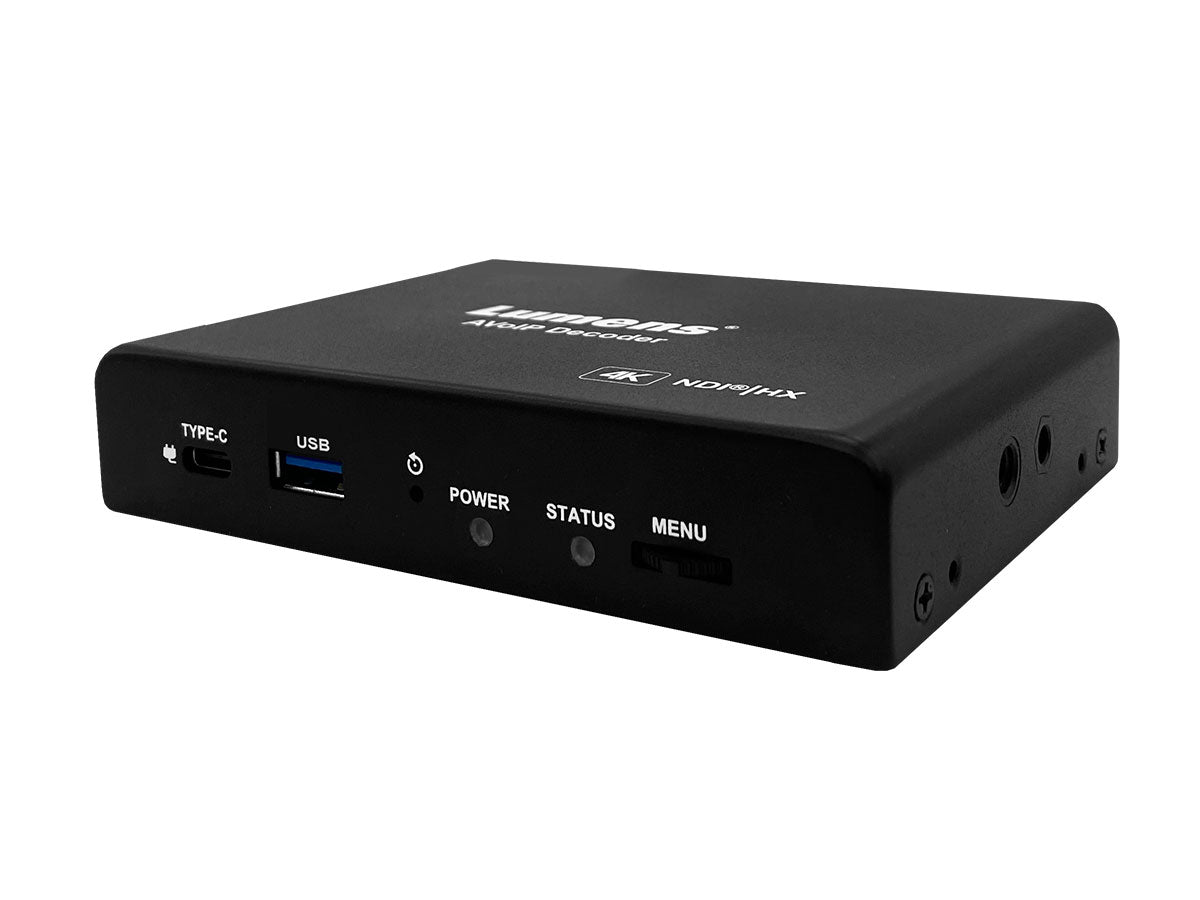

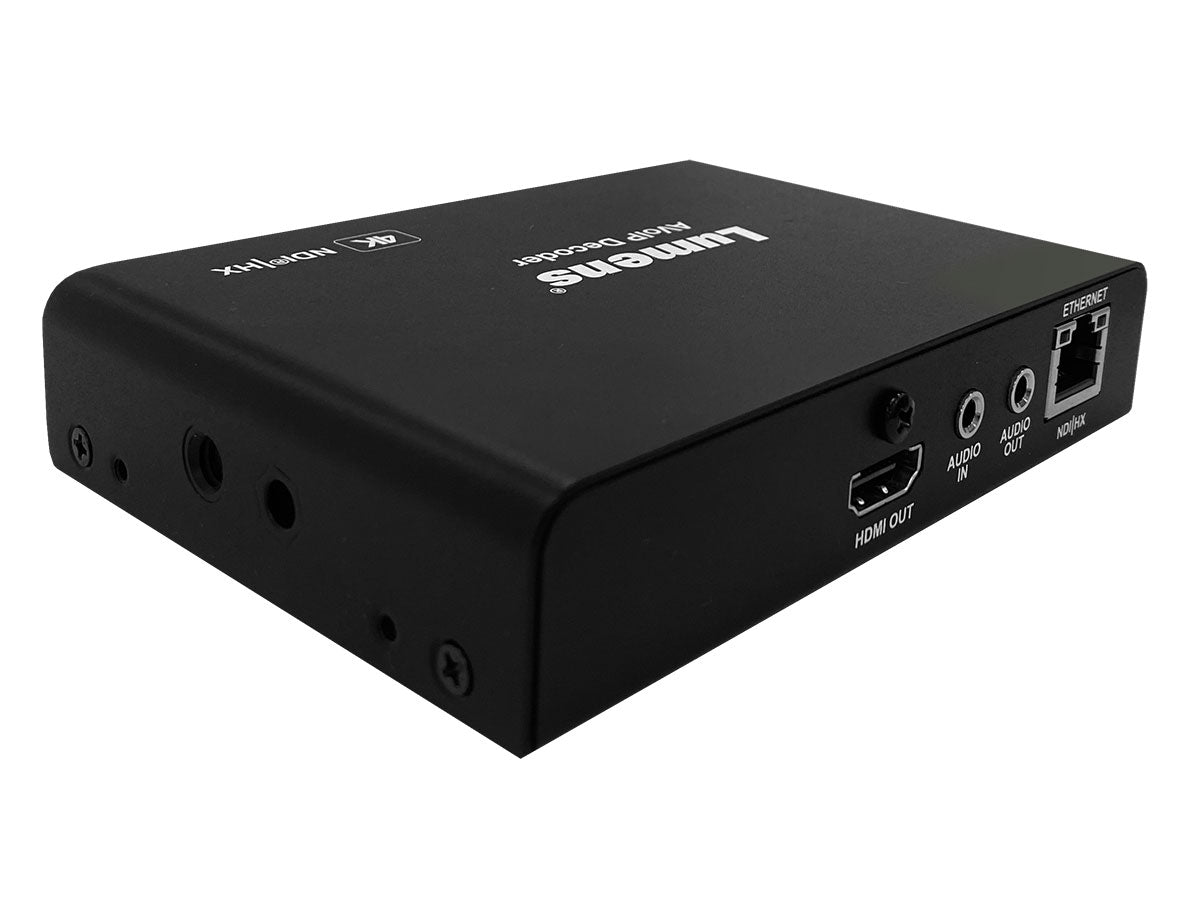

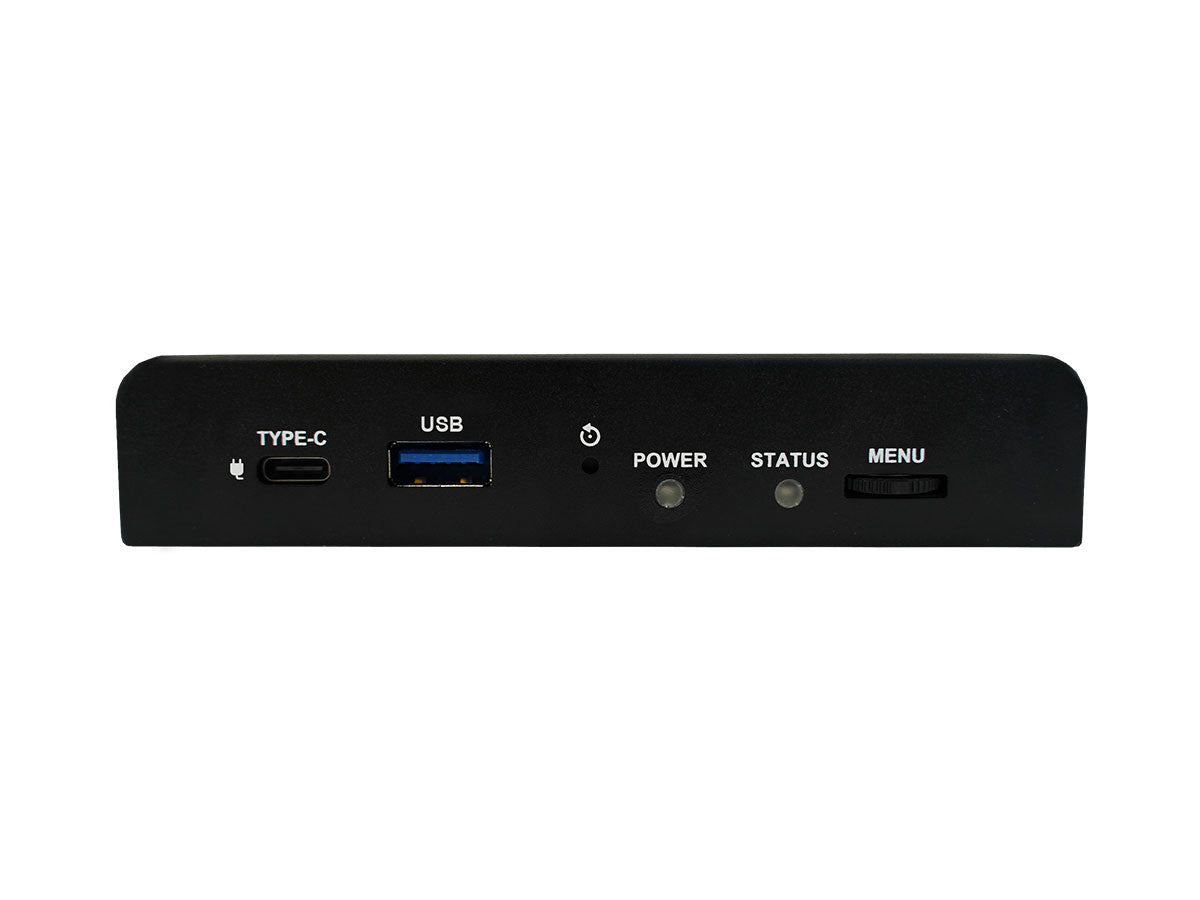

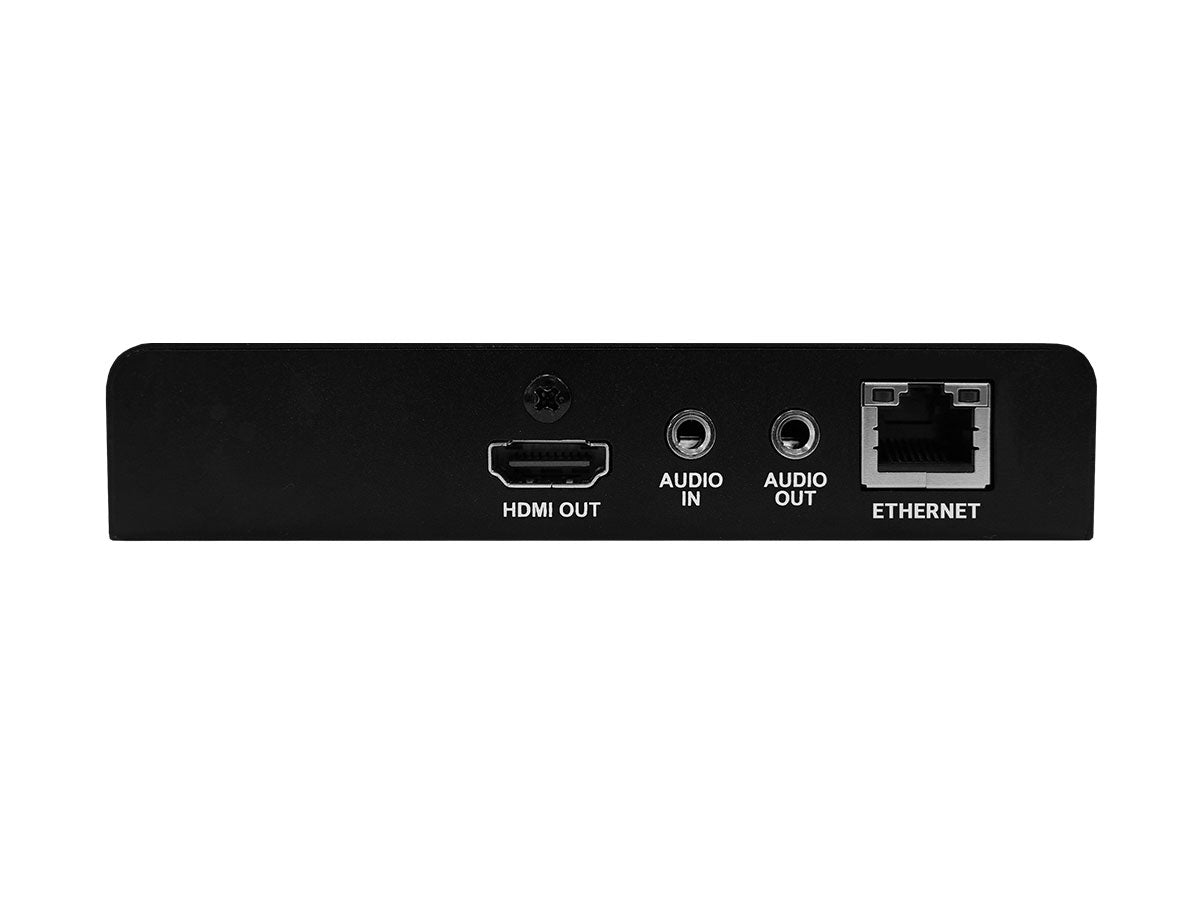

| INTERFACE | |
| HDMI Output: | HDMI 2.0 x1 |
| USB Device: | Type-C x1 |
| USB Host: | Type-A x1 (Support USB webcam) |
| Audio Input: | Line In/MIC In ,3.5mm x1 |
| Audio Output: | Line Out, 3.5mm x1 |
| Ethernet: | GbE LAN (RJ-45) x1 |
| Menu Button: | Yes |
| Reset Pin: | Yes |
| LED Indicator: | Power light Status Connection light |
| NETWORK | |
| Decoding Capability: | Up to 2160p60 |
| IP Protocol: | NDI HX3 / NDI HX2 / RTSP |
| Video Decoding: | H.264 / HEVC(H.265) |
| Audio Decoding: | Yes |
| PoE: | PoE (IEEE802.3af) |
| FUNCTIONS | |
| Management: | OSD / Web |
| USB Webcam Extension: | Yes |
| IP Stream to USB Webcam: | Yes |
| UVC: | Yes |
| UAC: | Yes |
| GENERAL | |
| Power: | PoE / USB |
| Power Consumption: | PoE : 11 W USB : 10 W |
| Operating Temperature: | 0°C ~ 40°C |
| Operating Humidity: | 20~80%, non-condensing |
| Storage Temperature: | -20°C ~ 60°C |
| Dimensions: | 0.77lbs (350g) |
| Weight: | Case Only: 4.92" x 3.5" x 0.98" (125 x 89 x 25 mm) |
