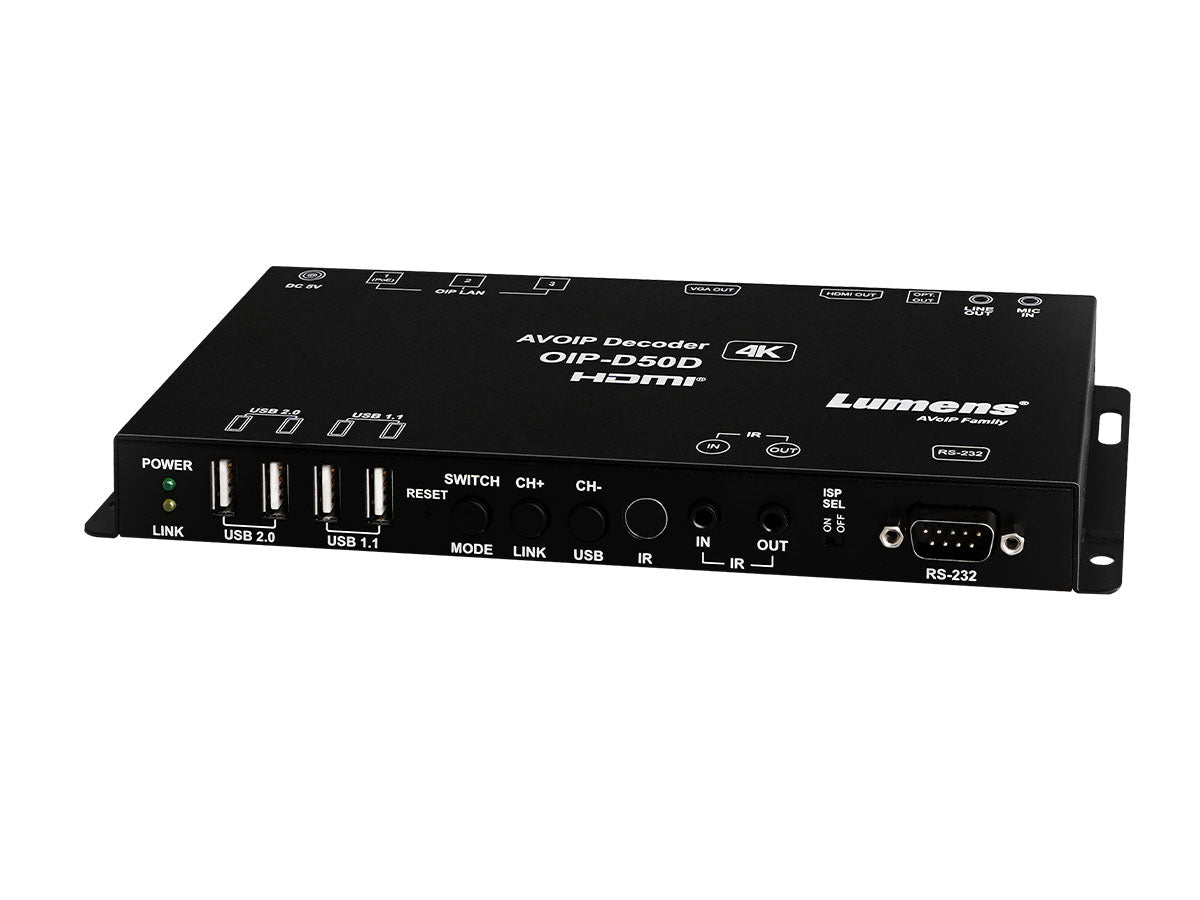

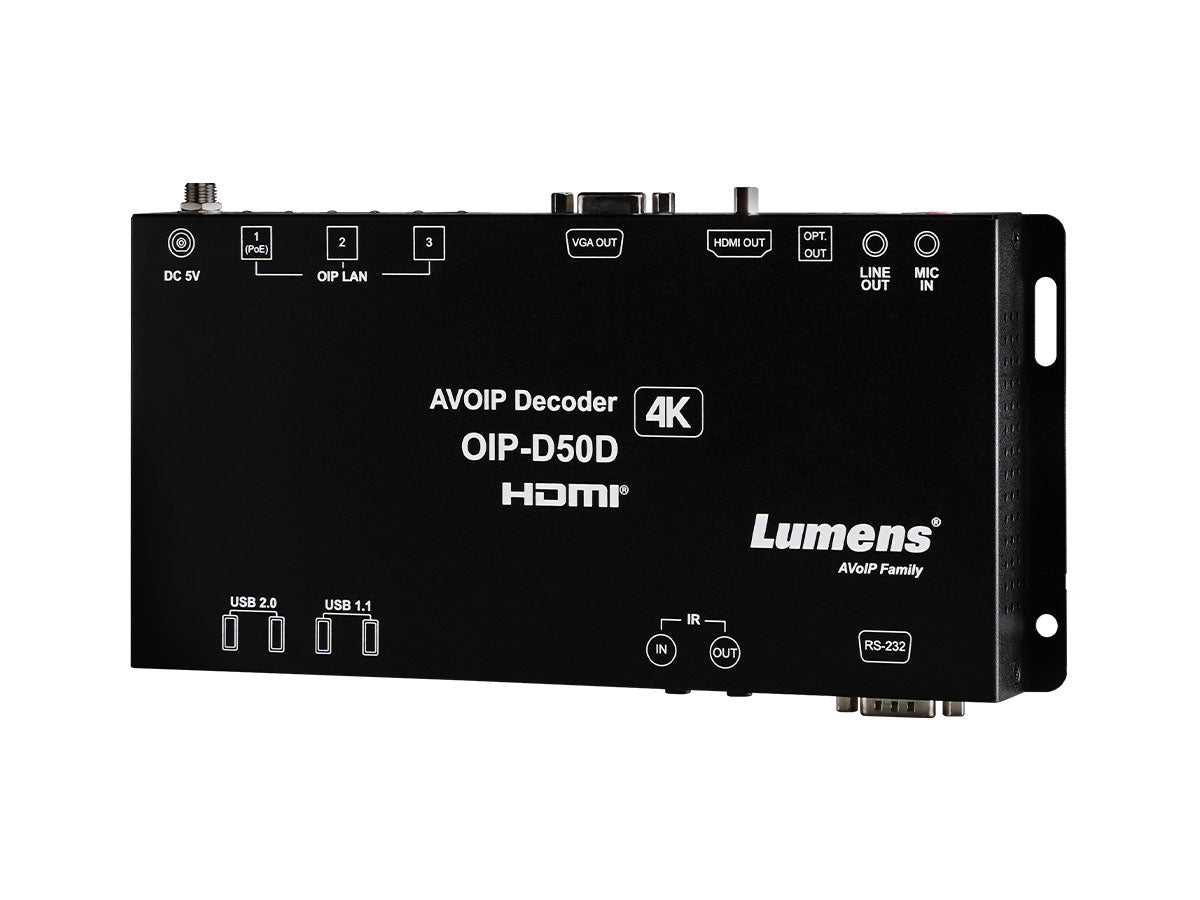

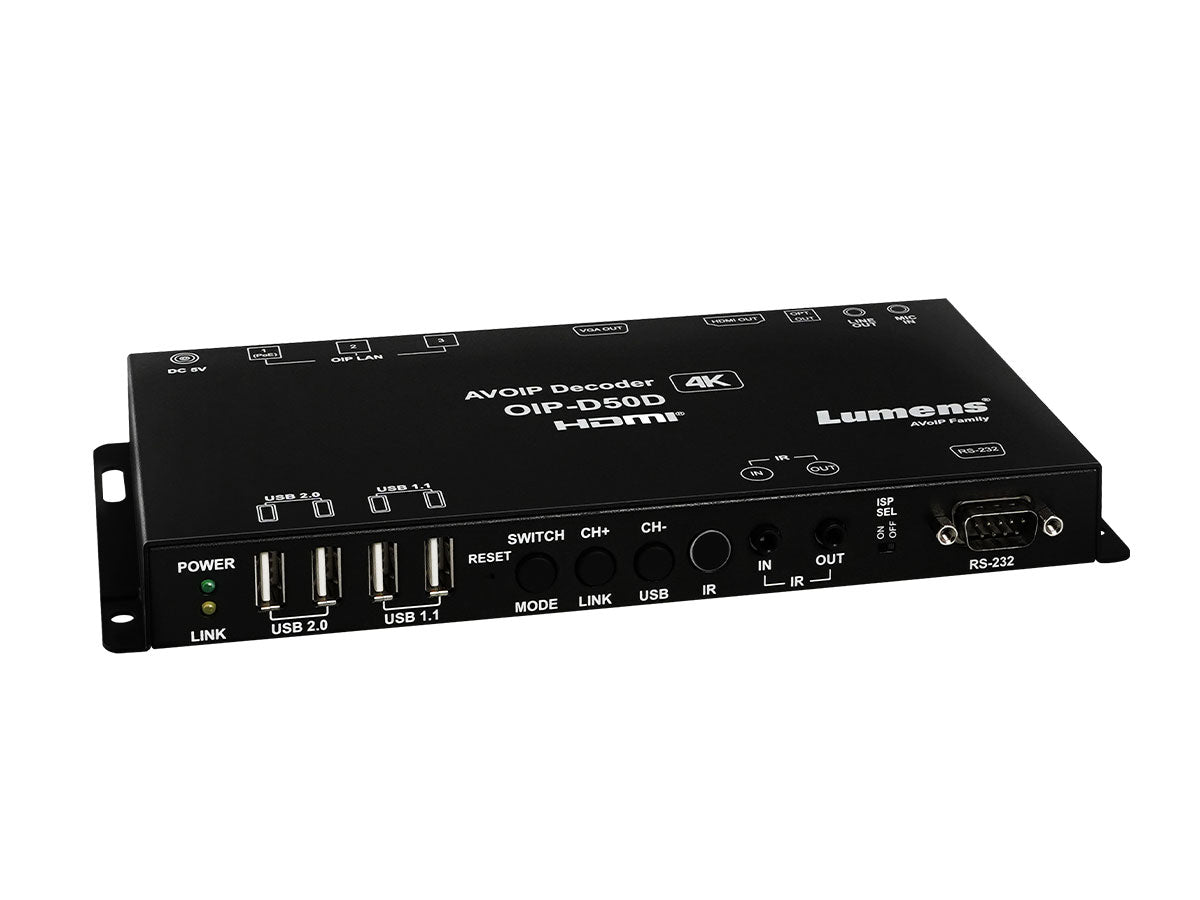

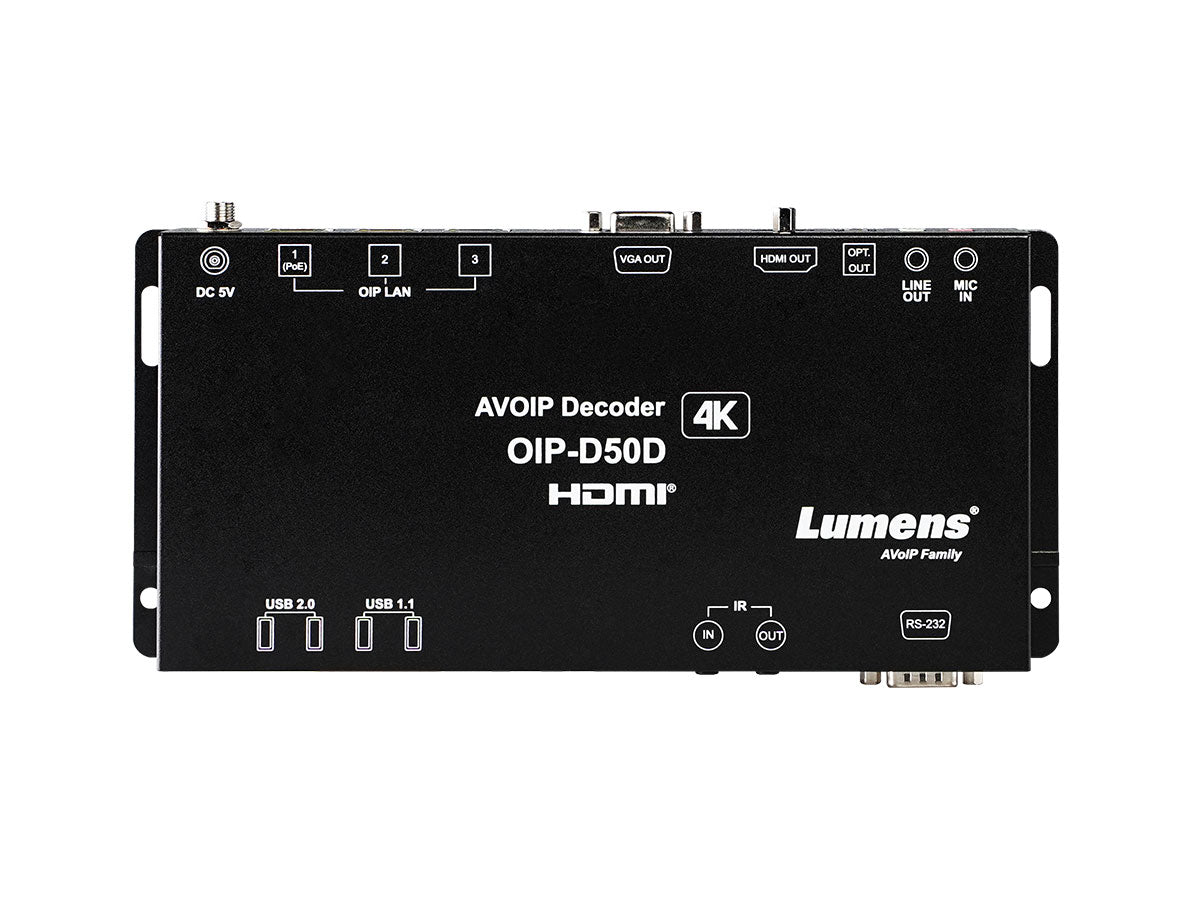

Lumens OIP-D50D 4K 1G Decoder
Lumens OIP-D50D 4K 1G Decoder
SKU:
LUM-OIP-D50D
Regular price
£670.00 GBP ex VAT
£804.00 GBP inc VAT
£804.00 GBP inc VAT
Regular price
ex VAT
Sale price
£670.00 GBP ex VAT
£804.00 GBP inc VAT
Unit price
per
£804.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The Lumens® OIP-D50E / OIP-D50D AV over IP encoder and decoder deliver 4K @30Hz ultra-low latency and visually lossless compression through Cat.5e/6/7 cables. The OIP-D50E / OIP-D50D provides flexible, high-efficient and cost-effective Pro A/V system solutions. It is applicable for a wide range of environments, such as sports bars, school campuses, and house of worship, etc.
High Quality 4K Transmission
The Lumens 4K encoder/decoder pair (OIP-D50E / OIP-D50D) delivers 4:4:4 UltraHD video at 30Hz and 4:2:0 at 60Hz. Lumens’ compression technology produces visually lossless 4K that can be transmitted over standard 1-Gigabyte Ethernet networks. As a video over IP solution, Lumens OIP is powerful, scalable, and packed with features that are unusual at this price point.
Ultra-low Latency Delivery and Control
The delay between the HDMI source and decoder is minimal. Because of this, Lumens 4K video over IP units are well suited to relay live video from a production switcher to displays within a venue or around a sports stadium – all at minimal cost. Transmitting device control protocols, Lumens OIP devices can trigger monitor responses such as standby or source switching. So, not only can the Lumens solution dynamically send 4K video to displays, it can control the monitor itself.
Networked AV
The OIP-D50E / OIP-D50D pair connects a 4K video source and large format displays over standard IP networks. A single encoder can also transmit videos over long distances to multiple decoders*, without the need for a dedicated AV network. With multiple encoders and decoders on the network, the Lumens technology goes up another gear: users can now simply drag any input to any output. Now, retailers, bar managers, and venues can play any video content on selected displays or on all monitors on the network. Where installations are running a variety of HD and 4K monitors, Lumens OIP can upscale and downscale the output to ensure compatibility with each display.
Cost-effective KVM
The ultra-low latency of Lumens OIP products makes them perfect for use as a KVM. By attaching a decoder to a PC, technicians can control a remote computer, with full 4K monitor support. With the addition of the OIP-D50C unit, more encoders can be added to the computer network for remote management of multiple computer and server systems. This is a powerful and scalable solution which is easy to set up and delivers an excellent user experience.
Video Wall Installations
Supporting video output in either portrait and landscape orientation, two or more displays can be routed to create a video wall. By combining multiple HD screens, organizations can design eye-catching 2K, 4K and 8K video walls. Visually stunning and cost-effective, this is an ideal solution for leisure facilities, control rooms, sports arenas and reception areas.
User-Friendly IP Control and Monitoring
By deploying Lumens' OIP-D50C controller, operators can preview encoded video sources by launching a web-based interface on any connected device. Each encoded video source can be routed individually to displays or video walls in real-time. The interface is highly visual, making control of each encoded source and destination decoder extremely easy. Customers who prefer to rely on a third-party control system, such as Crestron or Kramer, can integrate with Lumens.
- Delivers 4K@30Hz 4:4:4 pristine video quality with ultra-low latency
- Long-distance IP-based A/V transmission
- Video wall deployment with portrait and landscape orientation
- Intuitive Web-based GUI for AV distribution and control *with OIP-D50C
- Supports PoE for easy installation
- Cost-effective A/V distribution solution

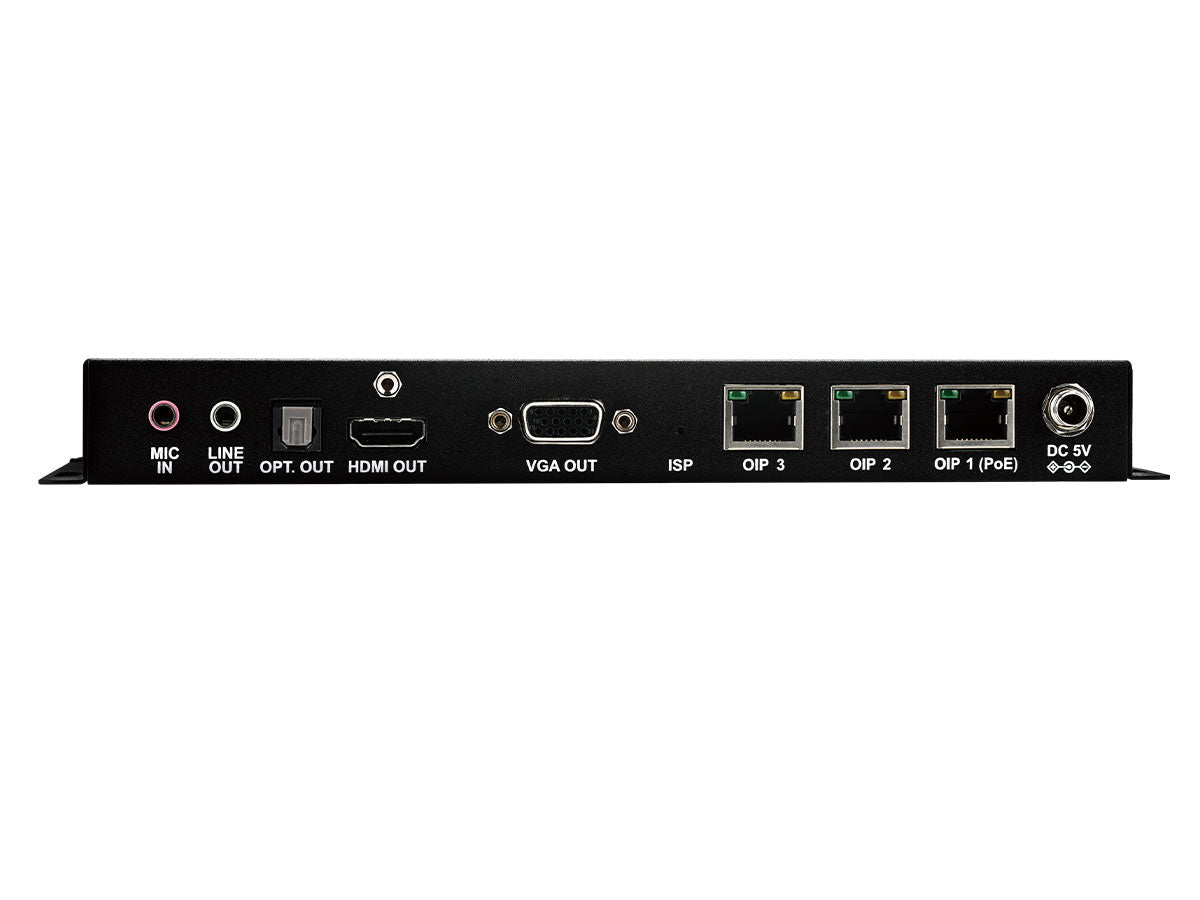

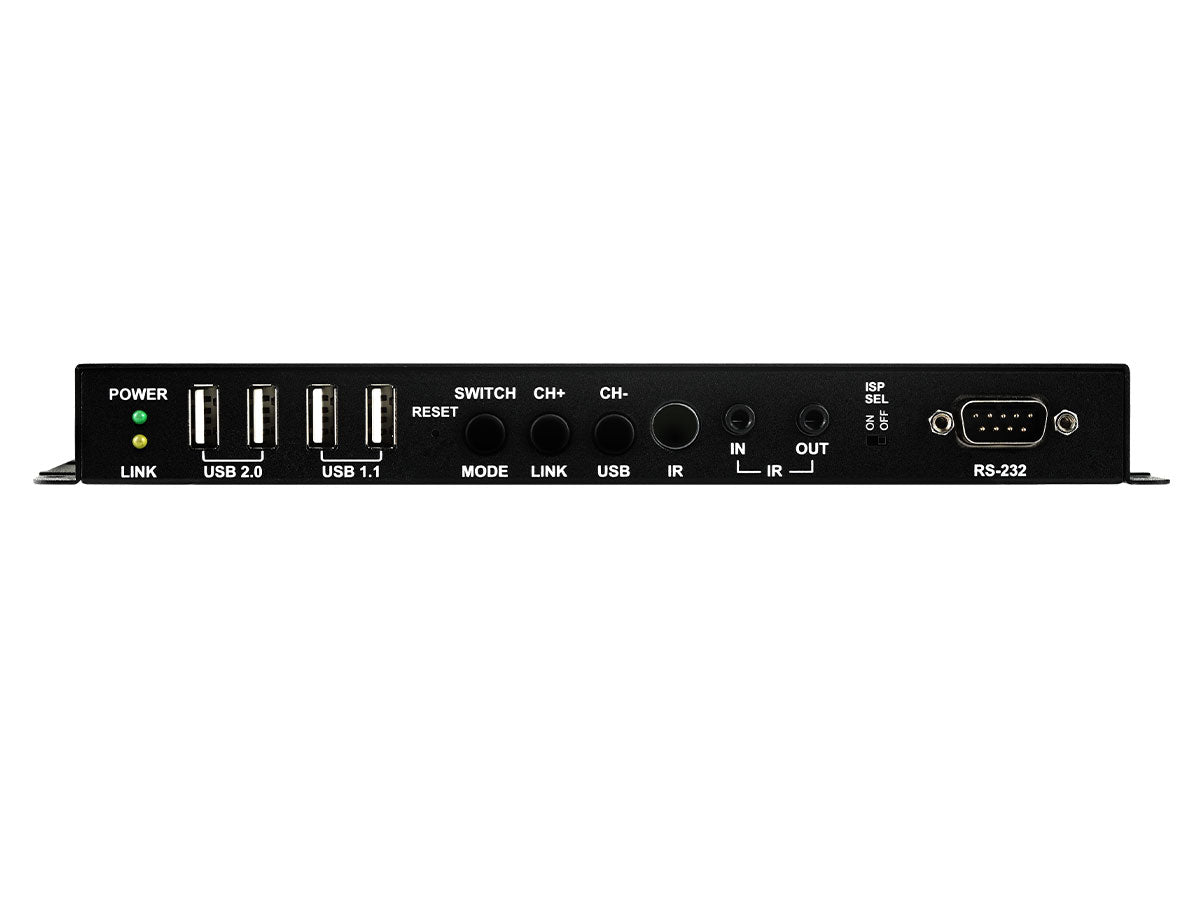

| INTERFACE | |
| Input: | 1 Analog Mono (3.5mm) |
| Output: | 1 HDMI 2.0 (DVI 1.0) 1 VGA (HD-15) 1 S/PDIF (TOSLINK) 1 Analog Stereo (3.5mm) 3 GbE LAN (RJ-45) |
| Control: | 1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 1 RS-232 (DB-9) 2 USB 2.0 (Type-A) 2 USB 1.1 (Type-A) |
| VIDEO | |
| HDCP: | 2.2 |
| Input Signal Type: | 4K@60 YUV 4:2:0 |
| Output Signal Type: | 4K@30 8bit RGB |
| Maximum Input: | Stream 4096×2160p@30 |
| Maximum Output: | HDMI 4096×2160p@30 8bit RGB VGA 1920×1200p@60RGB |
| AUDIO | |
| HDMI: | LPCM (8 Channels) / Bitstream, High Bit Rate Bitstream |
| Mic In: | 300 mVrms S/N Ratio: > 80dB (1kHz with 0dBFS) |
| Line Out / Optical Out: | LPCM (2 Channels) / Bitstream |
| Line Out: | 2 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS) |
| POWER | |
| Power Supply: | 5V/4A DC (Locking) PoE (802.3af) |
| Power Consumption: | 17.68W |
| ENVIRONMENTAL | |
| Operating Temperature: | 0°C ~ 40°C |
| Operating Humidity: | 20~80%, non-condensing |
| Storage Temperature: | 40°C ~ 60°C |
| Storage Humidity: | 90%, non-condensing |
| ENCLOSURE | |
| Housing: | Metal |
| Weight: | 1.46lbs (0.66kg) |
| Dimensions: | Case Only: 9.11" x 0.98" x 4.25" (231.5mm x 25mm x 108mm) All Inclusive: 9.11" x 0.98" x 4.72" (231.5mm x 25mm x 120mm) |
- 1x AV Over IP 4K 1G Decoder
