The Lumens® OIP-D50C is a powerful system solution for controlling the AVoIP extender over a network. It allows users to easily control and configure directly through the Web GUI. It provides flexible, high-efficient and cost-effective Pro A/V system solutions. It is applicable for a wide range of environments, such as sports bars, school campuses, and house of worship, etc.
Manage Encoders and Decoders
The Lumens OIP-D50C is a powerful OIP controller that unleashes powerful features, when used with Lumens OIP encoders and decoders. As standalone devices, a single OIP encoder transmits low latency, high quality video over IP to a dedicated decoder. By adding an OIP-D50C Controller, users are free to create dynamic video walls, switch sources to any monitor and roll out KVM* functionality to connected PCs.
User-Friendly Web GUI
Lumens' browser-based interface is highly visual and very easy to use. It allows users to preview each video source and quickly deploy video sources to displays or video walls. With a simple drag and drop mouse click, even colleagues with minimal training can send a single stream to any display and change the output of each decoder (individually or as a group). The OIP family performs superbly, whether it’s controlling an 8-screen video wall or a network of 50 displays distributed around a building.
Layouts and Templates
Designed to give your audience the ultimate visual experience, user-defined layouts can be applied with a single click. Customers can recall templates for video walls and groups of displays to automate facility-wide digital signage. Whether you want to transmit a single video source to every monitor and video wall, or use groups of displays for specific sources, this macro facility gives you the control you need.
4K KVM
By using the OIP-D50C with the Lumens 50 series encoders and decoders, IT and AV professionals can create an ultra-low latency remote network for PC workstations and servers. As a 4K system, the KVM feature supports UltraHD monitoring over 1-Gigabit Ethernet networks to deliver a fantastic user experience at a cost-effective price.
- Centralized management of distributed encoders and decoders *with OIP series
- Intuitive Web-based GUI for AV distribution and control
- Effortless sources switching and video wall deployment
- Supports PoE for easy installation

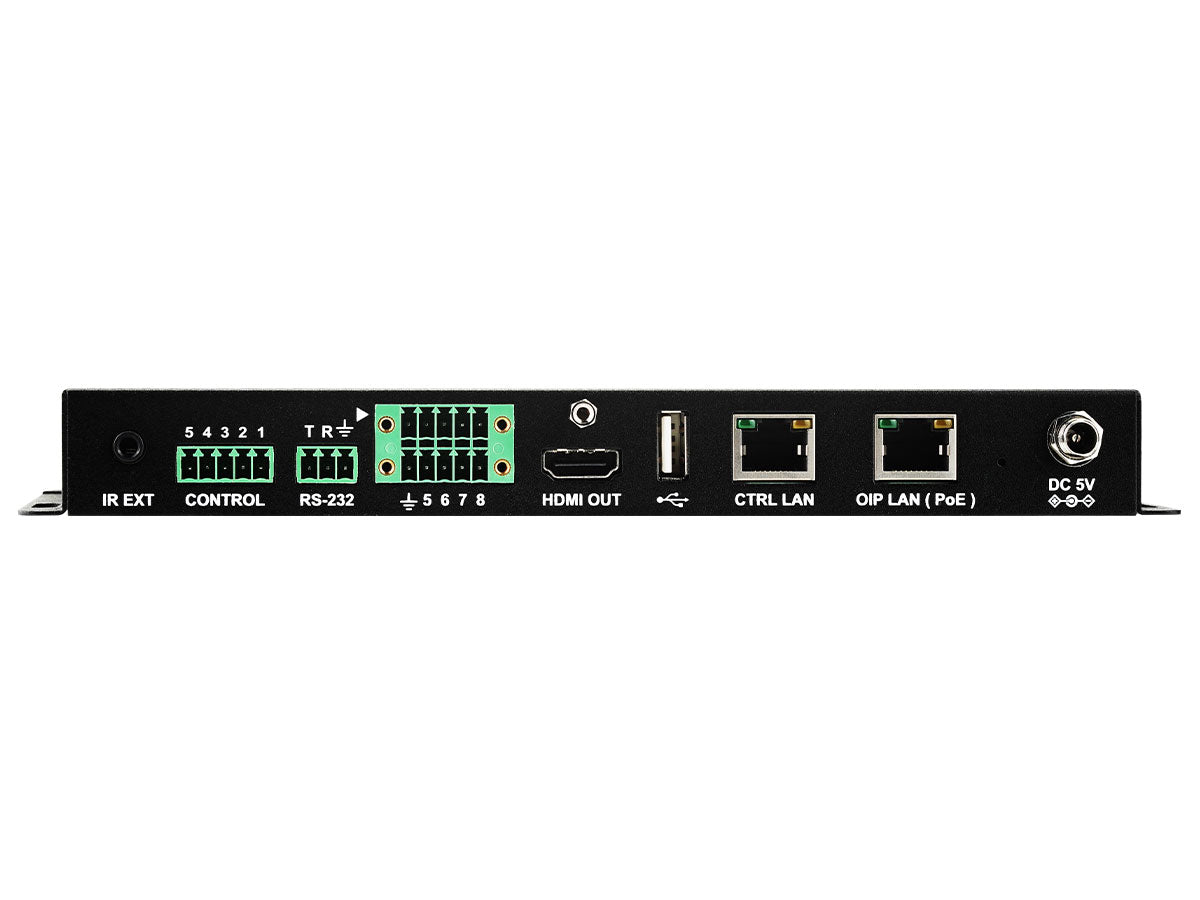

| INTERFACE | |
| Output: | 1 HDMI 1.4 |
| Control: | 1 IR Extender (3.5mm) 1 RS-232 (3-pin Terminal Block) 8 Trigger (10-pin Terminal Block) 1 USB 2.0 (Type-A) 2 Ethernet (RJ-45) |
| Reserved Port: | 1 RS-232 (5-pin Terminal Block) |
| VIDEO | |
| Output Signal Type: | HDMI 1.4 1080p60 |
| AUDIO | |
| HDMI: | LPCM (8 Channels) / Bitstream / HD Bitstream |
| POWER | |
| Power Supply: | 5V/2.6A DC (Locking) PoE (802.3af) |
| Power Consumption: | 2.99W |
| ENVIRONMENTAL | |
| Operating Temperature: | 0°C ~ 40°C |
| Operating Humidity: | 20~80%, non-condensing |
| Storage Temperature: | -40°C ~ 60°C |
| Storage Humidity: | 90%, non-condensing |
| ENCLOSURE | |
| Housing: | Metal |
| Weight: | 0.55lbs (0.25kg) |
| Dimensions (W×H×D): | Case Only: 9.11" x 0.98" x 4.25" (231.5mm x 25mm x 108mm) All Inclusive: 9.11" x 0.98" x 4.61" (231.5mm x 25mm x 117mm) |
- 1 x Lumens OIP-D50C AVoIP Controller
