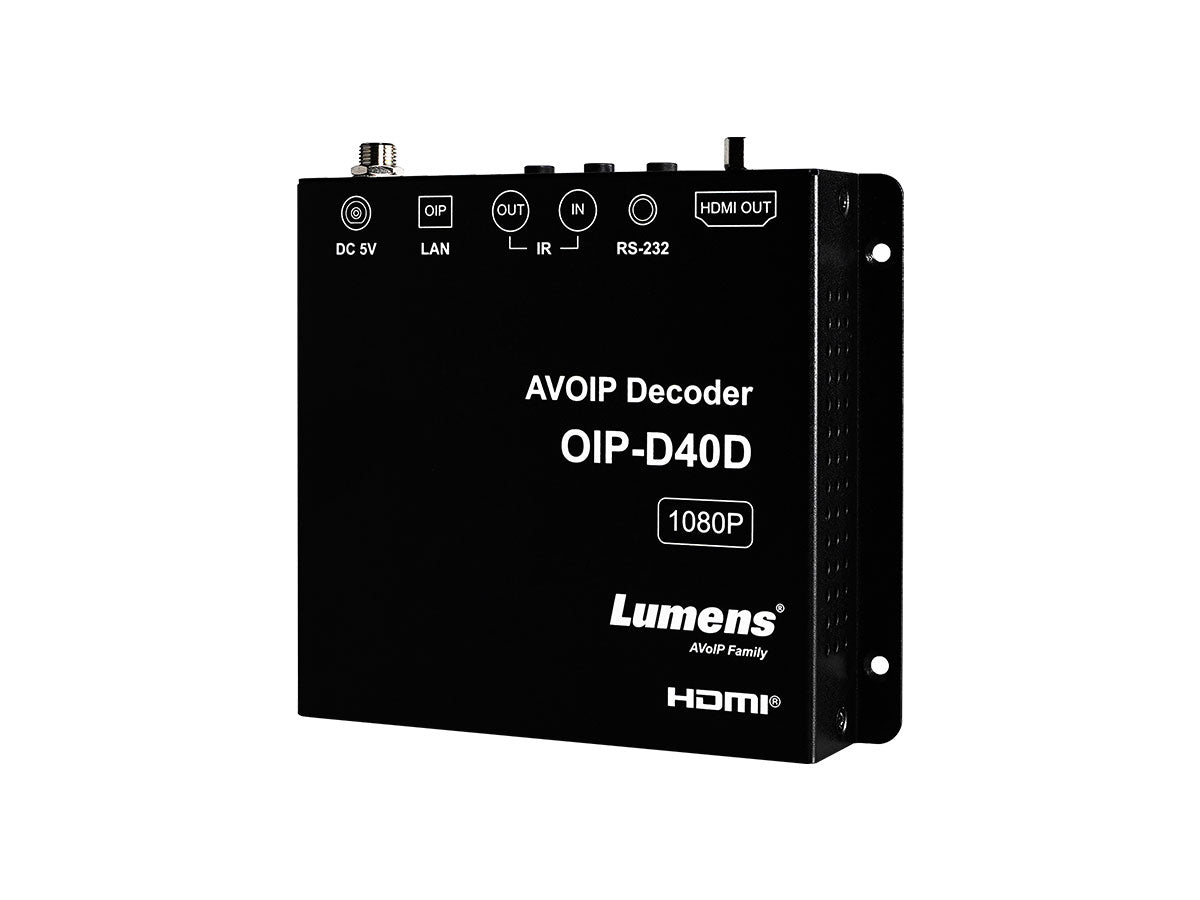

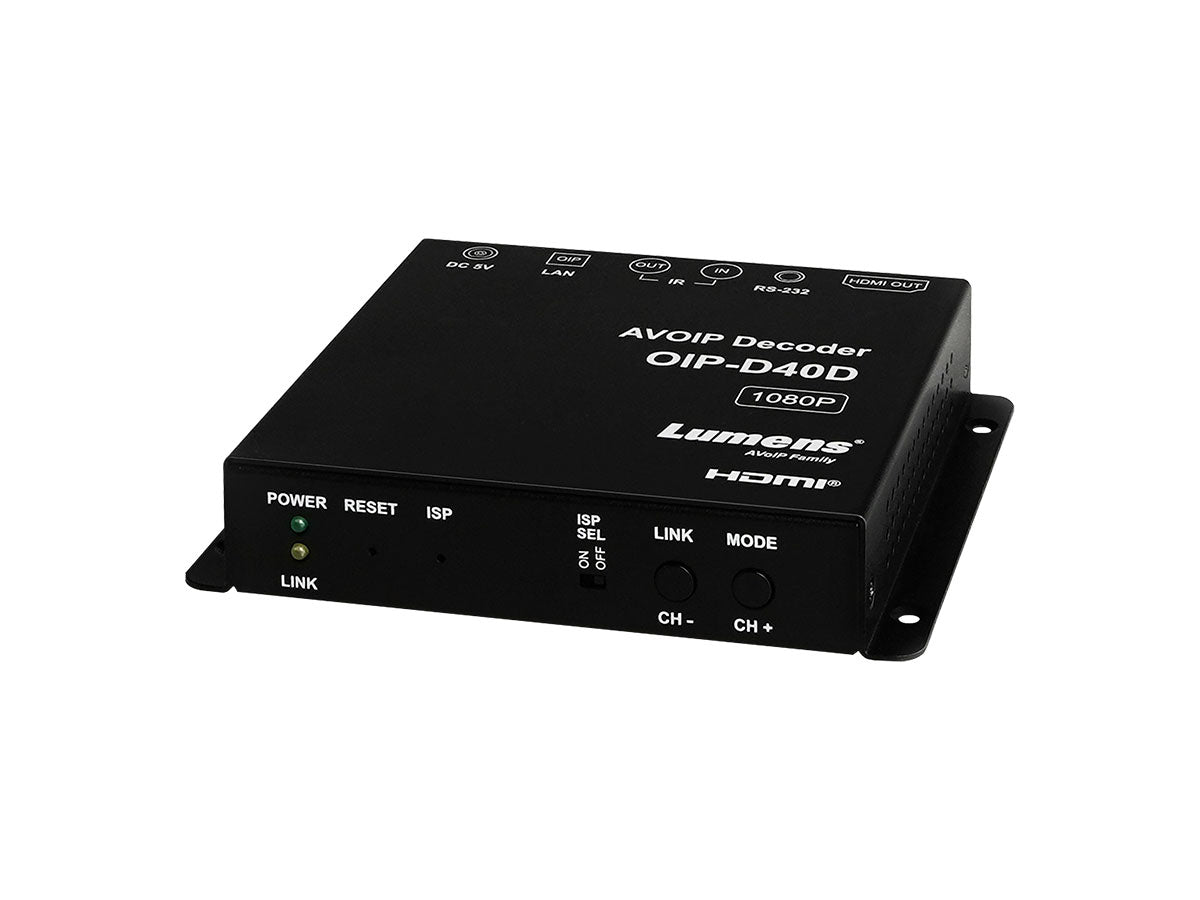

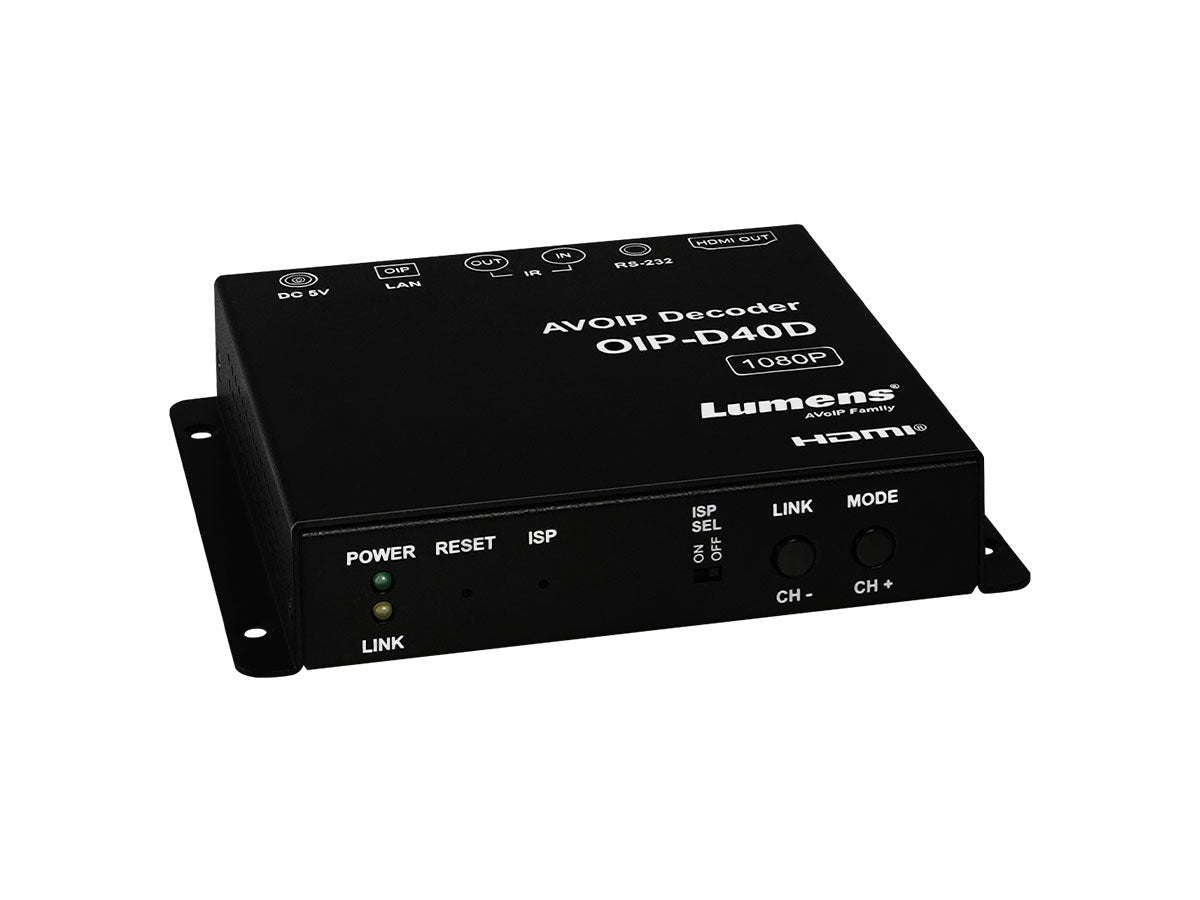

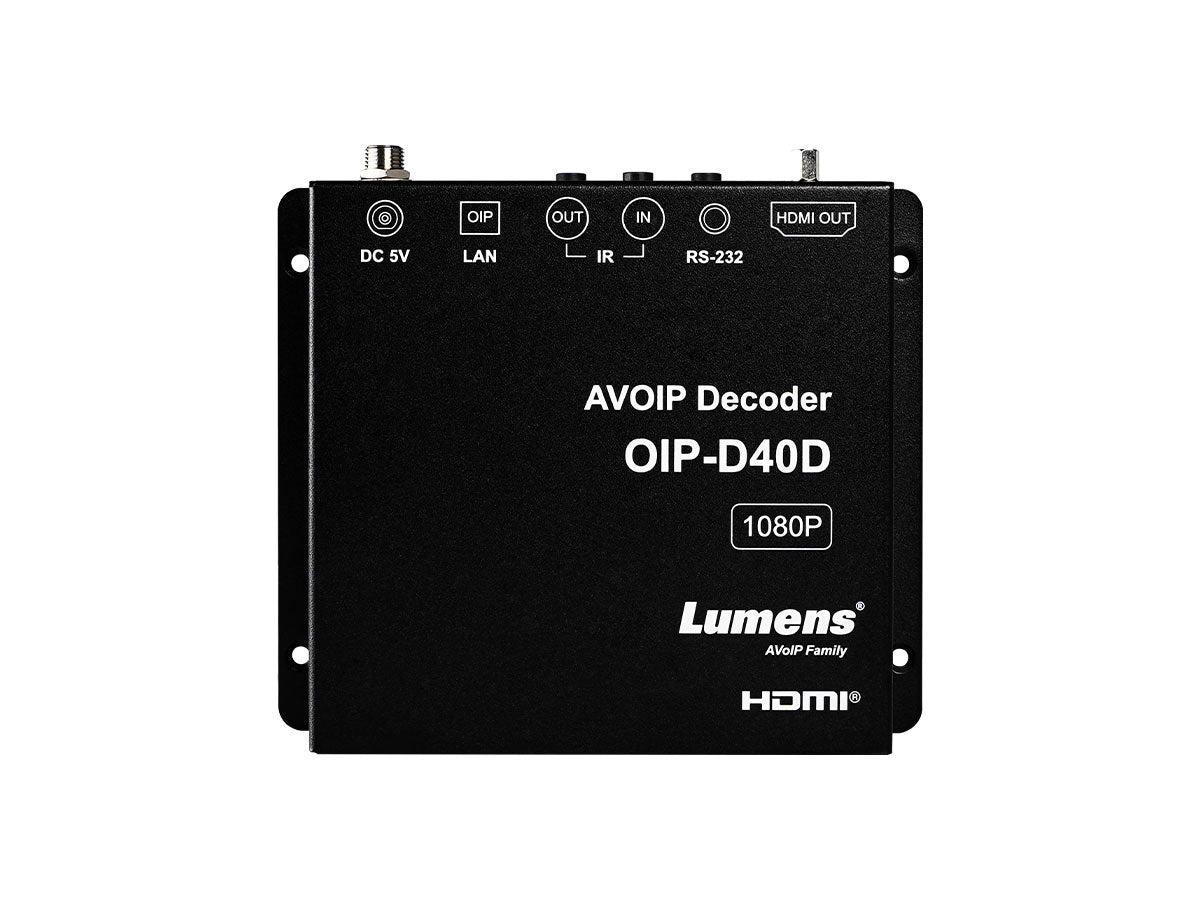

Lumens OIP-D40D Full HD 1G Decoder

Lumens OIP-D40D Full HD 1G Decoder

SKU: LUM-OIP-D40D
£550.00 GBP ex VAT
£660.00 GBP inc VAT
ex VAT £550.00 GBP ex VAT
£660.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
The Lumens® OIP-D40E / OIP-D40D AV over IP encoder and decoder deliver 1080p ultra-low latency and visually lossless compression through Cat. 5e/6/7 cables. The OIP-D40E / OIP-D40D provides flexible, high-efficient and cost-effective Pro A/V system solutions. It is applicable for a wide range of environments, such as sports bars, school campuses, and house of worship, etc.

High Quality 12-bit Transmission
The Lumens HD encoder/decoder pair (OIP-D40E / OIP-D40D) delivers stunning 12-bit video over IP. Lumens’ compression technology produces visually lossless HD (and 1920 x 1200 sources) that can be transmitted over standard 1-Gigabyte Ethernet networks. As a video over IP solution, Lumens OIP is powerful, scalable and very cost-effective.

Ultra-low Latency Delivery and Control
The delay between the HDMI source and decoder is minimal. Because of this, Lumens HD video over IP units is well suited to relay live video from a production switcher to displays within a venue or around a sports stadium – all at a minimal cost. Transmitting device control protocols, Lumens OIP devices can trigger monitor responses such as standby or source switching. So, not only can the Lumens solution dynamically send HD video to displays, it can control the monitor itself.

Networked AV
The OIP-D40E / OIP-D40D pair connects an HD video source and large format displays over standard IP networks. A single encoder can also transmit videos over long distances to multiple decoders*, without the need for a dedicated AV network. With multiple encoders and decoders on the network, the Lumens technology goes up another gear: users can now simply drag any input to any output. Now, retailers, bar managers, and venues can play any video content on selected displays or on all monitors on the network.

Video Wall Installations
Supporting video output in either portrait and landscape orientation, two or more displays can be routed to create a video wall. By combining multiple HD screens, organizations can design eye-catching 2K, 4K and 8K video walls. Visually stunning and cost-effective, this is an ideal solution for leisure facilities, control rooms, sports arenas and reception areas.

User-Friendly IP Control and Monitoring
By deploying Lumens' OIP-D50C controller, operators can preview encoded video sources by launching a web-based interface on any connected device. Each encoded video source can be routed individually to displays or video walls in real-time. The interface is highly visual, making control of each encoded source and destination decoder extremely easy. Customers who prefer to rely on a third-party control system, such as Crestron, can integrate with Lumens.
  • Delivers 1080p pristine video quality with ultra-low latency
  • Long-distance IP-based A/V transmission
  • Video wall deployment with portrait and landscape orientation
  • Intuitive Web-based GUI for AV distribution and control (*with OIP-D50C)
  • Entry-level A/V distribution solution

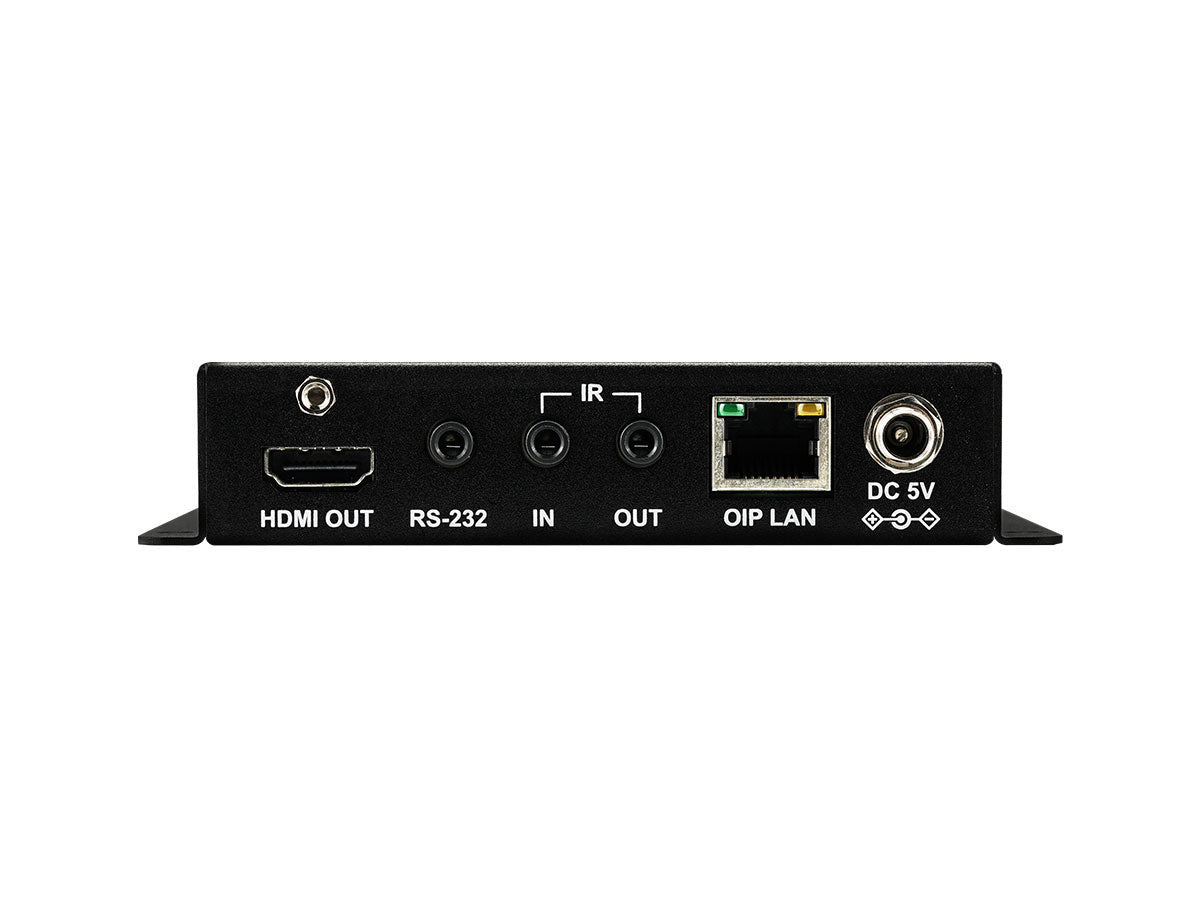

INTERFACE
Input:
1 GbE LAN (RJ-45)
Output:
1 HDMI 1.4 (DVI 1.0)
Control:
1 IR Extender (3.5mm)
1 IR Blaster (3.5mm)
1 RS-232 (DB-9)
VIDEO
HDCP:
1.4
Input Signal Type:
NA
Output Signal Type:
1080p 12bit RGB
Maximum Input:
Stream
1920×1080p@60
1920×1200p@60RGB
Maximum Output:
HDMI
1920×1080p@60
1920×1200p@60RGB
AUDIO
HDMI:
LPCM (8 Channels) / Bitstream /
HD Bitstream
POWER
Power Supply:
5V/2.6A DC (Locking)
Power Consumption:
4.2W
ENVIRONMENTAL
Operating Temperature:
0°C ~ 40°C
Operating Humidity:
20~80%, non-condensing
Storage Temperature:
-40°C ~ 60°C
Storage Humidity:
90%, non-condensing
ENCLOSURE
Housing:
Metal
Weight:
0.802lbs (0.364kg)
Dimensions:
Case Only: 5.03" x 0.98" x 4.25"
(128mm x 25mm x 108mm)
All Inclusive: 5.03" x 0.98" x 4.57"
(128mm x 25mm x 116mm)
