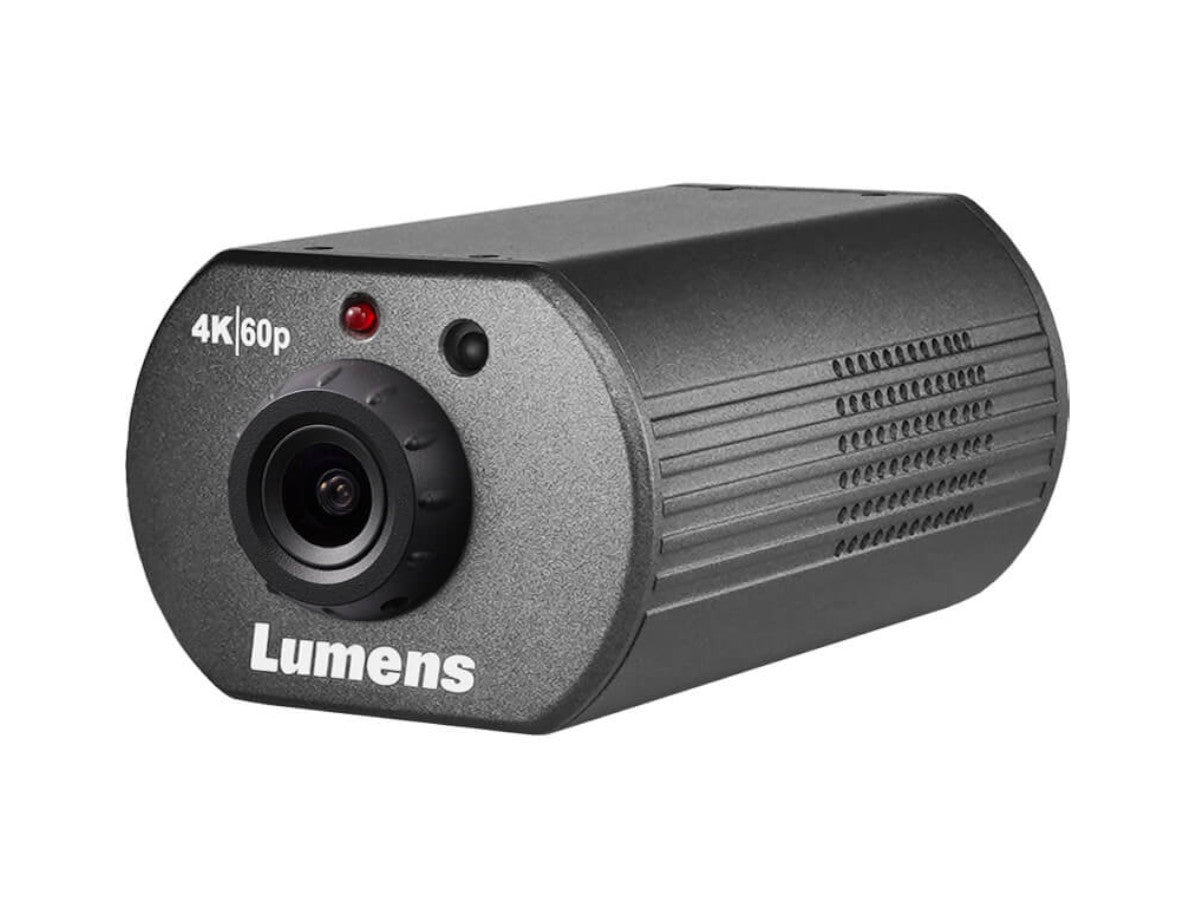

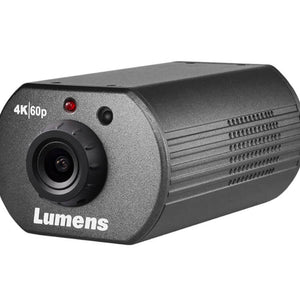

Lumens 4K IP POV Camera

Lumens 4K IP POV Camera

SKU: LUM-VCBC301PB
Regular price £825.00 GBP ex VAT
£990.00 GBP inc VAT
Regular price ex VAT Sale price £825.00 GBP ex VAT
£990.00 GBP inc VAT
Sale Sold out
Available to Order
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included
4K 60fps Image Quality
The VC-BC301P IP POV Camera is built with a 1/1.8" high sensitive SONY sensor which delivers 4K 60fps ultra-clear image quality.

Supports ePTZ Function
With VC-IR01 remote control, you can easily control the VC-BC301P camera with features including pan, tilt, zoom, and preset function.

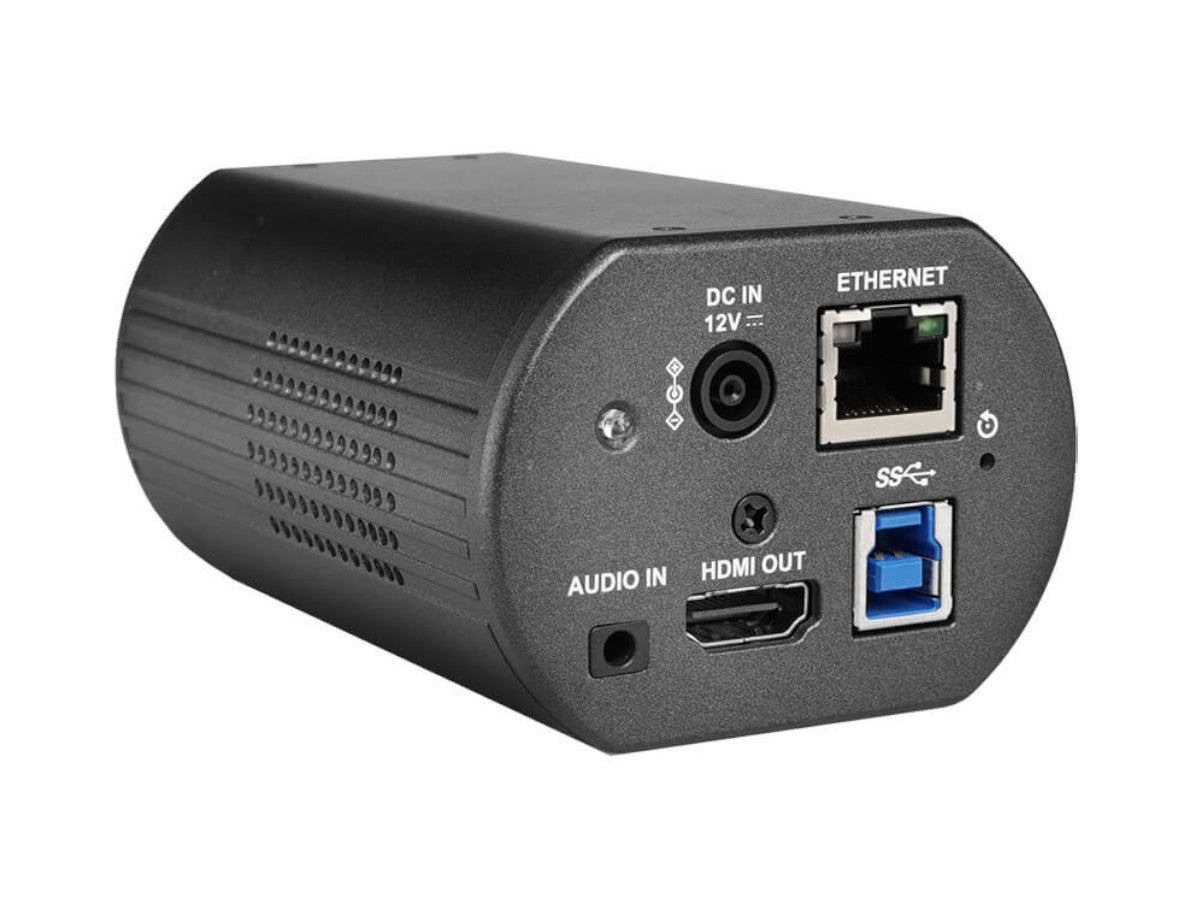

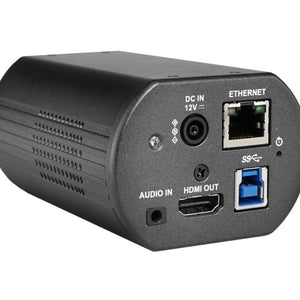

IP (PoE), USB, HDMI Video Outputs
The VC-BC301P camera supports IP (PoE), HDMI and USB video outputs. The PoE allows flexible and simple installation.

Tally Light & Compact Design
The VC-BC301P built-in tally light turns on when it is in operation to provide visual confirmation to the presenter or director. It can be easily integrated into any environment with a compact design.
  • 4K IP POV Camera
  • High Quality 4K 60fps Images
  • Compact Design with Tally Light
  • Supports ePTZ Function
  • HDMI, Ethernet, and USB3.0 Video Outputs
  • 5 Year Warranty
CAMERA
Sensor: 1/1.8" 9.17 MP CMOS
Video Format: 2160p : 60 / 59.94 / 50 / 30 / 29.97 / 25
1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25
720p : 60 / 59.94 / 50 / 30 / 29.97 / 25
1080i : 60 / 59.94 / 50
Video Output Interface: HDMI 2.0 / Ethernet / USB 3.0
Pixel Zoom: 2x for1080p
3x for 720p
Digital Zoom: 12x
Viewing Angle: 102° (H) 57.4° (V) 117° (D)
Aperture: F1.6
Focal Lengths: 4.57mm
Shutter Speed: 1 ~ 1/10,000 sec
Minimum Object Distance: 30cm
Video S/N Ratio: > 50dB
Minimum Illumination: 0.05 lux (F1.6, 50IRE, 30fps)
Focus System: Manual
Gain Control: Auto / Manual
White Balance: Auto / Manual
Exposure Control: Auto / Manual
IQ Sync: Yes
WDR: Yes
3D NR: Yes
Image Flip: Yes
Tally Light: Yes
PAN & TILT
ePTZ: Yes
Preset Positions: 256
OUTPUT
HDMI: 2160p59.94
IP Stream: RTSP :
HEVC 4K 59.94fps
H.264 1080p 59.94fps
H.264 640x360 29.97fps
IP Compression: HEVC / H.264
USB Output: H.264 4K30fps
MJPEG 1080p30
USB Compression: H.264 / MJPEG
NETWORK
IP Protocol: RTSP / RTMP / RTMPS / MPEG-TS / SRT
PoE: PoE (IEEE802.3af )
AUDIO
Input: Line In / Mic In, Phone Jack 3.5mm x1
Output: Ethernet / HDMI / USB3.0
Compression Format: IP: G.711 / USB: PCM
CAMERA CONTROL
Interface: Ethernet / USB / Remote
Protocol: VISCAIP / ONVIF / UVC
GENERAL
DC In: 12V +/- 20%
Power Consumption: PoE: 11 W
DC In: 10 W
Weight: 0.77 lbs (350 g)
Dimensions: 4.4" x 2.8" x 2.0" (113 x 70 x 51 mm)
  • Camera
  • Instruction for installation
  • Power Adapter
  • AC Power Cord Bracket accessory kit
  • Bracket accessory kit
