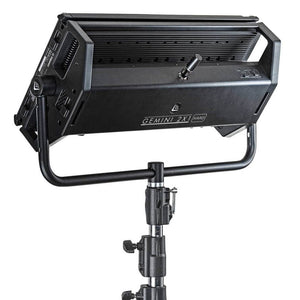

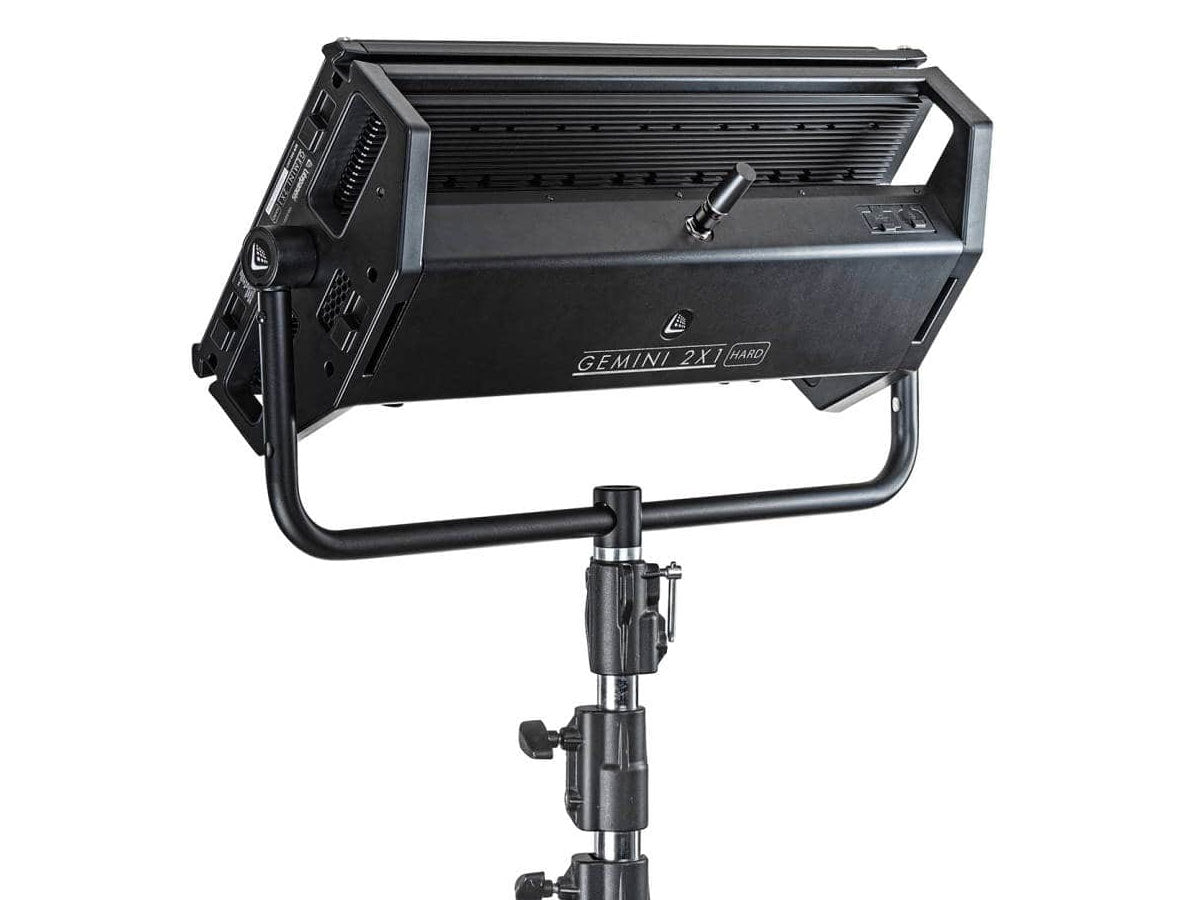

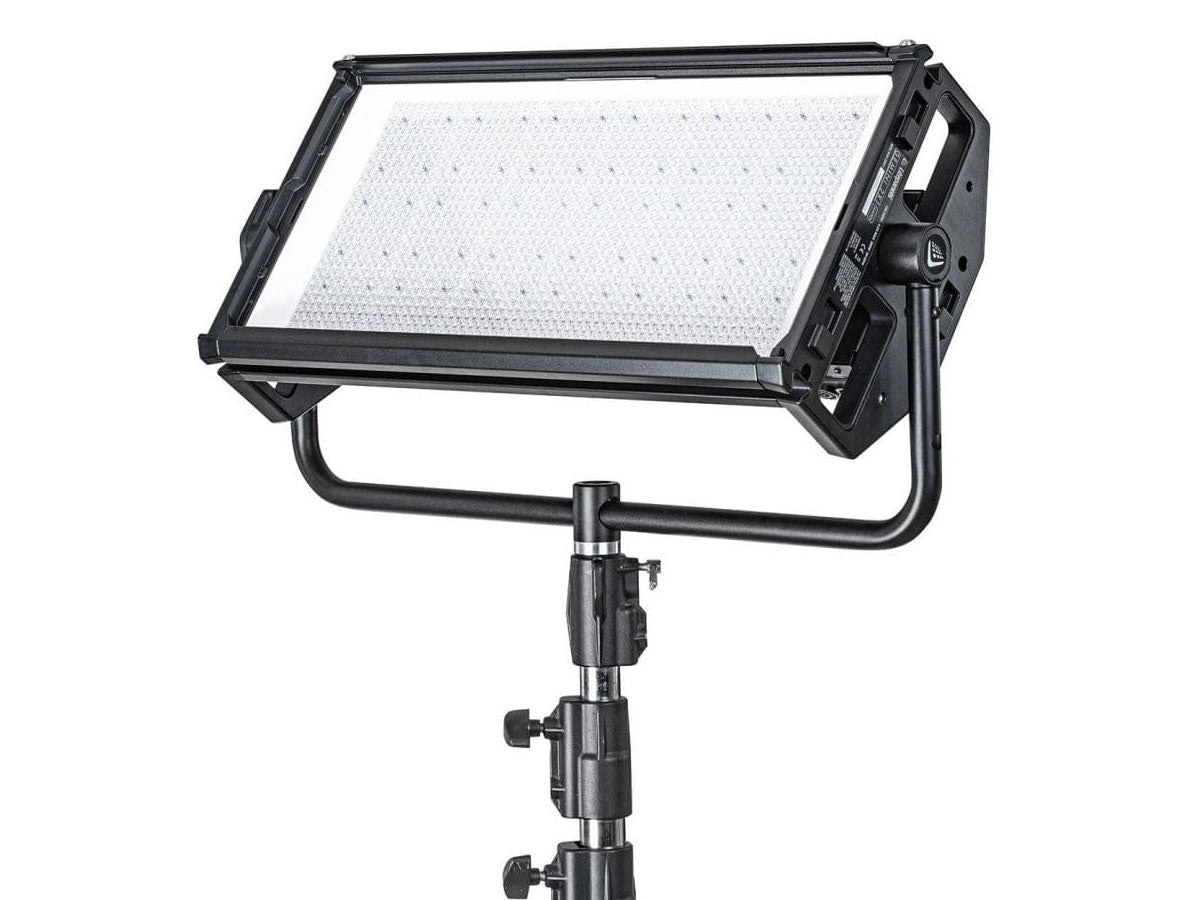

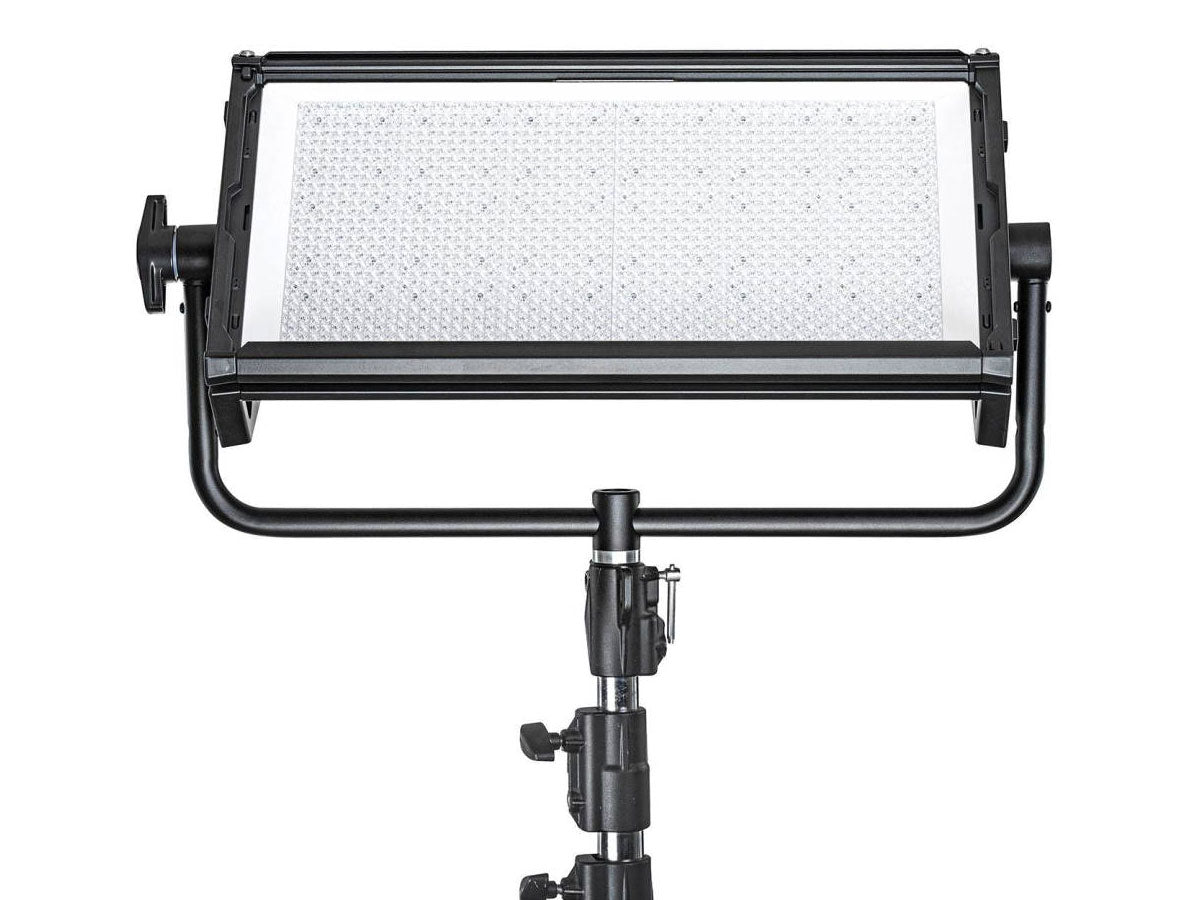

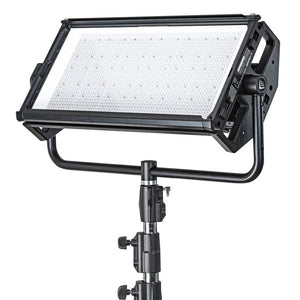

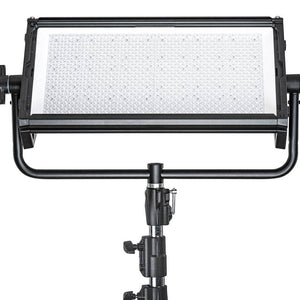

Litepanels Gemini 2X1 Hard RGBWW LED Panel - Standard Yoke
Litepanels Gemini 2X1 Hard RGBWW LED Panel - Standard Yoke
£5,520.00 GBP inc VAT
£5,520.00 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The Brightest. The Lightest.
Brighter than any other 2x1 panel, yet lighter than its peers, Gemini 2x1 Hard is a beautiful paradox delivering up to 23,000 lux of glorious high quality cinematic lighting in a lightweight agile fixture.
Gemini 2x1 Hard can deliver a powerful 20° beam of accurate hard white light, or seamlessly switch to a beautiful soft 100° wash, and at the touch of a button, unleash a world of creativity with full RGBWW output and special effects. With dual or quad mounting options to bank fixtures together creating up to four times the volume of intense light, Gemini 2x1 Hard is the ultimate production light.
Almighty output
23,000 lux of raw output at 10ft/3m from a 500W panel creates a new world of options. Control and modify without compromising on source. Gemini 2x1 Hard shifts from an intense 20° beam to a soft wrap-around light with diffusers included in the box, and still offers scope for many more layers.
Exquisite accuracy
Beautiful light quality and glorious true color reproduction combine. With no color shift or flicker at any framerate, shutter angle, or at any intensity from 100-0.1%, everything in the scene is illuminated by naturally beautiful light that renders color and skin tones perfectly.
Outstanding agility
Lighter than any comparable 2x1 panel and with no separate ballast, the Gemini 2x1 Hard stands apart as a lightweight weighing in at just 25.3lbs (11.5kg). Integrated DMX and CRMX speed up control, with lighting modes that offer pinpoint color manipulation. Gemini is faster and safer to rig, and ready for action in any location.
Industrial strength
Gemini 2x1 Hard will work first time, every time for years to come. Tough enough to stand up to demanding set life, Gemini is manufactured to industrial standards using durable, robust materials.
- The most powerful 2x1 panel
- 23,000 lux at 10ft/3m (5600°K) with a 20° beam angle
- Ultra light and domed diffusers included for softer light in an instant
- Extended white color temperature range from 2,700-10,000K
- Outstanding color accuracy, CRI95/TLCI97
- Full RGBWW color gamut mixing
- CCT, HSI and XY control modes
- Full plus/minus green color correction
- 0.1 – 100% automatic flicker-free dimming at any frame rate or shutter angle
- Integrated DMX, RDM and CRMX
- Multi-voltage 100-240VAC; DC Input 26-33 VDC
- Lightweight: 25.3 lbs / 11.5 kg including yoke and power supply
| Optical | |
| LED Panel | RGBWW |
| Beam angle (no diffuser) | 20° |
| Beam angle with Domed Diffuser | >100° |
| Optics | 20° custom TIR lens |
| CCT Range | 2,700-10,000K |
| Daylight (5600K) (Lux @10ft/3m) | 23,000 (No diff) |
| 8,000 (Ultra Light diff) | |
| 2,800 (Domed diff) | |
| Tungsten (3200K) (Lux @10ft/3m) | 20,000 (No diff) |
| 6,700 (Ultra Light diff) | |
| 2,300 (Domed diff) | |
| RED (Lux @10ft/3m) | 2,700 (No diff) |
| GREEN (Lux @10ft/3m) | 11,800 (No diff) |
| BLUE (Lux @10ft/3m) | 1,300 (No diff) |
| CRI (average*) | 95 |
| TLCI (average*) | 97 |
| +/- Green-Magenta Adjustment | Continuously Variable |
| Included Diffusion | Ultra Light (900-3653) |
| Domed (900-3649) | |
| Mechanical | |
| Versions | Manual, pole operated |
| Weight* | Manual: 25.3 lbs / 11.5 kg |
| Pole Operated | 32 lbs / 14.5 kg |
| Size (without yoke) | H12“ W25“ D6.9“ / H320mm W634mm D176mm |
| Size (withyoke) | H20.8“ W29.4“ D6.9“ / H520mm W748mm D176mm |
| Mounting method | Junior Pin (removable) |
| Operational | |

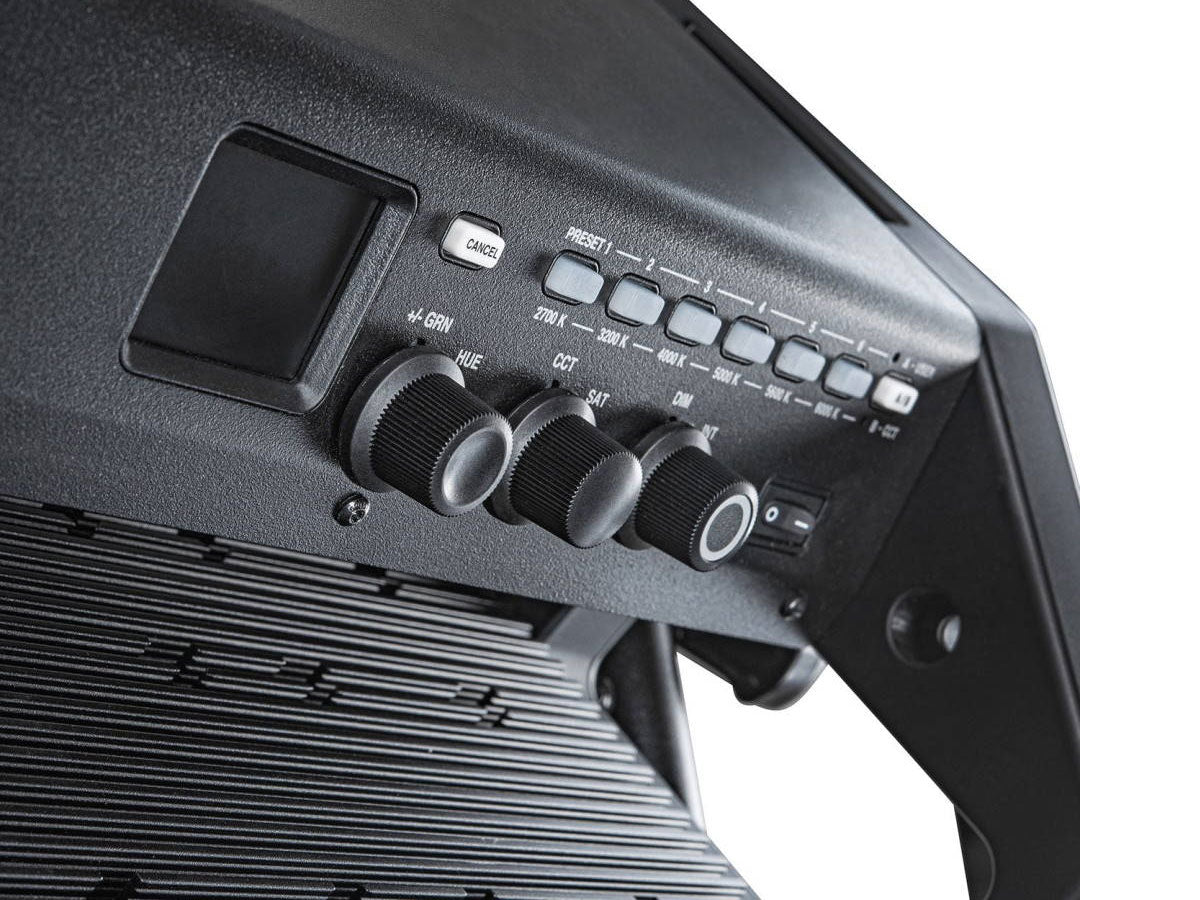

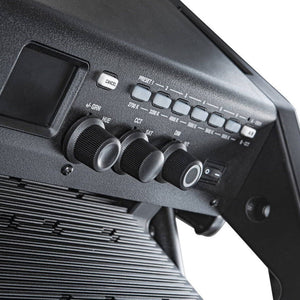

| Lighting Control Modes | RGBWW/CCT/HSI/XY/Gel/FX |
| single dial with LCD menu control | |
| Number of Gels | 300 |
| Number of Effects | 11 |
| Dimming Control | Constant Current 0-100% Continuous |
| Remote Control Options | Integrated: DMX, RDM, CRMX |
| Optional dongle | Bluetooth |
| Fan Control | Yes |
| USB Updates | Yes |
| Ambient Temp Operation | -4° to 113° F / - 20° to + 45° C |
| Estimated LED lifetime | 35,000+ hrs |
| Preset Options | 6x preset CCT modes with quick select buttons |
| 6x customisable user presets with quick select buttons | |
| Electrical | |
| Nominal power draw | 500W |
| Power supply | Internal |
| Mains Input | PowerCON True 1, 100-240 VAC / 50-60 Hz |
| Battery DC Voltage Range | 26-33 VDC |
| IP Rating | IP20 |
- Gemini 2x1 Hard
- Power Cable
- Ultra Light Diffusion
- Domed Diffusion
