Ready Wherever You Are:
All-in-one ballast free cine quality light that is easy to transport, rig and adapts to all on-location shooting environments and demands – daylight, tungsten, RGB colours, gels, fully customisable cinema effects/modes, combining several fixtures to one, use for with different diffusors, adjustable yoke and power supply positions.
The Best Colour You Want:
Superior light and software performance – Industry’s most accurate white light, full colour spectrum for great colour and skin tone rendition, dedicated daylight and tungsten LEDS, flicker free performance at all dim levels, smooth dimming with precise low end dimming.
Always Under Your Command:
Total control of all lighting functions through several protocols - first in this class that provides WiFi technology, control panel located on the fixture bottom, very simple menu navigation, works with wireless DMX, different options to control wired DMX, large number of presets.
Your Trustworthy Friend:
Designed, manufactured and tested for the most demanding on-location shooting environments – using the industry’s highest production and material standards, 3 year warranty, global dealer and service network.
Perfect light instantly available: Every colour at your fingertips:
Gemini panels allow instant precision adjustment and control of light with four fully-featured lighting modes; CCT Mode for true daylight and Tungsten from 2,800K to 10,000K with +/- green and magenta fine tuning; HSI Mode for total control over hue, saturation and intensity to create any colour in the 360 colour wheel at any intensity from 0-100%; Gel Mode to easily replicate the industry’s most popular gel sets with either daylight or tungsten source, and Effects Mode for a dazzling array of effects at your fingertips including, TV, emergency lights, fire, paparazzi, fireworks, party lights, pulse and strobe.
Easily switch between battery and AC: The industry’s most agile light on the go:
The lightweight design offering rapid rigging with fewer cables combined with full-intensity mobile power with no extra modules, via 3pin XLR, V-Mount or Gold Mount batteries make Gemini panels the perfect location lights. The low power draw of 200 W means fewer batteries and lower running costs.
Instantly accessible and easy to rig: No parts to assemble Gemini is ready to start work immediately:
Gemini is ready to go straight out of the box, no assembly required seamlessly integrating into any lighting control set-up with intuitive, easy to reach, on-board controls and remote-control options via standard DMX 512 protocol, wireless DMX or Bluetooth to quickly adapt to any demands from on set. With speed-sensitive manual control, the rotation switches seamlessly from fine-tune to quick adjustment. For bigger lighting setups, Gemini panels can be banked together in arrays of two or four panels from a simple 1x1 to a massive 4x2.
Serious Stability: Flicker Free Light with no colour shift:
Flicker-free light at any frame rate or shutter angle and at any intensity level perfect for creating slow motion shots. Ultra-smooth dimming from 100% to 0, with no colour shift.

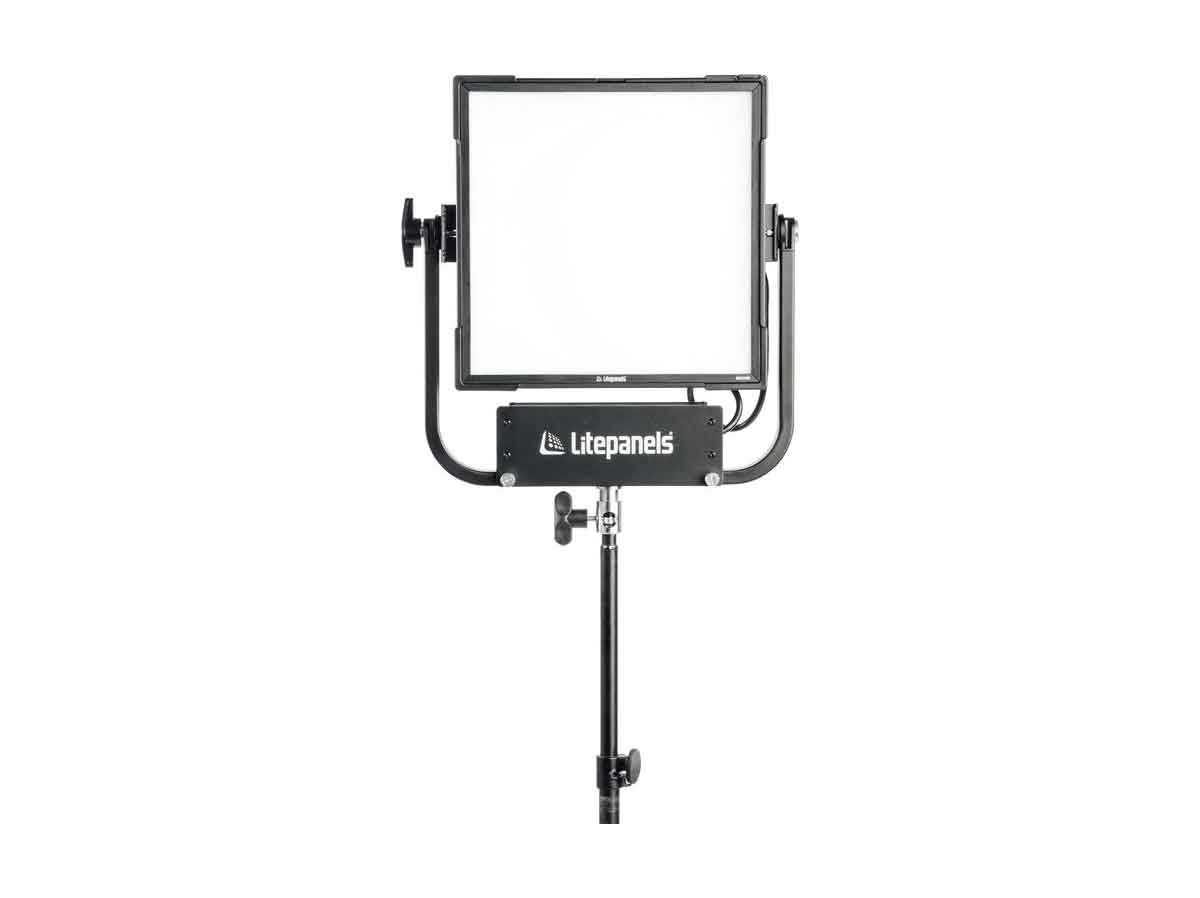

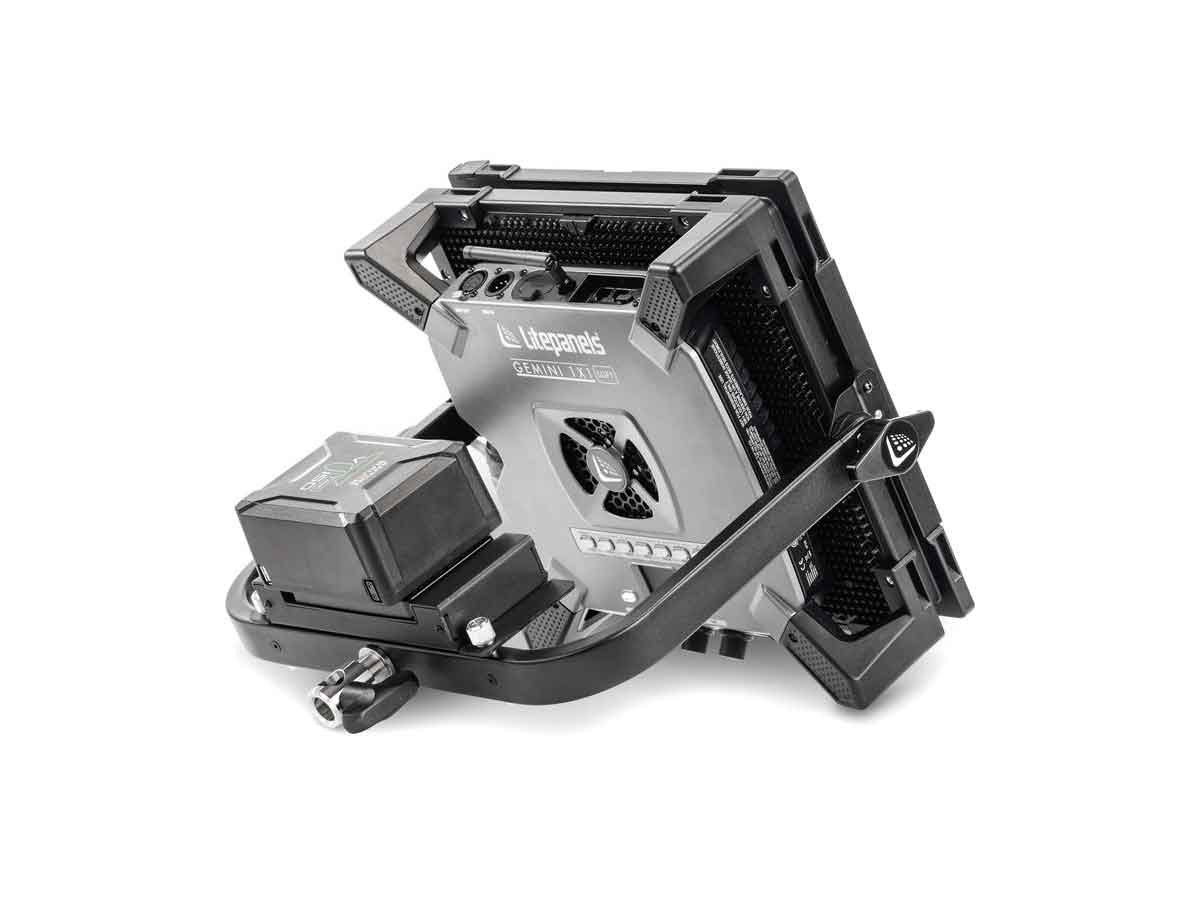

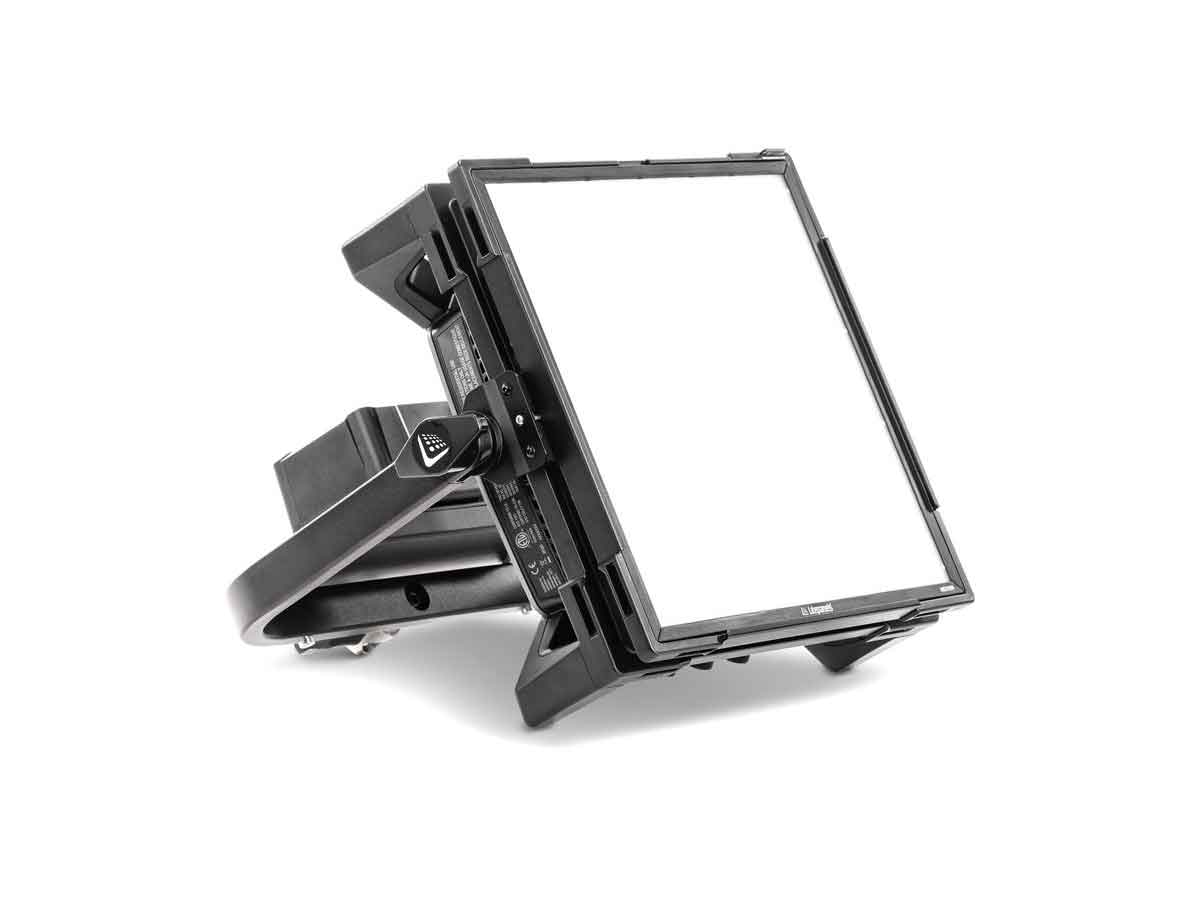

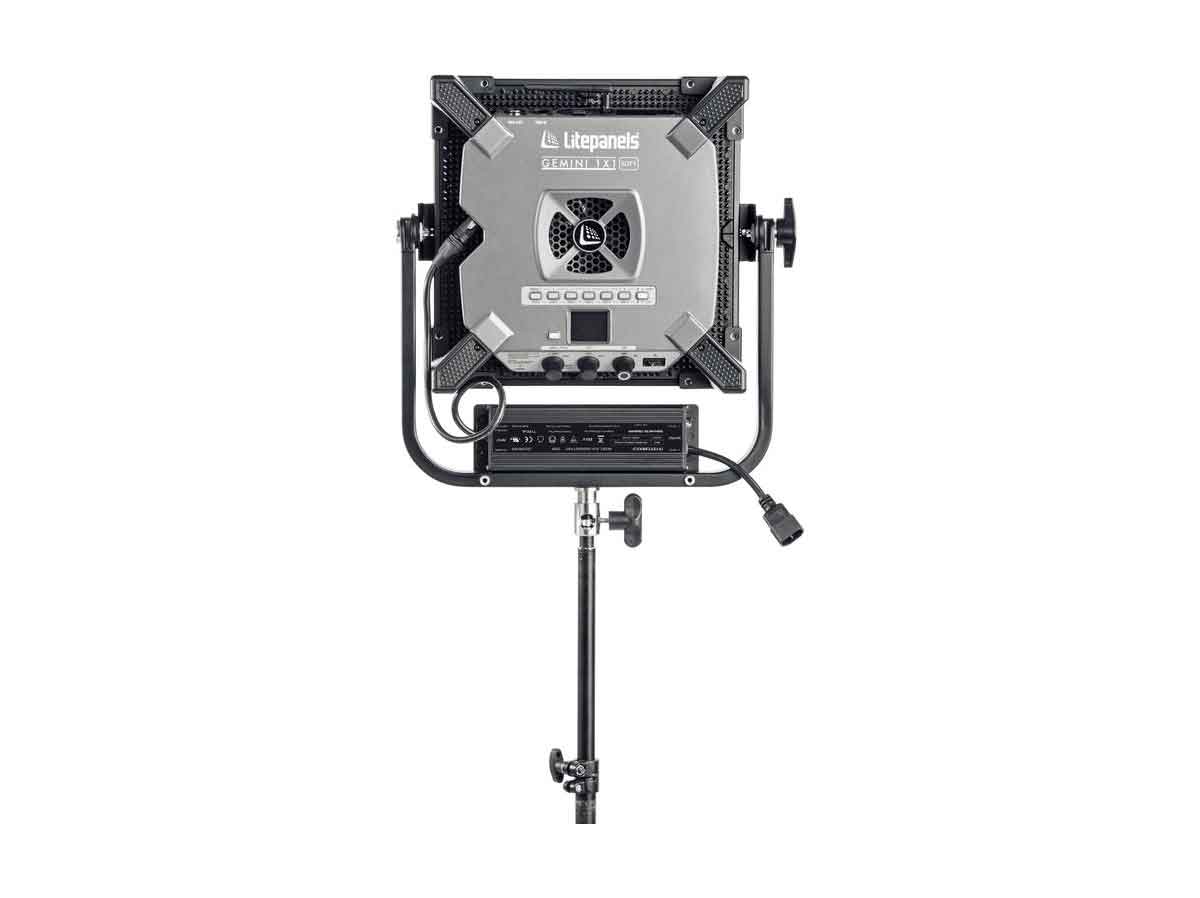

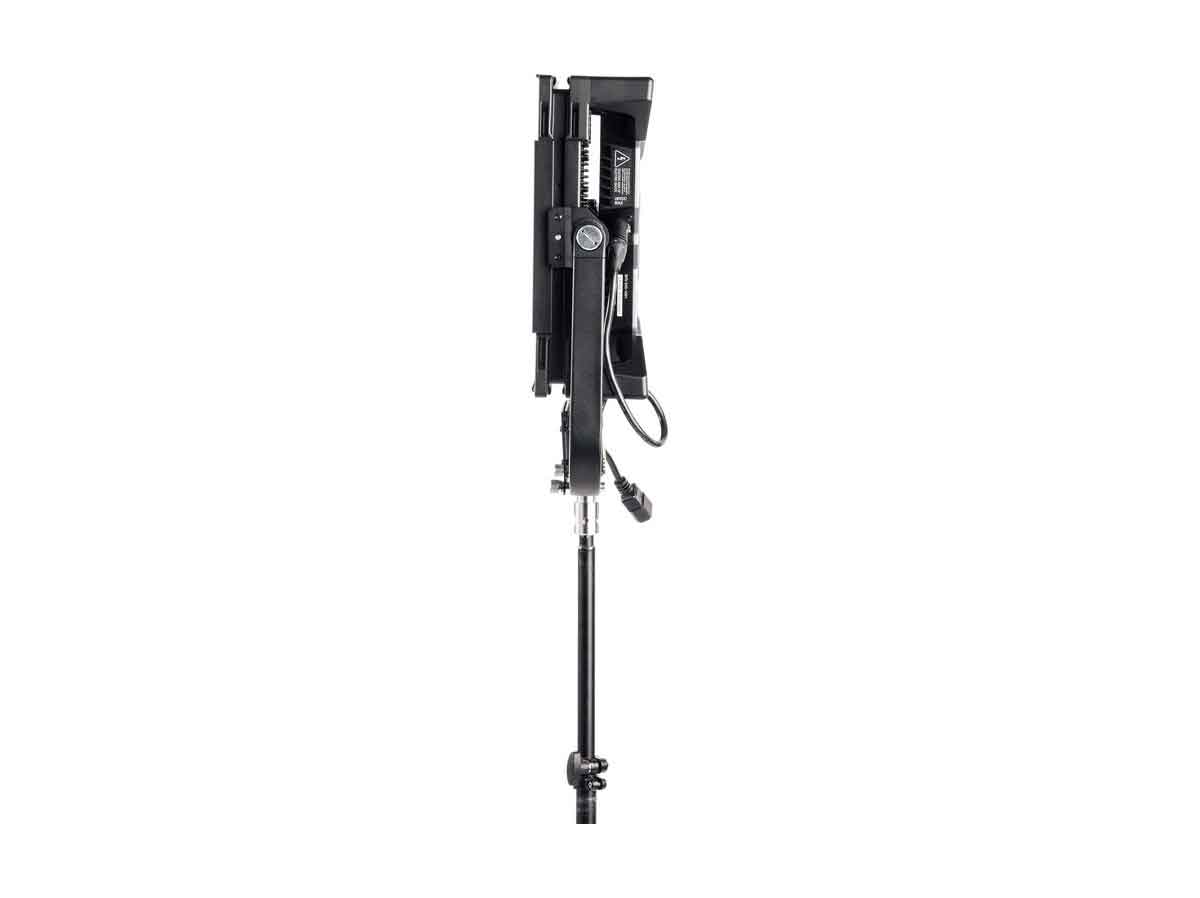

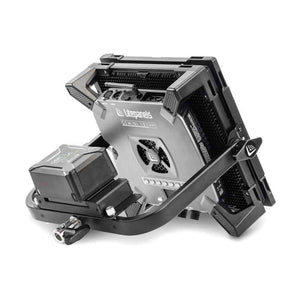

Light your scene faster and brighter on location or in the studio with the Gemini 1x1 Soft LED panel from Litepanels.Delivering full spectrum, accurate daylight and Tungsten light with the ability to dial in any colour imaginable and a wide selection of lighting effects, the lightweight, quick-to-rig, and easy to control Gemini is the ultimate no-crew lighting solution for image makers on the go.
| Voltage Range: | 100-240 VAC, 13-28V DC |
| Power Consumption: | 200 W nominal |
| LED Technology: | RGBWW |
| Colour Temperature: | 2700-10000K |
| Lighting Intensity: | 3.2k @ 10 ft / 3m = 557 LUX, 5.6k @ 10 ft / 3m = 614 LUX |
| CRI / TLCI: | Daylight: 97, Tungsten: 94 |
| Beam and Field Angle: | 95° / 157° |
| Control: | Built-in WIFI, DMX (5 PIN & RJ45), optional wireless DMX, Bluetooth, SmartLite Director App |
| Colour Controls: | Kelvin temperature, Plus/minus green, Hue, saturation, intensity, Gel presets |
| Low End Dimming | from 0.1% |
| Battery Powered: | Optional plates available, runs at 90% output on single 14.4V battery, at 100% on 26V and dual 14.4V batteries |
| Cooling: | Fan, at 50% output when fan disabled, Fan delayed start option |
| Mount: | 1-1/8"" (28 mm) pin, Standard yoke, stackable as 2 & 4 units |
| Fixture Dimensions: | 12.6 x 12.6 x 4.6" / 320 x 320 x 119 mm |
| Weight: | 11.7 lbs / 5.31 kg |
