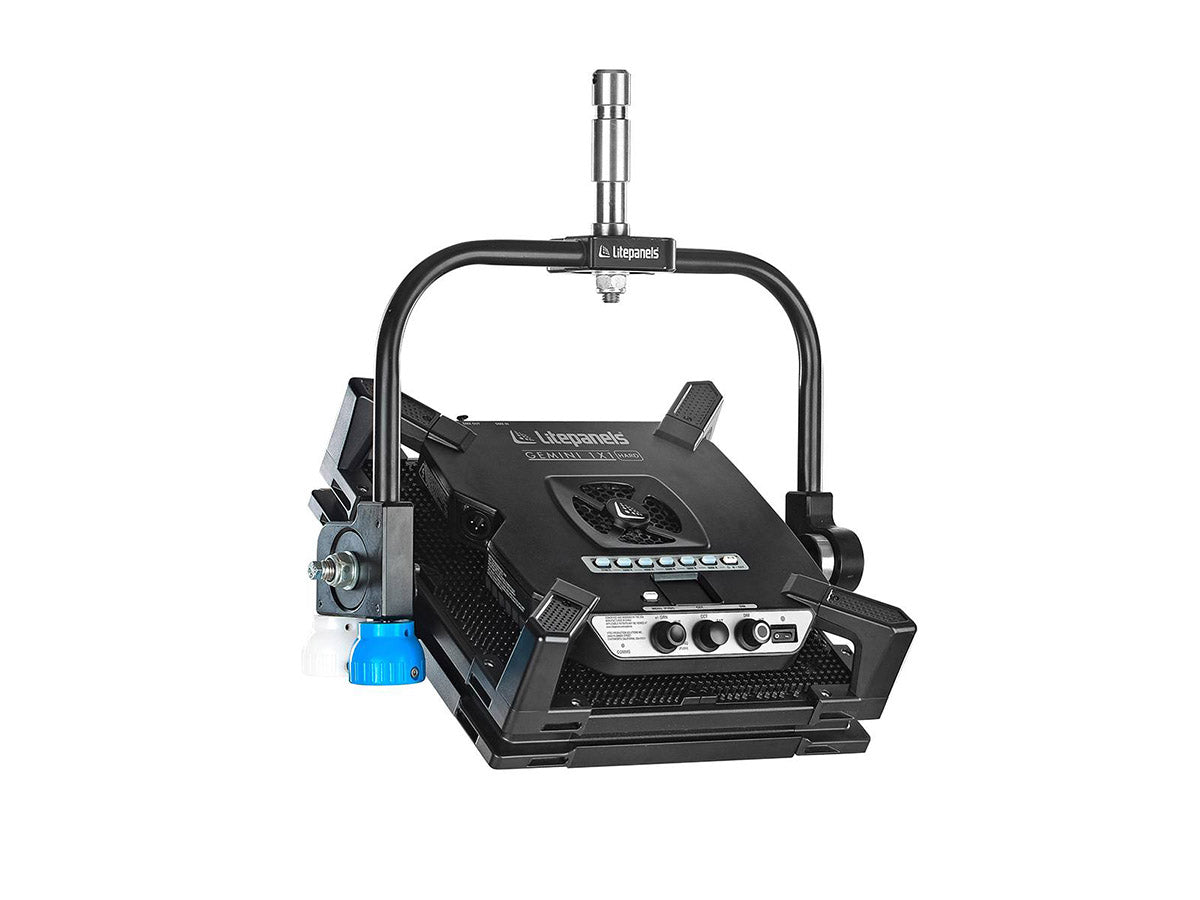

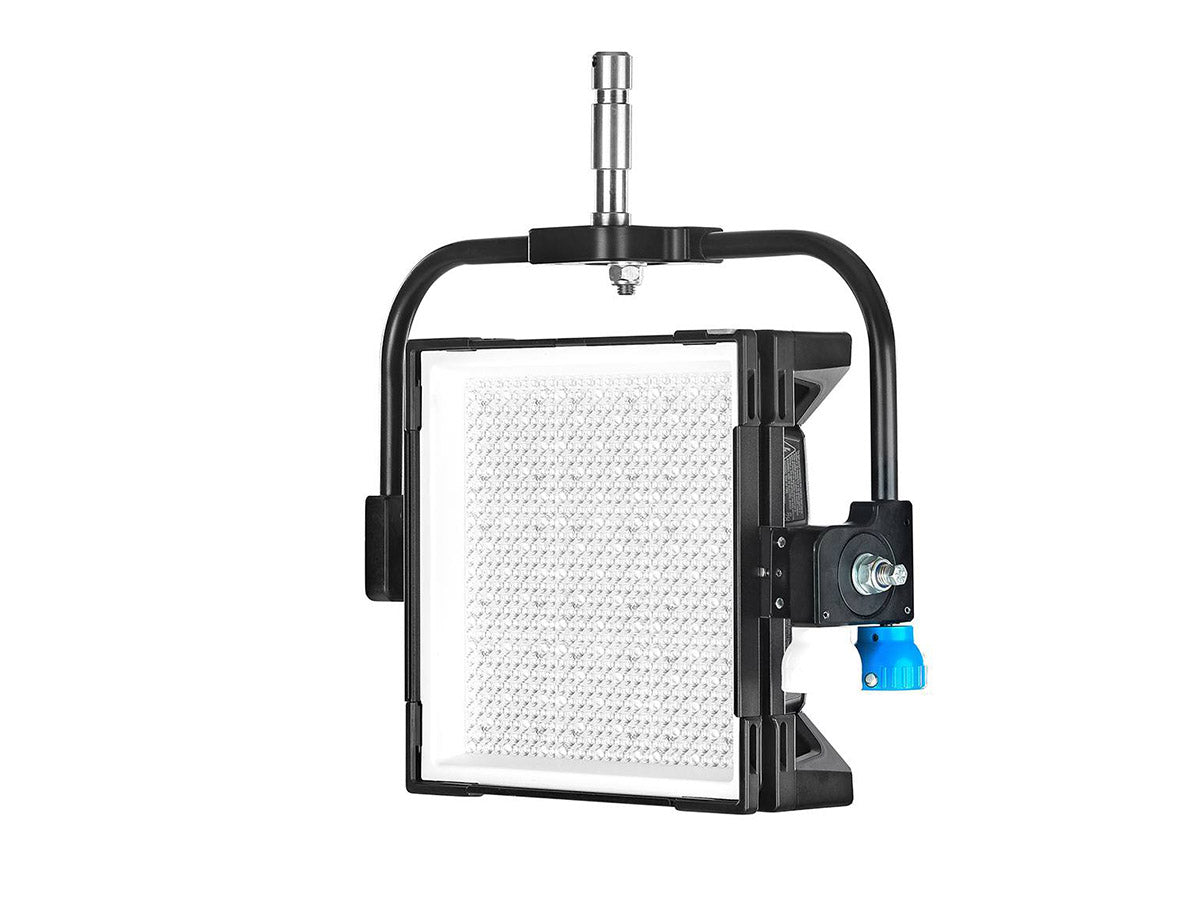

Litepanels Gemini 1x1 Hard RGBWW LED Panel with Yoke

Litepanels Gemini 1x1 Hard RGBWW LED Panel with Yoke

SKU: LP-945-2211
Regular price £2,043.13 GBP ex VAT
£2,451.76 GBP inc VAT
Regular price ex VAT Sale price £2,043.13 GBP ex VAT
£2,451.76 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

The power to create extraordinary

Power your imagination to create the extraordinary onscreen. With an incredibly bright output of over 3000lux @10ft/3m, Gemini 1x1 Hard delivers the brightestand most accurate 1x1 light ever. Blast through a silk,build layers of diffusion or bounce light off a board,with precision control of hue, saturation, intensity, gelsand effects, Gemini 1x1 Hard gives you the power tocontrol and create your own extraordinary.

  • The most powerful 1x1 panel
  • Over 3,000 lux at 10ft/3m (Daylight) with a 46°beam angle
  • Ultra-light and domed diffusers included for softer light in an instant
  • Extended white colour temperature range from 2,700-10,000K
  • Outstanding colour accuracy, TLCI/CRI 98
  • Full RGBWW colour gamut mixing
  • Hue, Saturation and Intensity control
  • Full plus/minus green color correction
  • 0.1 – 100% automatic flicker-free dimming at any frame rate or shutter angle
  • Wired or wireless DMX & Bluetooth remote control options
  • Multi-voltage 100-240VAC; DC Input 13-28VDC
  • Optional mobile battery power with 100% intensity output
  • Lightweight: 13.2lbs / 6.0kg including yoke and power supply
Dimensions 320 x 320 x 110mm (12.6 x 12.6 x 4.3 inches)
Weight 6.0 kg (13.25 lb)
CRI / TLCI CRI: 98, TLCI: 98
Beam Angle (no diffuser) 46º
Beam Angle (Domed Diffuser) 100º
Mount TVMP, Standard Yoke
Voltage Range 100-240V AC, 13-33V DC
Low End Dimming From 0.1%



Optical
LED Panel RGBWW
Beam Angle 46°
Beam Angle with Domed Diffusor >100°
Colour Temperature Range 2,700°-10,000°K
Daylight (5600°K) (Lux @10ft/3m) 3023 (No Diff) 1003 (Domed diff)
Tungsten (3200°K) (Lux @10ft/3m) 2456 (No Diff) 912 (Domed diff)
CRI Average 98
TCLI Average 98
+/- Green-Magenta Adjustment Continuously Variable
Interchangable Diffusers Ultra-Light (included)
  Light (not included)
  Medium (not included)
  Domed (included)
  Heavy (not included)
Optics 46° custom TIR lens


Operational
Lighting Control Modes RGBWW/CCT/HSI/Gel/FX single dial with LCD menu control
Preset Options 6x preset CCT modes with quick select buttons
  6x customizable user presets with quick select buttons
Number of Gels 300
Number of effects 11
Dimming Control Constant Current 0-100% Continuous
Remote Control Options DMX, RDM, Apollo CRMX (requires optional dongle), WDMX (requires optional dongle), Bluetooth (requires optional dongle)
Fan Control Yes
USB Updates Yes
Ambient Temp Operation -20° to +45° C
Estimated LED lifetime 50,000+ hrs


Mechanical
Versions Manual, Pole Operated
Weight Manual: 13.25 lbs / 6kg (including yoke and power supply)
  Pole Operated: 17.85 lbs / 8.1kg (including yoke and power supply)
Height 320 mm (12.6 inch)
Width 320 mm (12.6 inch)
Depth 110 mm (4.3 inch)
Mounting Method TVMP


Electrical
Nominal Power Draw 200W
Power Supply Yoke Mounted
Mains Input IEC, 100-240 VAC / 50-60Hz
IP Rating IP20
Mobile Power Options Gemini 1x1 14.4V Battery Plate (fits to yoke or directly on fixture, not included)
  • 1x  Litepanels Gemini 1x1 Hard Panel with Yoke
  • 1x  UK Power Cable
  • 1x  Ultra Light Diffusion
  • 1x  Domed Diffusion
