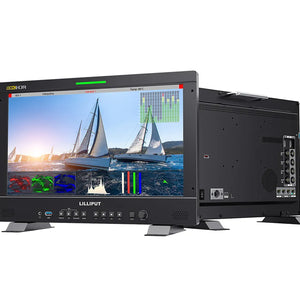

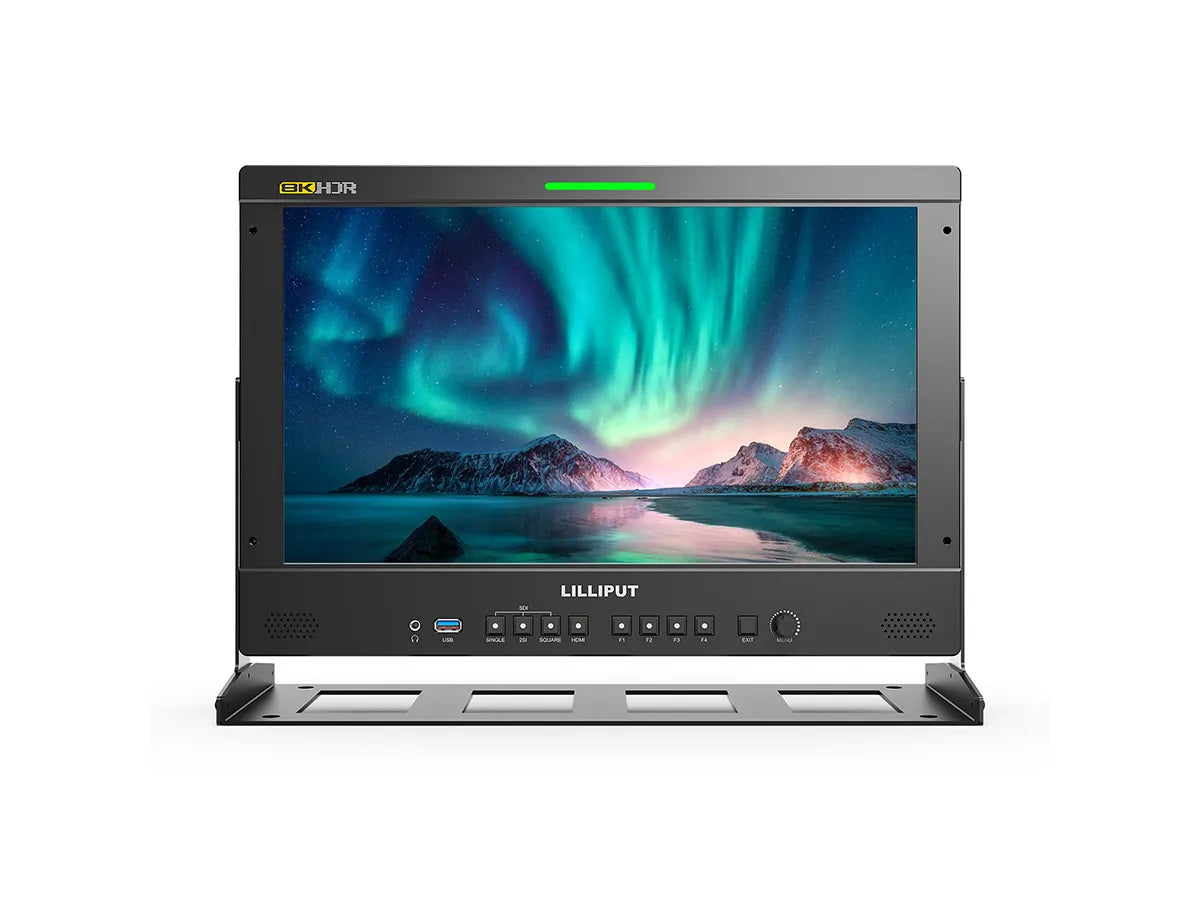

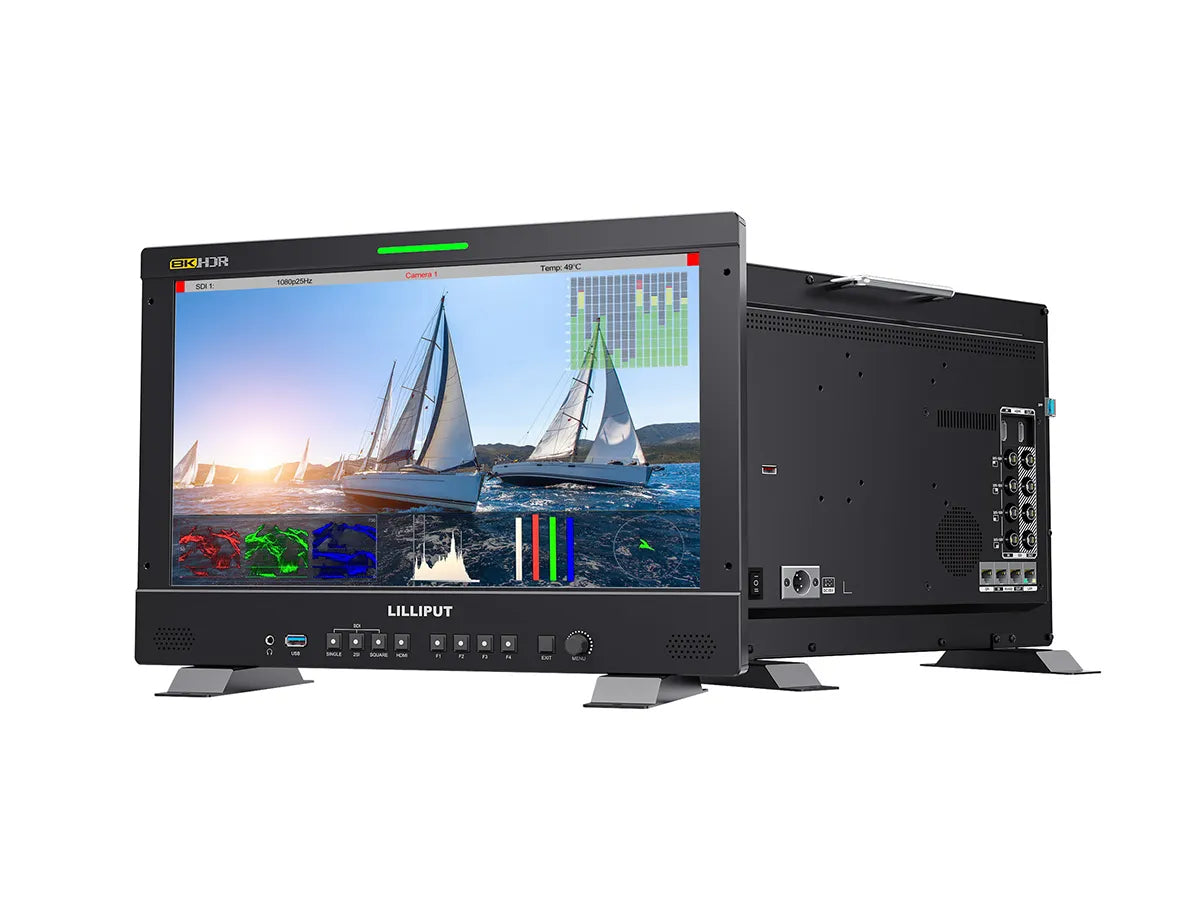

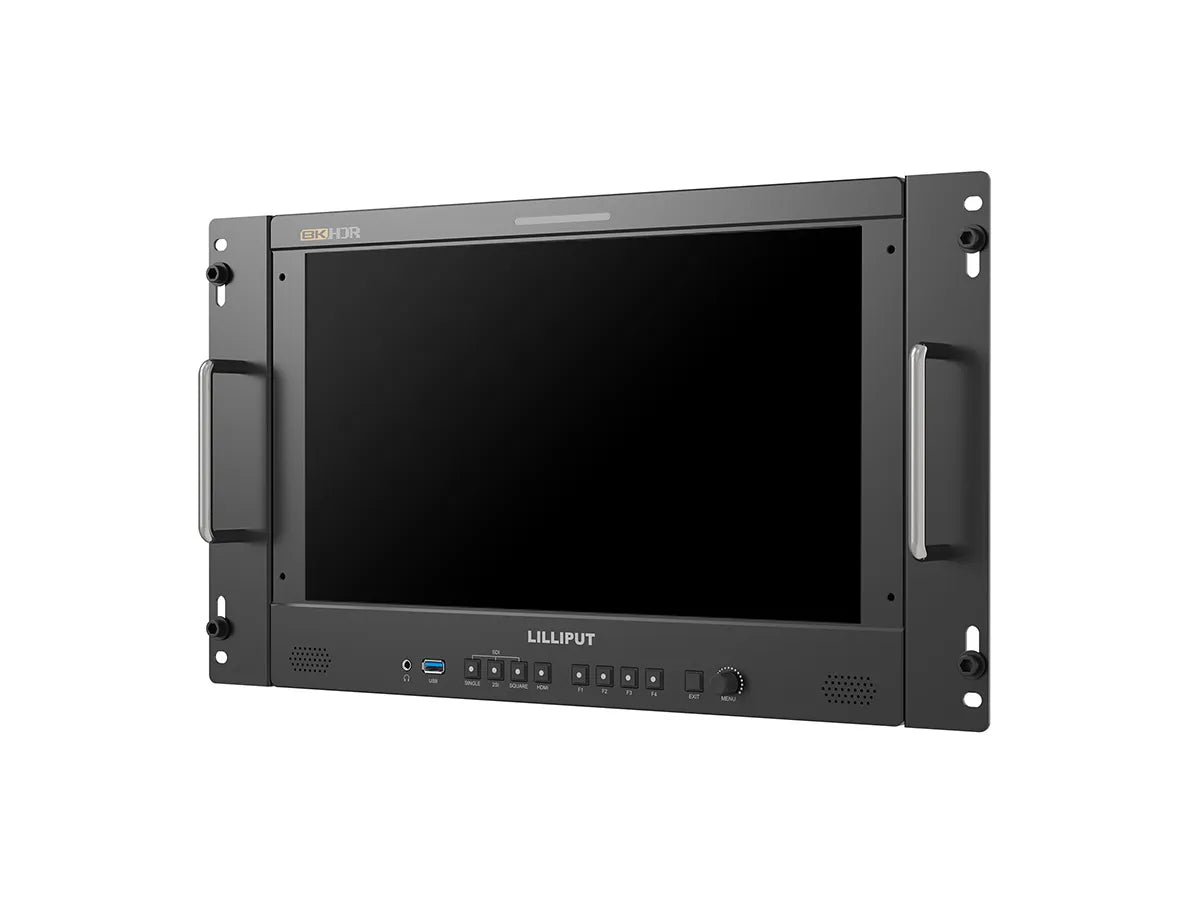

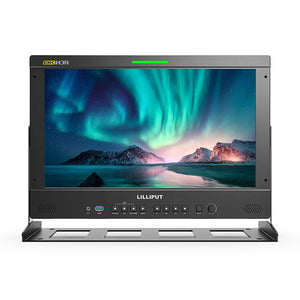

Lilliput Q15-8K - 15.6" 8K 12G-SDI Production Monitor
Lilliput Q15-8K - 15.6" 8K 12G-SDI Production Monitor
SKU:
LIL-Q15-8K
Regular price
£1,359.00 GBP ex VAT
£1,630.80 GBP inc VAT
£1,630.80 GBP inc VAT
Regular price
ex VAT
Sale price
£1,359.00 GBP ex VAT
£1,630.80 GBP inc VAT
Unit price
per
£1,630.80 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
- What's Included
The Lilliput A5 is the first Lilliput monitor to feature 4K inputs at the 5" screen size. It's UHD 4K compatible with 16:9 Aspect Ratio LCD field monitor which presents its images on a Full HD 1920x1080 LED panel. If you're a mobile shooter who has upgraded to the 4K workspace, the A5 offers control over your shooting workflow both in the field and in the studio.
4K UHD Input over HDMI 1.4
The A5 is the first Lilliput monitor to feature a 7" 4K input. Facilitated by an HDMI 1.4 input, the A5 is a solid choice for Ultra HD film makers and photographers alike.
5" HDMI Monitor with Widescreen Aspect Ratio
The Lilliput A5 features a full HD native panel, clocking in at 1920 x 1080. Much improved over its predecessors, this high resolution will give you the clearest view of your images without excessive downsampling or over-interpolation.
4K HDMI Loopthrough Output
The A5 features an HDMI loop through function - meaning you can connect the output of this monitor via HDMI to any other device with an HDMI input. A great solution for Video Village and extended screen viewing.
Featherweight Design for a Lighter Monitor
The A5 is the lightest monitor that Lilliput has to offer. Weighing in at just 118g, it's easily the lightest DSLR camera monitor we've ever produced - just 1/3rd the weight of a can of Coke - making it a low-burden addition to the toolkit of any mobile shooter.
Advanced Monitor Functionality
As detailed at the top of this description page, the A5 has a plenitude of advanced functions to assist with your shooting. Namely - Timecodes, Pixel Zoom Function, Audio Level Meters, Peaking, False Colour, Histograms, Exposures, Check Fields, Color Bars, Pixel to Pixel, and Image flips. A host of functions for a multi faceted monitoring solution.
**New** Dual Battery Plate System for F-970 / LP-E6 DSLR Batteries
New and exclusive to the Q5 is a dual option battery mounting system which allows you to attach either a Sony NP-F970 battery or a Canon LP-E6 battery directly to the monitor unit for power. No longer do you need a separate battery plate - the Q5 has the battery plate built in to the Monitor.
1/4" BSW Thread Holes, with Shoe Mount Adaptor
There are two options for mounting this monitor - the most common is the Shoe Mount adaptor which screws into a 1/4" BSW threaded hole at the bottom of the monitor and then clips into the shoe mount on top of your camera. Alternatively, you can use the VESA 75 mounting hole set in the back to attach the monitor to a sturdier mount if needed
| DISPLAY | |
| Panel: | 15.6" |
| Physical Resolution: | 3840 x 2160 |
| Aspect Ratio: | 16:9 |
| Brightness: | 600cd/m² |
| Contrast: | 1700:1 |
| Viewing Angle: | 170° / 170° (H/V) |
| HDR: | ST2084 300/1000/10000/HLG |
| Supported Log Formats: | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User |
| LUT Support: | 3D LUT (.cube format) |
| Calibration: | Calibration to Rec.709 with optional calibration unit |
| VIDEO INPUT | |
| SDI: | 4x 12G (Supported 8K-SDI Formats Quad Link) |
| SFP: | 1x 12G SFP+ (Fiber module for optional) |
| HDMI: | 1x HDMI 2.0 |
| VIDEO LOOP OUTPUT | |
| SDI: | 4x 12G (Supported 8K-SDI Formats Quad Link) |
| HDMI: | 1x HDMI 2.0 |
| SUPPORTED FORMATS | |
| SDI: | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60 |
| SFP: | 2160p 24/25/30/50/60, 10/0p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60 |
| HDMI: | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| AUDIO IN / OUT | |
| SDI: | 16ch 48kHz 24-bit |
| HDMI: | 8ch 24-bit |
| Ear Jack: | 3.5mm |
| Built-In Speakers: | 2 |
| REMOTE CONTROL | |
| RS422: | In/Out |
| GPI: | 1 |
| LAN: | 1 |
| POWER | |
| Input Voltage: | DC 12-24V |
| Power Consumption: | ≤37W (15V) |
| Compatible Batteries: | V-Lock or Anton Bauer Mount |
| Input Voltage (Battery): | 14.8V nominal |
| ENVIRONMENT | |
| Operating Temperature: | 0°C ~ 50°C |
| Storage Temperature: | -20°C ~ 60°C |
| PHYSICAL | |
| Dimensions: | 393 x 267 x 41.4mm |
| Weight: | 2.9kg |
- 1x A5 Monitor
- 1x HDMI A to C cable
- 1x DC 12V plug (available in UK, US and EU style)
- 1x Hot Shoe Mount
- 1x Folding sun shade
