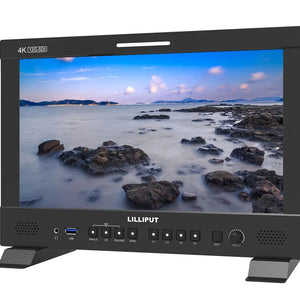

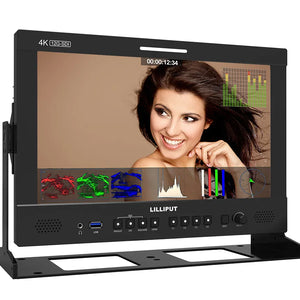

Lilliput Q13-8K - 13.3" 8K 12G-SDI Production Monitor
Lilliput Q13-8K - 13.3" 8K 12G-SDI Production Monitor
SKU:
LIL-Q13-8K
Regular price
£1,119.00 GBP ex VAT
£1,342.80 GBP inc VAT
£1,342.80 GBP inc VAT
Regular price
ex VAT
Sale price
£1,119.00 GBP ex VAT
£1,342.80 GBP inc VAT
Unit price
per
£1,342.80 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications

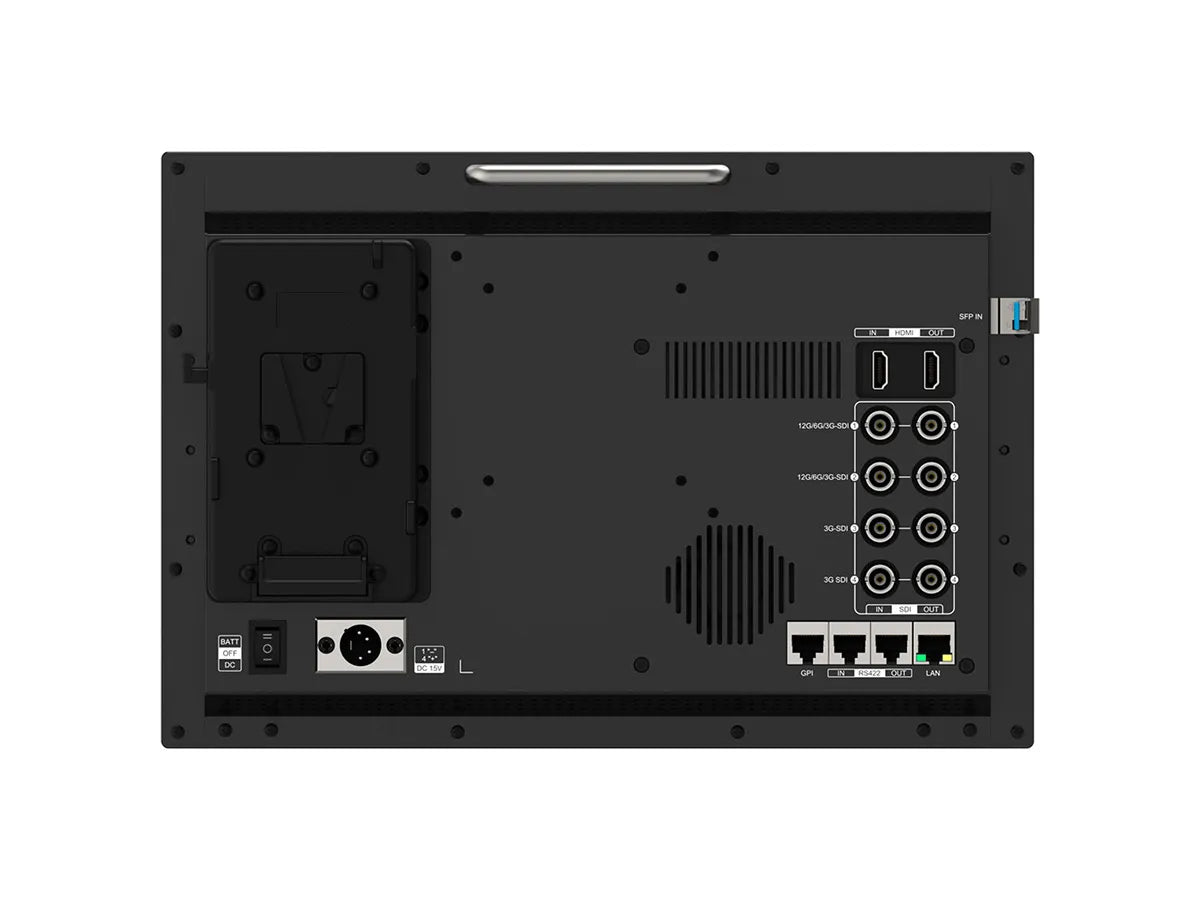

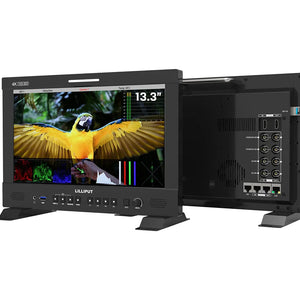

The Lilliput Q13-8K is part of the Lilliput flagship range of monitors designed to handle and process an 8K video input signal. It takes 4 x 12G-SDI input feeds via the BNC connectors at the back of the unit, and in compliance with the ST2082-12 video protocol, combines them to create an 8K 60Hz video signal which it displays on the 3840 x 2160 pixel panel.

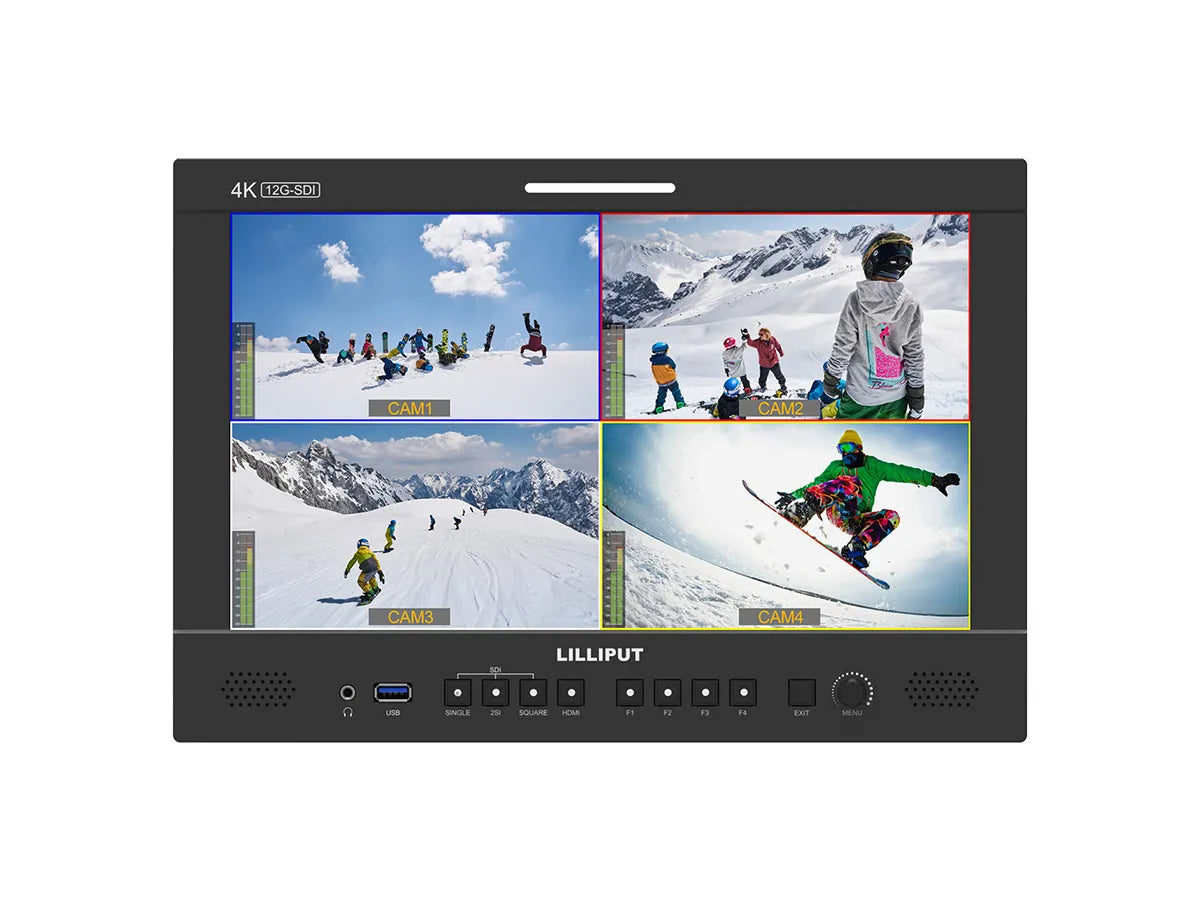

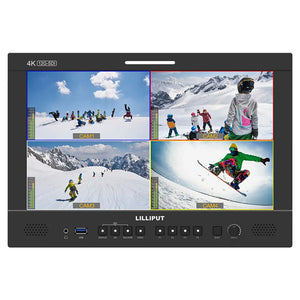

With other features such as REC. 709 and DCI-P3 Color Space, 3D LUT Support, Remote Control through LAN connection, Multiview and Quad-Split, and an optionally purchased 12G-SFP connection - the Q18-8K packs massive value monitoring into an easy-to-operate system.
| DISPLAY | |
| Panel: | 13.3" |
| Physical Resolution: | 3840 x 2160 |
| Aspect Ratio: | 16:9 |
| Brightness: | 300cd/m² |
| Contrast: | 1000:1 |
| Viewing Angle: | 178° / 178° (H/V) |
| HDR: | ST2048 300/1000/10000/HLG |
| Supported Log Formats: | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User |
| LUT Support: | 3D LUT (.cube format) |
| Calibration: | Calibration to Rec.709 with optional calibration unit |
| VIDEO INPUT | |
| SDI: | 4x 12G (Supported 8K-SDI Formats Quad Link) |
| SFP: | 1x 12G SFP+ (Fiber module for optional) |
| HDMI: | 1x HDMI 2.0 |
| VIDEO LOOP OUTPUT | |
| SDI: | 4x 12G (Supported 8K-SDI Formats Quad Link) |
| HDMI: | 1x HDMI 2.0 |
| SUPPORTED FORMATS | |
| SDI: | 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60 |
| SFP: | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60 |
| HDMI: | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60 |
| AUDIO IN / OUT | |
| SDI: | 16ch 48kHz 24-bit |
| HDMI: | 8ch 24-bit |
| Ear Jack: | 3.5mm |
| Built-In Speakers: | 2 |
| REMOTE CONTROL | |
| RS422: | In / Out |
| GPI: | 1 |
| LAN: | 1 |
| POWER | |
| Input Voltage: | DC 12-24V |
| Power Consumption: | ≤36W (15V) |

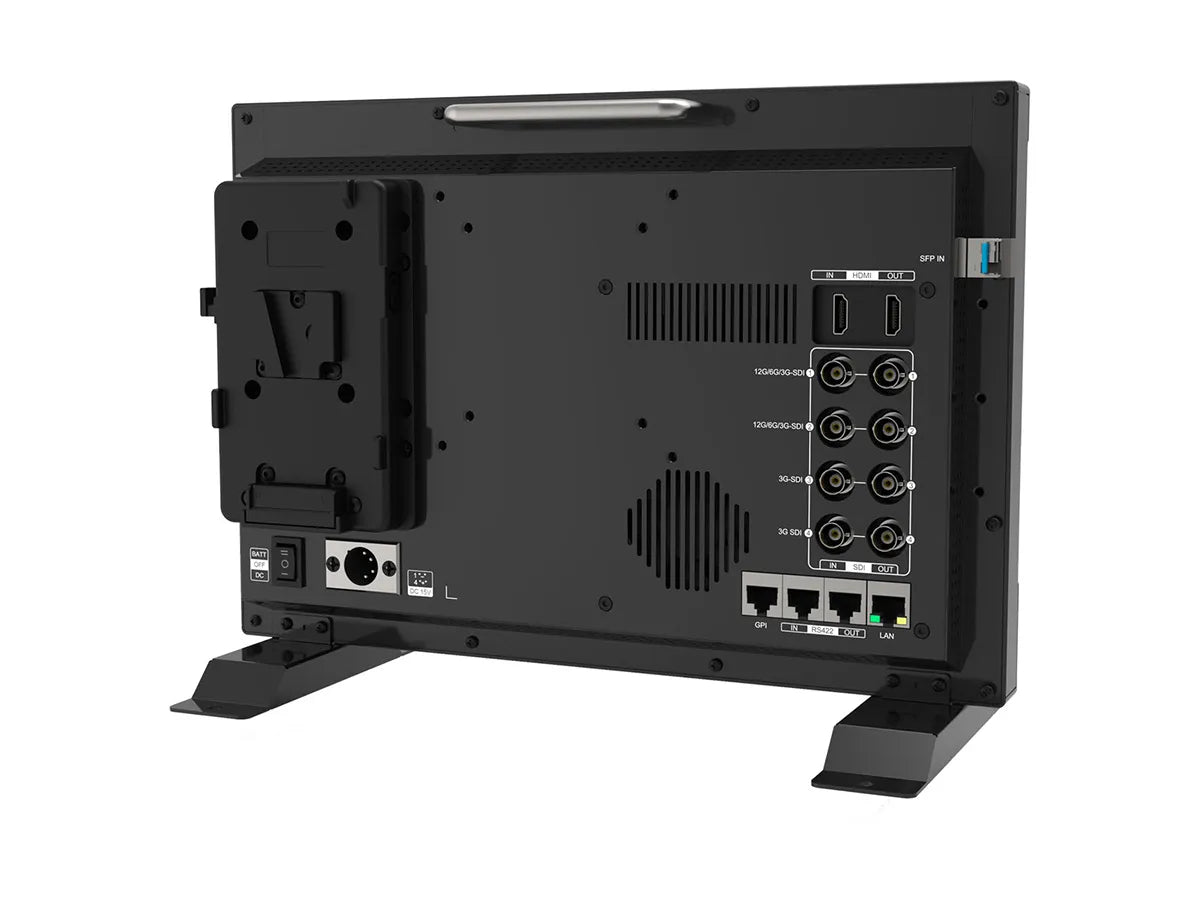

| Compatible Batteries: | V-Lock or Anton Bauer Mount |
| Input Voltage (Battery): | 14.8V nominal |
| ENVIRONMENT | |
| Operating Temperature: | 0°C ~ 50°C |
| Storage Temperature: | -20°C ~ 60°C |
| PHYSICAL | |

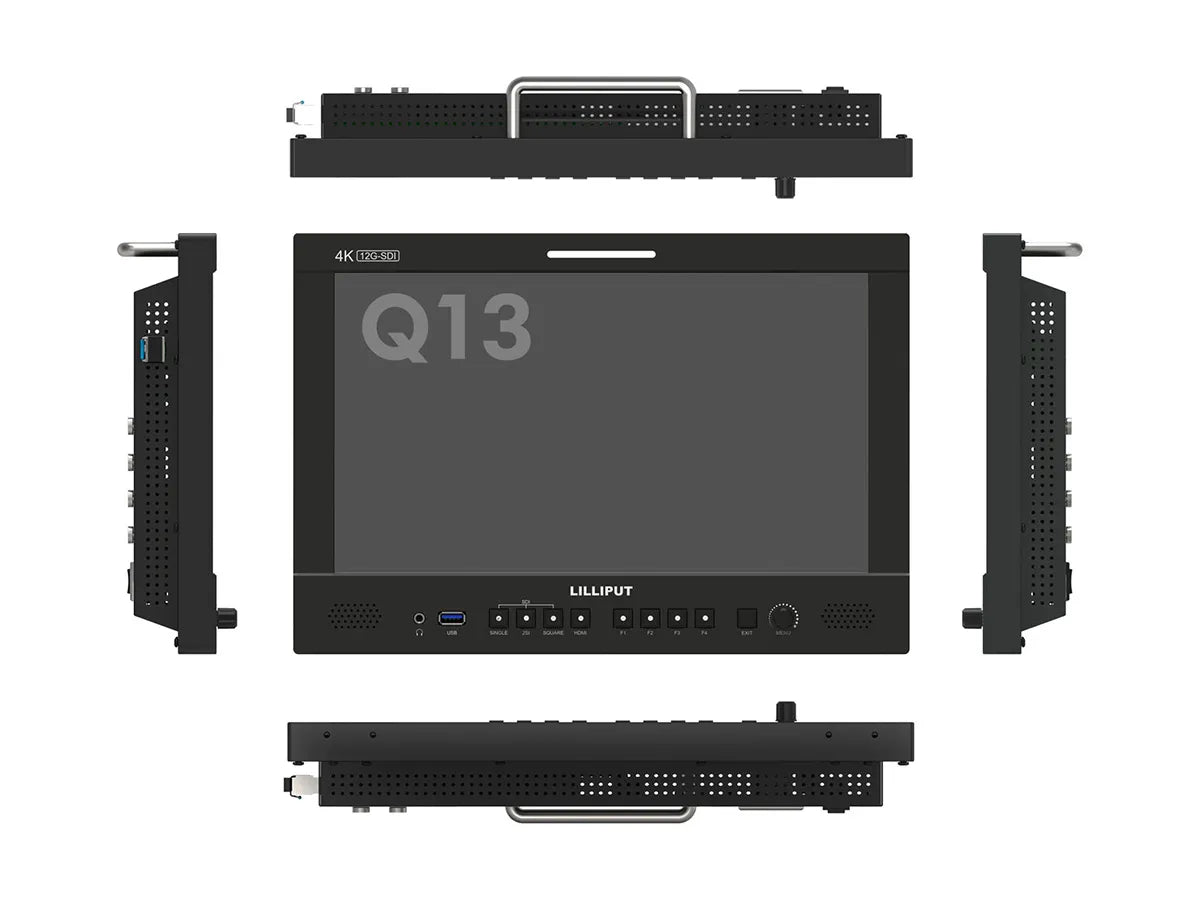

| Dimensions: | 340 x 232.8 x 46mm |
| Weight: | 2.4kg |
