Lilliput A11 - 10.1" 4K HDMI Monitor
Lilliput A11 - 10.1" 4K HDMI Monitor
£315.60 GBP inc VAT
£315.60 GBP inc VAT
Couldn't load pickup availability
- Details
- Specifications

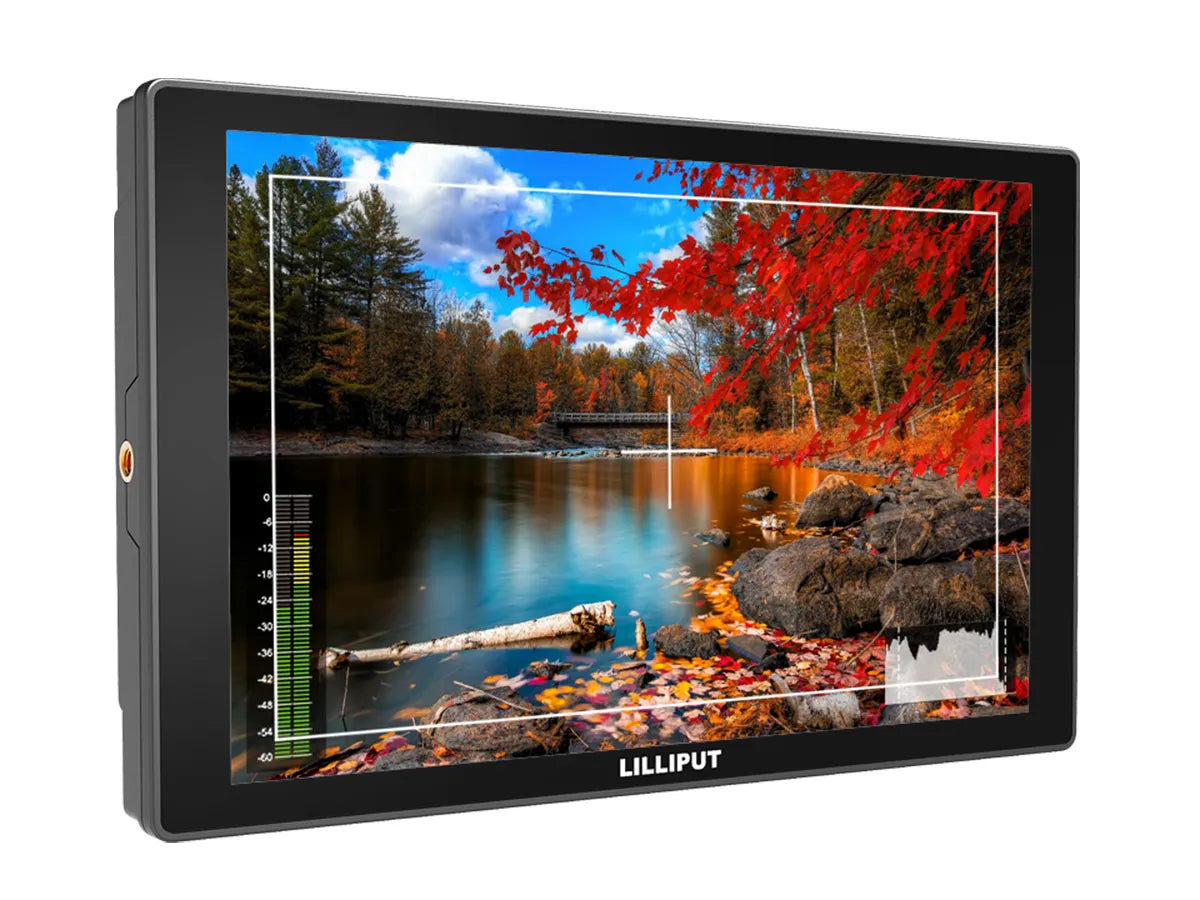

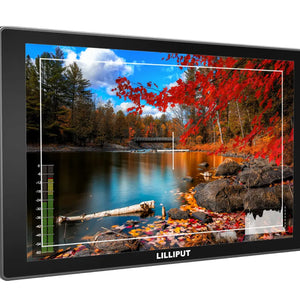

The Lilliput A11 is a 10.1" 4K compatible monitor with a 1920 x 1200 px panel, and HDMI 1.4b + SDI connectivity. The Lilliput A11 has been designed for the video and film industry professional and is ideally suited for directors and camera operators operating 4K capable equipment.
Looking for a monitor to use in a Teleprompter? No problem - this model features both X/Y Flip and Mirroring of the input image, making it an ideal tool for the job.
The Lilliput A11 matches with world-famous 4K / FHD camera brands to assist camera operators in acquiring better photography and gives a much more satisfying experience for variety of applications, i.e. filming on site, broadcast live action, moviemaking and post-production, etc.
The Lilliput A11 has a 1920×1200 native resolution, 10.1 inch 8 bit LCD panel - which allows for a level of detail far beyond what the human retina can identify. Features include 1000:1, 320 cd/m2 brightness and a 175° Viewing angle.
With full lamination technology you can see every detail in massive Full HD visual quality.The Built in HDMI 1.4b port supports 4K 30Hz signal input, while the 3G-SDI BNC port supports 3G-SDI, HD-SDI and SD-SDI signal inputs. A Universal VGA port is also included which allows for more legacy usage environment.
The Lilliput A11 also features unique Glass+Glass (G+G, G&G) technology, creating a smooth appearance for its outer body. It facilitates the best view possible and allows the user to achieve the best photography that they can.
| Screen Size (Diagonal): | 10.1" - (25.65 cm) 8bit IPS |
| Aspect Ratio: | 16:10 |
| Native Resolution: | 1920x1200 |
| HDMI Formats: | 4K 30hz // 1080p // 1080i // 720p // 576p // 576i // 480p // 486i |
| Power Consumption: | <= 13 W |
| Viewing Angle (Degrees): | 175° / 175° |
| Brightness Ratio (cd/m2): | 320 |

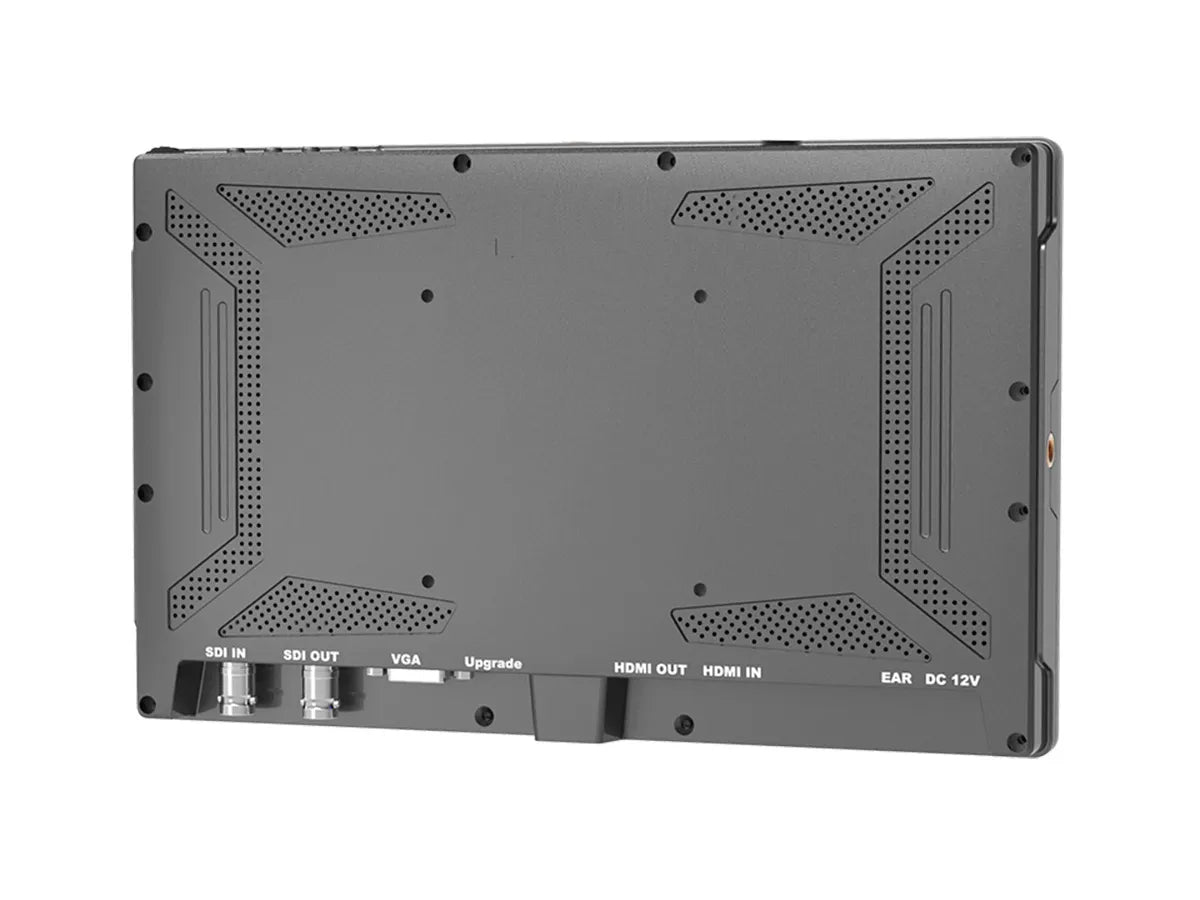

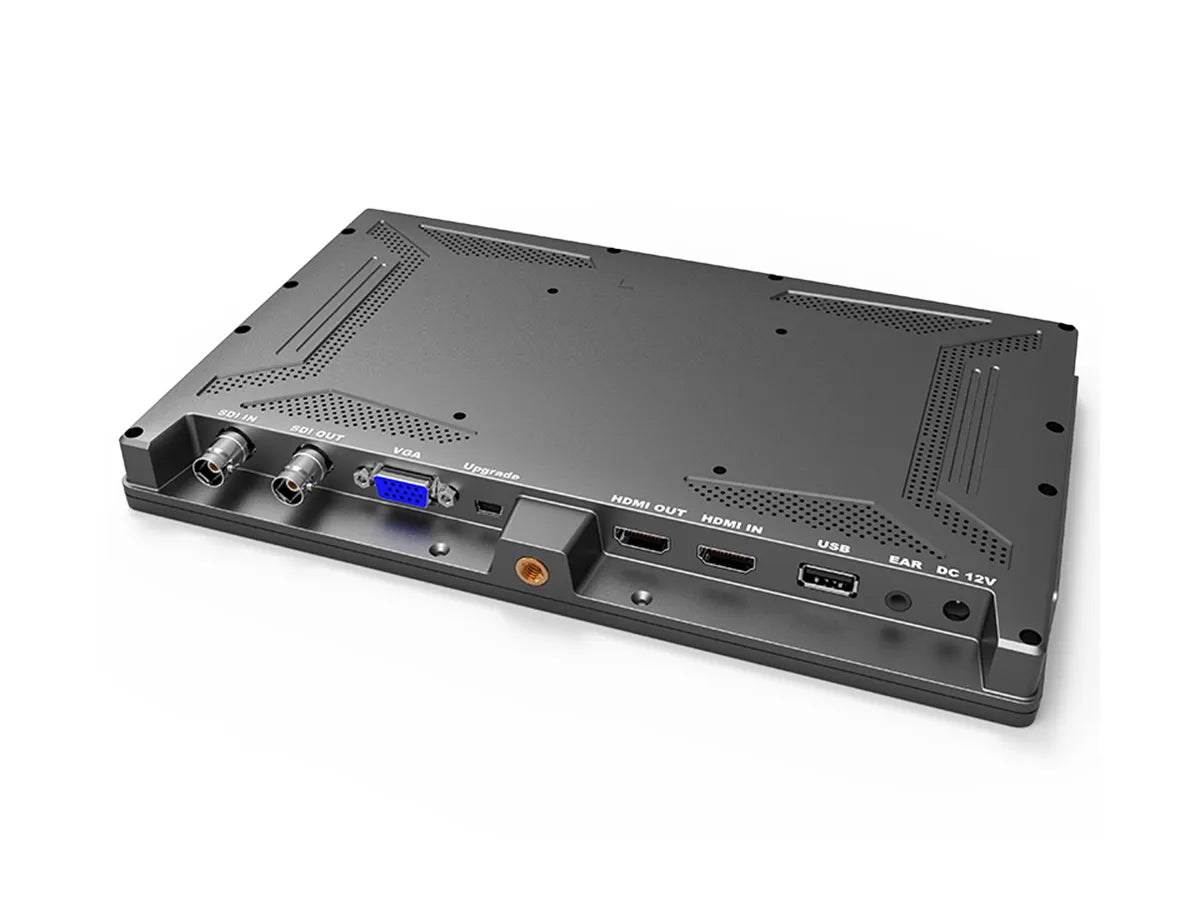

| Video Inputs: | 3G-SDI (input) x1 // HDMI 1.4b x1 (supports 4K 30 Hz) // VGA x1 |
| Video Outputs: | 3G-SDI Loop (Output) x1 // HDMI 1.4b x1 (supports 4K 30 Hz) |
| Audio Outputs: | Audio Speaker x1 // Audio Ear Jack x1 |
| Input Power: | 12V 1A // Comaptible with DC 24V |
| Mounting Options: | Hot Shoe Mount (Supplied) // V-Mount / Anton Bauer mount (Optional) // Gimbal Bracket (Optional) // VESA 75 Stand (Optional) |
| Operating Temperature: | 0°c - 50°c |
| Storage Temperature: | -20°c to +60°c |
| Dimensions: | 252mm x 157mm x 25mm |
| Weight: | 550g |
