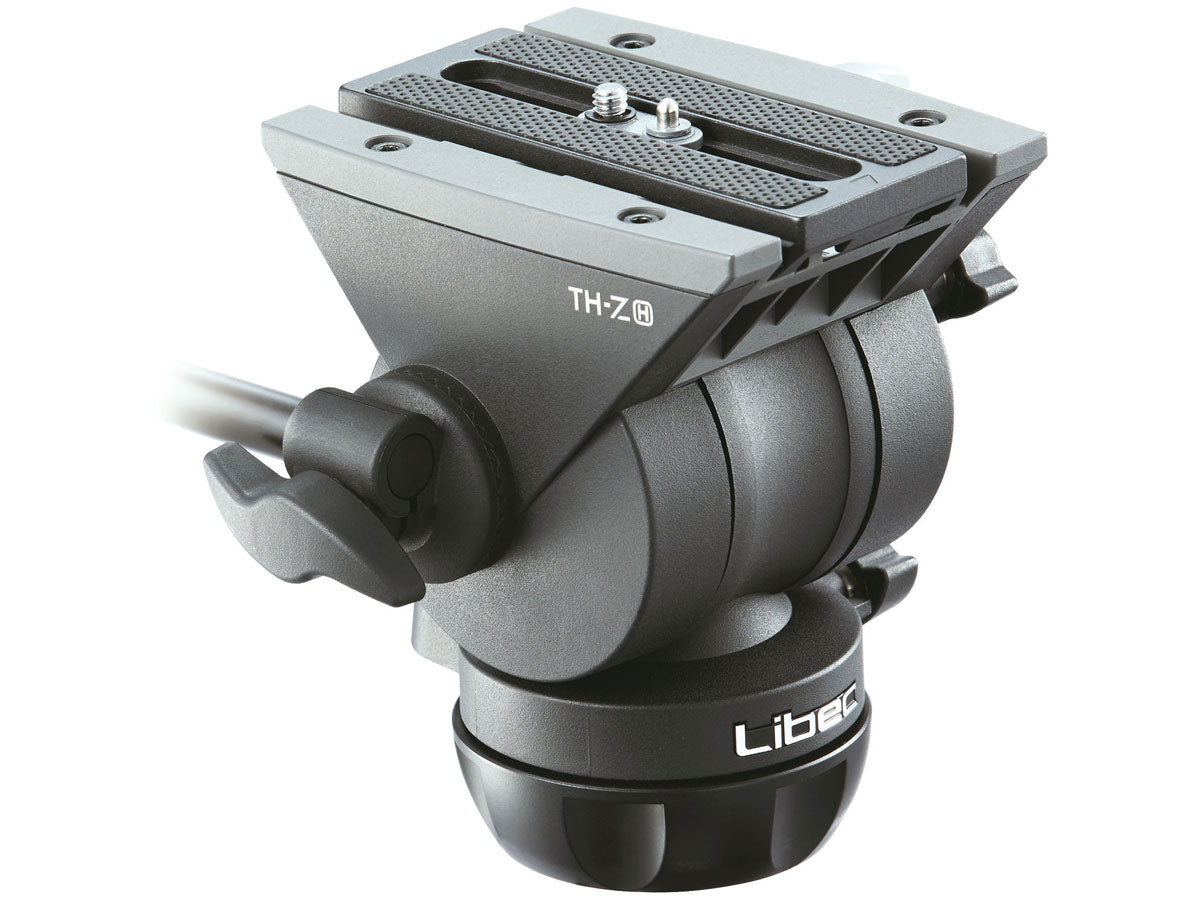

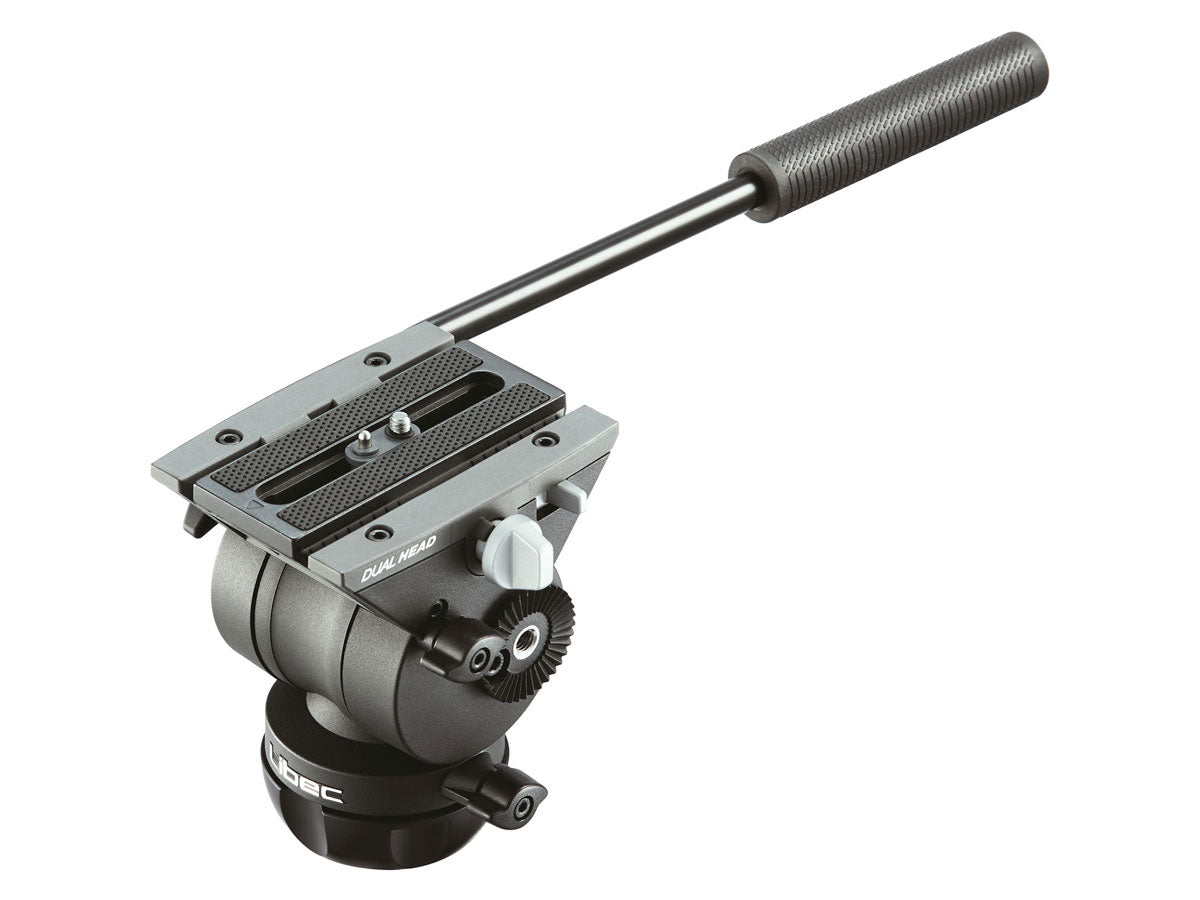

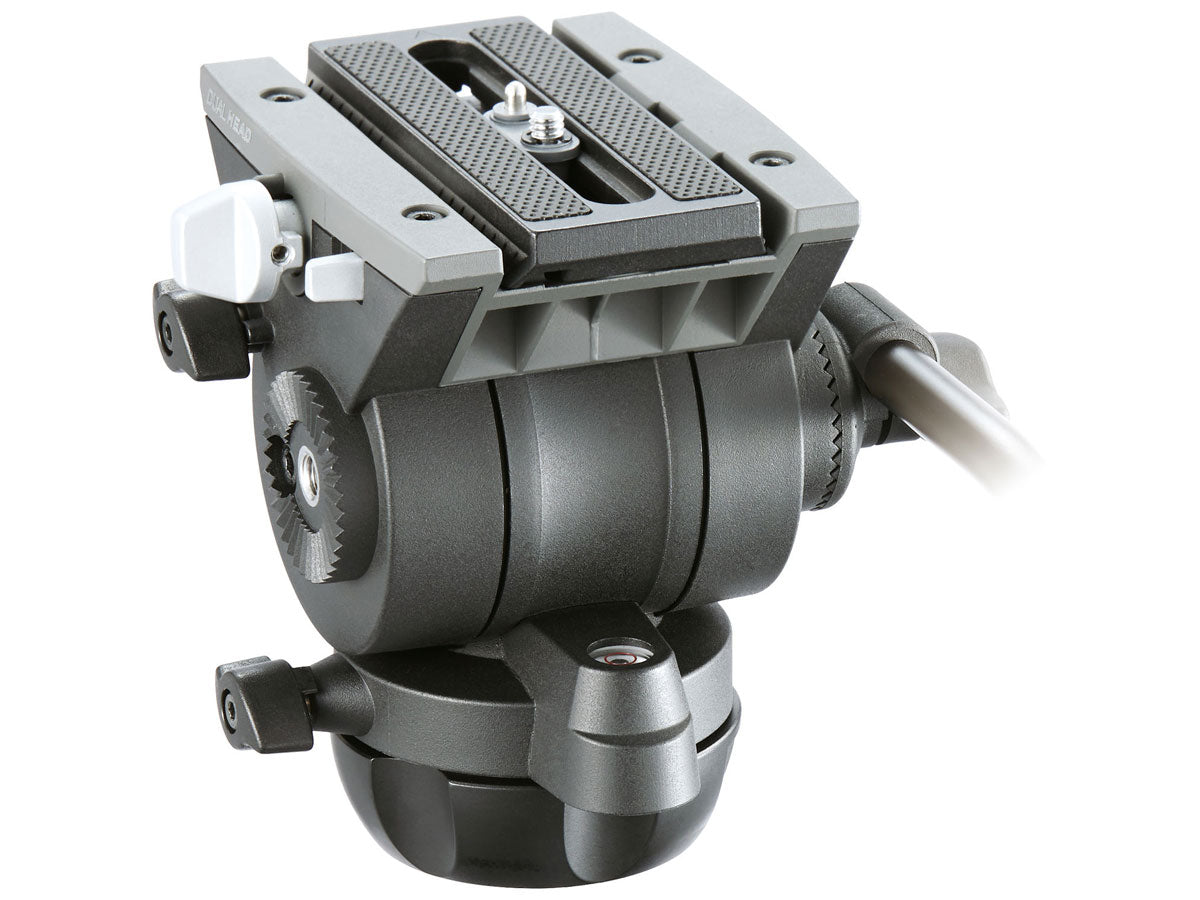

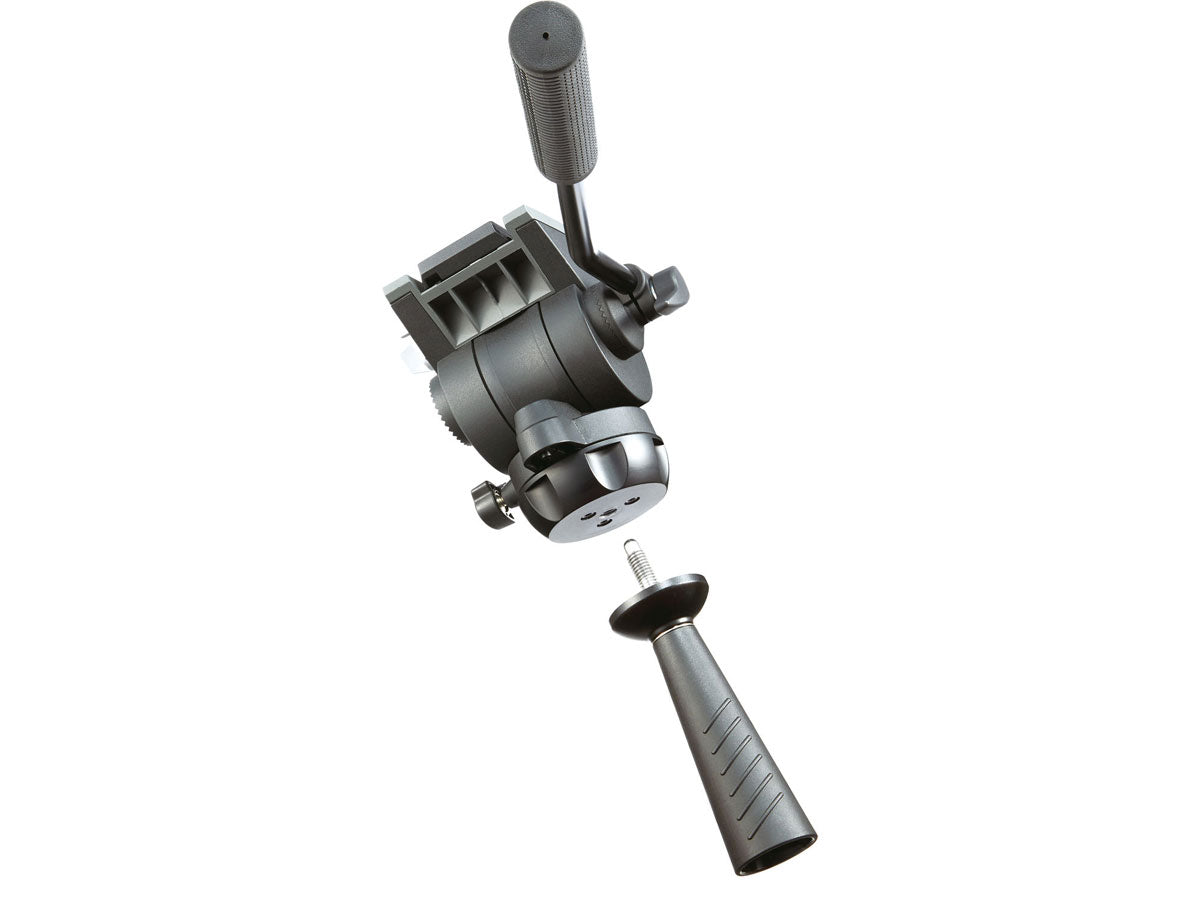

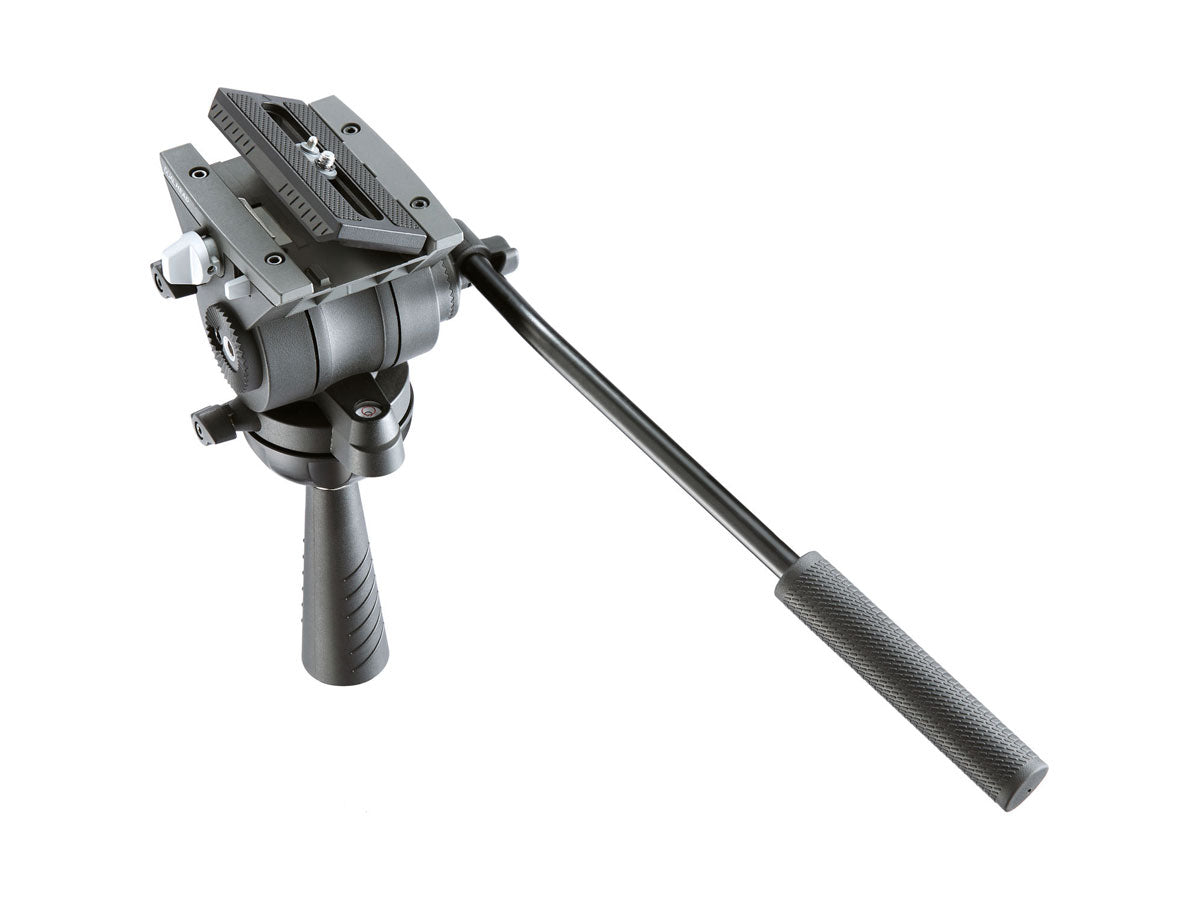

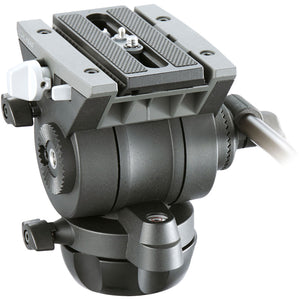

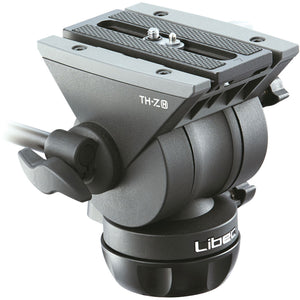

Libec TH-Z-H Fluid Head
Libec TH-Z-H Fluid Head
£248.40 GBP inc VAT
£248.40 GBP inc VAT
Couldn't load pickup availability
- Details
- Features
- Specifications
- What's Included
The Libec TH-Z H Fluid Head is a compact dual-function tripod head with an 11 lb payload and fixed counterbalance and drag. It features a native 75mm half ball and has a flat base with a 3/8"-16 mounting thread on the bottom of the half ball. It's directly compatible with 75mm bowl tripods but can also be mounted directly on sliders and other supports via the flat base. A tie-down is included for securing it to tripods.
The head has a snap-in camera plate system that lets you attach the included camera plate from above rather than slide it in from the rear. The plate has a sliding range of 1.2" once secured. It comes with a 1/4"-20 mounting screw and an anti-twist video pin beside it. A long rosette-mount pan bar is included and an optional second one is also supported.
- 11 lb payload
- 75mm half ball with a flat base and 3/8"-16 mounting thread
- Snap-in camera plate system
- 1/4"-20 mounting screw with a video pin
- Long pan bar (an optional second one is supported)
- Fixed counterbalance and drag
- Illuminated bubble level
| Camera Plate Features | Sliding Balance Plate |
| Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin |
| Balance Plate Sliding Range | 1.2" / 3.05 cm |
| Base Mount | 75 mm Half Ball 3/8"-16 Female |
| Drag Control | Fixed |
| Vertical Tilt | +90° to -80° |
| Panning Range | 360° |
| Load Capacity | 11 lb / 4.99 kg |
| Counter Balance | Fixed |
| Pan Handle Fittings | 2 x Rosette |
| Bubble Level | 1 x Illuminated |
| Weight | 2.4 lb / 1.09 kg |
| Package Weight | 3.715 lb |
| Box Dimensions (LxWxH) | 15.6 x 8.5 x 6.1" |
- Libec TH-Z H Fluid Head
- Tie-Down
- Pan Bar
- Camera Plate with 1/4"-20 Screw
