Libec SVF-7Pro Full HD 7" Viewfinder
Libec SVF-7Pro Full HD 7" Viewfinder
SKU:
LIB-SVF-7PRO
Regular price
£5,490.00 GBP ex VAT
£6,588.00 GBP inc VAT
£6,588.00 GBP inc VAT
Regular price
ex VAT
Sale price
£5,490.00 GBP ex VAT
£6,588.00 GBP inc VAT
Unit price
per
£6,588.00 GBP inc VAT
Out of Stock
Couldn't load pickup availability
- Details
- Specifications
- What's Included

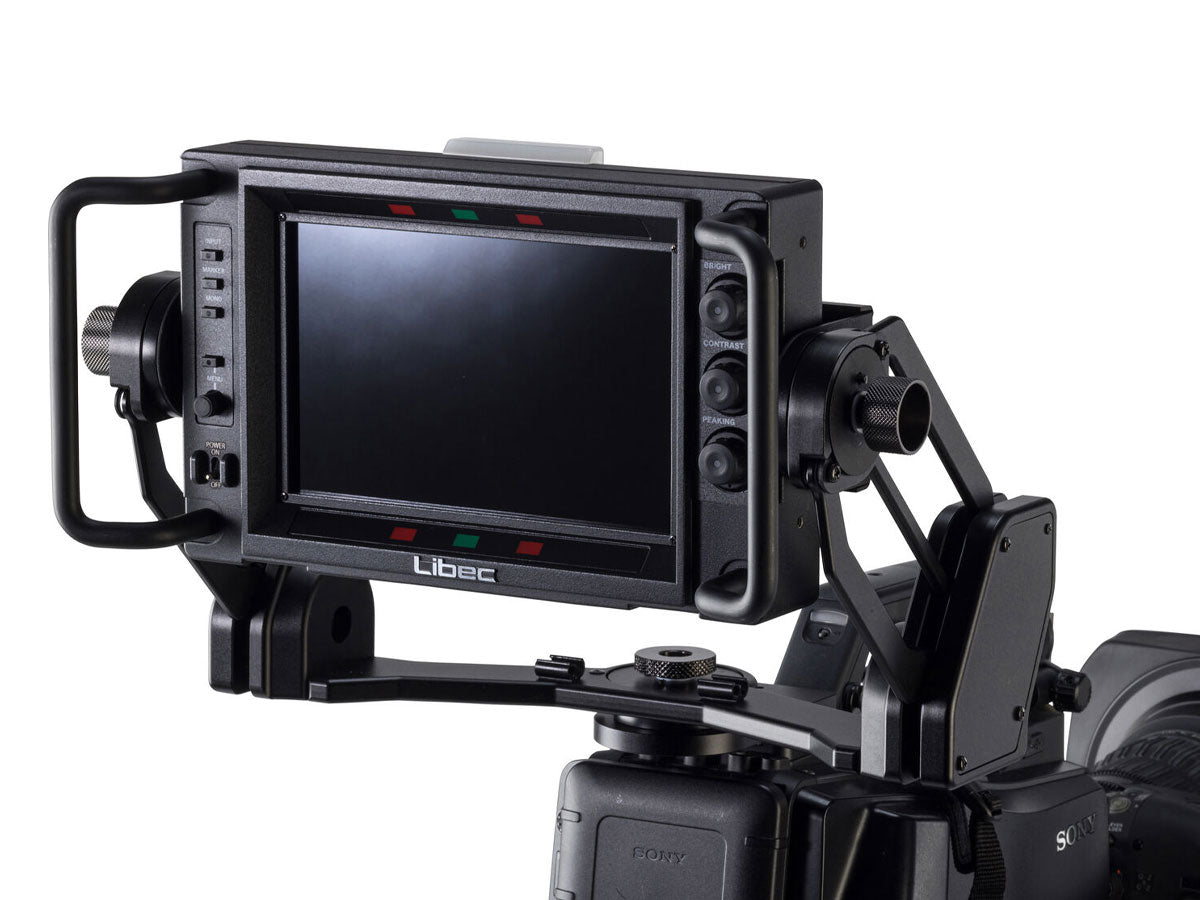

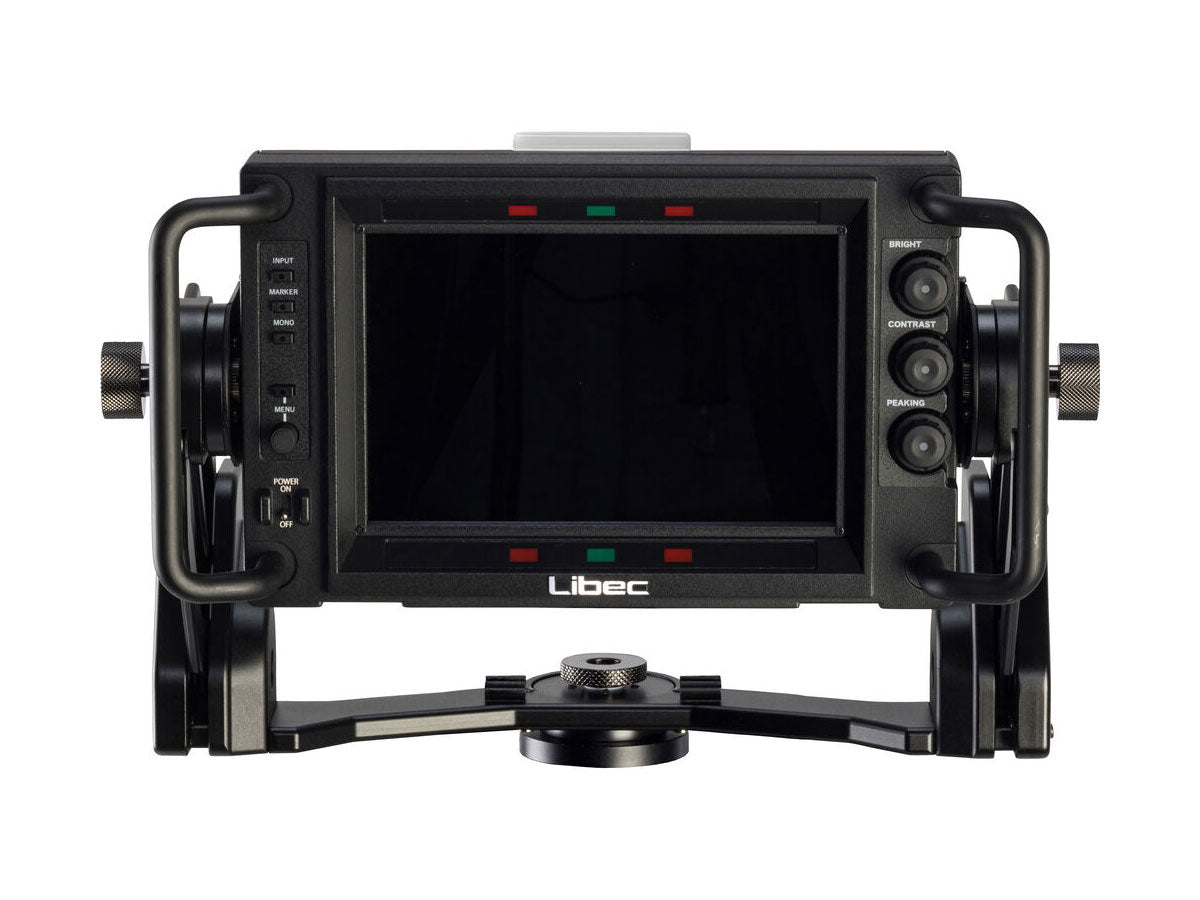

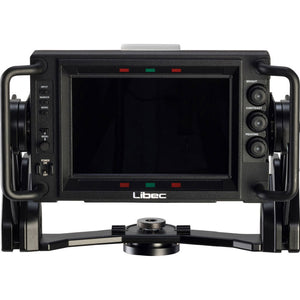

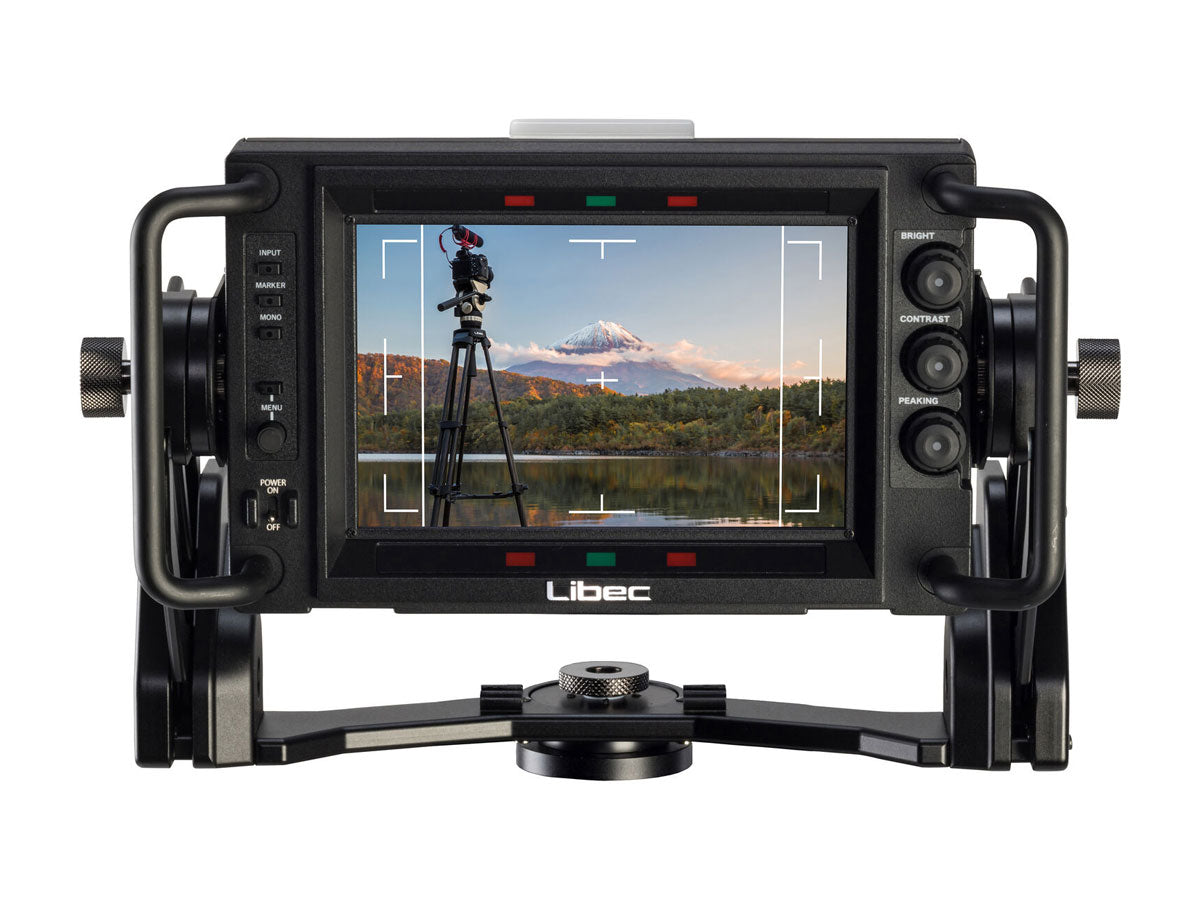

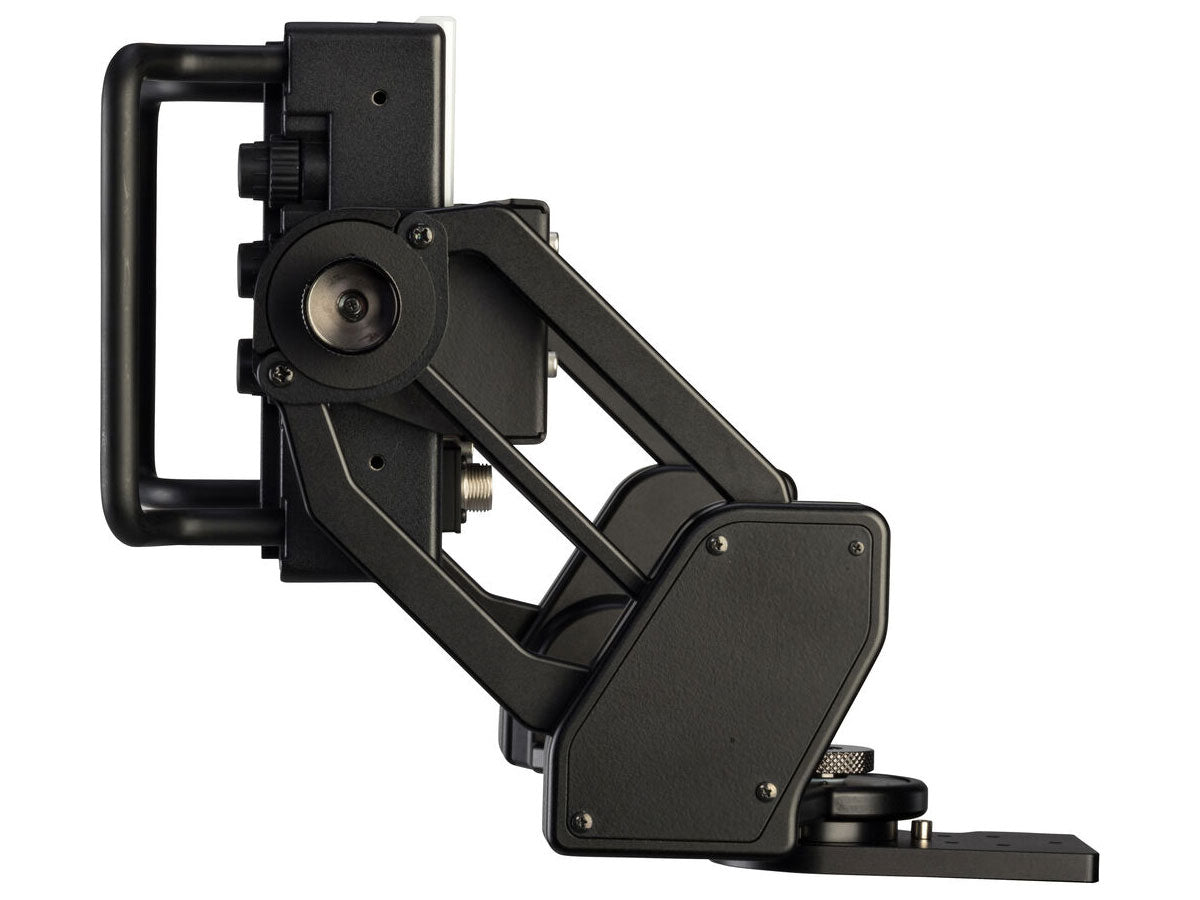

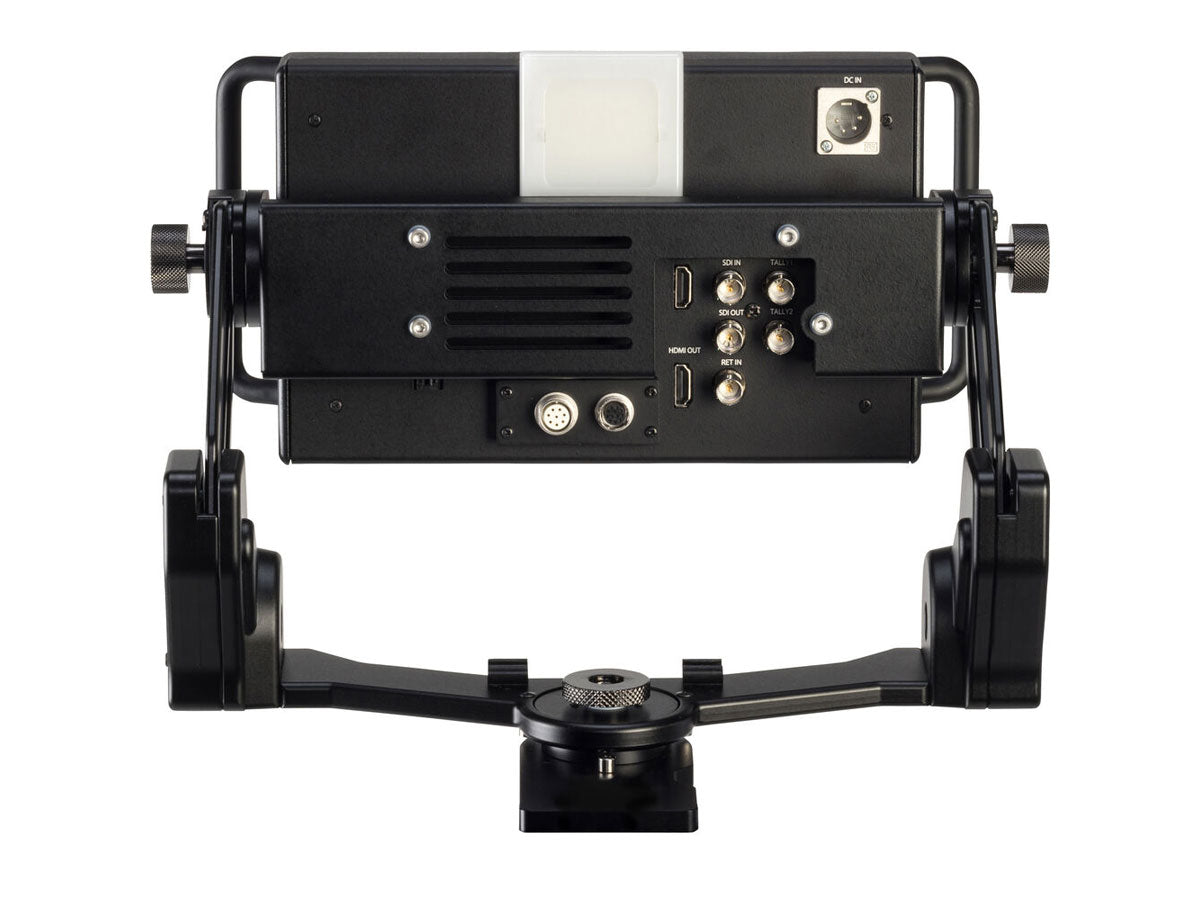

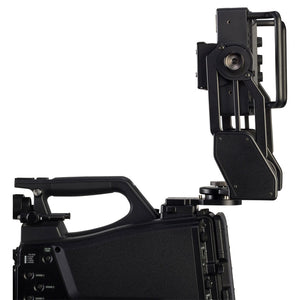

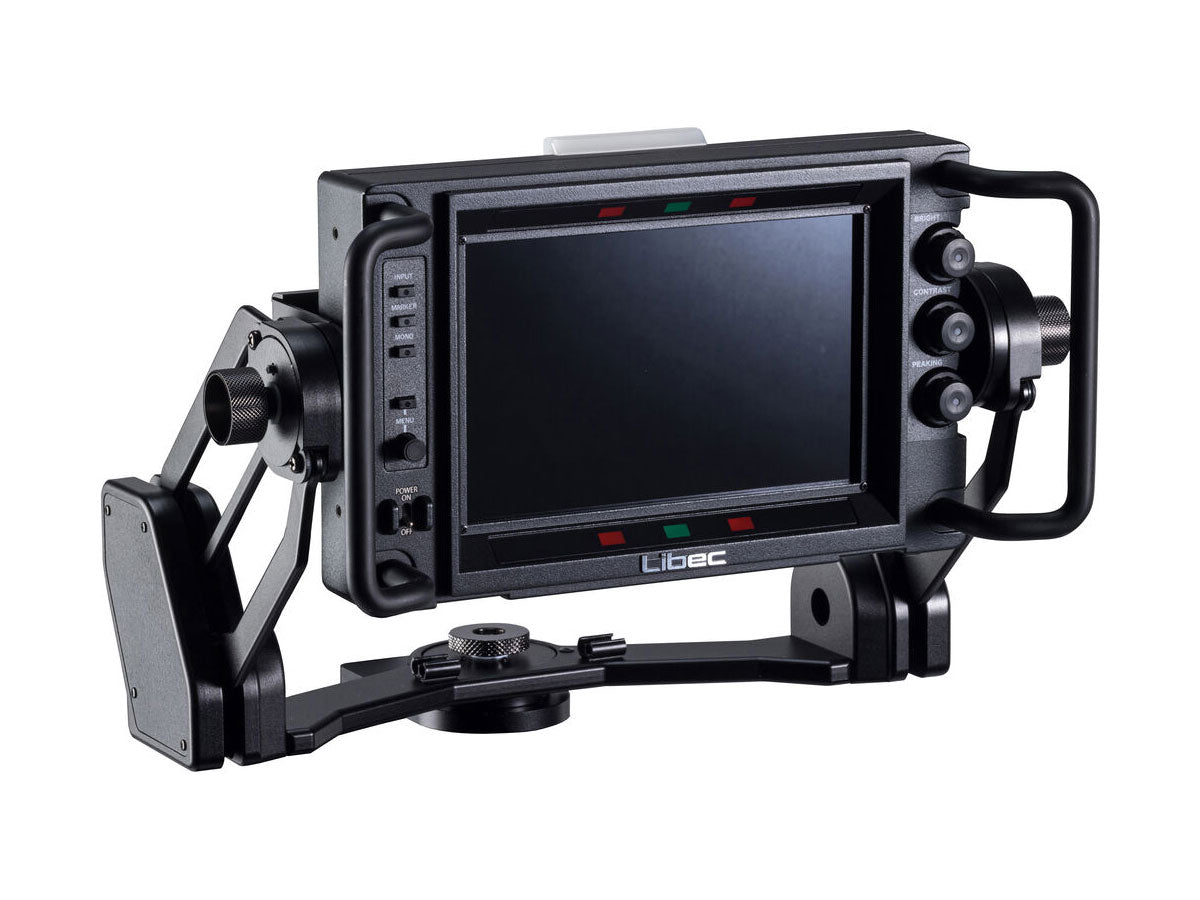

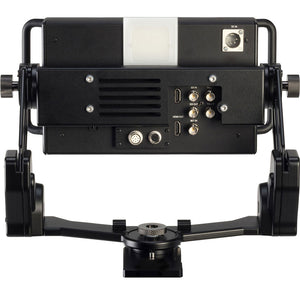

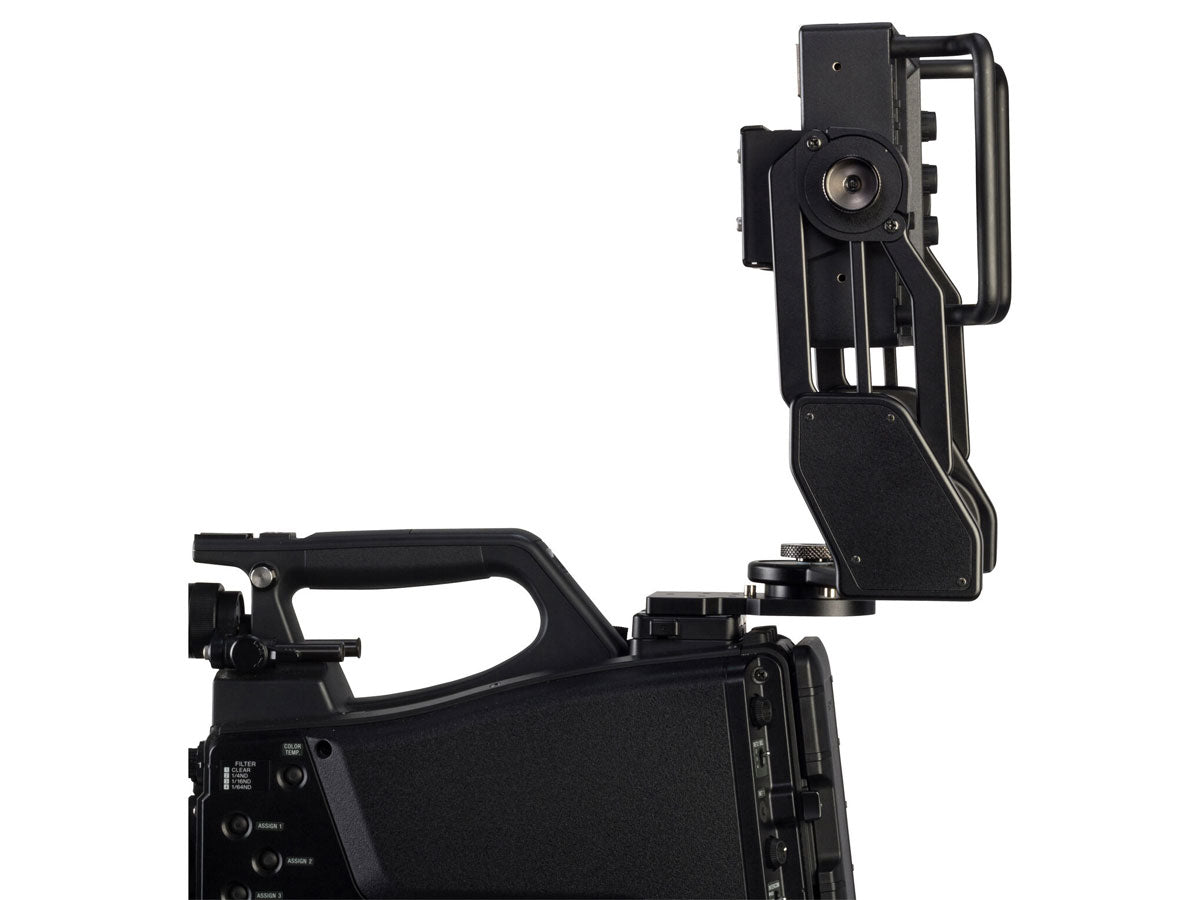

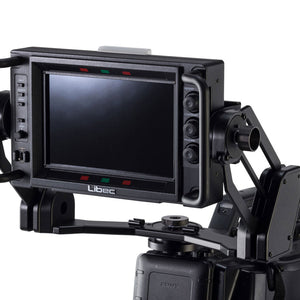

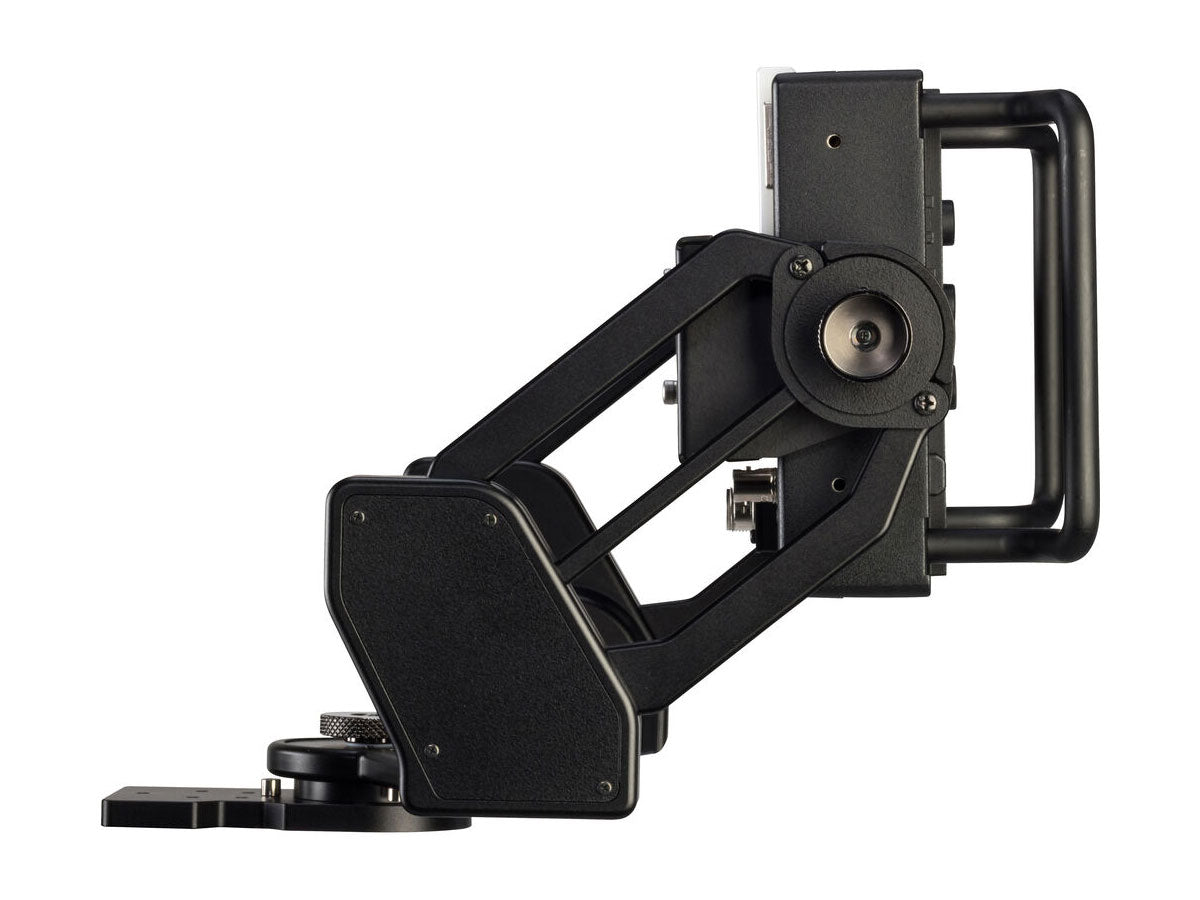

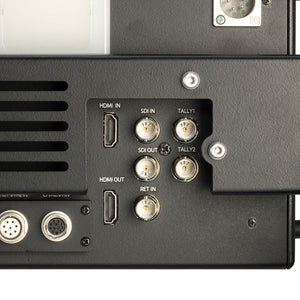

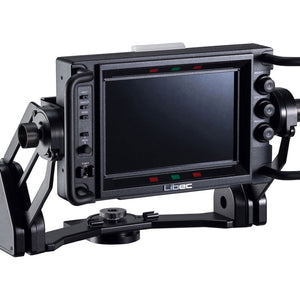

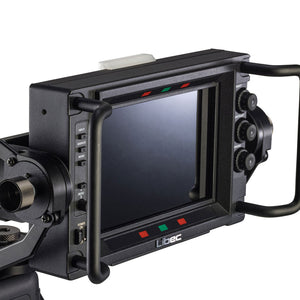

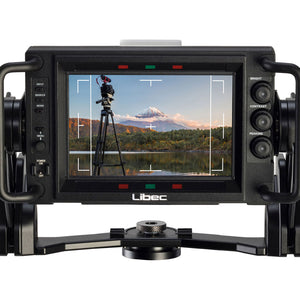

The SVF-7Pro 7" HD Viewfinder from Libec is a professional color display designed for use with studio-style video cameras. This 7" viewfinder features a 1920 x 1080 panel, both BNC and HDMI video inputs and outputs, a BNC return port, red and green tally inputs with adjustable brightness, and a 20-pin camera input port.
| Panel: | 7-inch color TFT transmissive LCD |
| Picture Resolution: | 1920 x 1080 |
| Brightness: | 350cd/m² |
| Viewing Angle: | 170°(H) / 170°(V) |
| Colour Reproduction: | 16.7M colors |
| Display Area: | 151(H) x 85(V)mm / 5.94(H) x 3.35(V)" |

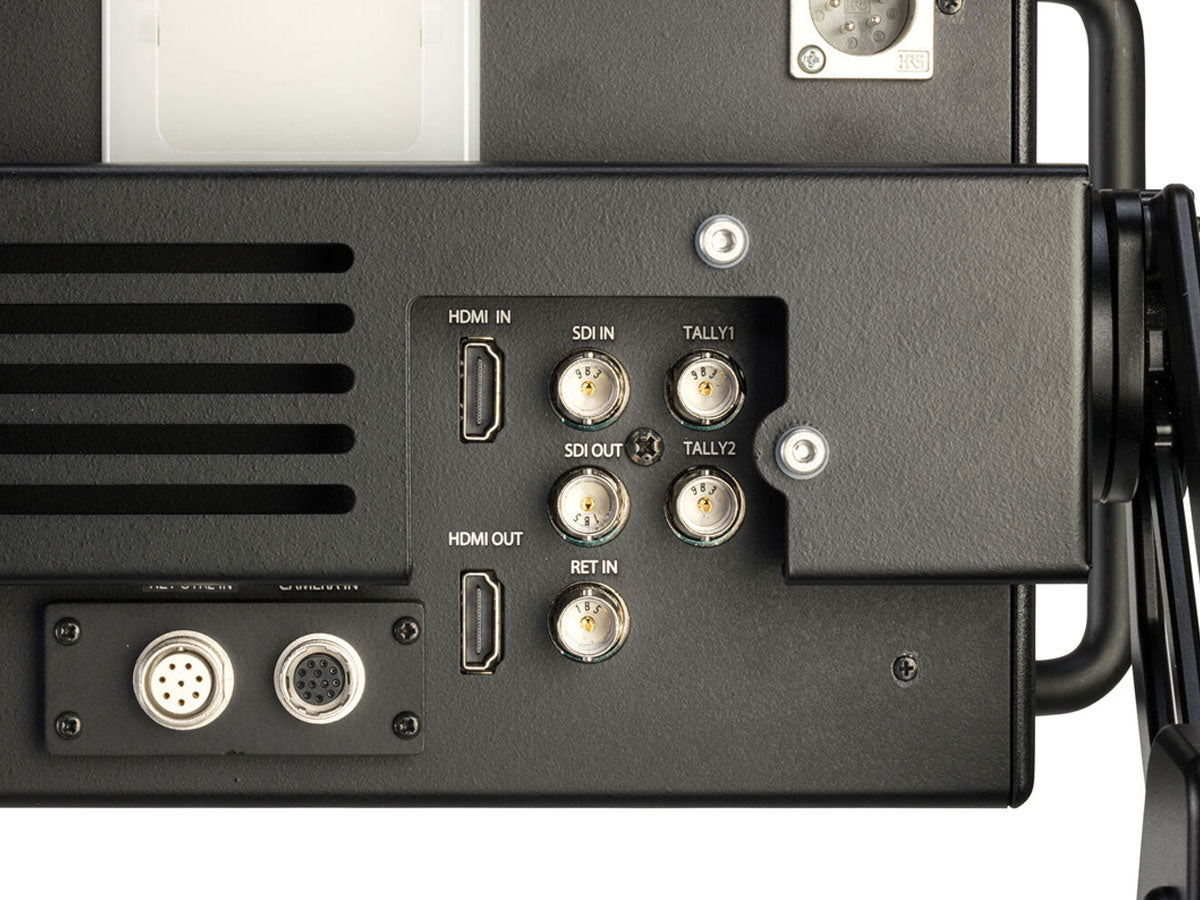

| SDI Input: | BNC x 1 |
| SDI Output: | BNC x 1 |
| SDI Return Input: | BNC x 1 |
| HDMI Input: | HDMI x 1 |
| HDMI Output: | HDMI x 1 |
| CAMERA Input: | 20-pin x 1, Analog HD component (Y / PB / PR or G / B / R) |
| TALLY Input: | TALLY1: BNC x 1, Green (2V- 4V) / Red (4.1V- 5V) / OFF (0V- 2V) TALLY2: BNC x 1, Red (ON / Short to GND) / OFF (Open) |
| TALLY Indicator: | Front tally x 2 sets, Green / Red Brightness adjustable in MENU Rear tally x 1, Red Brightness adjustable in MENU |
| Weight: | 1.2kg / 2.65lb (without accessories) |
| Size: | 232 x 146 x 47mm / 9.13 x 5.75 x 1.85" (excluding protrusions) |
| Power Consumption: | 12W |
| Operating Temperature: | 0°C to +40°C / +32°F to +104°F |
| Operating Humidity: | 30% to 85% |
| Storage Temperature: | -10°C to +45°C / +14°F to +113°F |
| Storage Humidity: | 0% to 90% |
| Video Input Signal: | 1080p (59.94 / 50 / 29.97 / 25 / 24 / 23.98) 1080i (59.94 / 50) 1080PsF (29.97 / 25 / 24 / 23.98) 720p (59.94 / 50) |
- 1x Full HD 7in Viewfinder for Studio Cameras
