Libec QD-30 Tripod System (w/Ground Spreader)

Libec QD-30 Tripod System (w/Ground Spreader)

SKU: LIB-QD-30
£8,730.00 GBP ex VAT
£10,476.00 GBP inc VAT
ex VAT £8,730.00 GBP ex VAT
£10,476.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

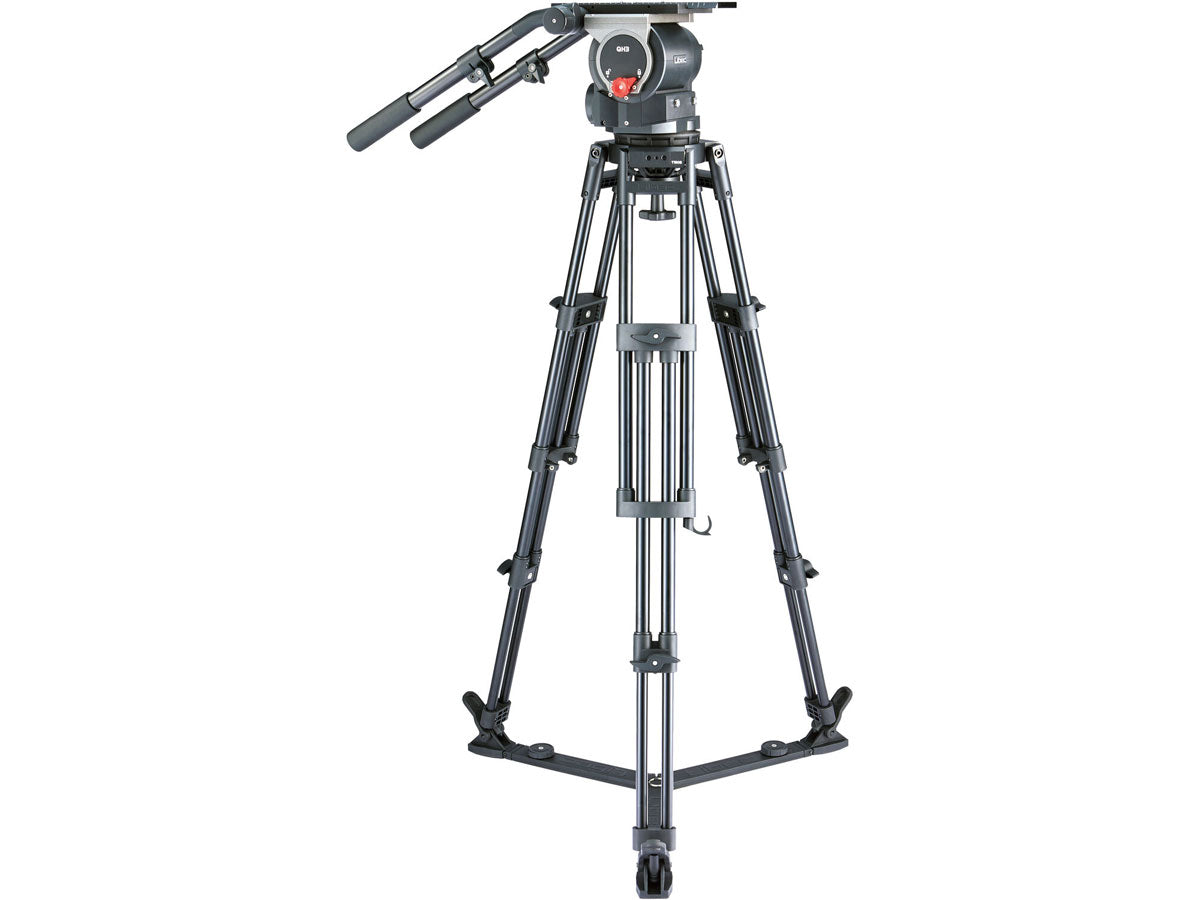

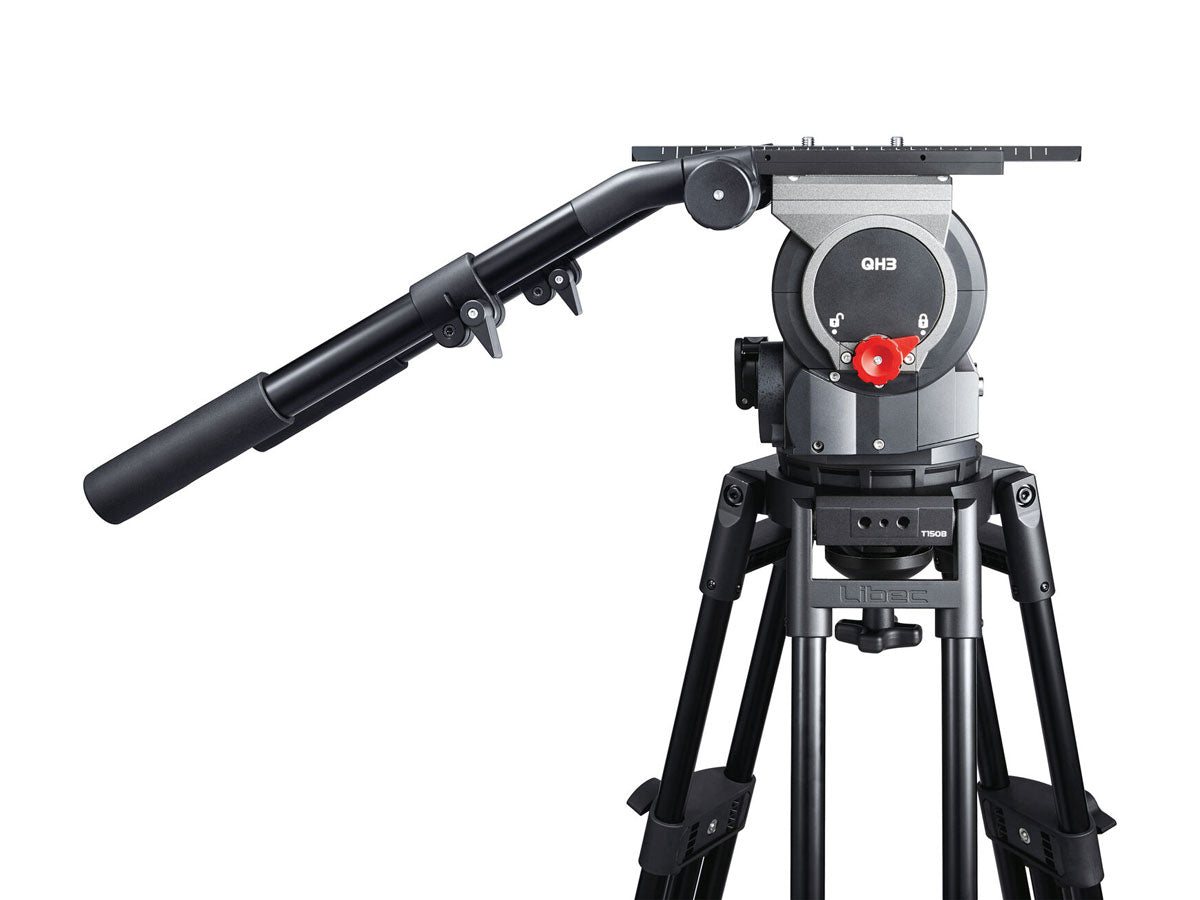

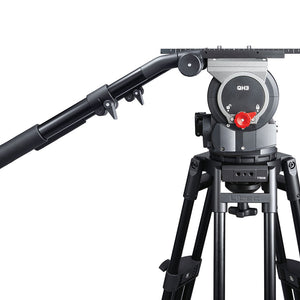

The Libec QD-30 Tripod System features the pedestal-capable QH3 4-bolt flat base fluid head and the T150B 2-stage aluminum tripod. The system is complete with the SP-15B Ground Spreader, which has individually adjustable arms. The QH3 head attaches to the tripod via an included 150mm half-ball adapter and supports up to 152 lb. It has a side-mount camera plate system and comes with two telescoping pan bars. For attaching accessories, the T150B tripod offers a total of six 1/4"-20 and 3/8"-16 mounting threads around the bowl base.

Libec QH3 Fluid Head

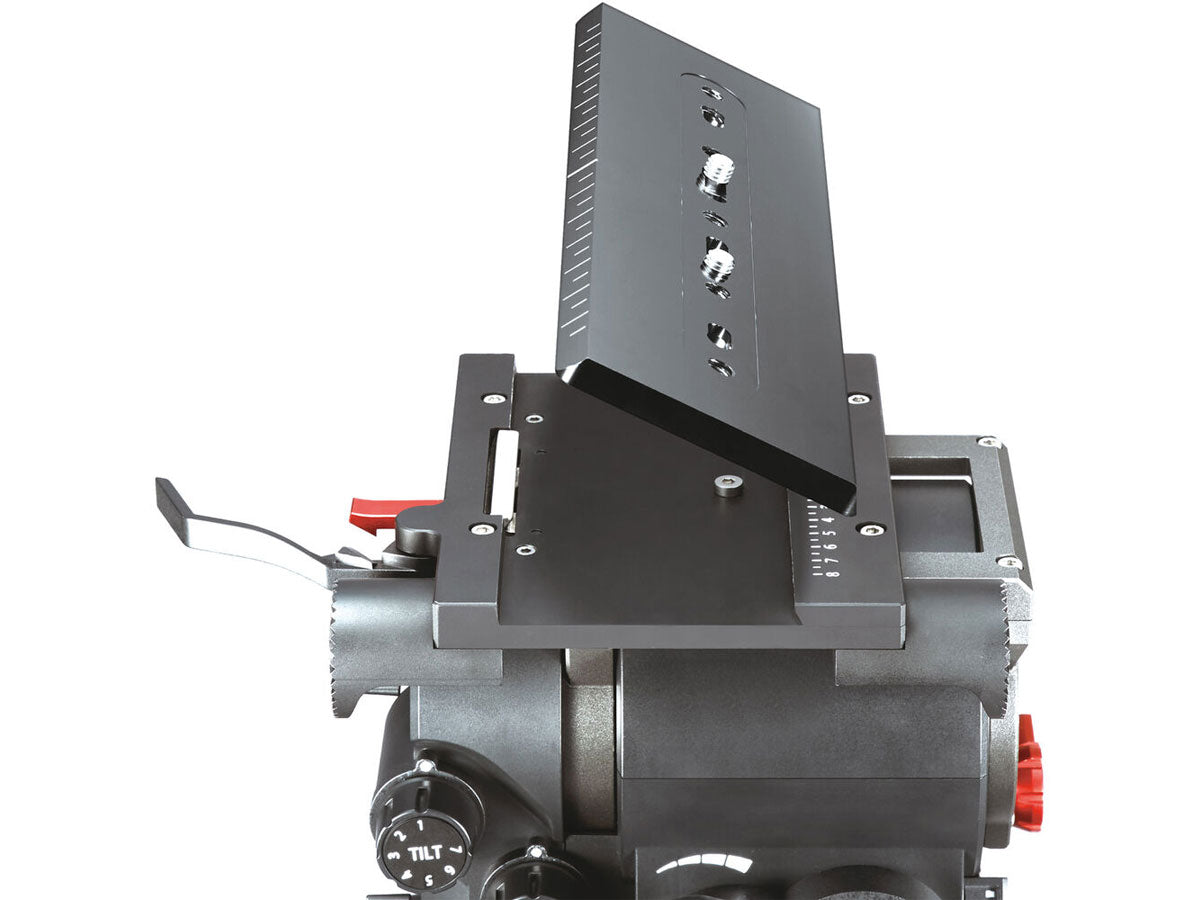

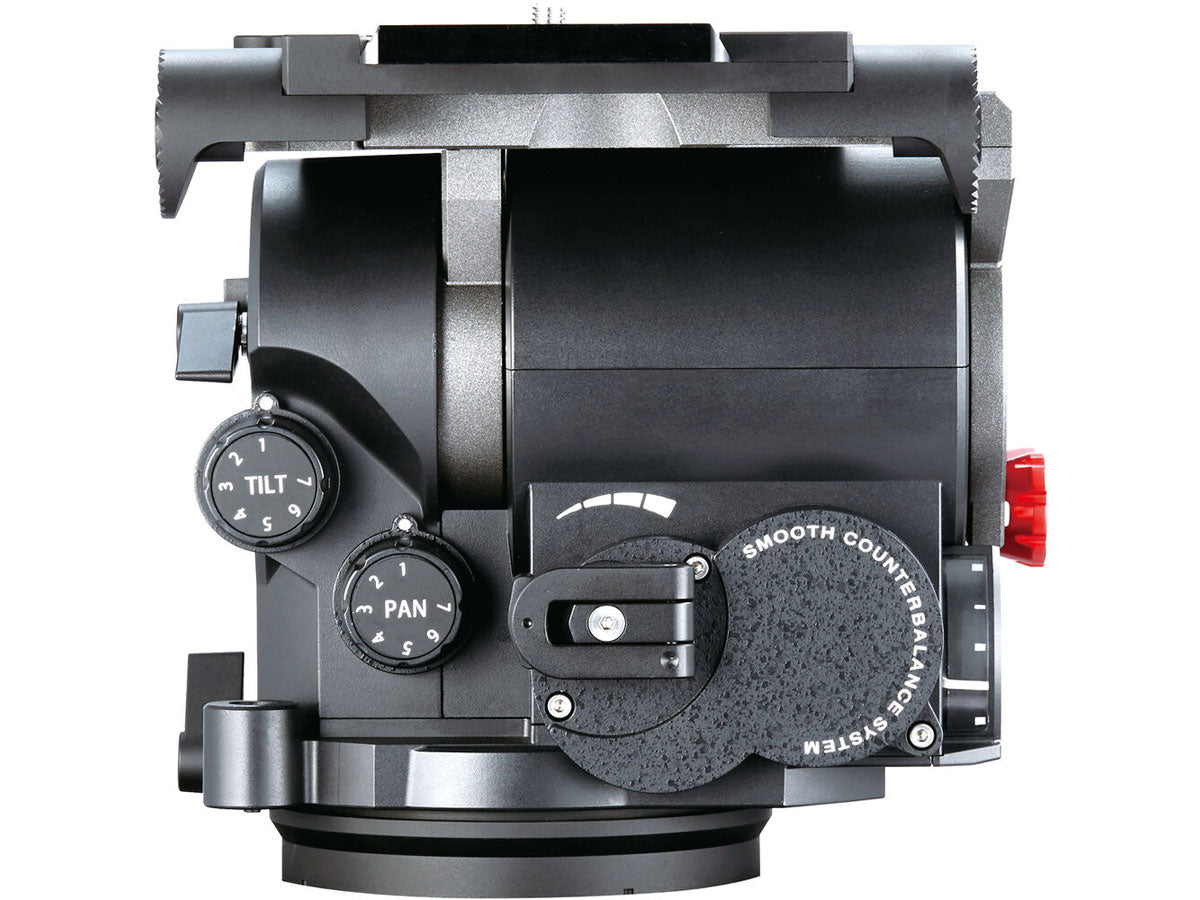

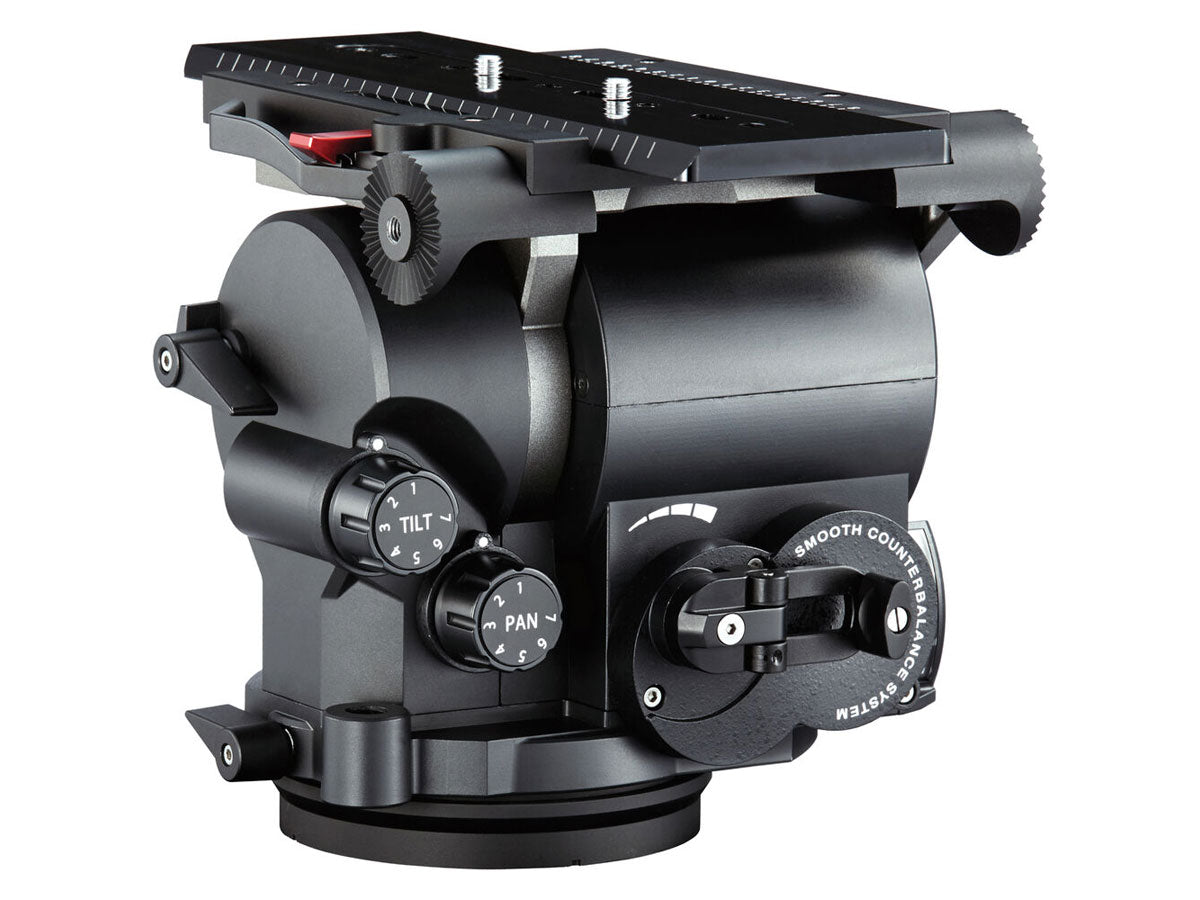

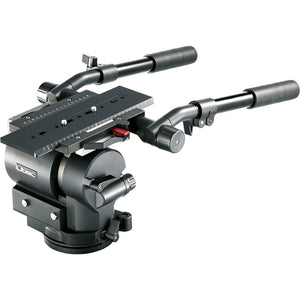

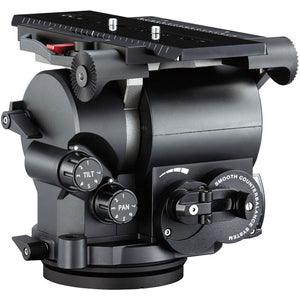

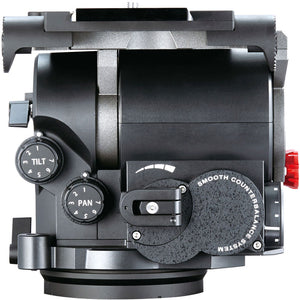

The Libec QH3 Fluid Head is a pedestal-capable heavy-duty head supporting up to 152 lb. It features a 4-bolt flat base and comes with a 150mm half ball adapter that secures via four included screws. The QH3 has a side-mount camera plate system and includes a sliding plate with dual 3/8"-16 threaded mounting screws.

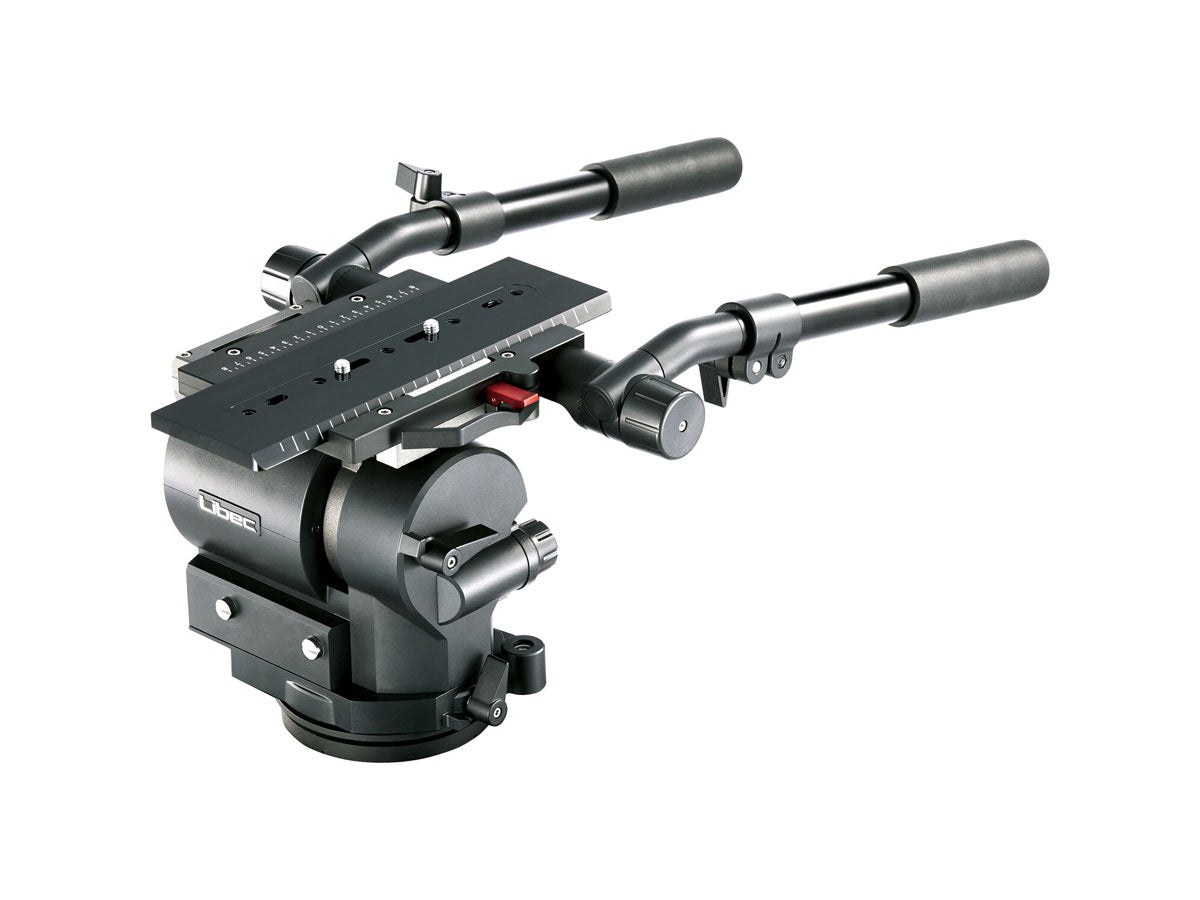

The fluid head is well suited for supporting small- and medium-sized box lens setups, and it comes with two 2-piece telescoping pan bars that allow for easier integration of optional zoom controllers. Other features include continuous counterbalance, 7-step drag, independent pan and tilt locks, and an illuminated bubble level.
Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl
The Libec T150B is a heavy-duty set of aluminum tripod legs with a 150mm bowl. It supports up to 220.5 lb and offers a height range of 23 to 64" in two legs stages. Each leg has a twist leg lock knob at each stage. The legs feature spiked feet and come with a plastic cover over them. If you incorporate an optional ground spreader, the legs can be installed into the spreader with these plastic covers on. Compatible spreaders include the SP-15B ground spreader and BR-6B mid-level spreader. Optional rubber food pads are also supported, such as the FP-6B pads.

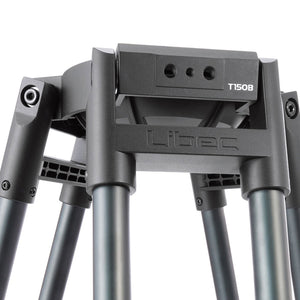

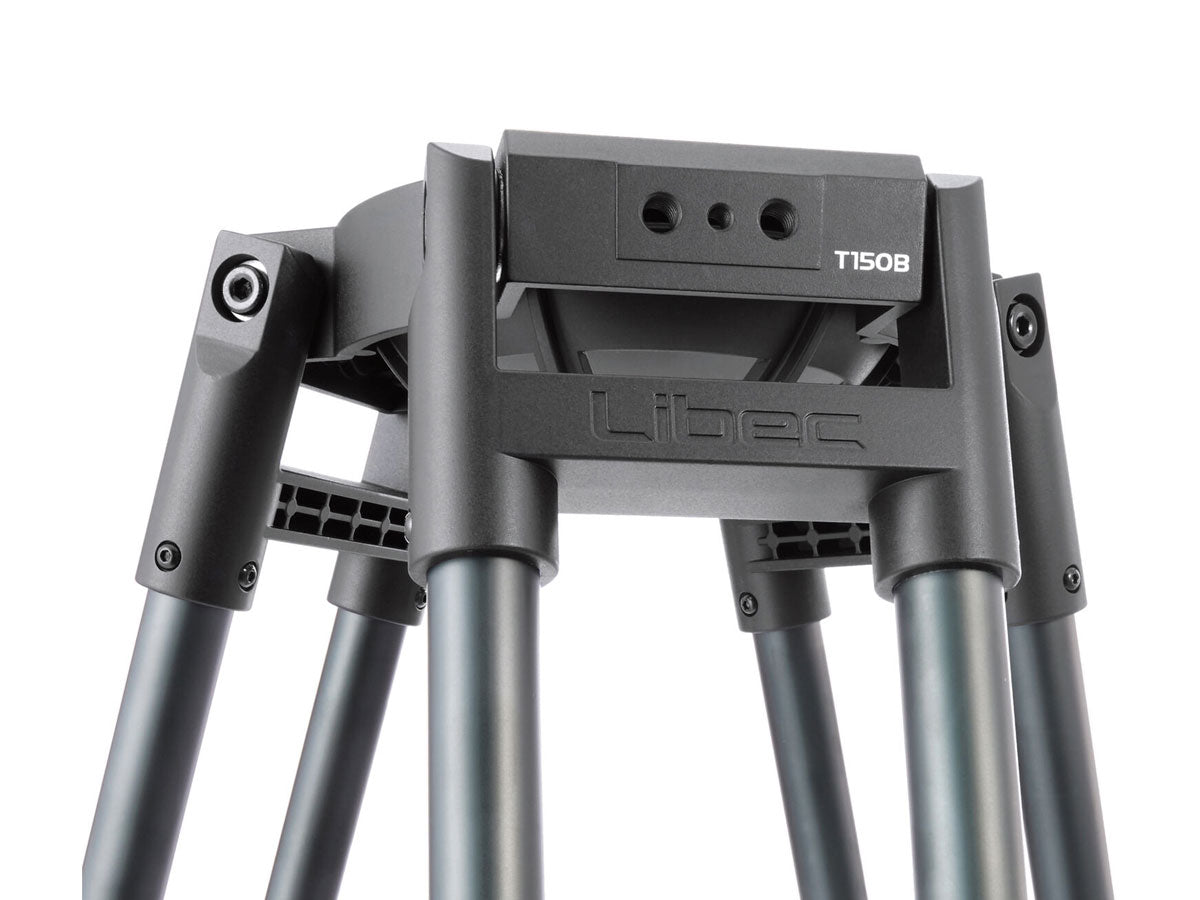

Multiple 3/8"-16 and 1/4"-20 accessory mount threads are provided on two sides of the tripod, on top near the bowl base. A weight hook is also provided on one of the legs. The T150B is made in Japan. Compatible tripod heads include the Libec QH1 and QH3.
Libec SP-15B Ground Spreader for T150B & T150C Tripods
The Libec SP-15B Ground Spreader is compatible with the Libec T150B and T150C tripods. The arms are individually length-adjustable when you loosen dedicated knobs, and a pull ring is provided in the center for collapsing the spreader.
Libec QH3 Fluid Head

  • Pedestal-capable heavy-duty fluid head with 152 lb payload
  • Flat base with four screw holes for securing an included 150mm half ball adapter or mounting on a pedestal

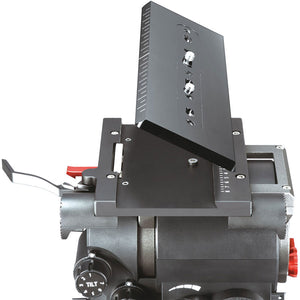

  • Side-mount camera plate system
  • 3" sliding camera plate with dual 3/8"-16 threaded mounting screws
  • Two 2-piece telescoping pan bars
  • Continuous counterbalance
  • 7-step drag
  • Independent pan and tilt locks
  • 90 to -70° tilt
  • Illuminated bubble level
  • Aluminum construction
  • Made in Japan



Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl

  • 150mm bowl
  • 220.5 lb payload
  • 23 to 64" height range in two leg stages
  • Ergonomic twist leg lock knob at each stage of each leg
  • Spiked feet
  • One 1/4"-20 and two 3/8"-16 accessory mount threads on two sides of the tripod, for a total of six mounting points
  • Weight hook
  • Optional foot pads and mid and ground spreaders supported
  • Made in Japan

Libec QH3 Fluid Head

Camera Plate Features Sliding Balance Plate
Camera Mounting Screw 2 x 3/8"-16 Male
Balance Plate Sliding Range 2.95" / 75 mm
Base Mount 4-Bolt Flat Base
Drag Control 7-Step
Vertical Tilt +90° to -70°
Independent Pan Lock Yes
Independent Tilt Lock Yes
Material Aluminum
Load Capacity 152 lb / 68.95 kg
Counter Balance Continuous (62 to 143 lb / 28.12 to 64.86 kg)
Center of Gravity 4.92" / 125 mm
Bubble Level 1 x Illuminated
Operating Temperature -4 to 140°F / -20 to 60°C
Weight 27.9 lb / 12.66 kg



Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl

Head Mount Type 150 mm Bowl
Load Capacity 220.5 lb / 100.02 kg
Maximum Working Height 64" / 162.56 cm
Minimum Working Height 23" / 58.42 cm
Materials Aluminum
Accessory Mounting 4 x 3/8"-16 Female Thread
2 x 1/4"-20 Female Thread
Weight 14.5 lb / 6.58 kg
Leg Lock Type Twist Lock
Leg Sections 3
Feet Features Spiked
Spreader (Not Included)



Libec SP-15B Ground Spreader for T150B & T150C Tripods

Weight 2.6 lb / 1.2 kg
  • Libec QH3 Fluid Head
  • Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl
  • Libec SP-15B Ground Spreader for T150B & T150C Tripods
