Libec QD-10 Tripod System (w/Ground Spreader)

Libec QD-10 Tripod System (w/Ground Spreader)

SKU: LIB-QD-10
£7,560.00 GBP ex VAT
£9,072.00 GBP inc VAT
ex VAT £7,560.00 GBP ex VAT
£9,072.00 GBP inc VAT
Sale Sold out
Out of Stock
View full details Liquid error (sections/main-product line 1249): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Specifications
  • What's Included

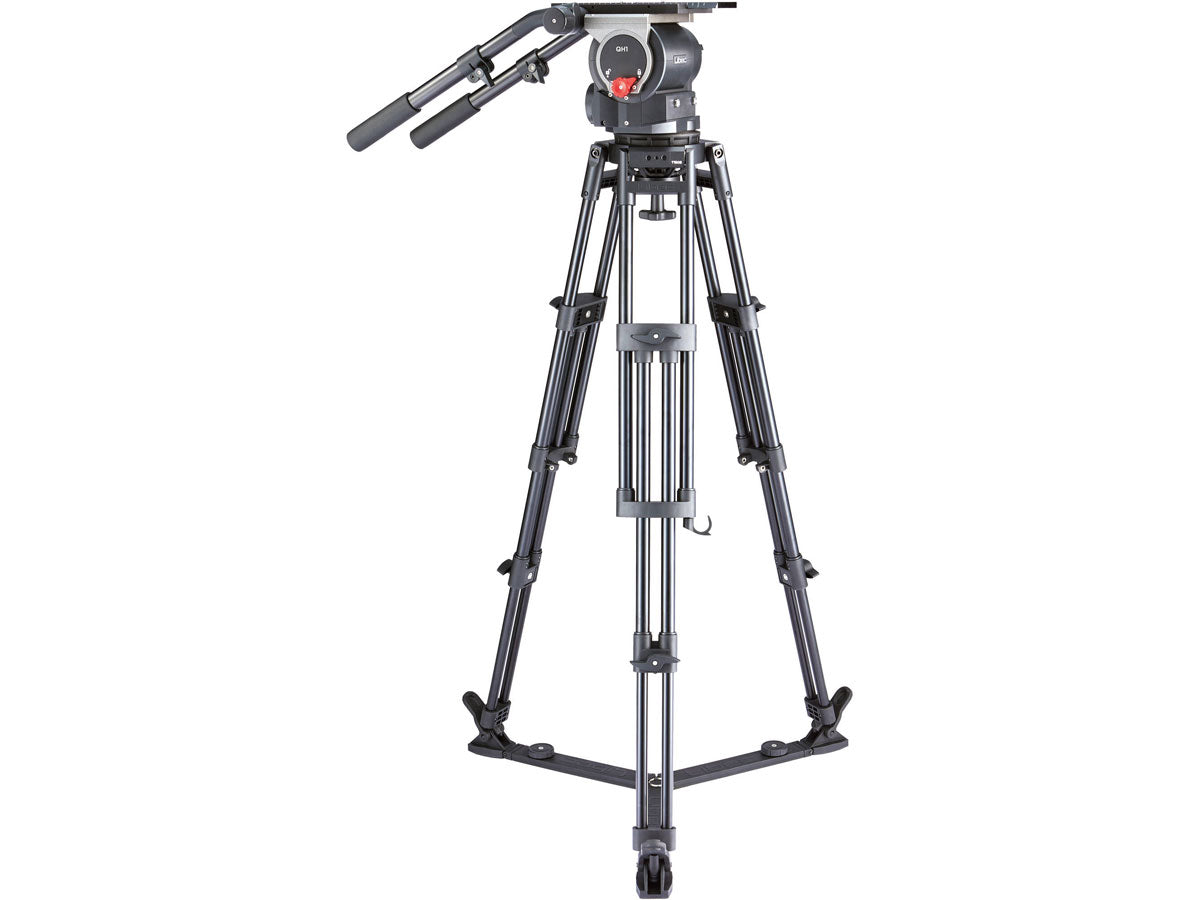

The Libec QD-10 Tripod System features the pedestal-capable QH1 4-bolt flat base fluid head and the T150B 2-stage aluminum tripod. The system is complete with the SP-15B Ground Spreader, which has individually adjustable arms. The QH1 head attaches to the tripod via an included 150mm half-ball adapter and supports up to 88 lb. It has a side-mount camera plate system and comes with two telescoping pan bars. For attaching accessories, the T150B tripod offers a total of six 1/4"-20 and 3/8"-16 mounting threads around the bowl base.
Libec QH1 Fluid Head

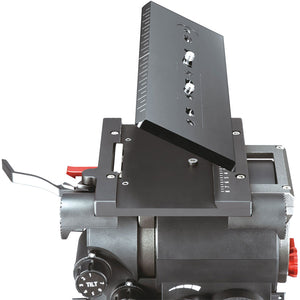

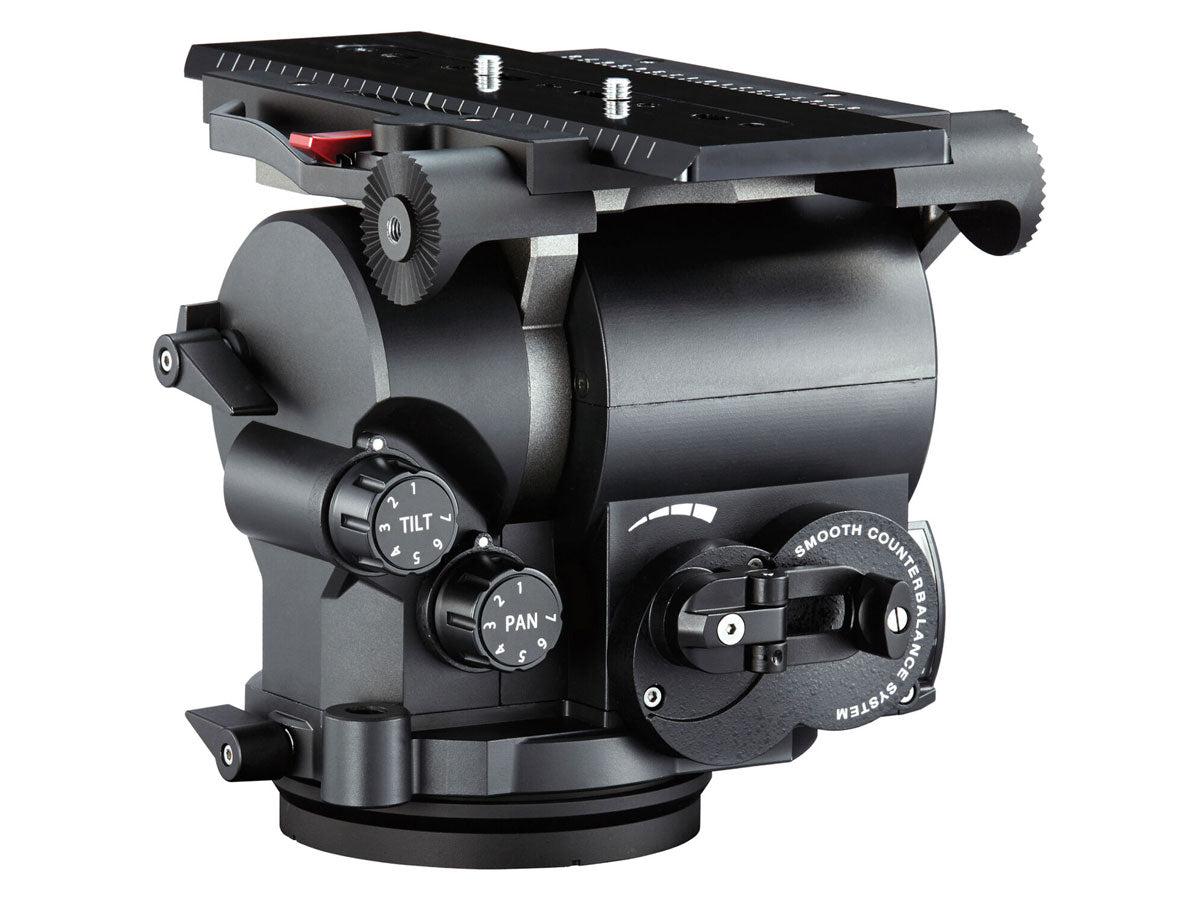

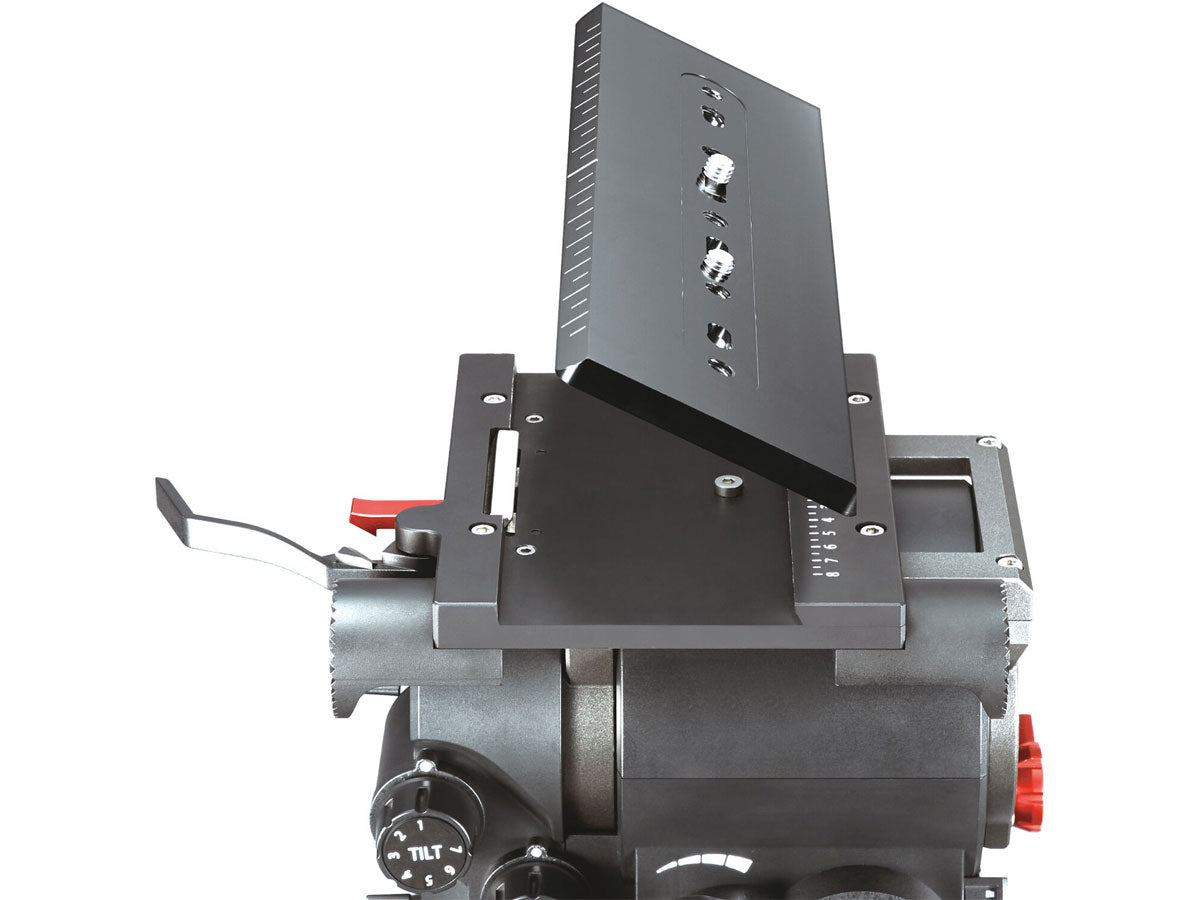

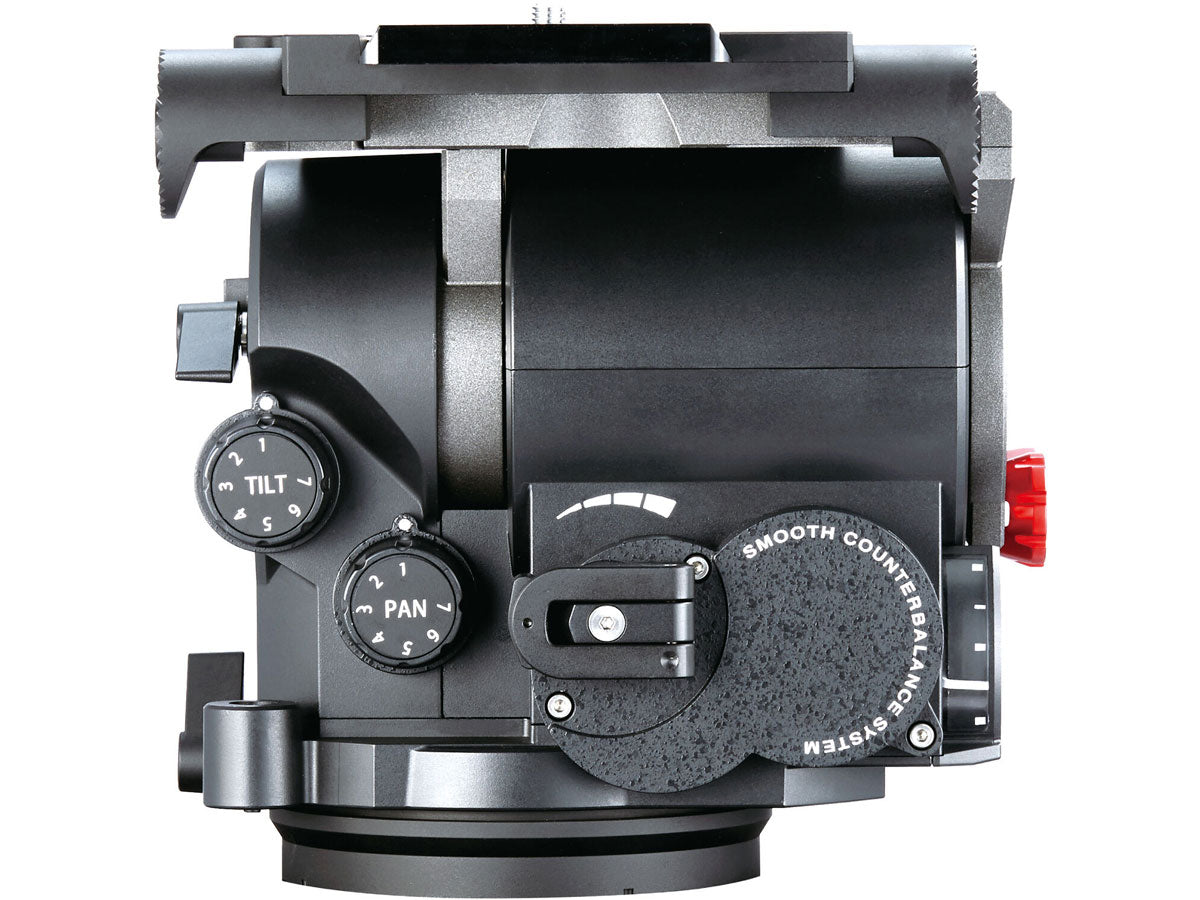

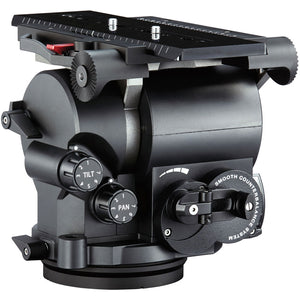

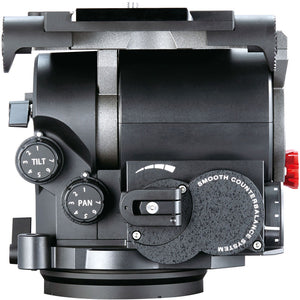

The Libec QH1 Fluid Head is a pedestal-capable heavy-duty head supporting up to 88 lb. It features a 4-bolt flat base and comes with a 150mm half ball adapter that secures via four included screws. The QH1 has a side-mount camera plate system and includes a sliding plate with dual 3/8"-16 threaded mounting screws.

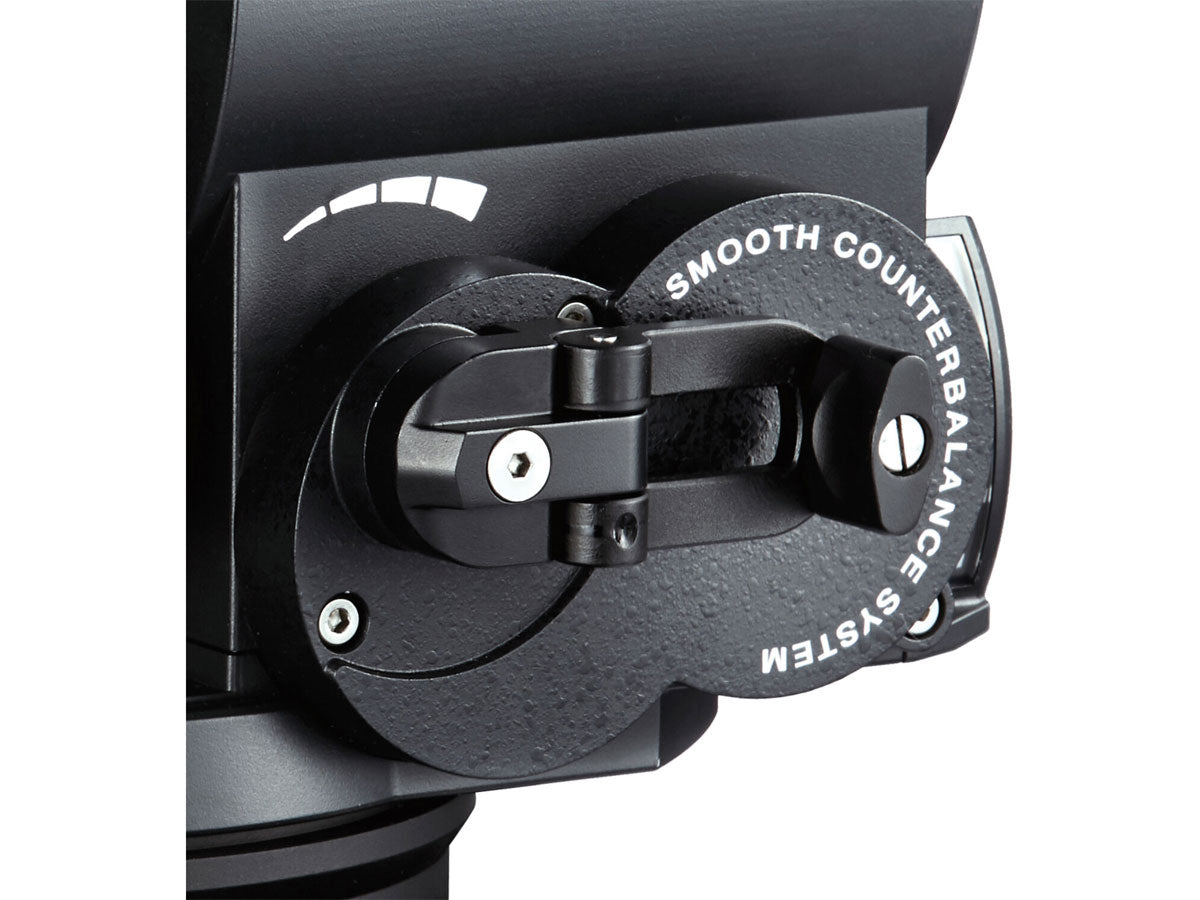

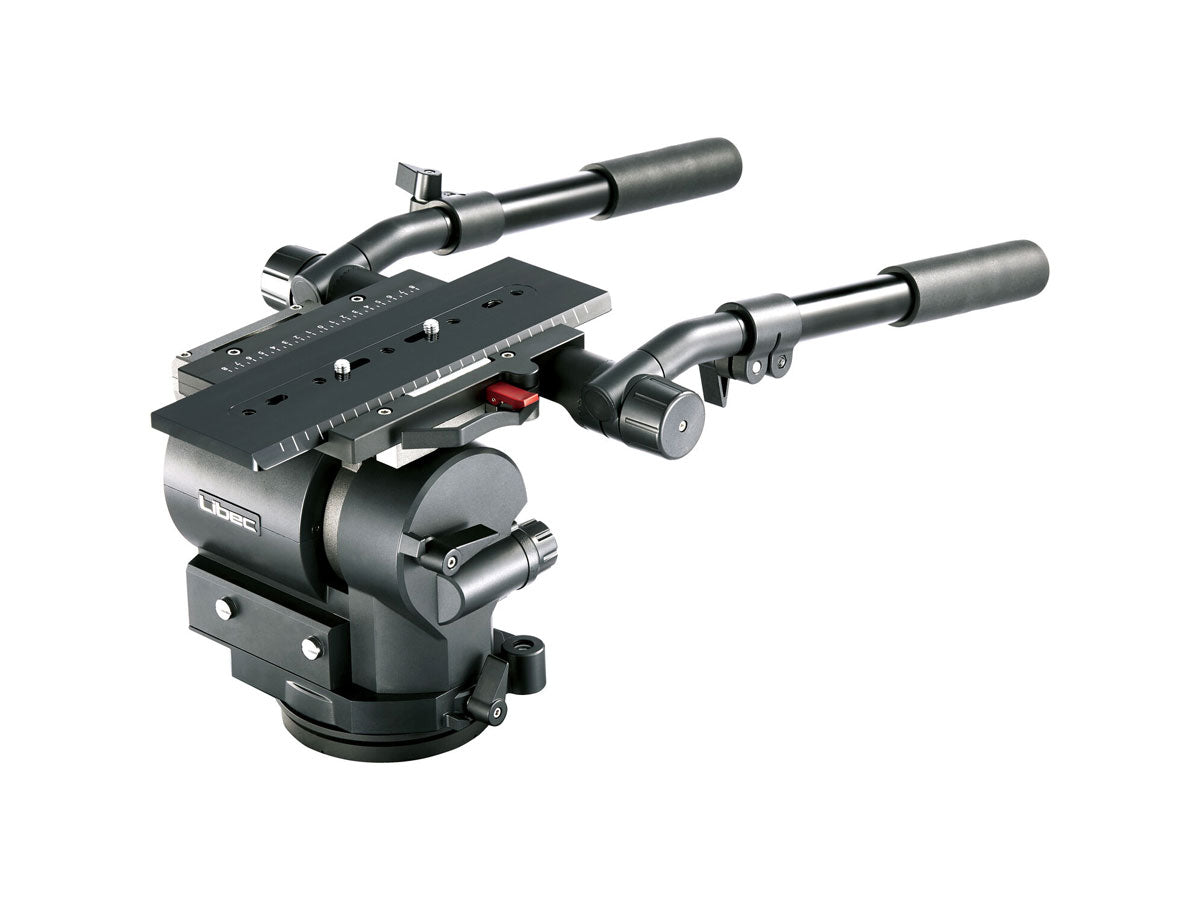

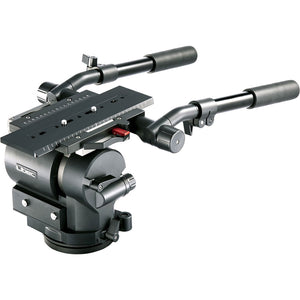

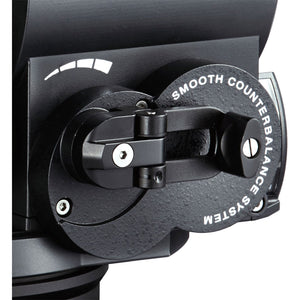

The fluid head is well suited for use with teleprompter setups, including those with talent monitors, as well as for supporting cameras with small box lenses, and it comes with two 2-piece telescoping pan bars that allow for easier integration of optional zoom controllers. Other features include continuous counterbalance, 7-step drag, independent pan and tilt locks, and an illuminated bubble level.
Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl

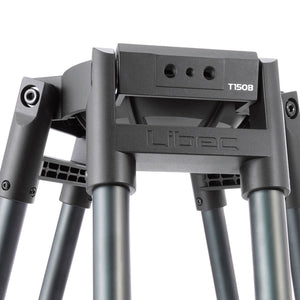

The Libec T150B is a heavy-duty set of aluminum tripod legs with a 150mm bowl. It supports up to 220.5 lb and offers a height range of 23 to 64" in two legs stages. Each leg has a twist leg lock knob at each stage. The legs feature spiked feet and come with a plastic cover over them. If you incorporate an optional ground spreader, the legs can be installed into the spreader with these plastic covers on. Compatible spreaders include the SP-15B ground spreader and BR-6B mid-level spreader. Optional rubber food pads are also supported, such as the FP-6B pads.

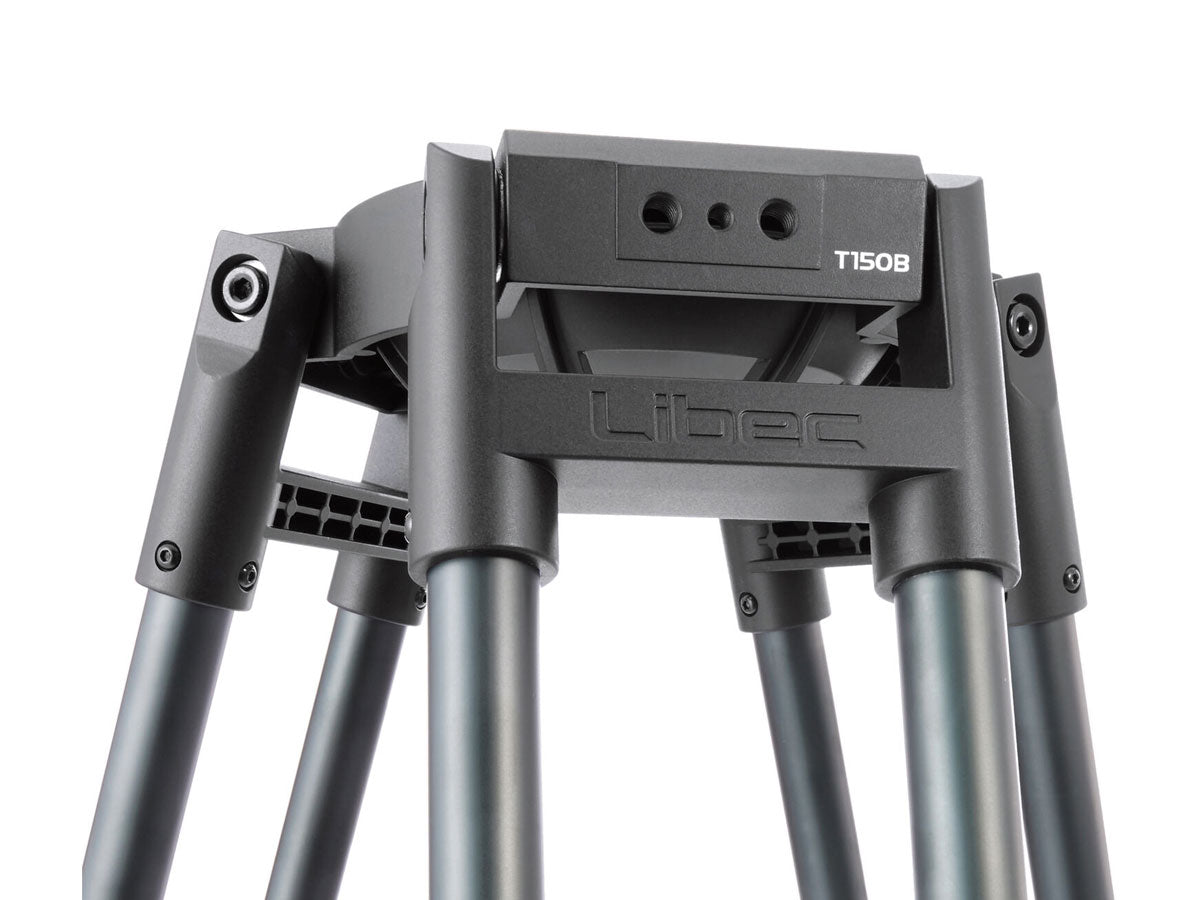

Multiple 3/8"-16 and 1/4"-20 accessory mount threads are provided on two sides of the tripod, on top near the bowl base. A weight hook is also provided on one of the legs. The T150B is made in Japan. Compatible tripod heads include the Libec QH1 and QH3.
Libec SP-15B Ground Spreader for T150B & T150C Tripods
The Libec SP-15B Ground Spreader is compatible with the Libec T150B and T150C tripods. The arms are individually length-adjustable when you loosen dedicated knobs, and a pull ring is provided in the center for collapsing the spreader.
Libec QH1 Fluid Head
  • Pedestal-capable heavy-duty fluid head with 88 lb payload
  • Flat base with four screw holes for securing an included 150mm half ball adapter or mounting on a pedestal
  • Side-mount camera plate system
  • 3" sliding camera plate with dual 3/8"-16 threaded mounting screws
  • Two 2-piece telescoping pan bars
  • Continuous counterbalance
  • 7-step drag
  • Independent pan and tilt locks
  • 90 to -70° tilt
  • Illuminated bubble level
  • Aluminum construction
  • Made in Japan



Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl
  • 150mm bowl
  • 220.5 lb payload
  • 23 to 64" height range in two leg stages
  • Ergonomic twist leg lock knob at each stage of each leg
  • Spiked feet
  • One 1/4"-20 and two 3/8"-16 accessory mount threads on two sides of the tripod, for a total of six mounting points
  • Weight hook
  • Optional foot pads and mid and ground spreaders supported
  • Made in Japan
Libec QH1 Fluid Head Specs

Camera Plate Features Sliding Balance Plate
Camera Mounting Screw 2 x 3/8"-16 Male
Balance Plate Sliding Range 2.95" / 75 mm
Base Mount 4-Bolt Flat Base
Drag Control 7-Step
Vertical Tilt +90° to -70°
Independent Pan Lock Yes
Independent Tilt Lock Yes
Material Aluminum
Load Capacity 88 lb / 39.92 kg
Counter Balance Continuous (33 to 77 lb / 14.97 to 34.93 kg)
Center of Gravity 4.92" / 125 mm
Bubble Level 1 x Illuminated
Operating Temperature -4 to 140°F / -20 to 60°C
Weight 27.9 lb / 12.66 kg



Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl Specs

Head Mount Type 150 mm Bowl
Load Capacity 220.5 lb / 100.02 kg
Maximum Working Height 64" / 162.56 cm
Minimum Working Height 23" / 58.42 cm
Materials Aluminum
Accessory Mounting 4 x 3/8"-16 Female Thread
2 x 1/4"-20 Female Thread
Weight 14.5 lb / 6.58 kg
Leg Lock Type Twist Lock
Leg Sections 3
Feet Features Spiked
Spreader (Not Included)

Libec SP-15B Ground Spreader for T150B & T150C Tripods Specs

Weight 2.6 lb / 1.2 kg
  • Libec QH1 Fluid Head
  • Libec T150B Heavy-Duty 2-Stage Aluminum Tripod Legs with 150mm Bowl
  • Libec SP-15B Ground Spreader for T150B & T150C Tripods
